Case IH & New Holland Instrument Control Unit / ICU / EIC Error Codes

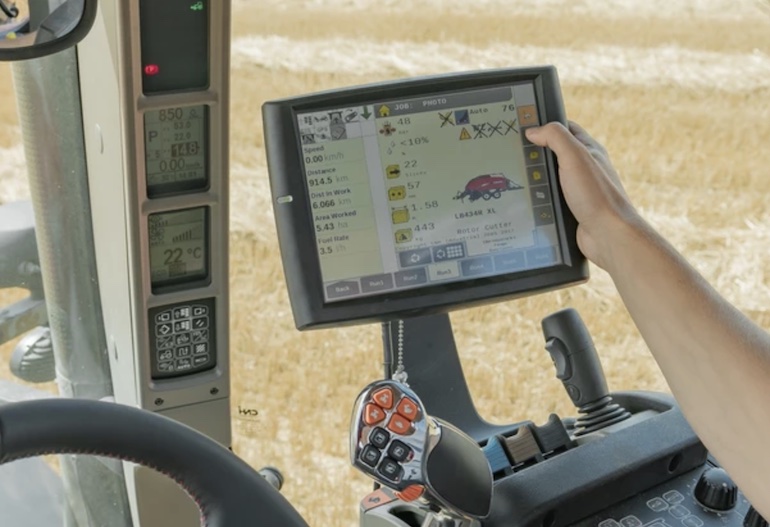

In the world of modern farming machinery, the Instrument Control Unit (ICU) is the central brain that monitors and manages various functions within Case IH and New Holland tractors. However, like any complex system, ICUs can encounter issues, leading to the generation of Diagnostic Trouble Codes (DTCs). In this guide, we delve into the world of Case IH and New Holland ICU Error Codes, providing valuable insights for farmers and mechanics alike.

ICU Error Codes, often referred to as Diagnostic Trouble Codes (DTCs), are numerical or alphanumeric indicators that signal an irregularity or malfunction within the tractor’s ICU system. Each code corresponds to a specific issue, making troubleshooting more efficient.

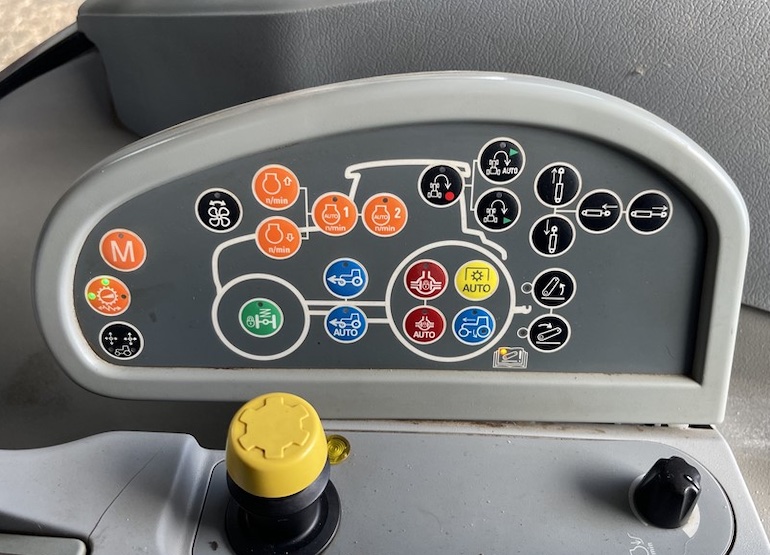

New Holland Instrument Control Unit Error Codes

Case IH & New Holland ICU Error Codes serve as invaluable tools for identifying issues promptly. They enable farmers and mechanics to pinpoint problems within the ICU system, ranging from engine-related concerns to issues with transmission, sensors, or communication networks.

When an ICU Error Code appears, the diagnostic process typically involves using specialized diagnostic equipment to access detailed information about the issue. This may include testing sensors, inspecting wiring, or verifying signal outputs.

Understanding Case IH and New Holland ICU Error Codes is key to ensuring the optimal performance and reliability of your farming equipment. By implementing routine maintenance, operator training, and professional assistance when needed, you can keep your tractors running smoothly, contributing to a productive and efficient farming operation.

Case IH & New Holland Instrument Control Unit / ICU Errors

Here is the table containing New Holland / Case IH instrument control unit (ICU) error code numbers along with their corresponding error descriptions:

Error Code Number Instrument Control Unit / ICU Error Description
ICU 14002 Transmission oil filter switch shorted to ground at power up
ICU 14003 Hydraulic oil filter switch shorted to ground at power up
ICU 14005 PTO speed data is in ERROR or NOT AVAILABLE state from PTO
ICU 14006 GOV motor speed data is in ERROR or NOT AVAILABLE state from GOV
ICU 14007 Motor overspeed
ICU 14008 Engine oil pressure data is in ERROR or NOT AVAILABLE state from GOV
ICU 14009 Loss of valid engine hours
ICU 14010 PTO controller disconnected from mains
ICU 14011 Lost Communication with Vehicle Data Bus 1 and ALL other controllers
ICU 14014 ENGINE coolant temperature data is in ERROR or NOT AVAILABLE state from GOV
ICU 14015 Engine intake air temperature data: ERROR or NOT AVAILABLE state from GOV
ICU 14016 Engine shutdown activated
ICU 14017 Fuel level sensor low voltage out of range
ICU 14018 GOV Off Line
ICU 14019 ATC Off Line

Regular maintenance practices, such as sensor checks, software updates, and fluid level inspections, can help prevent ICU Error Codes from occurring. These proactive measures contribute to the longevity and reliability of your tractor.

Case IH & New Holland Digital Instrument Cluster / EIC Errors

Error Code Error Description
EIC 1 Engine Oil Pressure Sender Short Or Open Circuit
EIC 2 Engine Oil Pressure Sender Short To +Ve Voltage
EIC 3 Fuel Tank Level Sender Short To Ground
EIC 4 Fuel Tank Level Sender Open Circuit Or Short To +Ve Voltage
EIC 5 Wheel Speed Sender Short Circuit
EIC 6 Wheel Speed Sender Open Circuit
EIC 7 Coolant Temperature Sender Short Circuit
EIC 8 EDC Serial Link Failure. Communications Error
EIC 9 Transmission Serial Link Failure. Communications Error
EIC 10 Memory Retention Error Of Battery Calibration Constant
EIC 11 Memory Retention Error Of Operator Setting For Slip Alarm, Slip Zero Reference Constant, Implement Width And Service Hours
EIC 12 Coolant Temperature Sender Open Circuit Or Shorted To A +Ve Voltage
EIC 13 Engine Shut Down Output Short To A +Ve Voltage

New Holland EIC Error Codes (MXM / TMs Digital Instrument Cluster Codes)

Case IH & New Holland Instrument Control Unit / ICU Error Codes

Tractor operators should be trained to recognize and report ICU Error Codes promptly. Early detection can prevent minor issues from escalating into major problems, minimizing downtime. Following the manufacturer’s guidelines for tractor operation is crucial in preventing ICU-related issues. Proper usage, including avoiding overloading and maintaining correct fluid levels, can reduce the likelihood of error codes.

For complex ICU-related problems or if you’re uncertain about how to address a specific Error Code, it’s advisable to consult a certified mechanic with expertise in Case IH and New Holland tractors. They have the knowledge and tools to diagnose and resolve ICU issues effectively.

Can I Clear Tractor Instrument Control Unit / ICU Errors Myself?

Clearing errors in the Instrument Control Unit (ICU) on your Case IH and New Holland tractors involves certain considerations and precautions. Here’s a guide on whether you can clear these errors yourself:

  1. Check the Manual: Consult your tractor’s service manual to understand the nature of the ICU errors, their potential causes, and recommended procedures for resolution. The manual provides valuable insights into specific error codes and how to address them.
  2. Understand Error Codes: Before attempting to clear errors, it’s crucial to understand the meaning and implications of the specific error codes displayed in the ICU. Different codes may indicate various issues related to sensors, components, or system malfunctions.
  3. Use Diagnostic Tools: Tractors are often equipped with diagnostic tools that allow users to read error codes and, in some cases, clear certain codes. If your tractor provides this capability, follow the manufacturer’s instructions in the manual to use these tools safely.
  4. Battery Disconnect: Disconnecting the tractor’s battery for a short period may reset the electronic control systems and clear some errors. However, this method may not be effective for all types of errors, and it may not address the underlying issue causing the errors.
  5. Evaluate Complexity: Consider the complexity of the ICU errors and your familiarity with the tractor’s systems. Some errors may require advanced diagnostics or adjustments that are best handled by certified technicians with specialized tools.
  6. Document Error Information: Before attempting to clear errors, document the specific error codes and any accompanying details. This information can be valuable for technicians if professional assistance is needed.
  7. Seek Professional Assistance: If you are uncertain about the nature of the ICU errors or lack experience in dealing with complex tractor systems, it’s advisable to seek professional assistance. Certified Case IH or New Holland mechanics or authorized service centers have the expertise to diagnose and address issues accurately.
  8. Preventive Measures: Instead of solely focusing on clearing errors, prioritize preventive measures. Regular maintenance, adherence to operating guidelines, and timely addressing of potential issues can reduce the likelihood of encountering ICU errors.

Clearing ICU errors without addressing the root cause may lead to recurring issues. If the errors persist or if you are unsure about the appropriate steps to take, involving professional assistance is recommended to ensure the proper functioning of your Case IH or New Holland tractor’s ICU. Always prioritize safety and follow manufacturer guidelines when dealing with diagnostic procedures.

How Can I Prevent Case IH & New Holland ICU Errors?

Preventing Instrument Control Unit (ICU) errors on your Case IH and New Holland tractors is crucial for maintaining smooth operation and avoiding unexpected downtime. Here are unique tips to help prevent ICU errors:

  1. Routine Visual Inspections: Conduct regular visual inspections of the Instrument Control Unit and surrounding components. Look for loose connections, damaged wires, or any signs of wear. Early detection of issues can prevent ICU errors.
  2. Secure Mounting: Ensure that the ICU is securely mounted in its designated location. Vibrations and excessive movement can lead to electrical connections becoming loose over time, potentially causing errors.
  3. Environmental Protection: Shield the ICU from harsh environmental conditions. Install protective covers or enclosures to guard against moisture, dust, and extreme temperatures, as these factors can contribute to electronic malfunctions.
  4. Proper Wiring Practices: Follow proper wiring practices when installing or maintaining the tractor’s electrical components. Avoid creating stress on wires and cables, and secure them in a way that minimizes the risk of abrasion or damage.
  5. Regular Software Updates: Keep the ICU software up to date by applying manufacturer-recommended updates. Software updates often include enhancements, bug fixes, and optimizations that can improve system stability and reduce the risk of errors.
  6. Battery Maintenance: Ensure that the tractor’s battery is in good condition and well-maintained. Weak or faulty batteries can lead to voltage fluctuations, which may trigger ICU errors. Regularly check the battery’s charge level and connections.
  7. Operator Training: Train tractor operators on the proper startup and shutdown procedures. Emphasize the importance of following manufacturer guidelines to prevent unnecessary stress on the ICU during these critical phases.
  8. Implement Surge Protection: Install surge protectors in the electrical system to safeguard the ICU from voltage spikes and electrical surges. This extra layer of protection can prevent damage to sensitive electronic components.
  9. Temperature Control: Regulate the temperature within the tractor’s cabin to ensure that it stays within the recommended range. Extreme temperatures can affect the performance of electronic components, including the ICU.
  10. Thorough Diagnostics after Repairs: Following any repairs or maintenance activities that involve the ICU, conduct thorough diagnostics to ensure that all connections are secure, and the system functions properly. This step helps catch potential issues before they escalate.
  11. Invest in Quality Components: When replacing or upgrading ICU-related components, opt for high-quality, OEM (Original Equipment Manufacturer) parts. Quality components are designed to meet manufacturer specifications and are less likely to cause compatibility issues.

By incorporating these unique preventive measures into your tractor maintenance routine, you can reduce the risk of ICU errors on your Case IH and New Holland tractors. Regular attention to the electronic systems and environmental factors can contribute to the overall reliability and longevity of the ICU.
