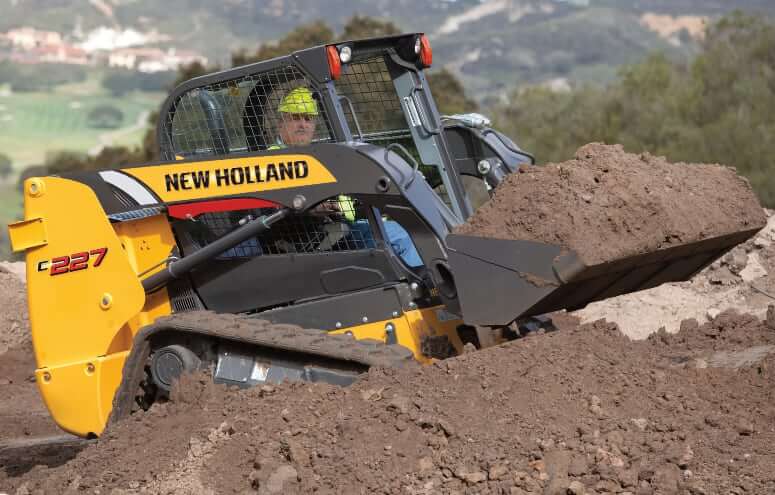

Loader Performance
| Tipping Load | 5400 lb (2449 kg) |
| Rated Operating Capacity, 50% | 2700 lb (1225 kg) |
| Rated Operating Capacity, 35% | 1890 lb (860 kg) |
| Bucket Breakout Force | 7270 lbf (32.3 kN) |
| Boom Breakout Force | 6080 lbf (27 kN) |
| Standard Bucket Width | 72 in (1829 mm) |
| Lift Arm Path | Radial |

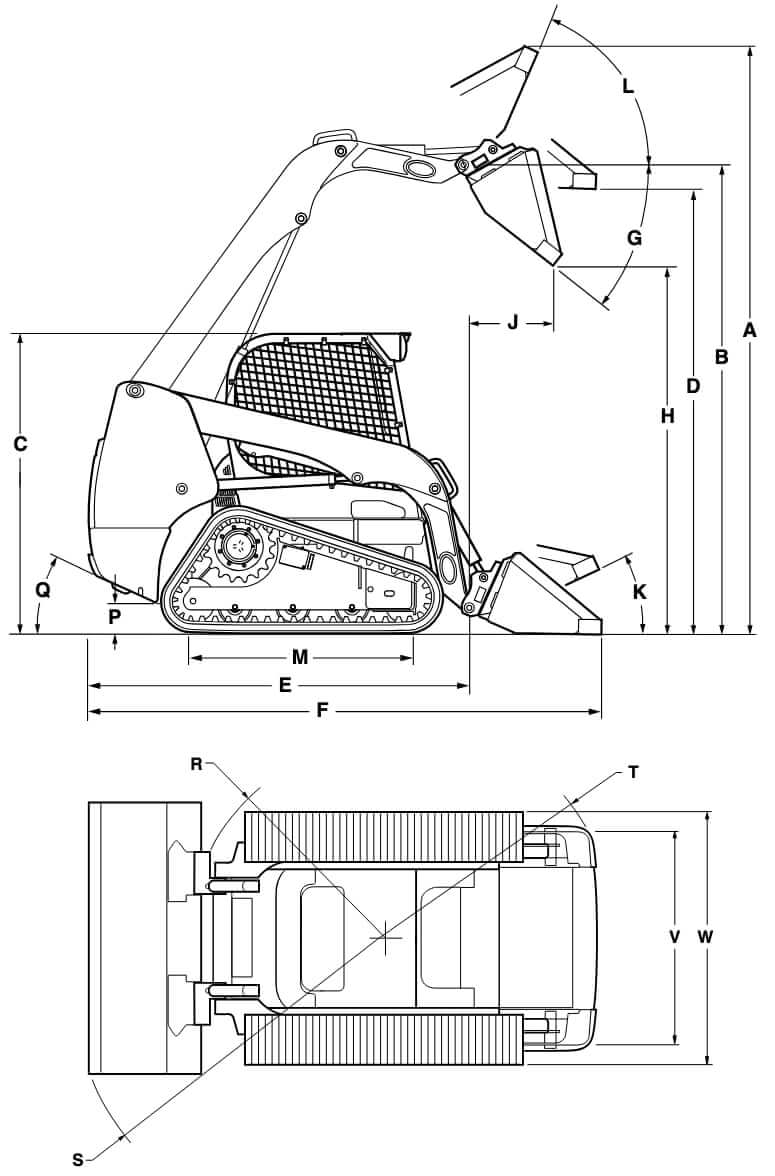

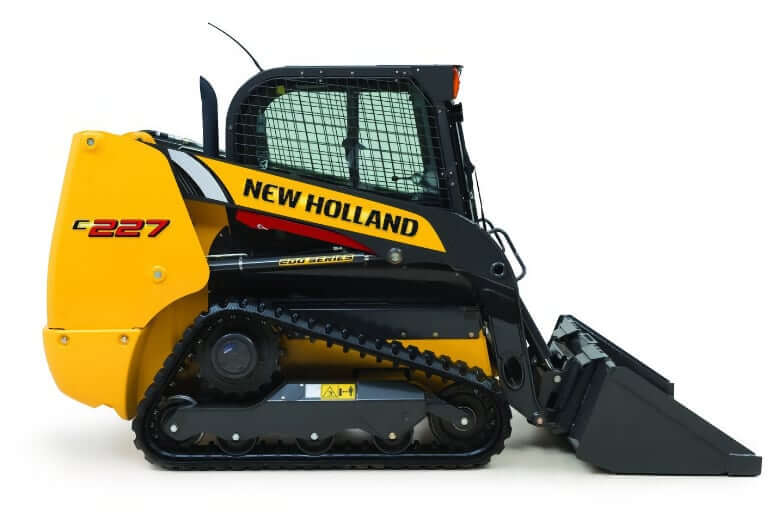

Dimensions
| A. Overall Operating Height w/ Foundry/Excavating Bucket Short Lip | 154.3 in (3920 mm) |
| A. Overall Operating Height w/ Low Profile/Standard Lip Bucket | 158.3 in (4020 mm) |
| A. Overall Operating Height w/ Low Profile Extended/Long Lip Bucket | 163.2 in (4146 mm) |
| B. Bucket Hinge Pin Height | 123 in (3124 mm) |
| C. Height to Top of Cab w/ ROPS | 78.7 in (1998 mm) |
| D. Bottom of Level Bucket, Fully Raised | 116.1 in (2950 mm) |
| E. Overall Length w/o Attachment (with Coupler) | 105.1 in (2669 mm) |
| F. Overall Length w/ Foundry Excavation Bucket on Ground | 129.6 in (3292 mm) |
| F. Overall Length w/ Low Profile Bucket | 133.7 in (3397 mm) |
| F. Overall Length w/ Low Profile Extended Bucket | 138.8 in (3525 mm) |
| G. Dump Angle | 40° |
| H. Dump Height w/ Foundry/Excavating Bucket Short Lip | 98.2 in (2495 mm) |
| H. Dump Height w/ Low Profile/Standard Lip Bucket | 95.6 in (2428 mm) |
| J. Dump Reach (Max Height) | 22.3 in (568 mm) |
| K. Rollback at Ground | 31° |
| L. Bucket at Full Height | 99° |
| M. Track on Ground | 55.9 in (1419 mm) |
| P. Ground Clearance (Bottom of Belly Pan) | 8 in (203 mm) |
| Q. Angle of Departure | 32° |
| R. Clearance Circle w/o Bucket | 55.5 in (1410 mm) |
| S. Clearance Circle w/ 72 in Foundry Bucket in Carry Position | 83.9 in (2132 mm) |
| S. Clearance Circle w/ 72 in Low Profile Bucket on Ground | 87.6 in (2226 mm) |
| S. Clearance Circle w/ 72 in Extended Low Profile on Ground | 92.3 in (2344 mm) |
| V. Track Gauge | 53.4 in (1356 mm) |
| W. Overall Width | 65.9 in (1676 mm) |
Undercarriage
| Undercarriage System | S-Wave Pattern |
| Shoe Size (track belt) | 12.6 in (320 mm) |
| Number of Track Rollers (per side) | 3 |
| Number of Track Idlers (per side) | 2 |
| Ground Pressure | 5.9 psi (40.7 kPa) |
| Track Guage | 53.4 in (1356 mm) |
| Length of Track on Ground | 55.9 in (1419 mm) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | FPT Industrial |
| Engine Model | FPT F5H FL463A |
| Displacement | 207 cu in (3.38 L) |
| Bore | 3.9 in (99 mm) |
| Stroke | 4.3 in (110 mm) |
| Gross Power | 74 hp (55 kw) |
| Net Power | 68 hp (51 kw) |
| Power Measured @ | 2500 rpm |
| Peak Torque | 232 lb ft (314 Nm) |
| Torque Measured @ | 1400 rpm |
| Low Idle | 1150 rpm |
| High Idle | 2500 rpm |
| Lubrication System | Forced by gear pump, pressure relief valve, oil filter, heat exchanger with 5 elements |
| Fuel System | HPCR Direct Injection |
| Fuel Filter | Pre-spin on 30 microns. Main-spin on 4 microns |
| Aspiration | Turbocharged Aftercooled with external EGR |
| Emission Standards | US EPA Tier 4 Final + EU Stage IIIA |
Operational Specs

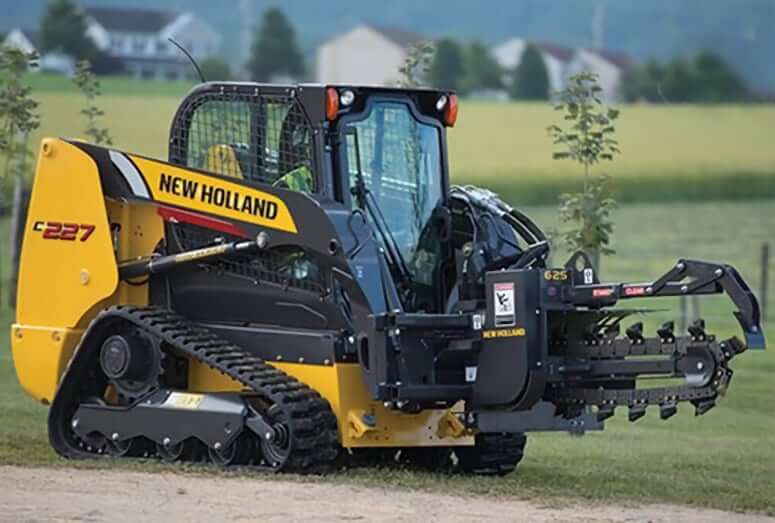

| Operating Weight | 8270 lb (3750 kg) |
| Shipping Weight | 7970 lb (3615 kg) |
| Operating Voltage | 12 V |
| Alternator | 100 amps |
| Battery | 12 V |
| Bucket Types | Heavy duty; foundry/excavating with short lip; light material; low profile extended; manur and slurry bucket |
Power Train
| Type | Hydrostatic transmission |
| Max Travel Speed, Low | 5.1 mph (8.2 km/h) |
| Max Travel Speed, High | 7.6 mph (12.2 km/h) |
| Parking Brake | SAHR disc. Depress on/off brake button on instrument panel, disconnect lapbelt, get off seat, or stop engine |
| Final Drive | Planetary gearbox with 2-speed motor |
| Drive Pump Flow | 24.2 gal/min (91.5 L/min) |
| Drive System Relief | 5220 psi (36000 kPa) |
| Control | Mechanical or Electro hydraulic |
Hydraulic System
| Main Pump Type | Gear pump |
| Pump Flow Capacity | 24.2 gal/min (91.7 L/min) |
| Pump Flow Capacity, High Flow (Optional) | 32.4 gal/min (122.6 L/min) |
| Loader Control Valve Type | 3 spool / open center / series |
| Relief Valve Pressure | 3046 psi (21000 kPa) |
| Hydrauli Filter | 6 microns / spin on |
Hydraulic Circle Time
| Raise Time | 3.6 sec |
| Lower Time | 1.8 sec |
| Dump Time | 2.2 sec |
| Roll Back Time | 1.77 sec |
Service Refill Capacities
| Fuel Tank Capacity | 19.5 gal (73.8 L) |
| Engine Oil Capacity (w/ filter) | 2.2 gal (8.5 L) |
| Cooling System Capacity | 3.4 gal (13 L) |
| Hydraulic System Capacity (w/ tank) | 34 gal (32.2 L) |
