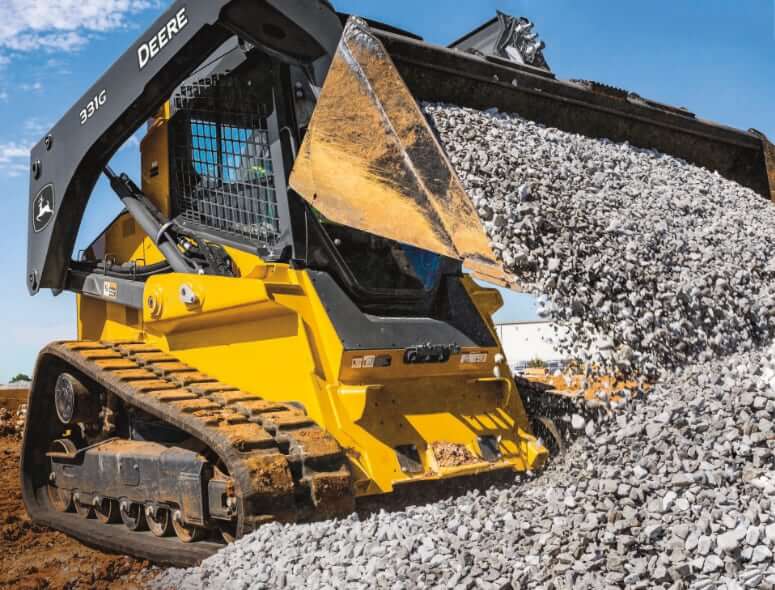

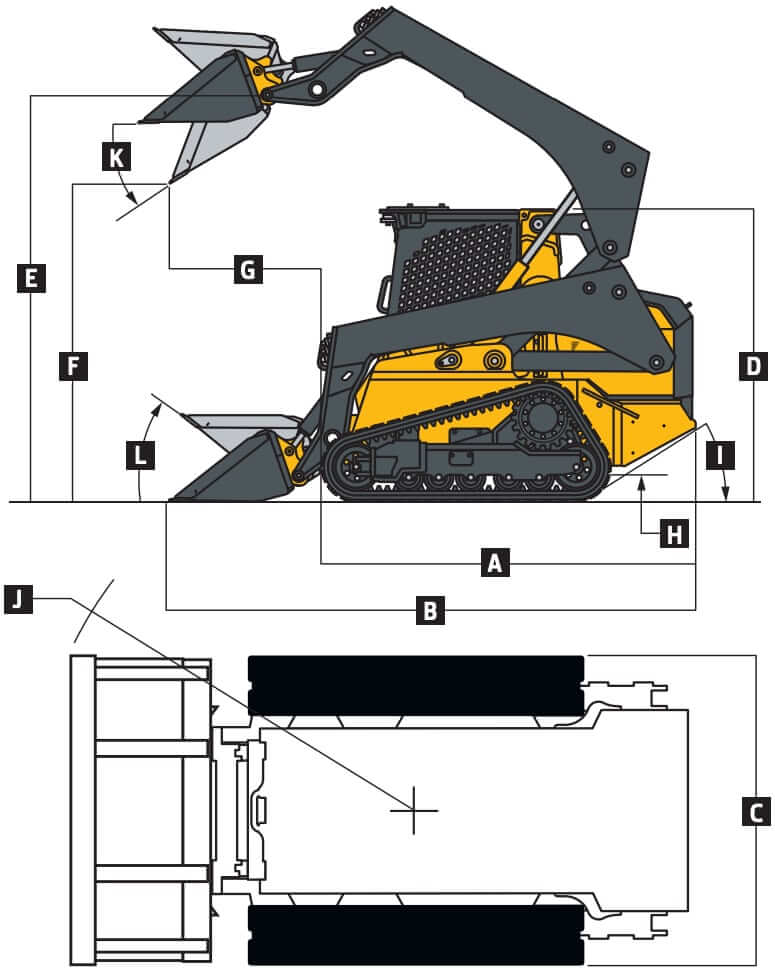

Dimensions
| A. Length Without Bucket | 122 in (3099 mm) |
| B. Length With Foundry Bucket | 146 in (3710 mm) |
| C. Width Without Bucket (400 mm Track) | 78.9 in (2000 mm) |
| C. Width Without Bucket (450 mm Track) | 80.7 in (2050 mm) |
| D. Height to Top of ROPS | 86.7 in (2200 mm) |
| E. Height to Hinge Pin | 132 in (3350 mm) |
| F. Dump Height With Foundry Bucket | 106.1 in (2690 mm) |
| G. Dump Reach (Foundry Bucket) | 28 in (710 mm) |
| G. Dump Reach (Construction Bucket) | 34.6 in (880 mm) |
| H. Ground Clearance | 9.4 in (240 mm) |
| I. Angle of Departure | 31° |
| J. Front Turn Radius With Foundry Bucket | 85.7 in (2180 mm) |
| K. Dump Angle (full lift height) | 48° |
| L. Bucket Rollback (ground level) | 35° |
Loader Performance
| Tipping Load w/ Construction Bucket | 8857 lb (4021 kg) |
| Rated Operating Capacity at 35% Tipping Load (SAE) | 3100 lb (1407 kg) |
| Rated Operating Capacity at 50% Tipping Load (SAE) | 4429 lb (2011 kg) |
| Boom Breakout Force | 6000 lbf (26.7 kN) |
| Bucket Breakout Force | 10325 lbf (45.9 kN) |

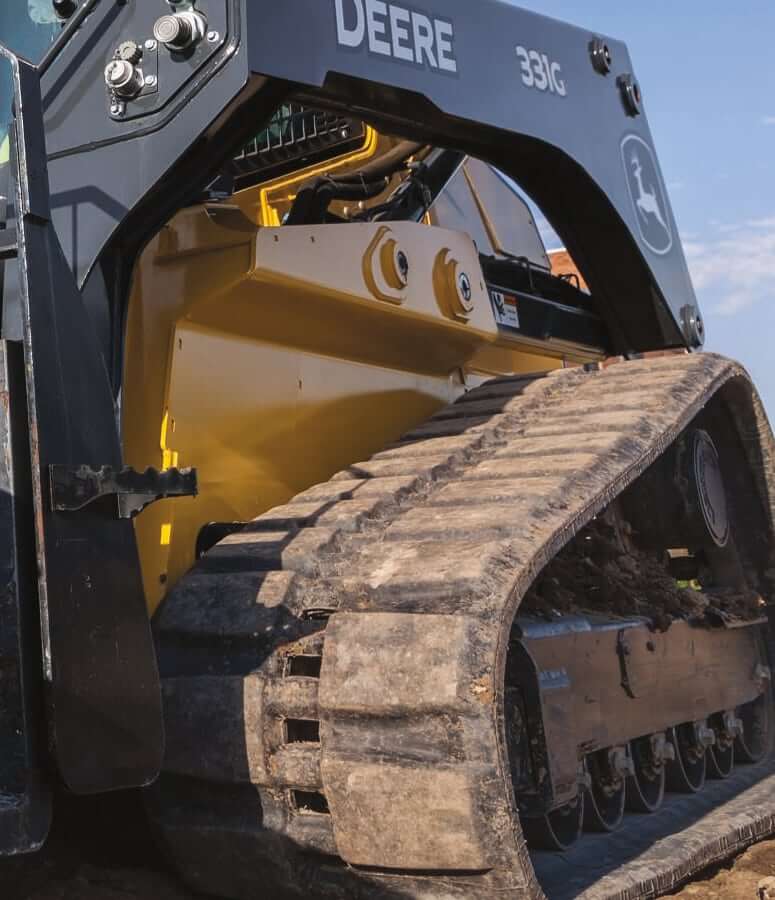

Undercarriage
| Tractive Effort | 11500 lbf (51.2 kN) |
| Type of Tracks | Smooth-ride long-life rubber with steel inserts |
| Track Width (Standard / Optional) | 15.8 in (400 mm) / 17.7 in (450 mm) Track |
| Ground Pressure (Standard / Optional) | 5.5 psi (38.1 kPa) / 4.9 psi (33.9 kPa) |
| Track Rollers (per side) | 5 triple-flange smooth-ride all-steel rollers |
| Track Idlers (per side) | 2 double-flange smooth-ride all-steel rollers |
| Bearings/Seals (rollers/idlers) | Heavy-duty journal bearings and metal face seals |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Yanmar |
| Engine Model | Yanmar 4TNV94FHT |
| Displacement | 189.2 cu in (3.1 L) |
| Bore | 3.70 in (94 mm) |
| Stroke | 4.33 in (110 mm) |
| Net Power | 88.6 hp (66 kw) |
| Gross Power | 91.2 hp (68 kw) |
| Power Measured @ | 2500 rpm |
| Peak Torque | 281.8 lb ft (382 Nm) |
| Torque Measured @ | 1700 rpm |
| Aspiration | Turbocharged, intercooled |
| Emission Standards | US EPA Tier 4 Final + EU Stage IV |
Operational Specs

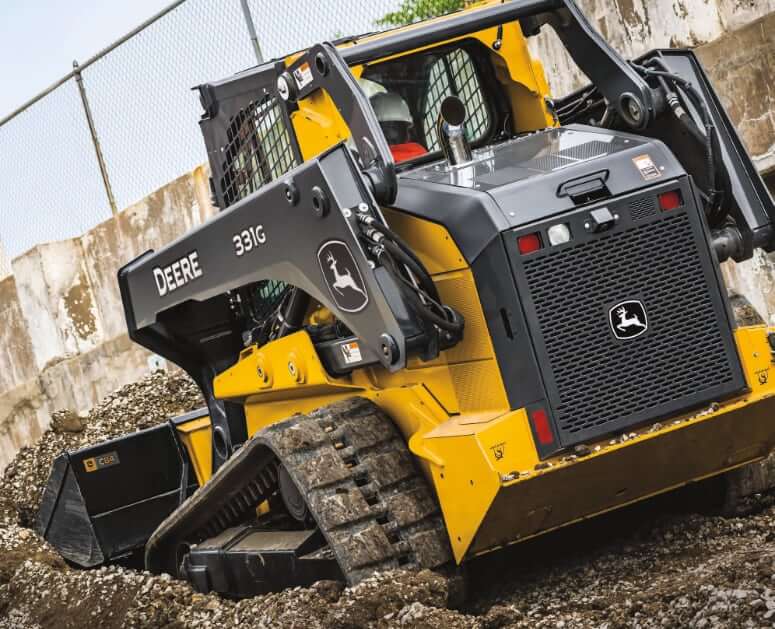

| Operating Weight, 15.8 in (400 mm) Track | 11900 lb (5403 kg) |
| Operating Weight, 17.7 in (450 mm) Track | 12000 lb (5448 kg) |
| Rear Counterweight Set | 172 lb (78 kg) |
| Operating Voltage | 12 V |
| Alternator | 90 amps |
| Battery | 12 V, CCA 925 |
| Working Lights | Halogen: 2 front and 1 rear standard / deluxe LED: 4 front and 1 rear optional |
| Lift Geometry | Vertical |
Powertrain
| Pump Type | Axial-piston hydrostatic |
| Controls | Manual or electrohydraulic |
| Number of Gears | Single Speed / 2-Speed (Optional) |
| Max Travel Speed, Low | 5.3 mph (8.5 km/h) |
| Max Travel Speed, High (2-Speed Optional) | 7.8 mph (12.6 km/h) |
| Service Brakes | Integral, automatic, spring-applied, hydraulically released wet-disc brakes |
| Parking Brake | Wet-disc park brakes |
Hydraulic System
| Standard Pump Flow | 23.5 gal/min (80 L/min) |
| Pump Flow with High-Flow Option | 36.5 gal/min (138 L/min) |
| System Pressure at Couplers | 3450 psi (23787 kPa) |
| Hydraulic Power | 47 hp (35 kw) |
| Hydraulic Power with High-Flow Option | 73 hp (55 kw) |
| Type of Cylinders | John Deere heat-treated, chrome-plated, polished cylinder rods, hardened steel pivot pins |

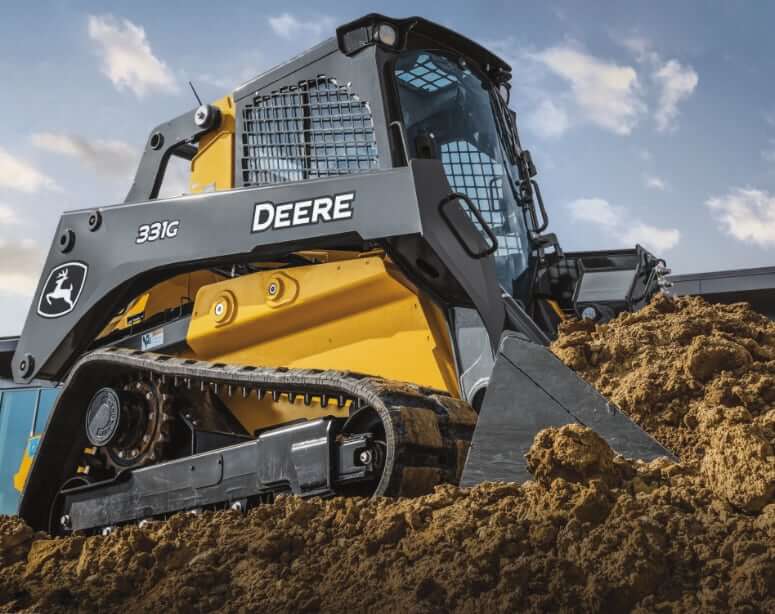

Service Refill Capacities
| Fuel Tank Capacity | 30 gal (114 L) |
| Engine Oil Capacity | 3.3 gal (12.6 L) |
| Cooling System Capacity | 3.9 gal (14.9 L) |
| Hydraulic and Hydrostatic Oil Capacity | 8.7 gal (33.1 L) |
| Final Drive Planetary Capacity (per side) | 0.22 gal (0.85 L) |
