Cabinless Remotely Operated Electric Skid Steer Loader Elise CBL Specs & Attachments

Thanks to its lithium battery and narrower wheels, the electric skid steer loader Elise CBL by FIRSTGREEN Industries allows for better transport while maintaining excellent working parameters. It is particularly suitable for smaller agricultural and construction operations.

By eliminating the need for an operator inside, the risk of injury or exposure to hazardous materials is significantly reduced. This design element greatly enhances safety, making the equipment particularly suitable for use in high-risk environments. The absence of a cabin reduces the overall machine height and eliminates the necessity for FOPS/ROPS certification. This not only improves loading capacity but also ensures a more balanced weight distribution with a lower center of gravity, enhancing stability.

New cabinless remotely operated electric skid steer loader functionality empowers operators to fine-tune each of the four travel speeds for optimal performance in specific tasks. Remote control technology allows for more accurate and refined movements, significantly increasing precision, especially in tasks like excavation or material handling.

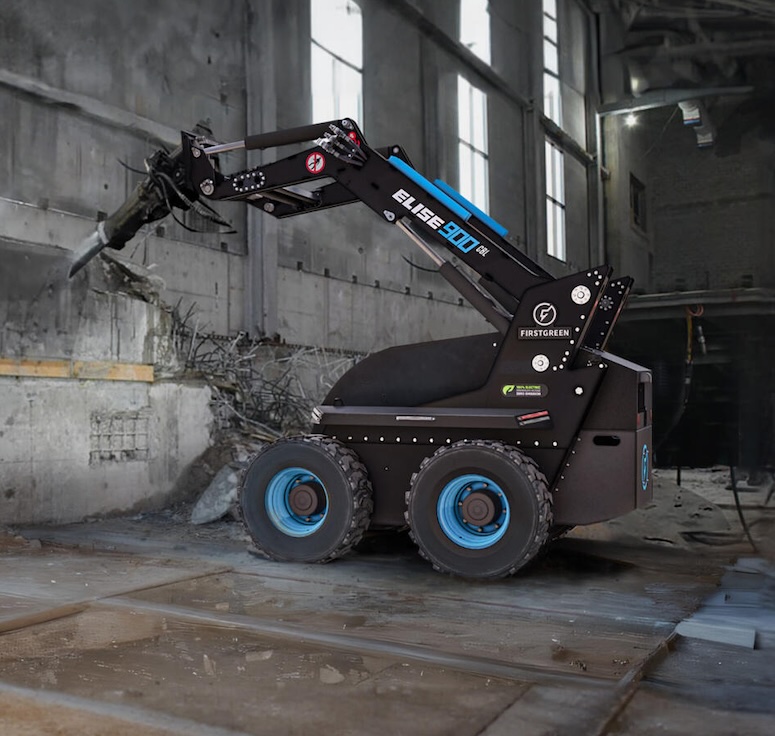

Cabinless Remotely Operated Electric Skid Steer Loader - Elise CBL

Extreme precision of the cabinless remotely operated skid steer loader is achieved by four individual speeds that the operator can choose from for both hydraulic and travel functionalities. These can be further modified by the operator. Fleet owners can effortlessly oversee each skid steer loader’s performance, allocate varying permissions to operators, and manage unique account credentials for each unit in their garage.

Elise CBL Remotely Operated Electric Skid Steer Specs

The Elise CBL Cabinless Remotely Operated Electric Skid Steer Loader is a purpose-driven machinery solution designed for efficiency and safety. This loader eliminates the need for an onboard operator, reducing the risk of exposure to hazardous materials and potential injuries.

Elise CBL Electric Skid Steer Loader Specs

The absence of a cabin not only enhances safety but also contributes to improved stability and loading capacity. In this business-oriented introduction, we will delve into the specifications of the Elise CBL, focusing on its features and applications. Explore how this loader’s specifications align with industry demands, offering practical and functional solutions for various operational requirements.

  • Loader type: Cabinless Wheel Skid Steer
  • Battery type: Lead-acid / Lithium
  • Usage type: Remote
  • 433MHz / 2.4 GHz Remote control
  • Maximum load capacity: 700 – 1200 kg
  • Tipping load: 1400 – 2200 kg
  • Maximum total weight: 3250 – 5050 kg
  • Operating weight: 2550 – 3550 kg
  • Overall width: 170 cm – 181 cm
  • 4/4 Travel/Hydraulic speeds
  • Travel speed parametrization
  • NORMAL / POWER mode
  • Lower center of gravity

Elise CBL Electric Cabinless Skid Steer Loader Attachments

The Elise CBL Electric Skid Steer Loader is a robust and versatile machinery solution designed for a range of industries. Its purposeful attachments cater to specific needs in Agriculture, Woodcutting, Landscaping, and Construction. This business-minded loader is engineered for efficiency, offering practicality and adaptability in various operational scenarios.

Elise CBL Electric Cabinless Skid Steer Loader Attachments

Explore the functionality and application-specific advantages of Elise CBL Attachments as we delve into their specifications and capabilities across diverse sectors.

Landscaping Attachments for Electric SSL Elise CBL

  • Dozer Blade “V”: A 1,850 mm (72.8 in) wide blade with hydraulically adjustable tilt.
  • Sweeper: Sweeping width of 1,800 mm (70.9 in). Hydraulic control for opening the collecting container.
  • Angle Brush: Width options of 1,800 mm and 2,150 mm (70.9 in and 84.6 in) with plastic or metal bristles. Possibility of a 200 l (52.8 gal) water tank.
  • Dozer Blade: Metal or rubber blade. Possibility of floating mounting, hydraulic, or manual control.
  • Side Brush Sweeper: Width options of 1,800 mm and 2,150 mm (70.9 in and 84.6 in) with plastic or metal brushes. Possibility of 100 l or 200 l (26.4 gal or 52.8 gal) water tank.
  • Snow Blower: The snow blower efficiently clears sidewalks, paths, and open spaces from accumulated snow.

Agriculture Attachments for Electric SSL Elise CBL

  • Farm Forks: Width 1,900 mm (74.8 in).
  • Spreader: Container capacity of 410 l (108.3 gal). Maximum spreading width of 6 m (20 ft).
  • Grate Shovel: Available widths of 1,800 mm and 2,100 mm (70.9 in and 82.7 in).
  • Bale Handler: Designed for bale sizes up to 1.6 m (5.2 ft) in diameter.

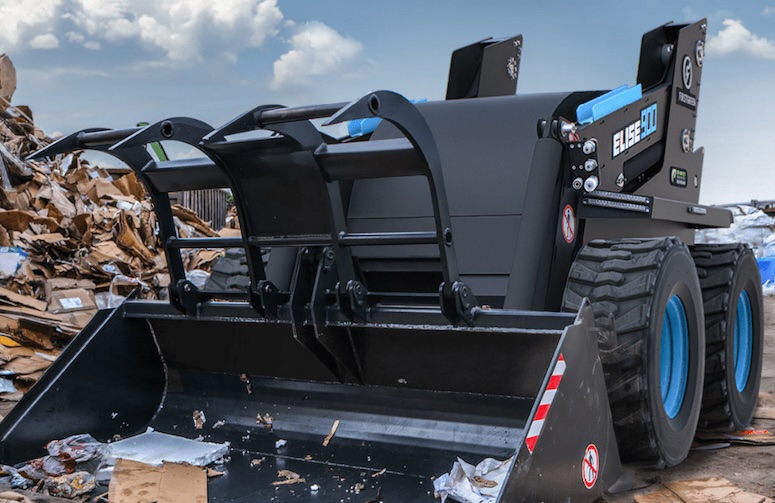

  • Grapple Bucket: A 1,850 mm (72.8 in) wide bucket with a hydraulically operated holder.

Construction Attachments for Electric SSL Elise CBL

  • Auger: Drill diameter options from 100 mm to 900 mm (3.9 in to 35.4 in). Extension lengths of 500 mm, 800 mm, and 1,000 mm (19.7 in, 31.5 in, and 39.4 in).
  • Large Volume Bucket: Available in widths of 1,180 mm, 2,000 mm, and 2,200 mm (46.5 in, 78.7 in, and 86.6 in).
  • Pallet Forks: Forks available in lengths of 800 mm, 1,200 mm, and 1,600 mm (31.5 in, 47.2 in, and 63 in).
  • Backhoe for SSL: Bucket width options of 300 mm, 400 mm, 500 mm, or 1,000 mm (11.8 in, 15.7 in, 19.7 in, or 39.4 in). Drainage bucket width options of 220 mm or 280 mm (8.7 in or 11 in).
  • Concrete Mixer: Equipped with an electrovalve for hydraulic discharging. Blow-off pipe option.
  • 4 in 1 Bucket: A combined bucket with a width of 1,850 mm (72.8 in). The bucket can be fitted with replaceable teeth.

Woodcutting Attachments for Electric SSL Elise CBL

  • Wood Splitter WS: Wood splitting up to a diameter of 800 mm (31.5 in). Two variants available with splitting forces of 28 t and 34 t.
  • Tree Cutter: Capable of cutting trees up to a trunk diameter of 200 mm (7.9 in).
  • Grapple for Wood: Accessories for handling logs up to a wood diameter of 780 mm (30.7 in).

Tailored to meet the demands of various tasks, these attachments elevate efficiency and redefine the capabilities of your machine. Whether you are cultivating fields, navigating wooded terrain, enhancing outdoor spaces, or tackling construction projects, Elise CBL’s attachments deliver precision and power.
