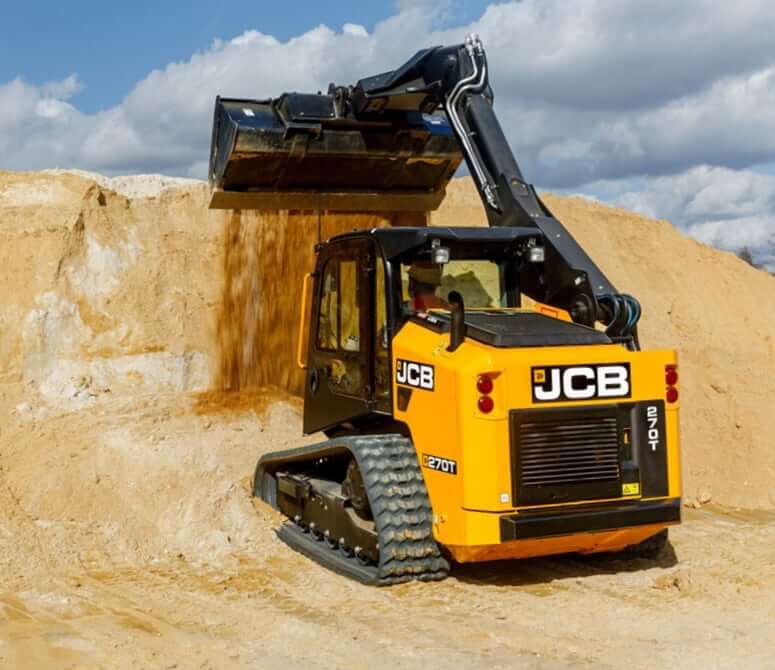

Loader Performance
| Tipping Load | 7990 lb (3624 kg) |
| Rated Operating Capacity, ROC (35% of tipping load) | 2723 lb (1235 kg) |
| Rated Operating Capacity (50% of tipping load) | 3995 lb (1812 kg) |
| Loader Lift Capacity with Bucket | 5807 lb (2634 kg) |
| Bucket Tilt Breakout Force | 6543 lbf (29.1 kN) |
| Standard Bucket Capacity | 0.56 yd3 (0.43 m3) |
| Standard Bucket Width | 74.8 in (1900 mm) |

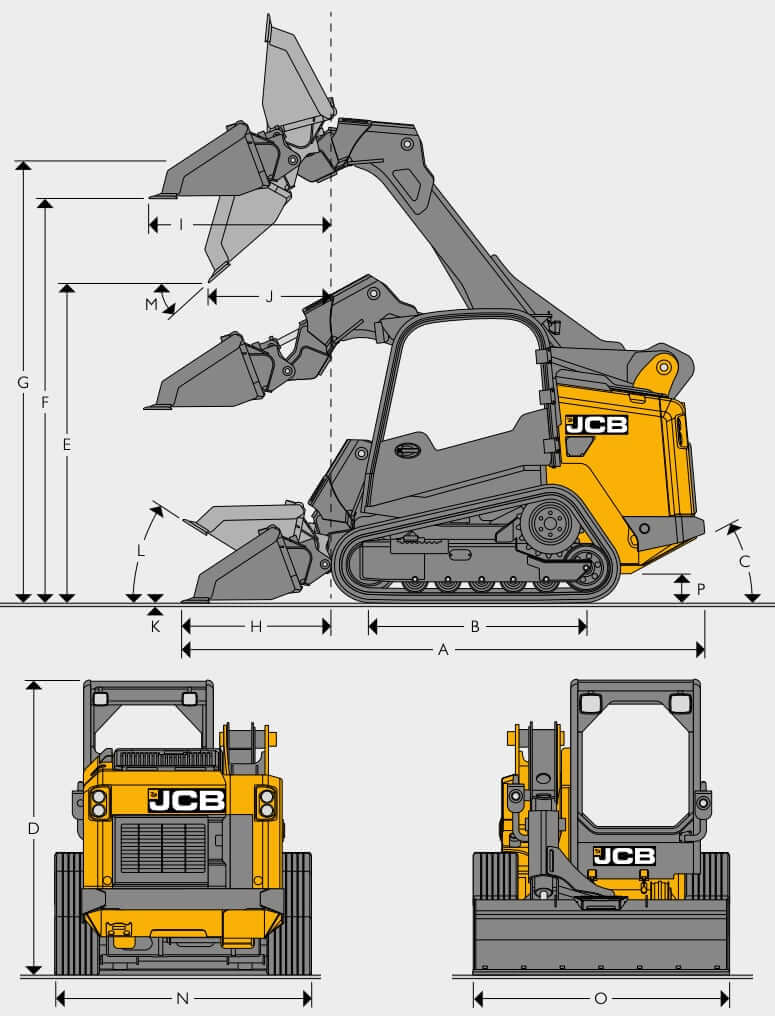

Dimensions
| A. Overall Length | 149.6 in (3800 mm) |
| B. Wheelbase | 82.7 in (2100 mm) |
| C. Angle of Departure | 29° |
| D. Overall Height | 81.9 in (2080 mm) |
| E. Dump Height | 89.8 in (2280 mm) |
| F. Loadover Height | 113.4 in (2880 mm) |
| G. Pin Height | 125.2 in (3180 mm) |
| H. Reach @ Ground Level | 43.3 in (1100 mm) |
| I. Max Reach @ Full Height | 51.2 in (1300 mm) |
| J. Reach @ Full Height – Fully dumped | 35.4 in (900 mm) |
| K. Digging Depth | 0.4 in (10 mm) |
| L. Rollback @ Ground | 30° |
| M. Dump Angle | 42° |
| N. Width over Tracks | 74.8 in (1900 mm) |
| O. Standard Bucket Width | 74.8 in (1900 mm) |
| P. Ground Clearance | 9.1 in (230 mm) |
| Standard Bucket Capacity | 0.56 yd3 (0.43 m3) |
| Turning Radius, Bucket Corner | 90.6 in (2300 mm) |
| Turning Radius, Quick Hitch | 66.9 in (1700 mm) |
| Turning Radius, Rear Chassis | 69.3 in (1760 mm) |
| Lift Path | Vertical |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | JCB |
| Engine Model | JCB EcoMAX TCAE-55 / Dieselmax TC-55 |
| Displacement | 268 cu in (4.399 L) |
| Displacement | 4.06 in (103 mm) |
| Displacement | 5.20 in (132 mm) |
| Gross Power | 74 hp (55 kw) |
| Power Measured @ | 2400 rpm |
| Peak Torque | 295 lb ft (400 Nm) |
| Torque Measured @ | 1200 rpm |
| Cooling System | Liquid |
| Air Cleaner | Centrifugal dry air filter with primary and secondary elements |
| Injection System | Common Rail |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Tier 4 Final + EU Stage IIIB |
Operational Specs
| Operating Weight | 11003 lb (4991 kg) |
| Tipping Load | 7990 lb (3624 kg) |
| ROC (50% of tipping load) | 3995 lb (1812 kg) |
| Operating Voltage | 12 V |
| Alternator | 95 amps |
| Battery | 12 V, 109 Ah, CCA 1000 |
| Starter Motor | 12 V, 5.6 hp (4.2 KW) |

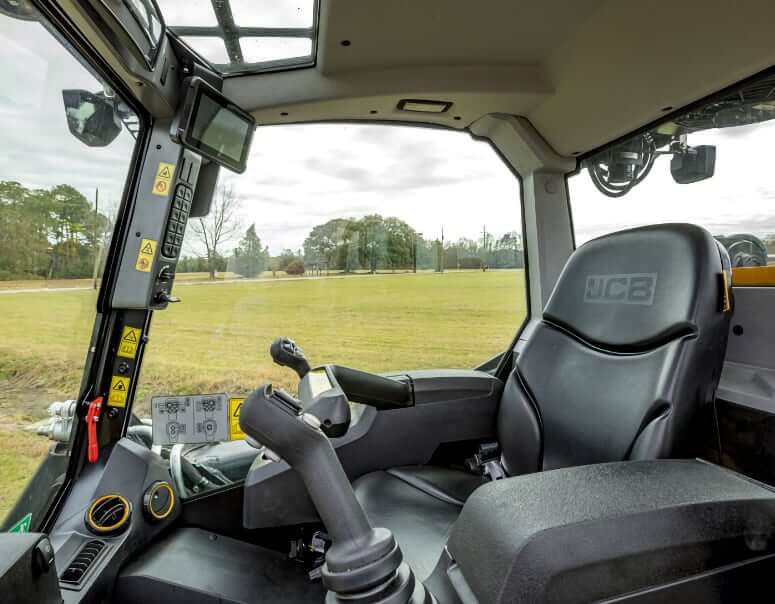

Cab
| Cab Options | Open canopy / Cab with heat / Cab with heat and A/C |
| Operator Seat | Mechanical suspension seat with retractable seat belt |
| ROPS/FOPS | Full ROPS and FOPS Level 1 |
| Working Lights | Two front and one rear work light (LED work lights optional) |
| Monitor | 7-in touch screen display |
| Door | Operator Enclosure access through side door |
Transmission
| Type | Full electro-hydraulic controlled hydrostatic transmission |
| Number of Gears | One Speed / Two Speed |
| Max Travel Speed (Single Speed) | 5.7 mph (9.2 km/h) |
| Max Travel Speed, 1st (Two Speed) | 4.8 mph (7.7 km/h) |
| Max Travel Speed, 2nd (Two Speed) | 7.8 mph (12.5 km/h) |
| Parking Brake | Hydraulic park brake |
| Control | Joystick |

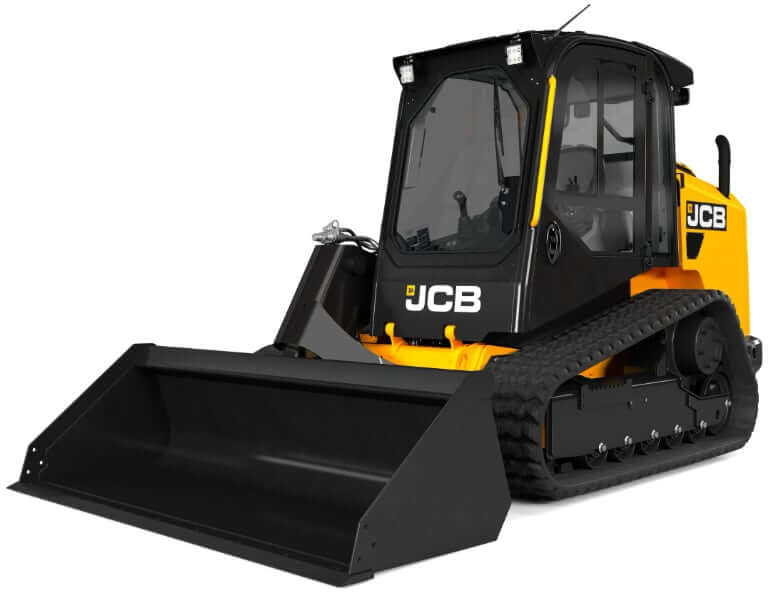

Undercarriage
| Length of Track on Ground | 82.7 in (2100 mm) |
| Standard Track | 15.7 in (400 mm) wide traction lug |
| Optional Track | 17.7 in (450 mm) wide traction lug |
| Departure Angle | 29° |
Hydraulic System
| Main Relief Pressure | 3335 psi (23000 kPa) |
| Standard Flow Pump Capacity | 24 gal/min (90 L/min) |
| Hydraulic Power (Standard Flow) | 46.7 hp (34.3 kw) |
| High Flow Pump Capacity (optional) | 31.7 gal/min (120 L/min) |
| Hydraulic Power (High Flow) | 61.7 hp (45.4 kw) |
| Hydraulic Lines | Loader arm hydraulic lines under protective steel guard on Powerboom |
| Auxiliary Hydraulics | In addition to the main hydrostatic drive pumps, there is a dedicated service pump for the loader and attachments |
| Hydraulic Oil Filter | Canister style, full flow filter |

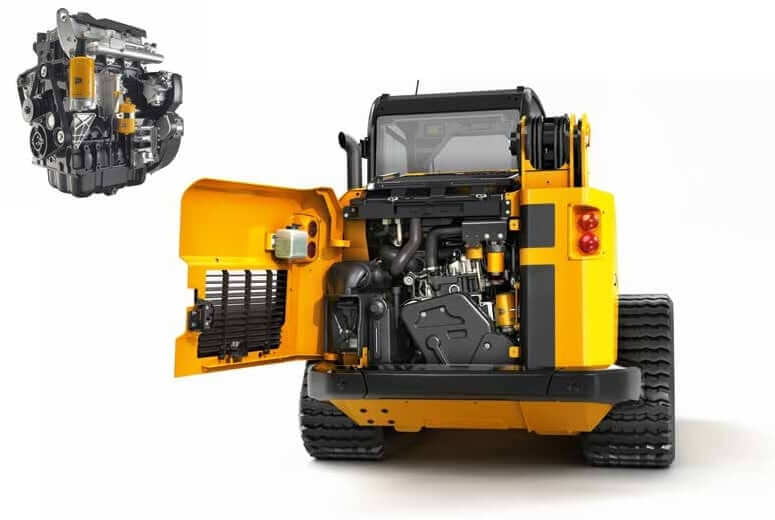

Service Refill Capacities
| Fuel Tank Capacity | 27.3 gal (103.3 L) |
| Engine Oil Capacity | 4.0 gal (15 L) |
| Cooling System Capacity | 5.8 gal (22 L) |
| Hydraulic System Capacity | 14.5 gal (55 L) |
| Hydraulic Tank Capacity | 6.9 gal (26 L) |
| Engine Oil Service Interval | 500 Hours |

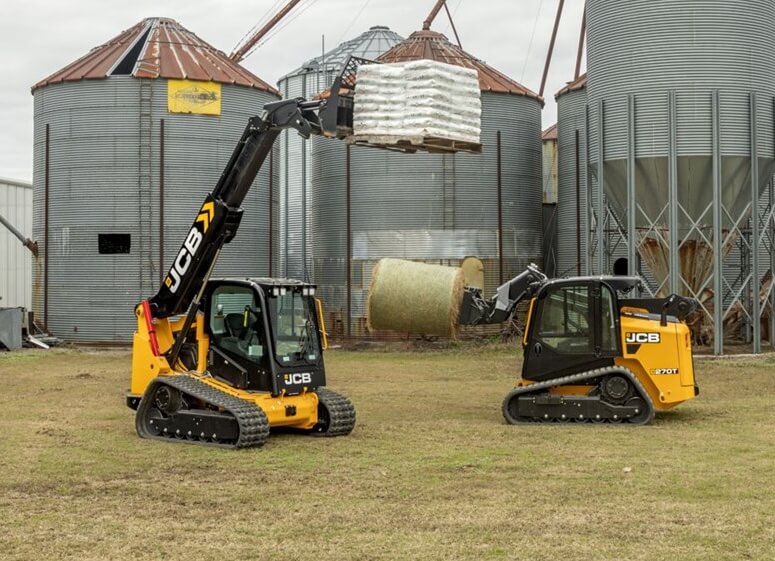

JCB 270T Attachments

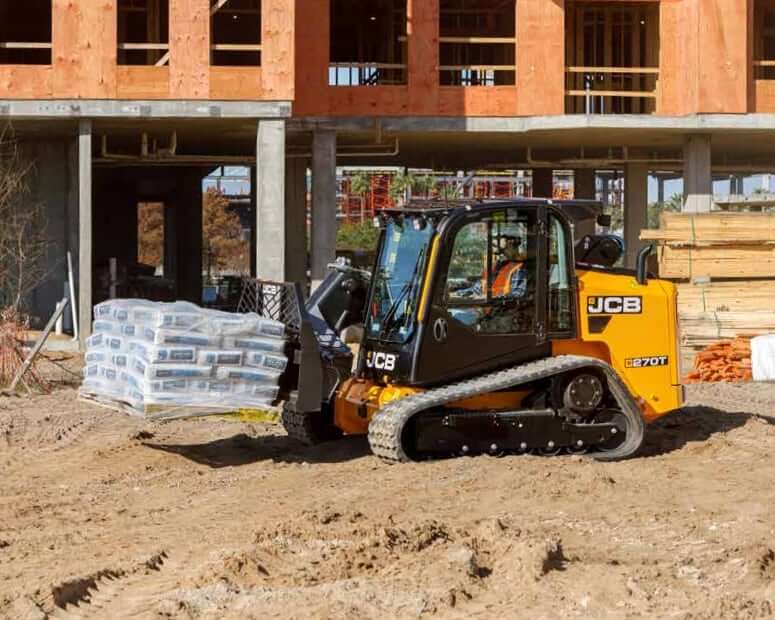

The JCB 270T Compact Track Loader is a powerful, vertical lift machine designed to tackle demanding jobs in construction, landscaping, agriculture, and industrial applications. To maximize its versatility and productivity, it supports a wide range of high-performance attachments engineered for digging, lifting, grading, clearing, and material handling.
From standard earthmoving tools like general purpose buckets, pallet forks, and dozer blades, to specialized solutions such as hydraulic breakers, trenchers, snow removal implements, and augers, the JCB 270T can be quickly adapted for numerous tasks.
| Type | Attachment Model |
|---|---|
| Angle Brooms | BR60, BR72, BR84 |
| Augers | PASF / PASF Planetary Drive Augers |
| Bale Spears | JCB BSP |
| Breakers / Hammers | HM033T, HM266Q, HM386Q |
| Brush Cutters | BC60, BC72, BC72HF, BC78HF |
| Cold Planers | CP12, CP16HF, CP18HF, CP24HF, CP30HF, CP40HF |
| Dozer Blades | HDB84, HDB96 |
| Forestry Cutting Head | FC60HF |
| Forks (Pallet) | PF42 (42″, 48″) |
| Forks (Manure with Top Grapple) | MFG60, MFG66, MFG72, MFG84 |

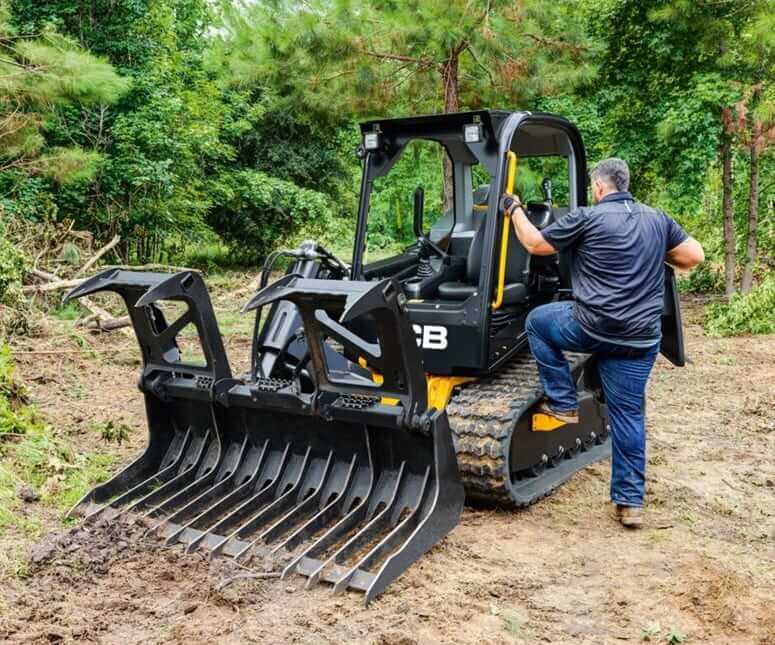

| Grapples (Brush) | HBG60, HBG66, HBG72, HBG78, HBG84 |
| Grapples (Scrap) | HSG60, HSG66, HSG76, HSG82 |
| Rakes (Auto) | AR66, AR76 |
| Rakes (Landscape Power) | PRM60, PRH60, PRM72, PRH72, PRM84, PRH84, PRM90, PRH90 |
| Rakes (Landscape Preparator) | LSP66, LSP76 |
| Rock Saws | RS18HF, RS24HF |
| Snow Blades | SBM60, SBM72, SBM84, SBM96, SBH60, SBH72, SBH84, SBH96, HSB96, HSB108, HSB120 |
| Snow Blowers | SBL60, SBL72, SBL78, SBL84, SBL72SPHF, SBL72HF, SBL78HF, SBL84HF |
| Snow Pushers | SBM72, SBM84, SBM96 |
| Stump Grinders | SGS26, SG30HF |
| Sweeper Collectors | SC60, SC72, SC84 |
| Tillers | TLR52, TLR66HF, TLR78HF |
| Tree Spades | TS26, TS36, TS44 |
| Trenchers | TR30, TR36, TR48, TR48HF |
| Vibratory Rollers | VR66S, VR73S, VR84S, VR66P, VR73P, VR84P |
Its compatibility with JCB’s range of high-flow attachments – including mulchers, cold planers, and power brooms – makes it an ideal machine for operations requiring maximum efficiency and control. Whether outfitted for utility work, site cleanup, or heavy-duty land clearing, the JCB 270T Compact Track Loader stands out as a highly adaptable piece of equipment that excels with the right attachments on the job.
