Loader
| Tipping Load | 7140 lb (3238 kg) |
| Rated Operating Capacity (ROC) (35% Tipping Load) | 2499 lb (1133 kg) |
| Rated Operating Capacity (ROC) (50% Tipping Load) | 3570 lb (1619 kg) |
| ROC with Optional Counterweight (at 35%) | 2631 lb (1194 kg) |
| Breakout Force (Tilt Cylinder) | 6746 lbf (30.0 kN) |
| Breakout Force (Lift Cylinder) | 5895 lbf (26.2 kN) |

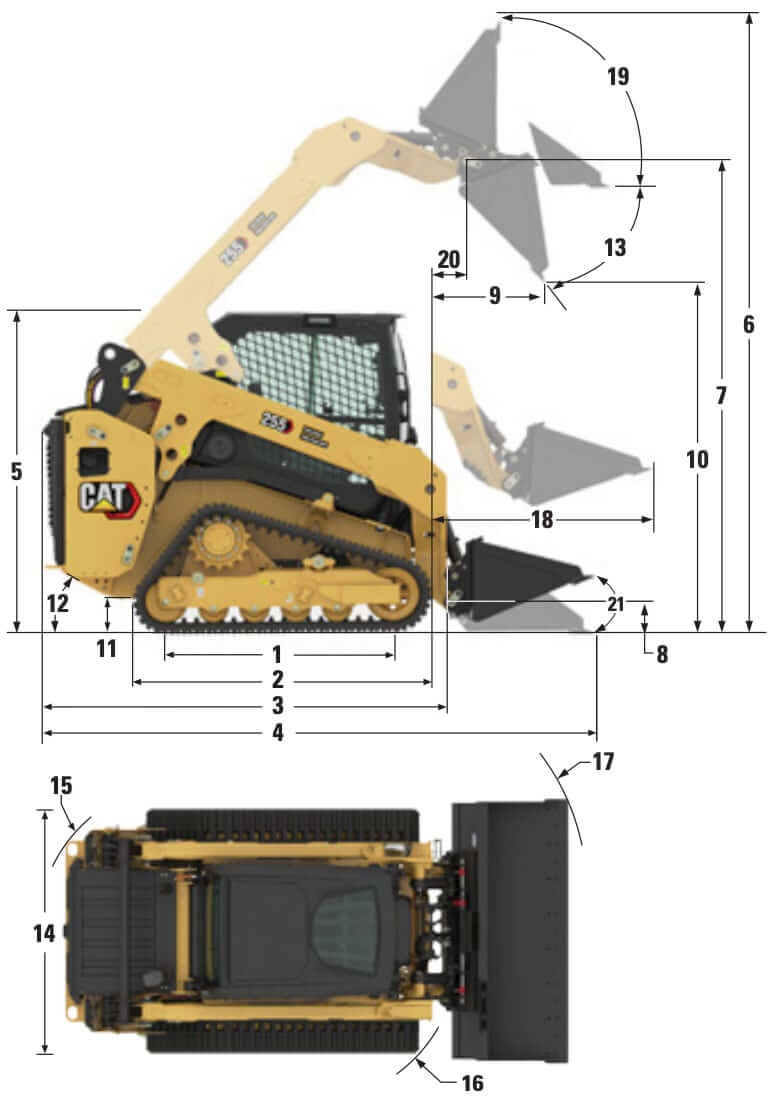

Dimensions
| 1. Length of Track on Ground | 58.5 in (1485 mm) |
| 2. Overall Length of Track | 76.7 in (1948 mm) |
| 3. Length without Bucket | 110.2 in (2800 mm) |
| 4. Length with Bucket on Ground | 135 in (3430 mm) |
| 5. Height to Top of Cab | 83.3 in (2115 mm) |
| 6. Maximum Overall Height | 155.2 in (3941 mm) |
| 7. Bucket Pin Height at Maximum Lift | 124.0 in (3150 mm) |
| 8. Bucket Pin Height at Carry Position | 7.7 in (195 mm) |
| 9. Reach at Maximum Lift and Dump | 21.3 in (540 mm) |
| 10. Clearance at Maximum Lift and Dump | 95.4 in (2424 mm) |
| 11. Ground Clearance | 8.3 in (212 mm) |
| 12. Departure Angle | 30.6° |
| 13. Maximum Dump Angle | 46.3° |
| 14. Vehicle Width (320 mm / 12.6 in tracks) | 65.9 in (1675 mm) |
| 14. Vehicle Width (400 mm / 15.7 in tracks) | 69.3 in (1760 mm) |
| 15. Turning Radius from Center – Machine Rear | 65.2 in (1656 mm) |
| 16. Turning Radius from Center – Coupler | 54.2 in (1377 mm) |
| 17. Turning Radius from Center – Bucket (racked) | 82.9 in (2105 mm) |
| 18. Maximum Reach with Arms Parallel to Ground | 45.7 in (1162 mm) |
| 19. Rack Back Angle at Maximum Height | 85.2° |
| 20. Bucket Pin Reach at Maximum Lift | 5.9 in (151 mm) |
| 21. Bucket Rollback Angle (Ground Level) | 27° |

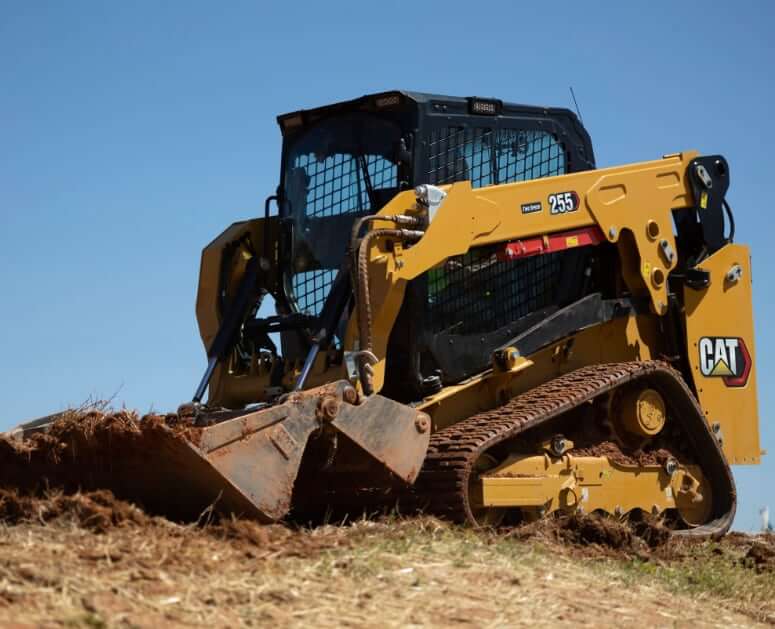

Weight
| Operating Weight | 9578 lb (4345 kg) |
| Wide Track (400 mm/15.7 in) Adds to Operating Weight | +119 lb (+54 kg) |
| Enclosed Cab Adds to Operating Weight | +180 lb (+82 kg) |
| Counterweight Adds to Operating Weight | +276 lb (+125 kg) |

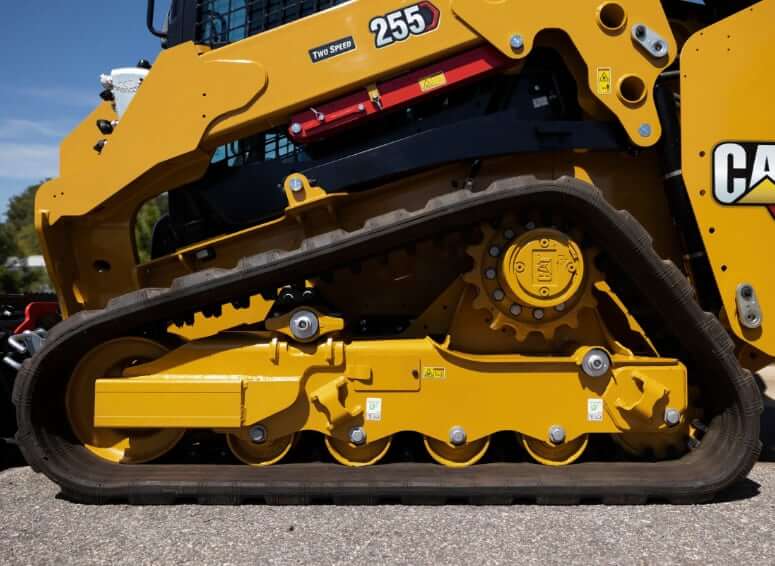

Undercarriage
| Narrow Track Width | 12.6 in (320 mm) |
| Wide Track Width | 15.7 in (400 mm) |
| Length Of Track On Ground | 58.5 in (1485 mm) |
| Ground Contact Area (320 mm/12.6 in track) | 1582 in2 (1.02 m2) |
| Ground Contact Area (400 mm/15.7 in track) | 1977 in2 (1.28 m2) |
| Ground Pressure (320 mm/12.6 in track) | 6.1 psi (41.8 kPa) |
| Ground Pressure (400 mm/15.7 in track) | 4.9 psi (34.0 kPa) |
| Torsion Suspension | 4 independent torsion axles |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Caterpillar |
| Engine Model | Cat C2.8T |
| Displacement | 171 cu in (2.8 L) |
| Bore | 3.5 in (90 mm) |
| Stroke | 4.3 in (110 mm) |
| Gross Horsepower | 74.7 hp (55.7 kw) |
| Net Horsepower | 74 hp (55.1 kw) |
| Power Measured @ | 2500 rpm |
| Peak Torque | 222 lb ft (301 Nm) |
| Torque Measured @ | 1600 rpm |
| Combustion System | Direct Injection |
| Rotation from Flywheel End | Counterclockwise |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Tier 4 Final + EU Stage V |
Power Train
| Type | Hydrostatic transmission |
| Number of Gears | 2F / 2R |
| Max Travel Speed (1 Speed) | 5.7 mph (9.2 km/h) |
| Max Travel Speed (2 Speed) | 9.1 mph (14.7 km/h) |
| Parking Brake | Spring applied, hydraulically released, parking brakes |

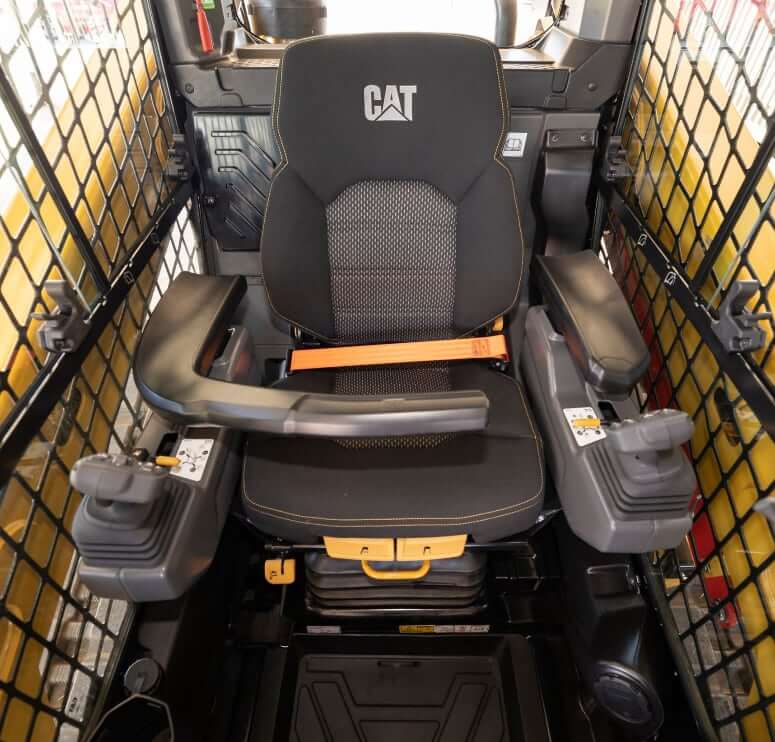

Cab
| ROPS | ISO 3471:2008 |
| FOPS | ISO 3449:2005 Level I |
| Performance Package HP1 | Standard Flow Hydraulics |
| Performance Package HP3 | High Flow XPS Hydraulics |
| Comfort Packages | Open Canopy / Enclosed Cab |
| Open Canopy | Cup Holder, Cell Phone Pocket, choice of vinyl Seat (Mechanical Suspension, High Back/Heated/Air Ride Seat) |
| Enclosed Cab | HVAC, Side Windows, Cup Holder, Cell Phone Pocket, choice of Seat (Mechanical Suspension, High Back/Heated Air Ride Seat, High Back/Ventilated and Heated Air Ride Seat) and Door choice (Glass or Polycarbonate) |
| Warning System Indicators | Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Supply Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System (where applicable) |
| Interior Light | Interior LED Dome Light |
| Noise Level Inside Cab | 80 dB(A) |
| Noise Level Outside Cab | 103 dB(A) |
Operational Specs
| Operating Weight | 9578 lb (4345 kg) |
| Max Lift Capacity | 3570 lb (1619 kg) |
| Operating Voltage | 12 V |
| Alternator | 85 amps |
| Battery | 12 V, 90 Ah, CCA 1000 heavy duty battery, 31 BCI group size |
| Working Lights | LED Work Lights |

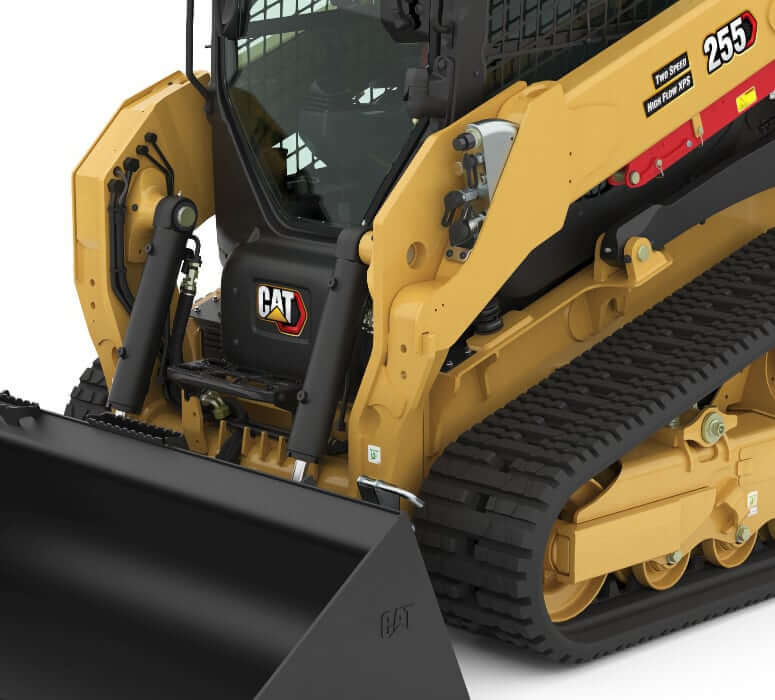

Hydraulic System
| CAT 255 | Standard Flow | High Flow | High Flow XPS |
|---|---|---|---|
| Pump Flow | 23 gal/min (86 L/min) | 30 gal/min (113 L/min) | 30 gal/min (113 L/min) |
| Relief Valve Pressure | 3500 psi (24130 kPa) | 3500 psi (24130 kPa) | 4061 psi (28000 kPa) |
| Hydraulic Power | 46.4 hp (34.6 kw) | 60.9 hp (45.4 kw) | 70.7 hp (52.7 kw) |

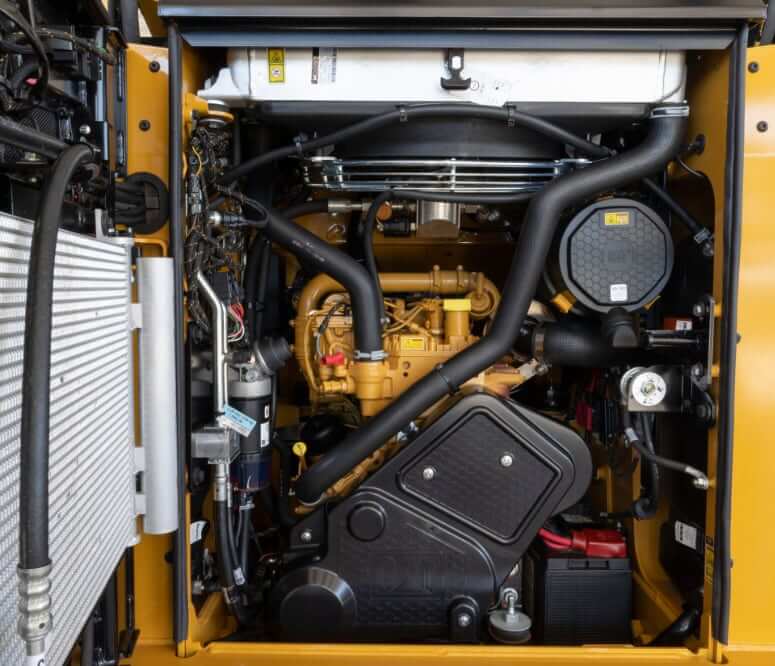

Service Refill Capacities
| Fuel Tank Capacity | 35.1 gal (95 L) |
| Engine Oil Capacity (with filter) | 2.2 gal (8.2 L) |
| Cooling System Capacity | 3.0 gal (11.5 L) |
| Hydraulic System Capacity | 9.7 gal (36.8 L) |
| Hydraulic Tank Capacity | 6.9 gal (26 L) |

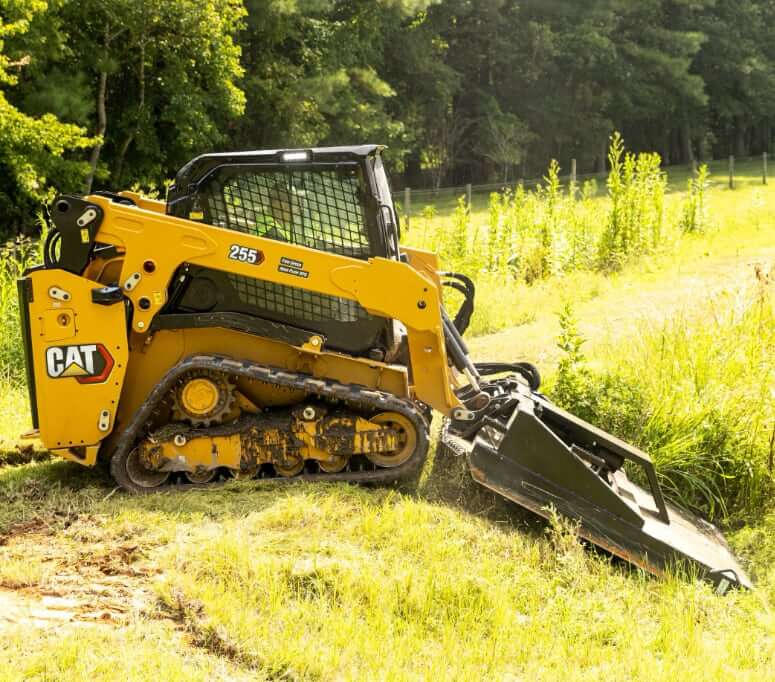

CAT 255 Attachments
The CAT 255 Compact Track Loader is built to handle a wide range of tasks across construction, landscaping, agriculture, and snow management – and its extensive lineup of genuine Cat attachments makes it even more versatile. Designed for plug-and-play performance with Cat’s Smart Technology, the 255 supports both traditional and smart attachments, helping operators get more done with precision and control.
From earthmoving to material handling and site prep, the CAT 255 accommodates high-performance tools like augers, backhoes, grader blades, brooms, buckets, and mulchers. Whether you’re drilling post holes, trenching utilities, grading surfaces, or clearing overgrowth, this loader is equipped for the task.
The 255 also integrates seamlessly with advanced Smart Attachments, such as the Smart Backhoe, Smart Dozer Blade with Assist, and Smart Grader Blade with Assist, delivering automatic recognition, joystick integration, and real-time feedback for operator-friendly control and efficiency.
Additionally, with specialized attachments like bale grabs, fork tines, stump grinders, shears, snow blowers, and wheel saws, the CAT 255 transforms into a true year-round multi-tool, ready for tough jobsite conditions and demanding workloads.
