Kubota skid steer loaders (SSV65, SSV75, SVL65-2, SVL75-3, SVL97-2) are renowned for their versatility and rugged performance. These hardworking machines tackle various tasks across construction, landscaping, agriculture, and more. However, like any mechanical equipment, they can encounter issues from time to time. To help operators and technicians diagnose and resolve problems efficiently, Kubota skid steer loaders are equipped with an onboard diagnostics system that generates error codes when anomalies are detected.
In this guide, we dive into the world of Kubota skid steer loader error codes, shedding light on what these codes mean, why they matter, and how to effectively interpret and address them. Whether you’re a seasoned skid steer operator or new to these powerful machines, understanding error codes is paramount for keeping your Kubota SSL (SSV65, SSV75) / CTL (SVL65-2, SVL75-3, SVL97-2) in peak working condition.
Let’s embark on a journey to demystify these error codes and ensure your skid steer continues to perform at its best.
List of Kubota Skid Steer Loader Error Codes
| Kubota Error Code | Problem or Failure | Skid Steer Loader condition | Provisional measure and Correction | |||
|---|---|---|---|---|---|---|
| Engine performance | Machine performance | |||||
| Accel. limited | Engine output limited | Engine stopped | ||||
| E:001 | CAN communication | – | – | – | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:004 | Hydraulic oil temperature advance warning | – | – | – | — | Stop the engine and check the level in the hydraulic oil tank, for a hydraulic oil leak and grill or oil cooler is clogged.
Fill to proper level. |
| E:005 | Hydraulic oil temperature has reached a specified level. | – | – | – | — | Stop the engine and check the level in the hydraulic oil tank and for a hydraulic oil leak.
Fill to proper level. If this error code number still appears, immediately contact your authorized Kubota dealer. |
| E:008 | Fuel sensor system | – | – | – | The fuel level indicator does not appear on the meter. The machine’s other functions are still operative. | Immediately contact your authorized Kubota distributor or dealer. |
| E:009 | Acceleration system | – | – | – | The accelerator fails, but the machine’s other functions are still operative. The machine is operative at the idling rpm. | Move the machine to a place suited for repair. Immediately contact your Kubota dealer. |
| E:010 | High-speed switching system | – | – | – | The machine still runs at low speed without switching to high speed.
The machine’s other functions are still operative. |
Immediately contact your authorized Kubota dealer. |
| E:011 | Parking brake system | – | – | – | The machine fails to move. | Immediately contact your Kubota distributor or dealer. |
| E:014 | High-flow system | – | – | – | The high-flow system is not turned on.
The machine’s other functions are still operative. |
Immediately contact your authorized Kubota dealer. |
| E:015 | Hydraulic quick-hitch system | – | – | – | The hydraulic quick-hitch system is not turned on.
The machine’s other functions are still operative. |
Immediately contact your Kubota dealer. |
| E:016 | Auxiliary hydraulic control system (Control switch on the knob) | – | – | – | The auxiliary hydraulic control system is not turned on.
The machine’s other functions are still operative. |
Immediately contact your authorized Kubota distributor or dealer. |
| E:018 | Auxiliary hydraulic control system (Solenoid valve for Rightward SW) | – | – | – | The auxiliary hydraulic control system is not turned on.
The machine’s other functions are still operative. |
Immediately contact your authorized Kubota dealer. |
| E:019 | Auxiliary hydraulic control system (Solenoid valve for Leftward SW) | – | – | – | The auxiliary hydraulic control system is not turned on.
The machine’s other functions are still operative. |
Immediately contact your Kubota dealer. |
| E:020 | Electronic travel torque management system | – | – | – | The anti-stall solenoid fails tofunction. The machine fails to move. | Immediately contact your Kubota distributor or dealer. |
| E:021 | The sensor’s 5V power supply is short-circuited. | – | – | – | The majority of systems fail.
*The engine may be started and the machine may move. But do not try any jobs. (Just move the machine to a safe place.) |
Immediately contact your authorized Kubota dealer. |
| E:022 | Fan rpm control solenoid valve cable broken. | – | – | – | The fan speed is kept its highest level. | Immediately contact your Kubota distributor or dealer. |
| E:023 | This error code number appears if a jumper cable is connected to a 24V battery or improper device to jump start the engine. | – | – | – | Immediately stop using connected device and disconnect the 24V battery. When the engine gets restarted and is running with no error code number appearing, it means there is no problem. | If this error code number still appears, immediately contact your authorized Kubota dealer. |
| E:024 | Hydraulic oil temperature sensor error | – | – | – | The traveling speed is kept low speed. | Immediately contact your authorized Kubota distributor or dealer. |
| E:026 | CRS CAN communication | ** | ** | – | — | Immediately contact your Kubota distributor or dealer. |
| E:027 | Solenoid for the ride control is broken or short-circuited. | – | – | – | The ride control stops. | Immediately contact your authorized Kubota dealer. |
| E:028 | Solenoid for the fan is broken or short-circuited. | – | – | – | The fan speed is kept its highest level. | Immediately contact your Kubota distributor or dealer. |
| E:029 | Solenoid for the hydraulic lock system (arm) is broken or short-circuited. | – | – | – | The solenoid for the hydraulic lock system stops. | Immediately contact your authorized Kubota dealer. |
** May happen / *** Sure to happen
| Kubota Error Code | Problem or Failure | Skid Steer Loader condition | Provisional measure and Correction | |||
|---|---|---|---|---|---|---|
| Engine performance | Machine performance | |||||
| Accel. limited | Engine output limited | Engine stopped | ||||
| E:029 | Acceleration system | – | – | The machine is operative at the idling rpm. | Move the machine to a place suited for repair. Immediately contact your authorized Kubota distributor or dealer. | |
| E:030 | Solenoid for the hydraulic lock system (bucket) is broken or short-circuited. | – | – | – | The solenoid for the hydraulic lock system stops. | Immediately contact your authorized Kubota distributor or dealer. |
| E:030 | ECU CAN communication cable broken | – | – | – | The traveling speed is kept low speed and the fan speed is kept its highest level. | Immediately contact your authorized Kubota distributor or dealer. |
| E:031 | The pressure sensor of the high speed mode is broken or short-circuited. | – | – | – | The traveling speed is kept low speed. | Immediately contact your authorized Kubota distributor or dealer. |
| E:032 | Float mode selector solenoid cable broken or short-circuited | – | – | – | The float solenoid fails to function and the float mode is not turned on. | Immediately contact your authorized Kubota distributor or dealer. |
| E:036 | Forward detection pressure sensor (right) cable broken | – | – | – | The back buzzer malfunctions when the right wheels move forward. | Immediately contact your authorized Kubota distributor or dealer. |
| E:037 | Forward detection pressure sensor (left) cable broken | – | – | – | The back buzzer malfunctions when the left wheels move forward. | Immediately contact your authorized Kubota distributor or dealer. |
| E:9000 | Requirement for DPF regeneration. | – | – | – | DPF must be regenerated, but low engine rpm is unable to start DPF regeneration. | Rev up the engine rpm and start DPF regeneration.
If this error code number still appears, immediately contact your authorized Kubota distributor or dealer. |
| E:9001 | Requirement for DPF regeneration. | – | *** | ** | DPF must be regenerated, but low engine rpm is unable to start DPF regeneration.
If you leave the machine with the hydraulic locked, the engine can stop automatically. |
Rev up the engine rpm and start DPF regeneration.
If this error code number still appears, immediately contact your authorized Kubota distributor or dealer. |
| E:9002 | DPF is regenerated. | – | *** | – | — | — |
| E:9003 | Requirement for DPF regeneration. | – | *** | – | DPF must be regenerated, but unable to start regeneration. | Immediately contact your authorized Kubota distributor or dealer. |
| E:9004 | Requirement for DPF replacement. | – | *** | – | DPF must be replaced. | Immediately contact your authorized Kubota distributor or dealer. |
| E:9006 | Requirement for DPF regeneration. | – | – | – | DPF must be regenerated, but unable to start regeneration because the inhibit switch is activated. | Move the machine to a safe place and release the inhibit switch to start DPF regeneration. If this error code number still appears, immediately contact your authorized Kubota distributor or dealer. |
| E:9007 | Requirement for DPF regeneration. | – | *** | ** | DPF must be regenerated, but unable to start regeneration because the inhibited switch is activated.
If you leave the machine with the hydraulic locked, the engine can stop automatically. |
Restart the engine, move the machine to a safe place and release the inhibit switch to start DPF regeneration.
If this error code number still appears, immediately contact your authorized Kubota distributor or dealer. |
| E:9010 | Engine stop for DPF | – | – | *** | The DPF regeneration fails to function. The machine is left with the hydraulic system locked, by which the engine stops itself. | Restart the engine, move the machine to a safe place and release the inhibit switch to start DPF regeneration.
If this error code number still appears, immediately contact your authorized Kubota distributor or dealer. |
| E:9100 | Rpm sensor system | ** | ** | – | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9101 | Fuel or rail pressure system | *** | *** | *** | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9102 | SCV system | *** | *** | – | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9103 | Intake air temperature sensor system | – | – | – | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9104 | Coolant temperature system | *** | *** | – | — | Immediately contact your authorized Kubota distributor or dealer. |
** May happen / *** Sure to happen
| Kubota Error Code | Problem or Failure | Skid Steer Loader condition | Provisional measure and Correction | |||
|---|---|---|---|---|---|---|
| Engine performance | Machine performance | |||||
| Accel. limited | Engine output limited | Engine stopped | ||||
| E:9105 | Fuel temperature sensor system | – | – | – | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9106 | Injector system | *** | *** | ** | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9107 | Intake air pressure sensor system | – | ** | – | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9108 | Battery voltage system | *** | *** | ** | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9109 | Sensor voltage system | *** | *** | ** | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9110 | Main relay system | – | – | – | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9112 | Atmospheric pressure sensor system | – | ** | – | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9113 | EGR valve system | – | *** | – | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9114 | Pre overheat | – | – | – | — | For correction, refer to the Coolant Temperature Gauge section.
Stop the engine and check the grill or oil cooler is clogged. |
| E:9115 | Emission level caution | – | *** | – | — | For correction, refer to the Coolant Temperature Gauge section.
Stop the engine and check the grill or oil cooler is clogged. If this error code number still appears, immediately contact your authorized Kubota distributor or dealer. |
| E:9116 | Engine overheat warning | *** | – | – | — | For correction, refer to the Coolant Temperature Gauge section.
Stop the engine and check the grill or oil cooler is clogged. If this error code number still appears, immediately contact your authorized Kubota distributor or dealer. |
| E:9117 | Air heater system | – | – | – | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9118 | Engine oil pressure system | – | – | – | — | Stop the engine and check the engine oil level.
If this error code number still appears, immediately contact your authorized Kubota distributor or dealer. |
| E:9119 | Charging system failure | – | – | – | — | Stop the engine and check the V-belt.
If this error code number still appears, immediately contact your authorized Kubota distributor or dealer. |
| E:9120 | Fuel filter water warning | – | – | – | — | Stop the engine and check and drain the fuel filter.
If this DTC error code number still appears, immediately contact your authorized Kubota distributor or dealer. |
| E:9121 | Engine ECU | ** | ** | ** | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9122 | ECU communication failure | ** | ** | – | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9200 | Mass air flow sensor system | – | ** | – | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9203 | Intake air throttle | – | – | – | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9204 | Differential pressure sensor system | – | – | – | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9205 | Exhaust temperature sensor (DOC inlet) | – | – | – | — | Immediately contact your authorized Kubota distributor or dealer. |
** May happen / *** Sure to happen
| Kubota Error Code | Problem or Failure | Skid Steer Loader condition | Provisional measure and Correction | |||
|---|---|---|---|---|---|---|
| Engine performance | Machine performance | |||||
| Accel. limited | Engine output limited | Engine stopped | ||||
| E:9206 | Exhaust temperature sensor (DOC outlet) | – | – | – | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9207 | Exhaust temperature sensor (DPF outlet) | – | – | – | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9208 | All the exhaust temperature sensors breakdown at once. | – | – | – | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9211 | DOC response is unusual. | *** | *** | – | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9212 | DPF regeneration timeout | – | – | – | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9213 | DPF regeneration Error (Water temperature is low) | – | – | – | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9214 | DPF regeneration cycle occurs too often. | – | *** | – | — | Immediately contact your authorized Kubota distributor or dealer. |
| E:9300 | Engine fuel system (P/L) | *** | *** | – | — | Check the fuel level and see if the fuel filter is clogged.
If this DTC error code number still appears, immediately contact your authorized Kubota distributor or dealer. |
| E:9301 | Engine fuel system (rail pressure) | *** | *** | – | — | Check the fuel level and see if the fuel filter is clogged.
If this error code number still appears, immediately contact your authorized Kubota distributor or dealer. |
| E:9302 | Engine fuel system (leakage) | *** | *** | – | — | Check the fuel level and see if the fuel filter is clogged.
If this error code number still appears, immediately contact your authorized Kubota distributor or dealer. |
| E:9303 | Engine fuel system (SCV) | *** | *** | – | — | Check the fuel level and see if the fuel filter is clogged.
If this error code number still appears, immediately contact your authorized Kubota distributor or dealer. |
| E:9304 | Engine fuel system (supply pump). | *** | *** | – | — | Check the fuel level and see if the fuel filter is clogged.
If this error code number still appears, immediately contact your authorized Kubota distributor or dealer. |
| E:9305 | Engine air intake system (poor air intake) | *** | *** | – | — | Check to see if any air-intake hose is disconnected and if the air cleaner element is clogged. If this error fault code number still appears, immediately contact your authorized Kubota distributor or dealer. |
| E:9306 | Engine air intake system (boost pressure too low) | *** | *** | – | — | Check to see if any air-intake hose is disconnected and if the air cleaner element is clogged. If this error code number still appears, immediately contact your authorized Kubota distributor or dealer. |
| E:9307 | Engine exhaust temperature (DOC inlet) is not as specified. | – | – | *** | — | Check the fuel level and see if the fuel filter is clogged.
Check to see if any air-intake hose is disconnected and if the air cleaner element is clogged. If this error fault code number still appears, immediately contact your authorized Kubota distributor or dealer. |
| E:9308 | Engine exhaust temperature (DOC outlet) is not as specified. | – | – | *** | — | Check the fuel level and see if the fuel filter is clogged.
Check to see if any air-intake hose is disconnected and if the air cleaner element is clogged. If this fault code number still appears, immediately contact your authorized Kubota distributor or dealer. |
| E:9309 | Engine exhaust temperature (DPF outlet) is not as specified. | – | – | *** | — | Check the fuel level and see if the fuel filter is clogged.
Check to see if any air-intake hose is disconnected and if the air cleaner element is clogged. If this error code number still appears, immediately contact your authorized Kubota distributor or dealer. |
| E:9310 | Starter turn-on limited | – | – | *** | — | The starter is limited for its activation inresponseto any other error |
| E:9400 | Other failures | ** | ** | ** | — | Immediately contact your authorized Kubota distributor or dealer. |
** May happen / *** Sure to happen
Understanding Kubota skid steer loader error codes is essential for efficient operation and maintenance.
Always refer to your loader’s operation manual for specific fault code definitions and troubleshooting steps, and don’t hesitate to seek professional assistance when needed to keep your skid steer loader running smoothly.
How to Reset Kubota Skid Steer Error Codes?
Resetting error codes on a Kubota skid steer loader typically involves following a specific procedure to clear the error code(s) from the machine’s diagnostics system. Here’s a general step-by-step guide on how to reset error codes on a Kubota skid steer loader (skid steers: SSV65, SSV75 / compact track loaders: SVL65-2, SVL75-3, SVL97-2):
Please Note: It’s essential to address the root cause of the DTC error code before resetting it. Resetting the code without resolving the underlying issue may lead to further problems or unsafe operation.
1. Ensure Safety:
- Park the skid steer loader on a level surface.
- Engage the parking brake.
- Turn off the engine and remove the ignition key.
2. Access the Error Code Display:

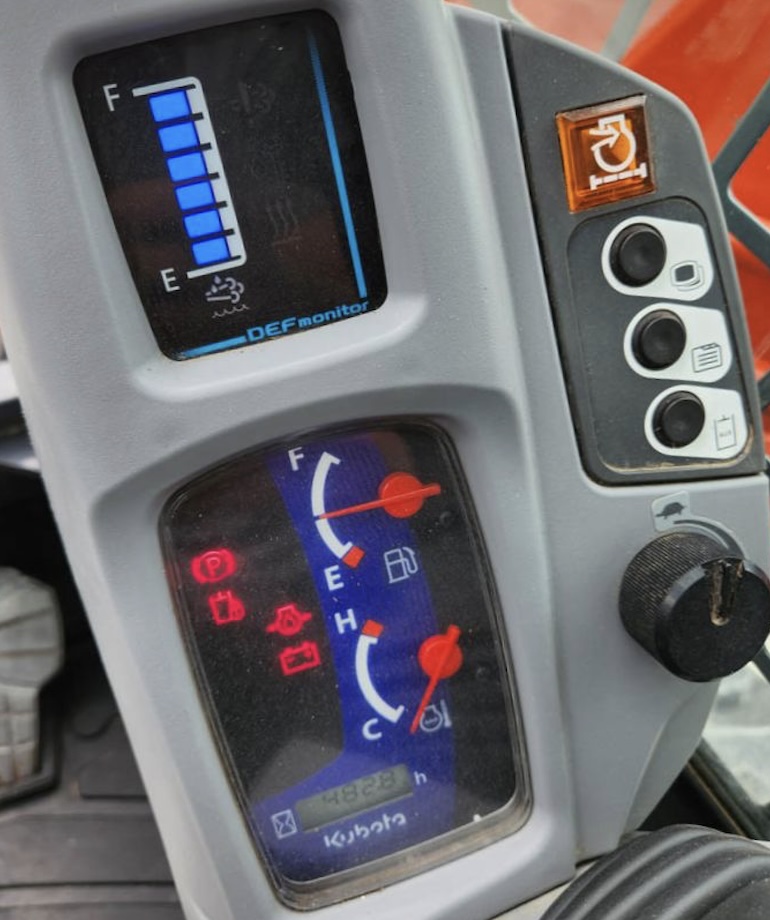

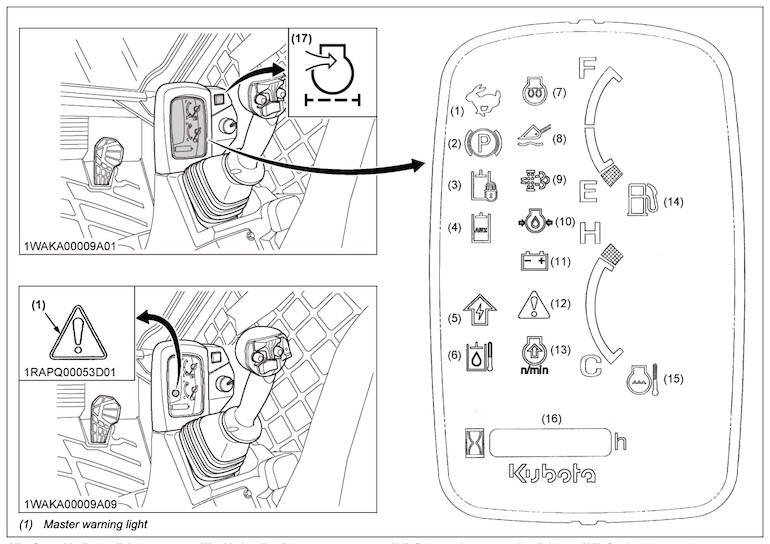

- On many Kubota skid steer loaders, the error codes are displayed on the control panel or instrument cluster.
- Turn the ignition key to the “On” position without starting the engine. This step may vary depending on your specific model.
3. View the Error Code(s):
- The DTC error code(s) should appear on the display screen. Make a note of the code(s) that you want to reset.
4. Refer to the Operator’s Manual:
- Consult your Kubota skid steer loader’s operator’s manual or technical documentation. It often contains information on error code interpretation and resetting procedures specific to your model.
5. Follow the Reset Procedure:
- Kubota skid steer loaders typically have a specific sequence of actions or button presses required to reset error codes. This procedure may involve holding down certain buttons or toggling switches. Refer to your operator’s manual for precise instructions.
6. Verify DTC Code Reset:
- After performing the reset procedure, turn the ignition key to the “On” position and check if the error fault code(s) have been cleared from the display.
7. Test the Equipment:
- Start the engine and operate the skid steer loader for a brief period, ensuring that the error code does not reappear.
8. Monitor Operation:
- Continuously monitor the machine’s operation to confirm that the issue has been resolved. If the error code reappears, it’s crucial to address the underlying problem.
Important: If you are unsure about how to reset error codes on your specific Kubota skid steer loader model or if the fault DTC code persists after resetting, it’s advisable to contact your local Kubota dealer or a qualified technician with Kubota Diagmaster for assistance. Resetting error codes should only be done after addressing the underlying issue to ensure the safe and reliable operation of the skid steer loader.
Kubota Skid Steer Loader Error Codes FAQ
Compact track or skid steer loaders are versatile and powerful machines used in various industries for a wide range of tasks. However, like any machinery, they can encounter issues that trigger error codes . Understanding these error codes is essential for diagnosing and addressing problems promptly.
In this FAQ, we’ll provide answers to common questions about Kubota skid steer loader error codes:
Q1. What are Kubota skid steer loader error codes?
A: Kubota skid steer loader error codes are alphanumeric codes generated by the onboard diagnostics system (OBD) of the machine. These codes represent specific issues or malfunctions detected within the loader’s various components and systems.
Q2. Why are error codes important?
A: Error codes are crucial for identifying and diagnosing problems in your Kubota skid steer loader. They serve as diagnostic tools that help operators and technicians pinpoint issues quickly, reducing downtime and preventing potential damage.
Q3. How do I read Kubota skid steer loader error codes?
A: Kubota skid steer loaders typically display error codes on the machine’s control panel or instrument cluster. You can refer to your loader’s operation manual for a list of error fault codes specific to your model. The manual will provide code definitions and recommended actions to take when a code appears.
Q4. What are some common Kubota skid steer loader error codes?
A: The specific error codes can vary depending on your skid steer loader’s model and year. Common error codes may relate to issues with the engine, hydraulics, electrical system, or other vital components. Refer to your manual for a comprehensive list of error codes and their meanings.
Q5. When should I seek professional help for error codes?
A: If you encounter error codes that you cannot resolve through basic troubleshooting or if the same codes reappear after resetting, it’s advisable to contact a qualified Kubota technician. They have the expertise and diagnostic tools to address complex issues and prevent further damage to your skid steer loader.
Q6. How can I prevent error codes in my Kubota skid steer loader?
A: Regular maintenance, routine inspections, and following recommended operating procedures can help prevent many error codes. Keeping your loader (SLV65-2, SVL75-3, SVL97-2, SSV65, and SSV75) in good condition and addressing issues promptly can reduce the likelihood of encountering DTC error codes.
My Kubota SVL65 track loader has been sitting unused indoors for a 10 months in an unheated building. It started up just fine today, but gave an error code E:9120. I turned off the engine, removed and inspected the fuel filter, visually everything is fine with the filter, but error E9120 still appears.
Kubota E9120 is water separator in fuel filter error code! Check the fuel filter for water!
Hi there, I’m experiencing an issue with my Kubota SVL75-2, as it’s currently stuck in limp mode with the error code e9214 displayed. This code indicates that the DPF regeneration cycle is occurring too frequently. Initially, I took the machine to the Kubota dealer for diagnosis. They removed the DPF filter, cleaned it, and recommended replacing the fuel injectors (the cost of replacing the injectors is about $8,000). Opting not to replace the injectors!!!
I continued to operate my SVL75-2 for about 10 hours, and e9214 code came back on… Subsequently, I decided to disassemble the loader myself. I had the DPF filter professionally cleaned again and replaced the fuel injectors. While the CTL is now starting and idling properly, it remains in limp mode due to the persistent error code.
I’m seeking advice on how to clear the DPF error code. I understand it typically involves a sequence similar to that of my Kubota L6060 tractor, but I’ve been unable to find any relevant information. I purchased the workshop manual for my SVL75 primarily but cannot find any information about clearing codes in there. Any suggestions on how to clear the DPF error code?
You most likely have a failure of either the T0, T1, T2 temperature sensor, or the differential pressure sensor, or a wiring problem.
Check the wiring from the sensors at the bottom edge of the gray protective sleeve covering the last several inches before the DPF muffler. See if the sleeve has worn through the wire’s insulation and is letting the wires short across each other.
When you replaced the fuel injectors, did you record the injector compensation numbers of each new injector with its location, then have your dealer use Kubota Diagmaster and enter the new codes on the ECU? If not, your injectors are not delivering fuel correctly.
What is error code 9602 on Kubota SVL 95?
Error E:9602 = Engine power limited (SCR system) – SCR system error, engine power is limited during operation! This DTC code does not appear on its own; usually, it is caused by a problem with the DPF (diesel particulate filter) of DEF sensors. If you see error E:9519 on your Kubota skid steer, you may have a problem with the DEF sensor, the wiring, or the DPF itself.
