Kubota B26 Specs, Weight & Attachments (Loader TL500 + Backhoe BT820 Specifications)

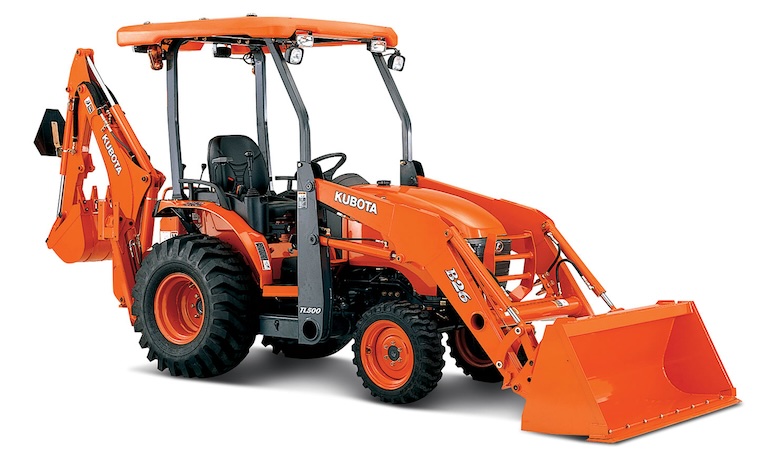

The Kubota B26TLB utility tractor is a versatile powerhouse suitable for a range of tasks, from landscaping to construction. With its 24.3 HP Kubota diesel engine, standard 4WD, and sloped loader arms and hood designed for enhanced visibility, it’s engineered to boost productivity on any work site.

Kubota B26 Specs, Weight and Attachments

Kubota B26 equipped with headlights and work lights strategically placed for maximum ground coverage during night work, as well as rear-mounted lights for backhoe or 3-point hitch operations, the Kubota B26 TLB offers convenience and safety in equal measure.

Kubota B26 Specs, Weight & Dimensions

Engine
Gross power (SAE) 24.3 HP (18.1 kw)
Net power (SAE) 23.1 HP (17.2 kw)
Total displacement 68.5 cu.in. (1123 cm^3)
No. of cylinders 3
Rated speeds 2800 rpm
Air cleaner Single element
Max. PTO power 19.5 HP (14.5 kw)
Fuel tank capacity 8.2 gal (31 liters)
Tire size
Front tire 23 × 8.5–14 R4 (IND)
Rear tire 12.4–16 R4 (IND)
Wheelbase 62.2 in. (1581 mm)
Front tread 35.6 in (905 mm)
Rear tread 41.3 in (1050 mm)
Kubota B26 Weight with Loader, Backhoe & ROPS/FOPS * 4001 lbs (1815 kg) *
Min. turning radius ** 8.2 ft. (2.5 m)
Rear PTO 540 rpm, Independent
Power steering Hydrostatic
Transmission type HST (3 range)
No. of speeds Infinite
Max. traveling speed 11.1 mph (17.8 km/h)
Range shift lever position Seat side, left
Brake type Wet disc
Hydraulic pump capacity 11.1 GPM (42.0 L/min) **
3-point hitch lift capacity at 24 in. (610 mm) behind lift point 1676 lbs (760 kg)
Hydraulic position control Standard
3-point hitch (Category I) Optional
ROPS/FOPS 4-post, Standard
Hard nose slanted hood Standard
Loader-integrated reinforced frame Standard
Horn Standard
Movable seat Standard
Tilt steering Standard
Muffler Enclosed (w/ spark arrestor)
Pedals Hanging type
Deck Full-floating ISO-mounted flat deck
Glow plug Super glow

* – With round back loader bucket, 18″ backhoe bucket and standard tires.
** – 6.9 GPM for loader/backhoe, 4.2 GPM for backhoe boom.

Kubota TL500 Loader Specs & Operating Dimensions

Kubota TL500 Loader Specs and Dimensions

Here’s the table with Kubota TL500 LOADER Specs & Operating Dimensions:

Specification
Lift capacity to max. height (bucket bottom mid point) 1102 lbs (500 kg)
Lift capacity to max. height (pivot pin) 1301 lbs (590 kg)
Breakout force at pivot pin 2343 lbs (10417 N)
Control valve One detent float position, power beyond circuit
Net weight (Approx.) 628 lbs (285 kg)
Auto-leveling mechanism Mechanical spill guard
2 lever quick coupler Standard

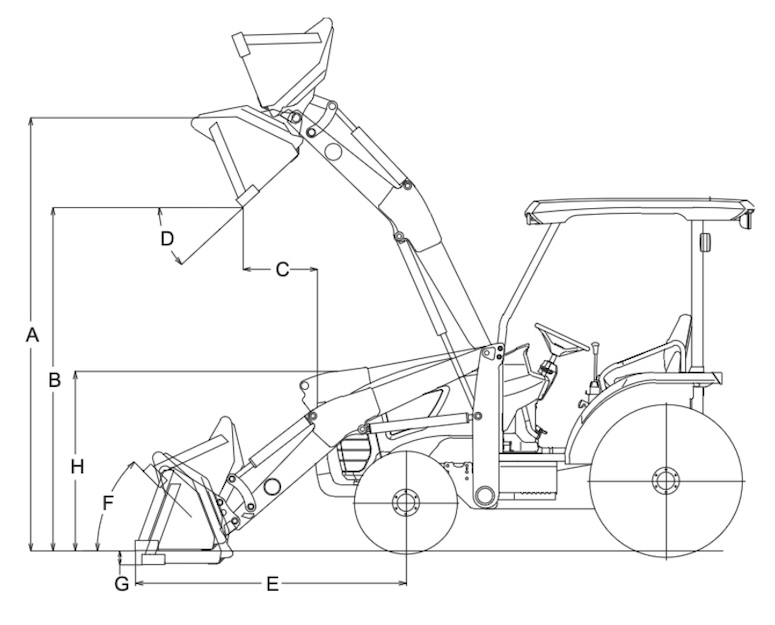

TL500 Loader Operating Dimensions:
A. Maximum lift height to pivot pin 94.5 in. (2400 mm)
B. Clearance with bucket dumped 70.0 in. (1778 mm)
C. Reach at maximum height 22.3 in. (567 mm)
D. Maximum dump angle 45 deg.
E. Reach with bucket on ground 61.5 in. (1561 mm)
F. Bucket rollback angle 46 deg.
G. Digging depth 7.0 in. (177 mm)
H. Overall height in carrying position 49.5 in. (1258 mm)
Performance Ratings (No load)
Raise to full height 3.6 sec.
Lowering time 2.4 sec.
Attachment rollback time 3.4 sec.
Attachment dumping time 1.8 sec.
3rd function valves Optional 7.0 GPM

Kubota BT820 Backhoe Specs & Operating Dimensions

Kubota BT820 Backhoe Specs and Dimensions

Here’s the table with Kubota BT820 BACKHOE Specs & Operating Dimensions:

Specification
Digging force using bucket cylinder 4210 lbs (18731 N)
Digging force using dipperstick cylinder 2123 lbs (9444 N)
Trunnion type boom swing mechanism Two cylinders
Net weight (approx.) 1025 lbs (465 kg)
Auxiliary hydraulic valve Optional 7.0 GPM

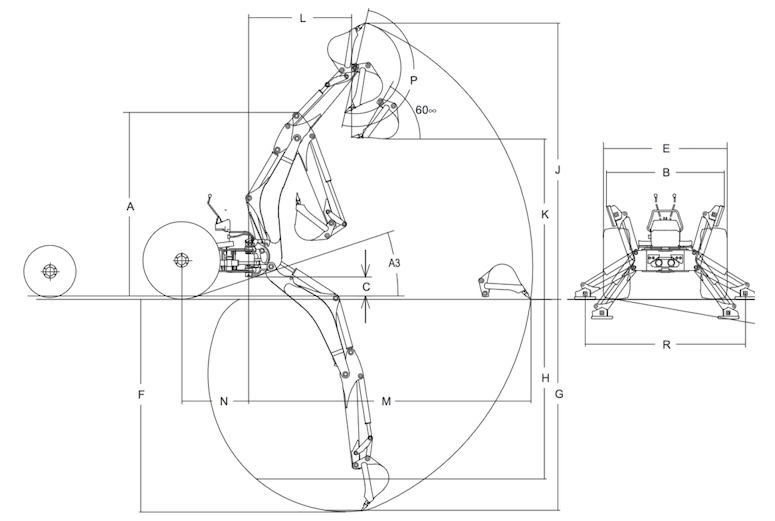

BT820 Backhoe Operating Dimensions:
A. Transport height 89.1 in. (2264 mm)
B. Stabilizer spread-transport 53.0 in. (1347 mm)
C. Ground clearance 11.3 in. ( 287 mm)
E. Overall width 53.7 in. (1365 mm)
F. Digging depth, maximum 99.8 in. (2535mm)
G. Digging depth, 2ft. flat bottom 98.3 in. (2498 mm)
H. Digging depth, 8ft. flat bottom 77.0 in. (1957 mm)
J. Operating height, fully raised 129.8 in. (3298 mm)
K. Loading height 77.3 in. (1963 mm)
L. Loading reach 52.1 in. (1324 mm)
M. Reach from swing pivot 133.9 in. (3400 mm)
N. Swing pivot to rear axle center line 33.7 in. (855 mm)
P. Bucket rotation 181.2 deg.
X. Swing arc 180 deg.
R. Stabilizer spread-operating 83.3 in. (2116 mm)
A3. Angle of departure per SAE J1234 20.3 deg.
U. Leveling angle 10.7 deg.

Kubota B26 TLB Attachments

Kubota attachments are known for their robust construction and durability, ensuring they can withstand tough working conditions. Kubota offers a diverse range of attachments/implements, including loaders, backhoes, mowers, tillers, box scrapers and more, catering to various tasks and applications. Depending on the region and dealership, availability of certain Kubota attachments/implements may be limited, leading to potential delays in procurement.

Kubota TLB Series Tractor Attachments

List of Kubota attachments / implements for B26 TLB utility tractor

  • Backhoe BT820
  • Front Loader TL500
  • AG15 Series Arena Grader
  • BX Ballast Weight Box
  • BB12 Series Box Scraper
  • BB15 Series Box Scraper
  • BB25 Series Box Scraper
  • BB15 Box Scraper
  • BS & BSE 10/20 Series Bale Spear
  • BS & BSE 30/40/50 Series Bale Spear
  • BSR10 Series Bale Spear
  • CA15 Series Core Aerator
  • CA25 Series Core Aerator
  • CB0654 Combo Bucket
  • CR25 Series Straw Crimper
  • DH10 Series Disc Harrow
  • DH15 Series Disc Harrow
  • DRG Drag Harrow
  • FC10 Series Field Cultivator
  • FC15 Series Field Cultivator
  • FDR16 Series Grooming Mower
  • FSP Series Spreader
  • GS05 Series Grading Scraper
  • GS15 Series Grading Scraper
  • HD25 Series Post Hole Digger
  • KH15 Series K-Hitch

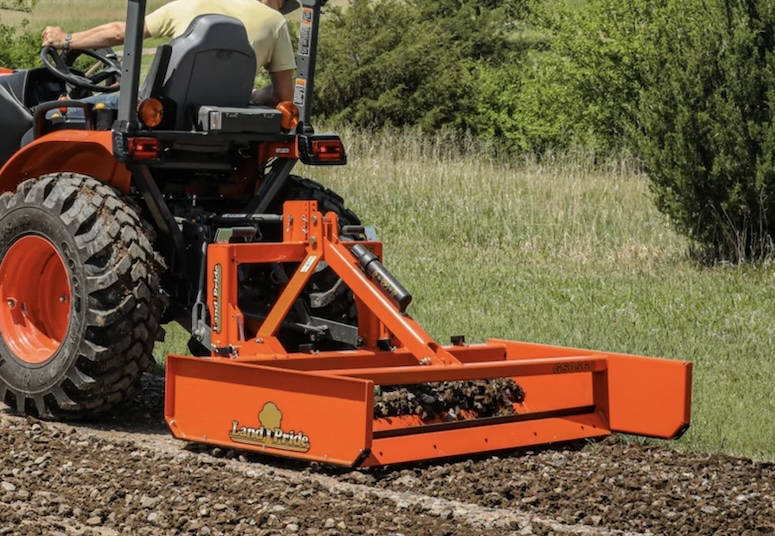

Land Pride performance-matched attachments are specifically designed to work seamlessly with Kubota utility tractors like the B26TLB, ensuring optimal performance and compatibility. Land Pride offers a wide range of performance-matched attachments/implements, including rotary cutters, landscape rakes, post hole diggers, pallet forks, rear blades, snow blowers, and more, providing solutions for various tasks.

Land Pride Attachments for Kubota B26 TLB

List of Land Pride performance matched attachments / implements for Kubota B26TLB

  • LR05 Series Landscape Rakes
  • LR16 Series Landscape Rakes
  • MP10 & MP20 Series Moldboard Plow
  • PD10 Series Post Hole Digger
  • PD15 Series Post Hole Digger
  • PD25 Series Post Hole Digger
  • PD35 Series Post Hole Digger
  • PF10 & PF20 Series Pallet Forks
  • PFL12 Series Pallet Forks
  • PFL20, PFL30, PFLE45, PFLE55, PFL64 Pallet Forks
  • PFS Series Spreader
  • Post Hole Diggers
  • PR10 Series Powered Rake
  • PTS Series Pull-Type Spreader
  • QH16 Series Quick-Hitch
  • QH30 Series Quick-Hitch
  • RB05 Series Rear Blade
  • RB15 Series Rear Blade
  • RB16 Series Rear Blade
  • RB26 Series Rear Blade
  • RB35 Series Rear Blade
  • RCR12 Series Rotary Cutter
  • RCR15 Series Rotary Cutter
  • RCR15 Series Rotary Cutter
  • RCR1884 Rotary Cutter
  • RCF36 Series Rotary Cutter
  • Rear Snow Blower
  • RGA12 & RGR12 Series Gear Drive Rotary Tillers
  • RTA12 Series Forward Rotation Rotary Tiller
  • RTR05 Series Reverse Rotation Rotary Tiller
  • RTR12 Series Reverse Rotation Rotary Tiller
  • RTR1574 Reverse Rotation Rotary Tiller
  • SB10 Series Snow Blower
  • SBR Series Seed Bed Roller
  • SF25 Series Scarifier
  • SGC06 Series Claw Grapple
  • SP20 Series Soil Pulverizer
  • SPL10 Series Loader Mount Snow Pusher
  • STB05 Series Snow Trip Blade
  • STB10 Series Snow Trip Blade
  • WB10 & WB15 Series Weight Box
  • WC1503 Wood Chipper
  • WC1504 Wood Chipper

Overall, both Land Pride performance-matched and Kubota attachments offer excellent options for enhancing the capabilities of the  B26 TLB, providing users with reliable, high-performance solutions for their agricultural, landscaping, and construction needs.

Kubota B26 Tractor Pros & Cons

Some pros and cons of the Kubota B26 Tractor Loader Backhoe:

Pros:

  1. Versatility: The Kubota B26 offers versatility for various tasks, including landscaping, construction, and agricultural work. Designed for ease of use with intuitive controls, allowing operators to focus on the task at hand. Kubota is known for its durability, making the B26 a reliable choice for long-term use.
  2. Powerful Engine: Equipped with a 24.3 HP Kubota diesel engine, providing ample power for demanding tasks.
  3. 4WD Capability: Standard 4-wheel drive ensures enhanced traction and maneuverability in various terrain conditions.
  4. Visibility: Sloped loader arms and hood design improve visibility on the work site, enhancing safety and productivity.
  5. Compact Size: Despite its power, the B26 remains relatively compact, making it suitable for maneuvering in tight spaces.

Cons:

  1. Cost: The initial cost of the Kubota B26 may be higher compared to some competing models.
  2. Maintenance: Like any heavy machinery, regular maintenance is required to keep the B26 in optimal condition, which may incur additional costs.
  3. Limited Reach: While the backhoe attachment provides digging capabilities, the reach may be limited compared to larger dedicated excavators. While ergonomic design features are present, operator comfort may vary during prolonged use, especially in challenging weather conditions.
  4. Weight: The weight of the B26 may limit its transportability without specialized equipment, especially on certain job sites.
  5. Hydraulic Capacity: While suitable for most tasks, the hydraulic capacity of the B26 may not be sufficient for extremely heavy-duty applications.
