John Deere 950K LGP PAT Blade Specs – Largest Six-Way Dozer Blade

Manufactured with precision at the renowned John Deere Dubuque Works, the John Deere 950K Dozer sets an industry benchmark as the largest crawler dozer boasting a six-way power/angle/tilt (PAT) blade. This exceptional feature, exclusive to the John Deere LGP (low ground pressure) track configuration, elevates dozing and finish grading to impressive levels. John Deere 950K LGP PAT Blade is actually the Largest Six-Way Dozer Blade in the world!!!

The 950K’s augmented engine power, standing at 280 horsepower, coupled with enhanced final drives, ensures uncompromised machine strength and blade speed.

John Deere 950K PAT Dozer Blade Features

The 950K with the 6-Way PAT blade receives an extra 3,800 pounds of machine weight, bolstering the durability of its C-frame. High-mount design for PAT blade-lift cylinders aligns with the structures and cooling package of the 950K outside-dozer (OSD) blade, streamlining fleet maintenance and component costs.

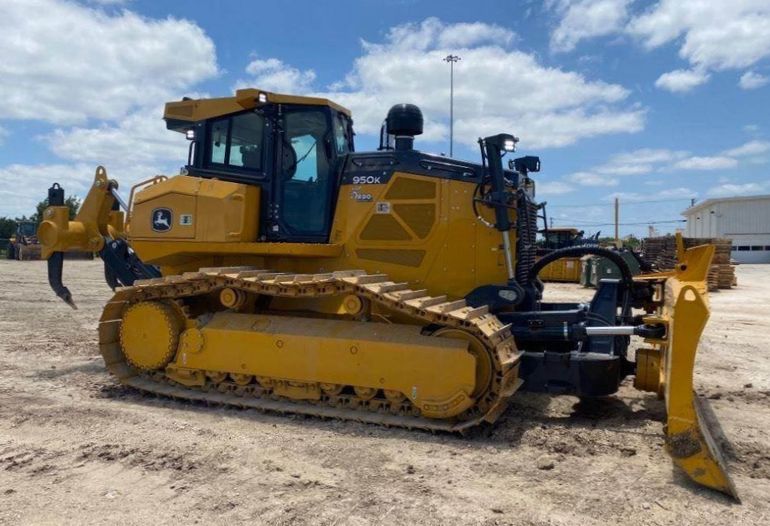

John Deere 950K LGP PAT Blade - Largest Six-Way Dozer Blade

Boasting an 8.6-cubic-yard capacity, the PAT blade empowers you to tackle dozing, grading, and material movement tasks with exceptional prowess. The hydraulic dual-tilt option allows operators to conveniently adjust blade pitch from the cab, making it ideal for applications requiring frequent pitch modifications. Programmed return-to-pitch settings enable operators to preset blade-pitch positions, easily activated with a button press.

With a substantial 6-Way PAT blade width of 184 inches, each pass covers more ground, reducing the need for multiple passes.

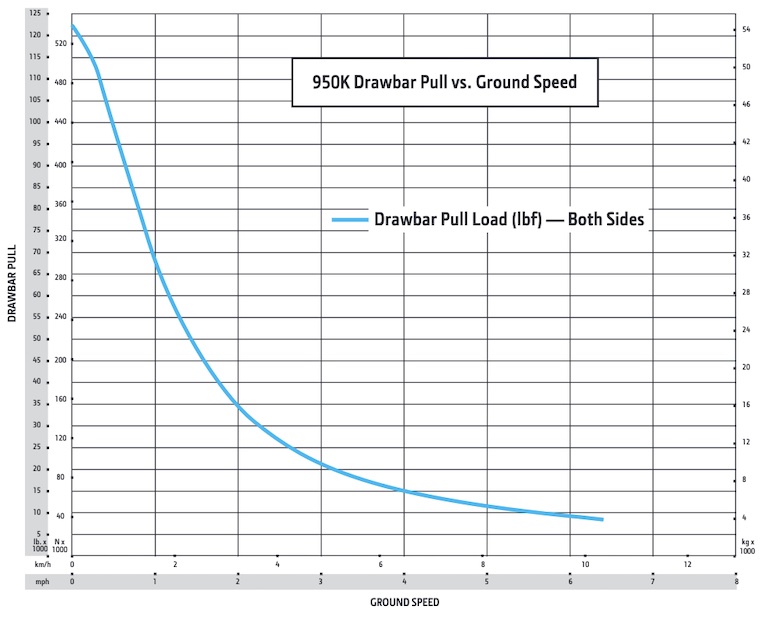

John Deere 950K with 6 Way Blade Drawbar Pull vs. Ground Speed

The blade pitch, adjustable to three mount locations, becomes a breeze to control from the cab, thanks to the optional hydraulic power pitch feature. Activating preset blade-pitch positions is effortless, courtesy of the push-button-activated return-to-pitch function.



Inspired by the requirements of pipeliners, the mechanically-angled blade has been redesigned by John Deere to withstand the rigors of the most demanding applications on pipeline rights-of-way.

John Deere 950K Six-Way PAT Dozer Blade Specs

  • PAT Blade Lift Height – 1133 mm (44.6 in. / 3 ft. 8.6 in.);
  • PAT Blade Digging Depth – 566 mm (22.3 in.);
  • PAT Blade Cutting-Edge Angle – 53.4 to 60.0 deg.;
  • PAT Blade Width (including cast end bits) – 4674 mm (184 in. / 15 ft. 4 in.);
  • PAT Blade Height – 1133 mm (44.6 in. / 3 ft. 8.6 in.);
  • PAT Blade Weight – 2525 kg (5,567 lb.);
  • PAT Blade Tilt – 640 mm (25 in.);
  • PAT Blade Angle – 25 mm (1 in.);
  • Overall Width with Blade Angled – 4241 mm (167 in. / 13 ft. 11 in.);
  • SAE Capacity – 6.6 m3 (8.6 cu. yd.).

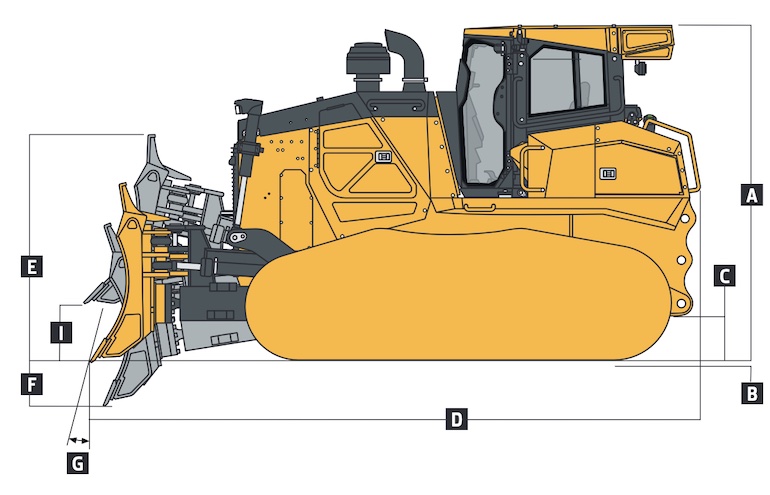

John Deere 950K Dozer Dimensions (with 6-Way PAT Blade)

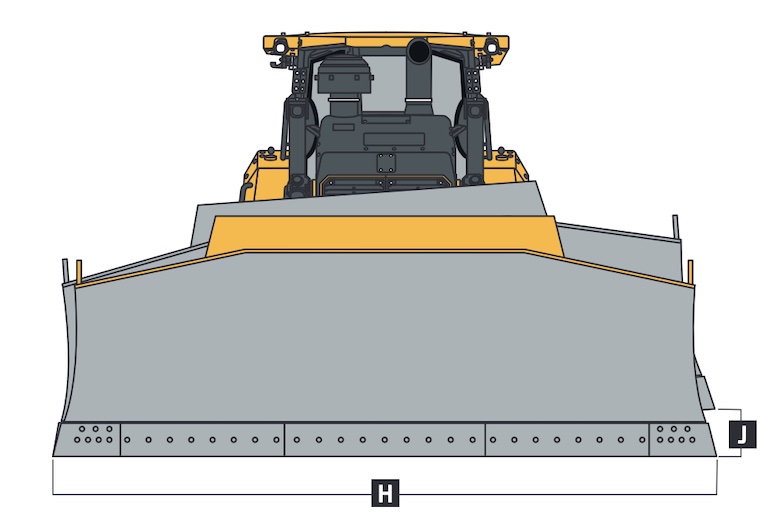

John Deere 950K Dozer Dimensions (with 6-Way PAT Blade)

  • A. Overall Height to Roof – 3427 mm (11 ft. 3 in.)
  • B. Tread Depth with Single-Bar Grouser (extreme duty or trapezoidal) – 71.4 mm (2.8 in.)
  • C. Ground Clearance in Dirt (includes grouser height) – 312 mm (12.3 in.)
  • D. Overall Length with PAT Blade – 6505 mm (256 in. / 21 ft. 4 in.);
  • E. Blade Lift Height – 1133 mm (44.6 in. / 3 ft. 8.6 in.);
  • F. Blade Digging Depth – 566 mm (22.3 in.);
  • G. Blade Cutting-Edge Angle – 53.4 to 60.0 deg.;
  • H. Blade Width (including cast end bits) – 4674 mm (184 in. / 15 ft. 4 in.);
  • I. Blade Height – 1133 mm (44.6 in. / 3 ft. 8.6 in.);
  • J. Blade Tilt – 640 mm (25 in.);
  • Overall Length With Blade and Ripper – 8182 mm (322 in. / 26 ft. 10 in.);
  • Overall Length Without Ripper and Blade – 4950 mm (195 in. / 16 ft. 3 in.);
  • Overall Length With Ripper (no blade) – 6556 mm (258 in. / 21 ft. 6 in.).
  • Operating Weights With 910 mm (36 in.) Track Shoes – 33 431 kg (73,700 lb.);
  • Track Gauge, Standard – 2702 mm (106.4 in.);
  • Grouser Width (shoe width) – 910 mm (36 in.);
  • Chain – Sealed and lubricated;
  • Shoes, Each Side – 45;
  • Track Rollers, Each Side – 8;
  • Track Length on Ground – 3431 mm (135.1 in.);
  • Ground Contact Area – 62 719 cm2 (9,721 sq. in.);
  • Ground Pressure – 52 kPa (7.6 psi);
  • Track Pitch – 215.9 mm (8.5 in.);
  • ROPS (ISO 3471 – 2008) / FOPS (ISO 3449 – 2005).

John Deere 950K LGP Dozer Dimensions

Despite its power and capabilities, the 950K is surprisingly maneuverable. The John Deere 6-Way PAT blade trims the machine’s overall length by 7 inches when equipped with the optional triple-shank ripper.

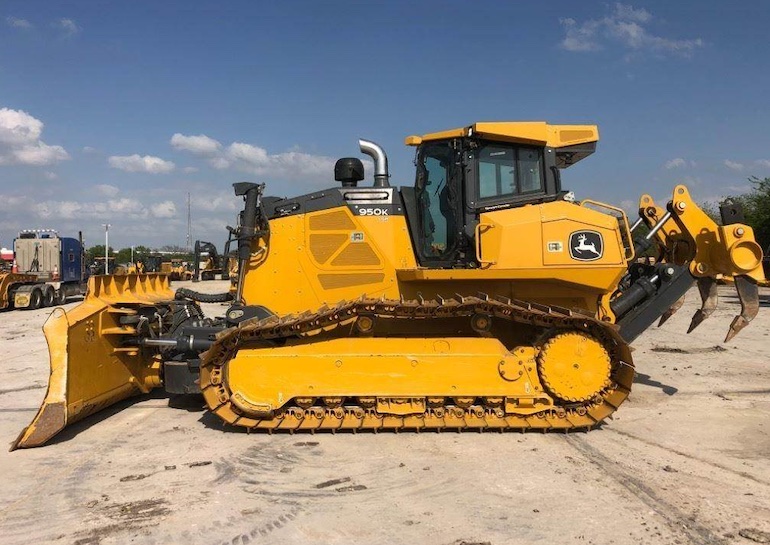

Largest 6-Way Dozer Blade for John Deere 950K LGP

In conclusion, the John Deere 950K with LGP PAT Six-Way Dozer Blade is a true game-changer in the world of heavy equipment. Its combination of power, versatility, stability, and precision makes it a top choice for contractors and operators who demand the best.

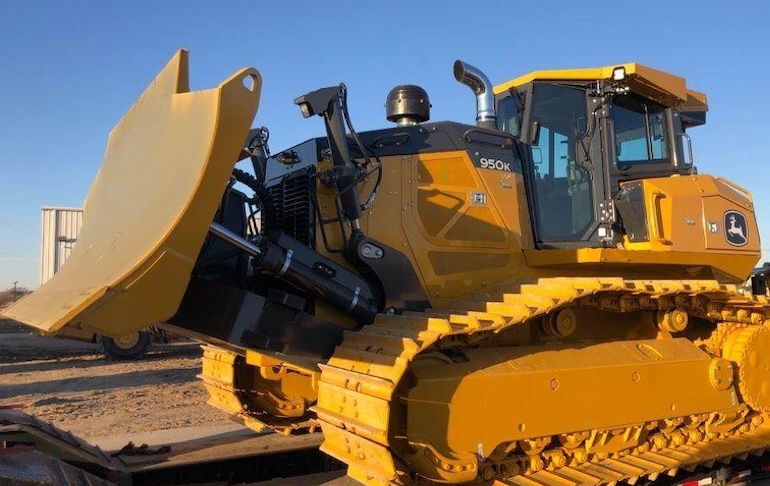

John Deere Six-Way Dozer Blade

Whether you’re pushing dirt, grading, or working on a pipeline, this machine with PAT Six-Way Dozer Blade will exceed your expectations.
