Loader
| Rated Operating Capacity (35% of tipping load) | 1490 lb (676 kg) |
| ROC w/ Counterweight, (35% of tipping load) | 1565 lb (710 kg) |
| Rated Operating Capacity (50% of tipping load) | 2121 lb (962 kg) |
| Tipping Load | 4257 lb (1931 kg) |
| Breakout Force (Lift) | 3450 lbf (15.35 kN) |
| Breakout Force (Tilt) | 3588 lbf (15.96 kN) |
| Bucket Width | 56 in (1422 mm) |
| Lift Arm Path | Two lift path options |

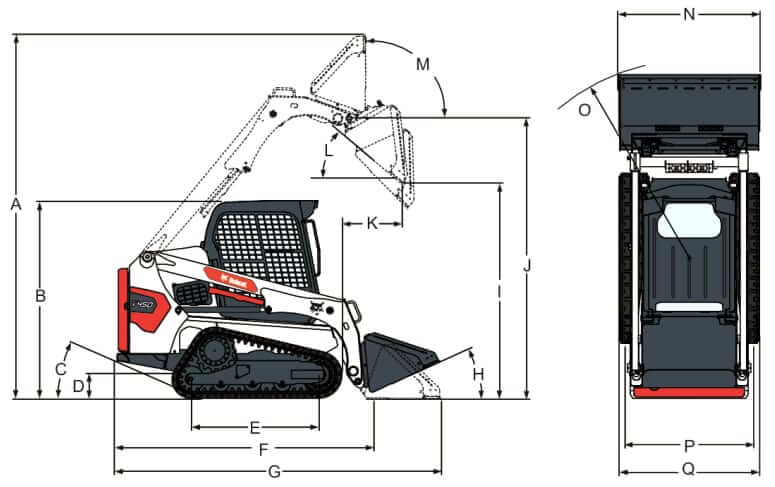

Dimensions
| A. Operating Height | 141.9 in (3604 mm) |
| B. Height with Operator Cab | 77.8 in (1976 mm) |
| C. Angle of Departure | 28° |
| D. Ground Clearance | 8.4 in (213 mm) |
| E. Ground Contact Length | 50.2 in (1275 mm) |
| F. Length without Attachment | 98.4 in (2499 mm) |
| G. Length with Standard Bucket | 126.6 in (3216 mm) |
| H. Rollback @ Ground | 26.0° |
| I. Dump Height with Standard Bucket | 83.8 in (2129 mm) |
| J. Height to Bucket Hinge Pin | 109.5 in (2781 mm) |
| K. Dump Reach @ Maximum Height | 23.5 in (597 mm) |
| L. Dump Angle @ Maximum Height | 40° |
| M. Rollback Fully Raised @ Maximum Height | 91° |
| N. Width (over standard bucket) | 56 in (1422 mm) |
| N. Width (over optional bucket) | 62 in (1575 mm) |
| O. Turning Radius with Standard Bucket | 77.9 in (1979 mm) |
| P. Track Tread | 43.2 in (1097 mm) |
| Q. Track (width over track) | 55 in (1397 mm) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Doosan / Bobcat |
| Engine Model | Doosan D24 |
| Displacement | 146.0 cu in (2.392 L) |
| Bore | 3.54 in (90 mm) |
| Stroke | 3.70 in (94 mm) |
| Net Horsepower, ISO 9249 / SAE J1349 | 58.2 hp (43.4 kw) |
| Gross Horsepower, ISO 14396 | 61.1 hp (45.5 kw) |
| Gross Horsepower, SAE J1995 | 61.9 hp (46.2 kw) |
| Rated Horsepower | 61.0 hp (45.5 kw) |
| Power Measured @ | 2600 rpm |
| Peak Torque | 168.3 lb ft (228.2 Nm) |
| Torque Measured @ | 1800 rpm |
| Lubrication System | Gear Pump Pressure System with Filter |
| Air Cleaner | Dry replaceable paper cartridge with separate safety element |
| Aspiration | Turbocharged and intercooled |
| Emission Standards | US EPA Tier 4 Final + EU Stage IIIB |
Operational Specs
| Operating Weight | 6149 lb (2789 kg) |
| Shipping Weight | 5556 lb (2520 kg) |
| Counterweight Kit | 200 lb (90 kg) |
| Operating Voltage | 12 V |
| Alternator | 90 amps |
| Battery | 12 V, RC: 110 min, CCA 700 |
| Starter | 12 V, gear type, 4.3 hp (3.2 kw) |
Power Train
| Type | Fully hydrostatic transmission |
| Number of Gears | Infinitely variable tandem hydrostatic piston pumps, driving 2 fully reversing hydrostatic motors |
| Max Travel Speed (Single Speed) | 7.3 mph (11.7 km/h) |
| Max Travel Speed (2-Speed, optional) | 11.0 mph (17.7 km/h) |
| Service Brakes | Two independent hydrostatic systems controlled by two hand operated steering levers or optional joystick(s) |
| Secondary Brake | One of the hydrostatic transmissions |
| Parking Brake | Spring applied pressure release multi-disc brake activated by manually operated switch on left instrument panel |

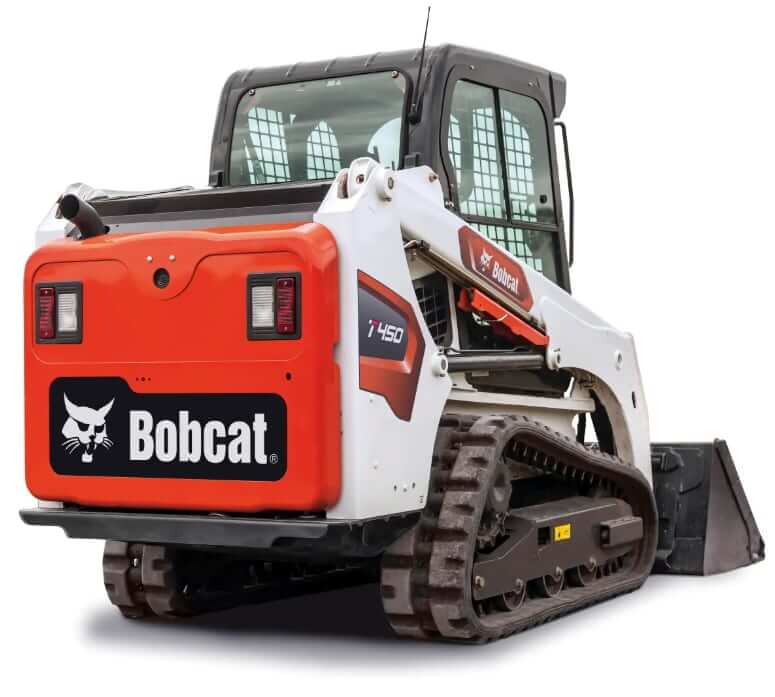

Undercarriage
| Track Width | 11.8 in (300 mm) |
| Track Type | Rubber, C-Pattern |
| Length of Track on Ground | 50.2 in (1275 mm) |
| Ground Pressure | 4.66 psi (32 kPa) |
| Lubrication | The track rollers and idlers have sealed bearings and do not require lubrication |
| Departure Angle | 28° |
Operator Environment
| Cab | Cab enclosure with heating / Cab enclosure with HVAC |
| ROPS | SAE-J1040 and ISO 3471 |
| FOPS | SAE-J1043 and ISO 3449, Level I |
| Operator Seat | Cushion suspension seat |
| Operator Seat (Optional) | Air ride seat with 2 point seat belt (3 point seat belt) |
| Working Lights | 2x Front + 2 Rear working lights (LED optional) |
| Noise Level LWA (EU Directive 2000/14/EC) | 101 dB(A) |
| Operator Noise Level LpA | 85 dB(A) |
| Whole Body Vibration (ISO 2631-1) | 0.96 m/s2 |
| Hand-arm Vibration (ISO 5349-1) | 2.41 m/s2 |
Hydraulic System
| Type | Open center hydraulic system |
| Hydraulic Pump Type | Engine driven, gear type |
| Standard Pump Flow | 16.7 gal/min (63.2 L/min) |
| High Flow Option | Not Applicable |
| System Relief at Quick Couplers | 3250 – 3350 psi (22400 – 23100 kPa) |
| Hydraulic Filter | Replaceable beta 10 micron = 200, drop in element |
| Fluid Lines | SAE Standard tubelines, hoses, and fittings |
| Raise Lift Arms Time | 2.6 sec |
| Lower Lift Arms Time | 2.4 sec |
| Bucket Dump Time | 2.0 sec |
| Bucket Rollback Time | 1.5 sec |
| Control Valve (Standard) | 3-Spool, open centre, manually operated with spring detent for lift float; Electrically controlled auxiliary spool |
| Control Valve (ACS and SJC) | 3-Spool, open centre with electric actuator controlled lift with float and tilt; Electrically controlled auxiliary spool |

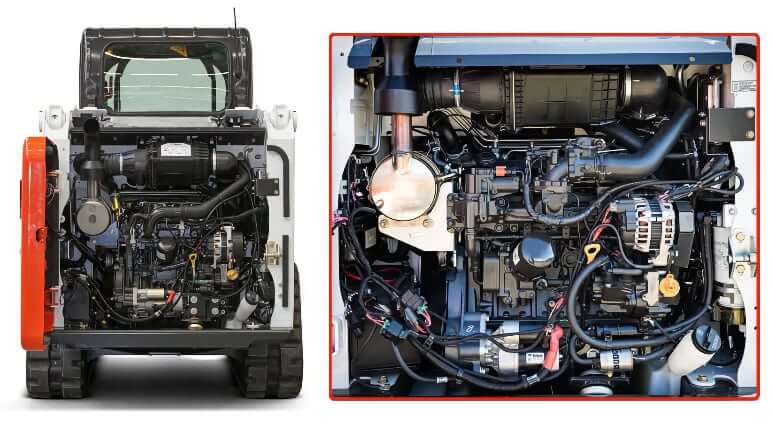

Service Refill Capacities
| Fuel Tank Capacity | 17.3 gal (65.5 L) |
| Engine Oil Capacity (w/ Filter) | 2.3 gal (8.6 L) |
| Cooling System Capacity (Cab w/o HVAC) | 3.0 gal (11.3 L) |
| Cooling System Capacity (Cab w/ HVAC) | 3.2 gal (12.3 L) |
| Hydraulic System Capacity | 5.5 gal (21 L) |
| Hydraulic Tank Capacity | 1.4 gal (5.3 L) |
| Hydrostatic Drive Motor (Each) | 0.1 gal (0.375 L) |
Bobcat T450 Filters
| Filter | Part Number |
|---|---|
| Air Filter (Inner) | 7221934 |
| Air Filter (Outer) | 7286322 |
| Engine Oil Filter | 7012303 |
| Fuel Filter | 7023589 |
| Hydraulic Filter | 7024037 |
| Hydraulic Fill / Breather Cap | 6727475 |
| Charge Filter (Spin-on) | 6686926 |
| Charge Filter (Canister) | 6692337 |
| Heater Filter | 7176099 |
| Recirculating Air Filter | 7193354 |

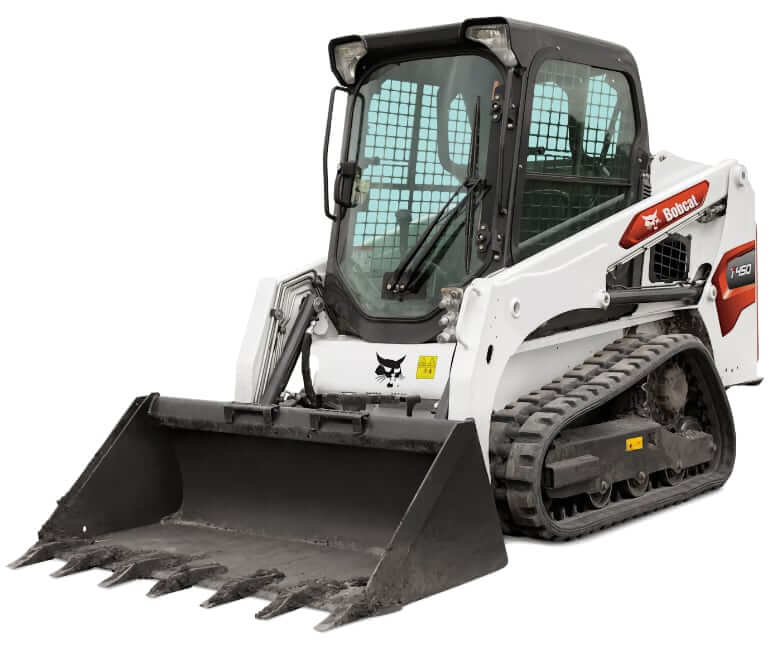

The Bobcat T450 Compact Track Loader is a powerful and agile machine designed to tackle a broad range of jobs in confined spaces and challenging ground conditions. With its compact size, smooth ride, and exceptional maneuverability, the T450 is ideal for landscaping, construction, agriculture, and property maintenance.

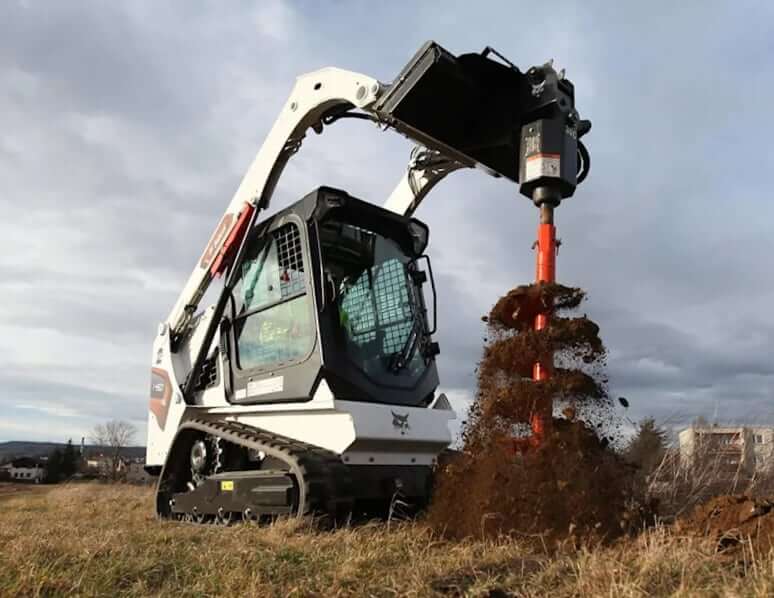

To maximize versatility and efficiency, the T450 supports a comprehensive lineup of Bobcat-approved attachments, allowing operators to customize the loader for virtually any task. From core tools like buckets, pallet forks, augers, and breakers to specialized solutions such as Brushcat rotary cutters, seeders, soil conditioners, and snow removal equipment, the T450 is engineered to adapt to every season and application.

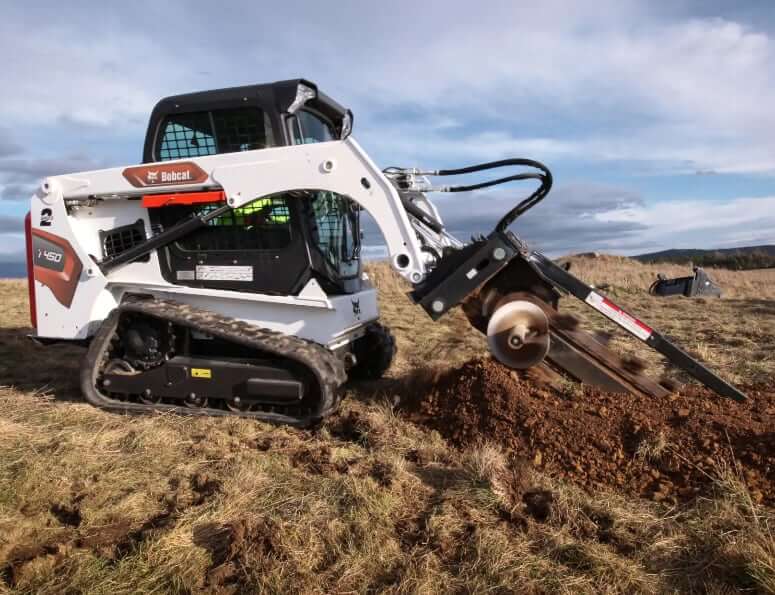

Whether you’re grading with box blades and graders, cutting brush with flail cutters or brush saws, or handling materials with grapples, utility forks, or dump hoppers, this loader delivers consistent power and control. Optional add-ons like laser equipment, remote control systems, and rear stabilizers further enhance performance and precision in demanding jobs. With over 50 compatible attachments – from concrete mixers to vibratory rollers and wood chippers – the Bobcat T450 stands out as a compact workhorse built for maximum attachment versatility.
