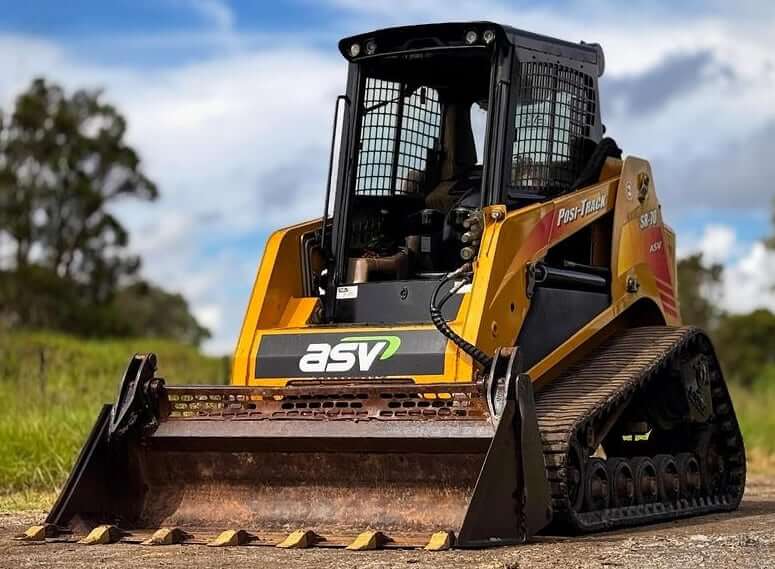

ASV SR-70 Compact Track Loader

Contents
  1. Dimensions
  2. Undercarriage
  3. Engine Details
  4. Operational Specs
  5. Loader
  6. Hydraulic

Dimensions

Width Over Tracks 5.5 ft in (1676 mm)
Height To Top Of Cab 7.17 ft in (2184 mm)
Ground Clearance 15 in (381 mm)
Clearance At Max Lift And Dump 8.17 ft in (2489 mm)
Reach At Max Lift And Dump 1.67 ft in (508 mm)
Length With Bucket 11.75 ft in (3581 mm)
Length With Out Bucket 9.34 ft in (2845 mm)

Undercarriage

Length Of Track On Ground 5.92 ft in (1803 mm)
Track Gauge 4.25 ft in (1295 mm)
Ground Contact Area 2123.51 in2 (1.37 m2)
Width Of Track 15 in (381 mm)
Ground Pressure 3.7 psi (25.5 kPa)

Engine Details

Number Of Cylinders 4
Engine Make Perkins
Engine Model 804C-33T
Gross Power 71 hp (53 kw)
Net Power 68 hp (50.8 kw)
Power Measured @ 2600 rpm
Peak Torque 173 lb ft (234.6 Nm)
Displacement 201.4 cu in (3.3 L)
Aspiration Turbocharged

Operational Specs

Operating Weight 7890 lb (3578.9 kg)
Fuel Tank Capacity 18 gal (68.2 L)
Hydraulic System Fluid Capacity 21 gal (79.5 L)

Loader

Operating Load 2750 lb (1247.4 kg)
Tipping Angle 55 degrees

Hydraulic

Pump Flow 30 gal/min (113.6 L/min)
Relief Valve Pressure 3000 psi (20684.3 kPa)
