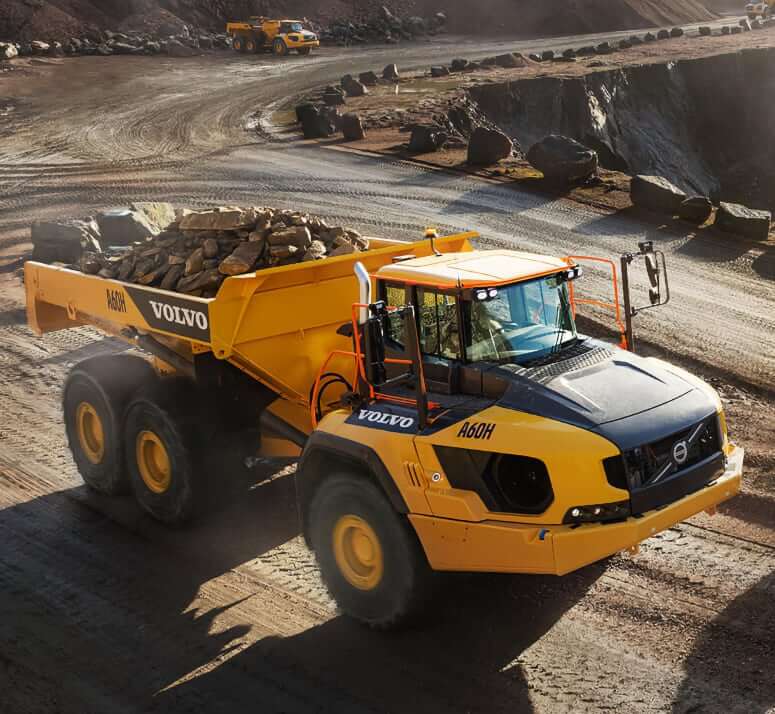

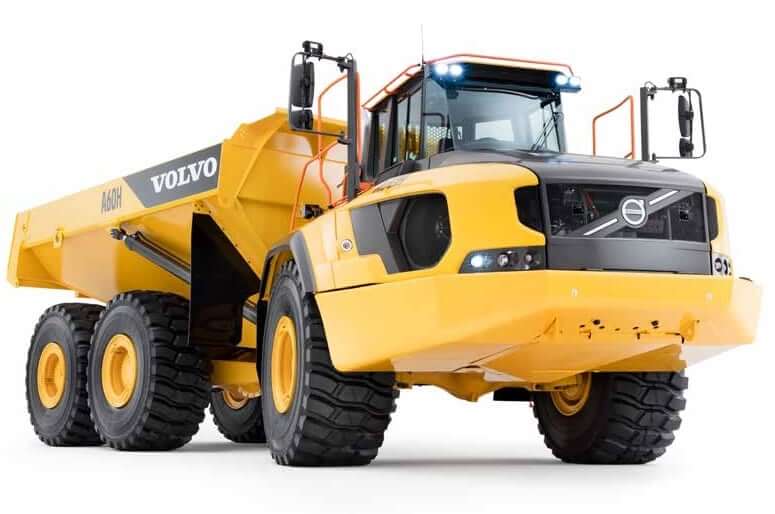

Load Capacity
| Payload Capacity |
121254 lb (55000 kg) |
| Standard Body Capacity – Struck |
33.7 yd3 (25.8 m3) |
| Standard Body Capacity – Heaped |
43.9 yd3 (33.6 m3) |
| Overhung Tailgate Body Capacity – Struck |
34.7 yd3 (26.5 m3) |
| Overhung Tailgate Body Capacity – Heaped |
45.9 yd3 (35.1 m3) |
Weights
| A60H with 33.25R29 Tires |
Operating Weight (Unloaded) |
Operating Weight (Loaded) |
| Front Axle |
50155 lb (22750 kg) |
63714 lb (28900 kg) |
| Rear Axle |
46297 lb (21000 kg) |
153993 lb (69850 kg) |
| Total |
96452 lb (43750 kg) |
217706 lb (98750 kg) |
Operating weight includes all fluids and operator.

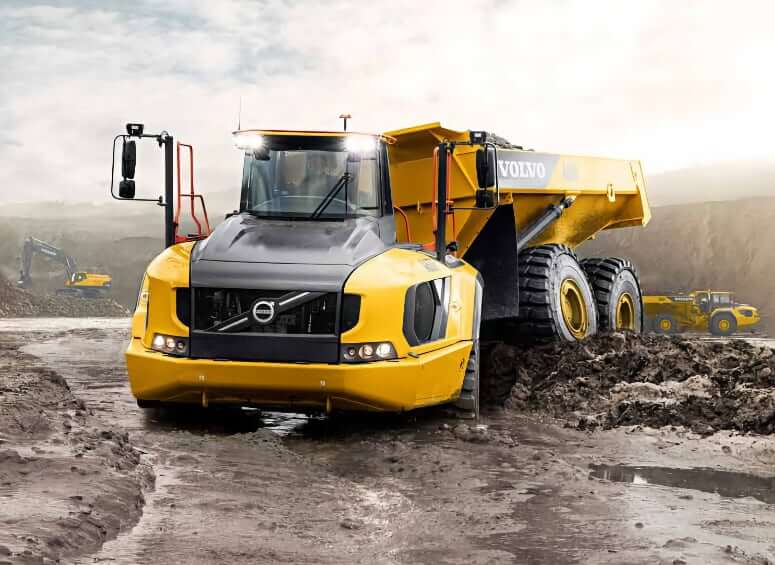

Ground Pressure
| Front Axle, Unloaded |
18.1 psi (125 kPa) |
| Rear Axle, Unloaded |
8.4 psi (58 kPa) |
| Front Axle, Loaded |
23.1 psi (159 kPa) |
| Rear Axle, Loaded |
28 psi (193 kPa) |

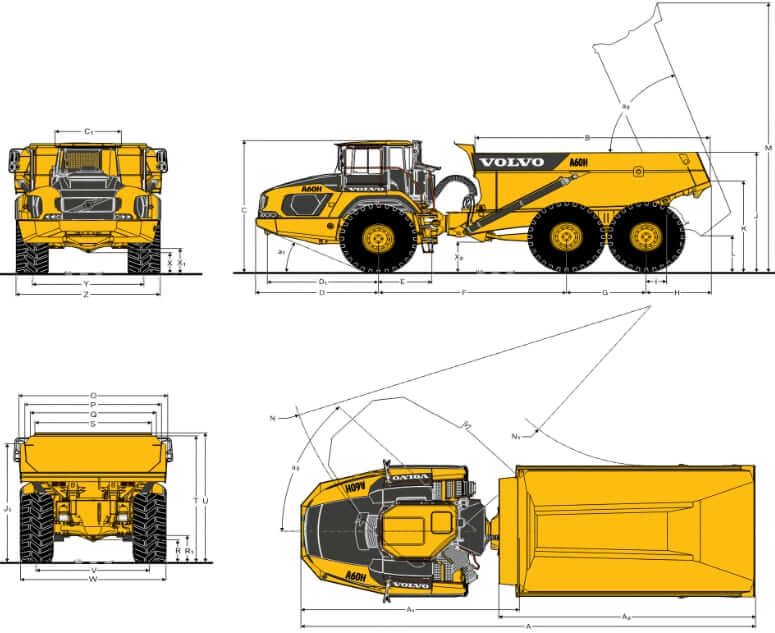

Dimensions
| A. Overall Length |
481.4 in (12225 mm) |
| A1. |
231.2 in (5872 mm) |
| A2. |
271.7 in (6900 mm) |
| B. |
248.4 in (6310 mm) |
| C. Overall Height |
151.6 in (3852 mm) |
| C1. |
69.8 in (1772 mm) |
| D. |
129.7 in (3293 mm) |
| D1. |
117.6 in (2986 mm) |
| E. |
56.7 in (1440 mm) |
| F. Wheelbase |
198.8 in (5050 mm) |
| G. |
84.3 in (2140 mm) |
| H. |
68.6 in (1743 mm) |
| I. |
21.3 in (541 mm) |
| J. |
138.2 in (3510 mm) |
| K. |
104.7 in (2658 mm) |
| L. Dump Ground Clearance |
40.6 in (1030 mm) |
| M. Dump Height |
313.4 in (7960 mm) |
| N. |
394.1 in (10014 mm) |
| N1. |
187.4 in (4761 mm) |
| O. |
157.0 in (3989 mm) |
| P. |
144.6 in (3673 mm) |
| Q. |
132.7 in (3370 mm) |
| R. |
26.6 in (677 mm) |
| R1. |
30.6 in (778 mm) |
| S. |
123.1 in (3126 mm) |
| T. |
147.0 in (3734 mm) |
| U. |
150.9 in (3833 mm) |
| V. |
118.5 in (3010 mm) |
| W. Overall Width |
152.9 in (3884 mm) |
| X. Ground Clearance |
23.7 in (601 mm) |
| X1. |
28.6 in (727 mm) |
| X2. |
33.3 in (845 mm) |
| Y. |
118.5 in (3010 mm) |
| Z. |
152.9 in (3884 mm) |
| a1. |
24.9° |
| a2. |
70° |
| a3. |
45° |
Body
| Front Plate Thickness |
0.31 in (8 mm) |
| Sides Plate Thickness |
0.55 in (14 mm) |
| Bottom Plate Thickness |
0.63 in (16 mm) |
| Chute Plate Thickness |
0.63 in (16 mm) |
Dumping System
| Tipping Angle |
70° |
| Tipping Time with Load |
13 sec |
| Lower Time |
10 sec |
| Dumping Cylinders |
2 single stage double acting cylinders |
Engine Details
| Number of Cylinders |
6 |
| Engine Make |
Volvo |
| Engine Model |
Volvo D16J |
| Displacement |
982 cu in (16.1 L) |
| Bore |
5.7 in (144 mm) |
| Stroke |
6.5 in (165 mm) |
| Horsepower, Gross |
630 hp (470 kw) |
| Flywheel Power |
626 hp (467 kw) |
| Power Measured @ |
1800 rpm |
| Peak Torque |
2183 lb ft (2960 Nm) |
| Torque Measured @ |
1050 rpm |
| After Treatment |
DPF regeneration with an AHI |
| Aspiration |
Turbocharged |
| Emission Standards |
US EPA Tier 4 Final + EU Stage V |
Operational Specs
| Max Operating Weight |
217706 lb (98750 kg) |
| Payload Capacity |
121254 lb (55000 kg) |
| Operating Voltage |
24 V |
| Alternator |
80 A |
| Starter |
24 V, 12.1 hp (9 kW) |
| Battery |
2x 12 V, 225 Ah |
| Tire Size (Standard) |
33.25R29 |
| Tire Size (Optional) |
800/80R29 |
| Sound level in cab (ISO 6396), LpA |
72 dB(A) |
| External sound level (ISO 6395), LWA |
113 dB(A) |

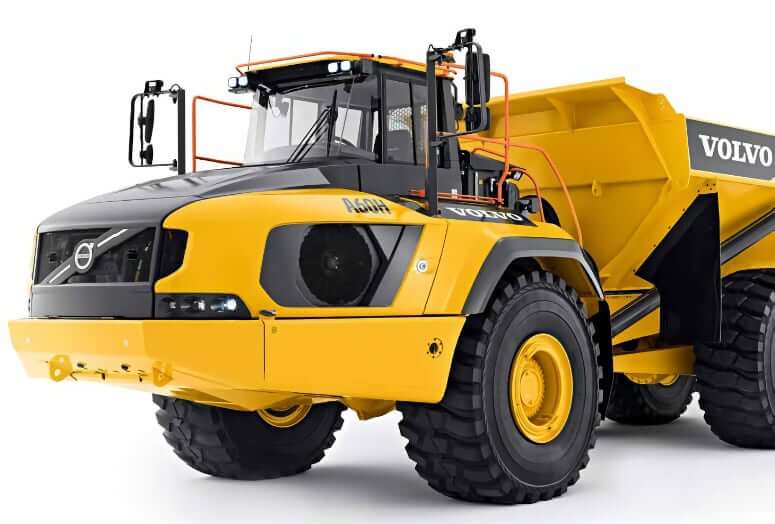

Transmission
| Transmission Type |
Fully automatic planetary transmission Allison 6630 ORS |
| Torque Converter |
1.85:1 torque converter with built-in lock-up function. Internal torsional damper in the torque converter |
| Number of Gears |
6F / 2R |
| Max Forward Speed |
34 mph (55 km/h) |
| Max Reverse Speed |
5 mph (8 km/h) |
| Dropbox |
Volvo IL3 ATC |
| Axles |
Volvo AHW80 |
| Service Brakes |
Fully hydraulic, wet multiple disc brakes with enclosed, forced oil-cooled multiple discs on all wheels. Two circuit brake system |
| Parking Brake |
Spring-applied disc brake on the propeller shaft, designed to hold a loaded machine on a grade of up to 18%. When the parking brake is applied, the longitudal differential is locked |
| Retarder |
Service brake retarder function and Volvo Engine Brake (VEB) |
Hydraulic System
| Pump Type |
Five variable displacement piston pumps driven by the flywheel PTO |
| Maximum System Pressure |
4061 psi (28000 kPa) |
| Hydraulic Oil Filters |
Two return oil fi lters with magnetic cores provide effective oil filtration |
Service Refill Capacities
| Fuel Tank Capacity |
198.1 gal (750 L) |
| DEF Tank Capacity |
15.9 gal (60 L) |
| Engine Oil Capacity |
14.5 gal (55 L) |
| Cooling System Capacity |
19.8 gal (75 L) |
| Transmission Oil Capacity |
15.3 gal (58 L) |
| Brake Cooling System Capacity |
34.6 gal (131 L) |
| Dropbox Capacity |
3.2 gal (12 L) |
| Front Axle Fluid Capacity |
19.5 gal (74 L) |
| Bogie Axles Fluid Capacity |
38.8 gal (147 L) |
| Hydraulic Tank Capacity |
52.3 gal (198 L) |
