Massey Ferguson Dashboard Symbols, Indicators, Warning Lights & Gauges Meaning

Massey Ferguson dashboard symbols provide visual cues to the operator about the status of various tractor systems. This awareness helps operators make informed decisions while operating the tractor, such as engaging four-wheel drive or adjusting operating practices to mitigate risks identified by warning lights. Some Massey Ferguson warning lights, such as those indicating low fuel levels or high transmission temperatures, help operators monitor tractor systems for optimal performance. Addressing these warnings promptly ensures that the tractor operates efficiently and reliably.

Please note that Massey Ferguson instrument panel symbols and warning lights may vary depending on the specific model and configuration of your tractor, so always refer to the operator’s manual for the most accurate information.

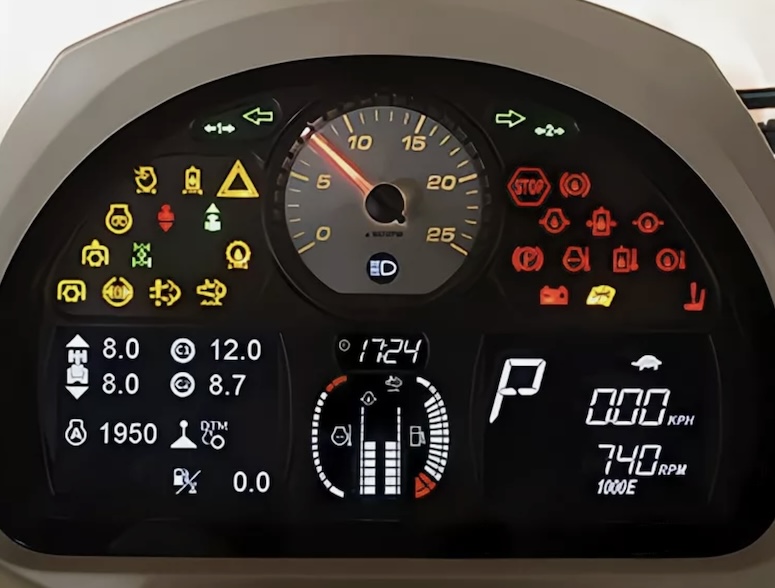

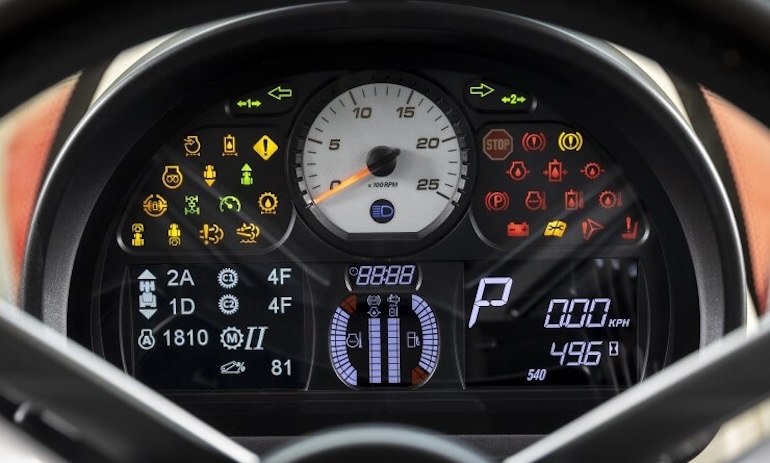

Massey Ferguson Warning Lights & Dash Symbols

In modern Massey Ferguson tractors equipped with advanced electronic systems, warning lights often serve as diagnostic aids. They provide initial indications of potential problems, helping technicians diagnose issues more efficiently during maintenance or troubleshooting procedures.

Many warning lights indicate issues that, if left unaddressed, could lead to more significant problems or damage to the tractor. By alerting the operator to issues like low fluid levels or restricted air filters, these warnings encourage preventive maintenance, reducing the risk of costly repairs and downtime. LSD screen displays various information and settings related to the tractor’s operation, such as engine RPM, speed, fuel level, and error & diagnostic codes.

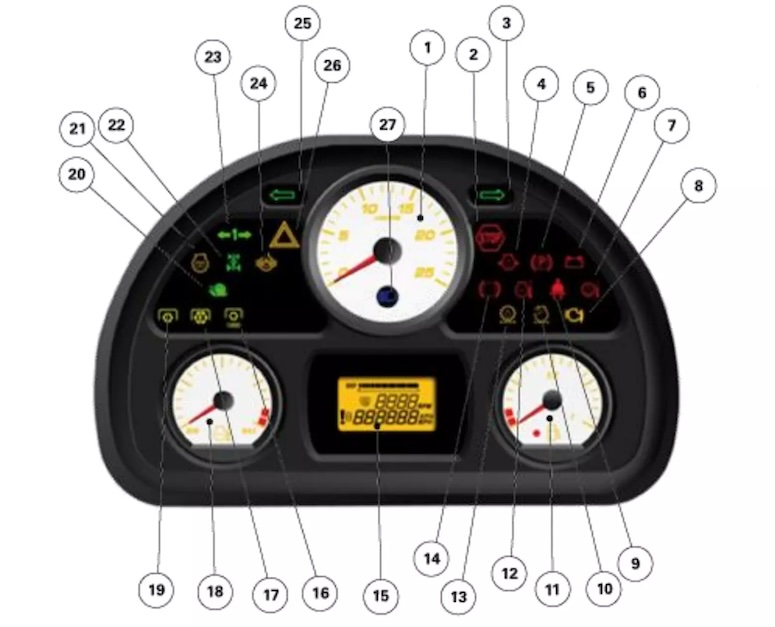

#	Symbol	Dashboard Symbol Name	Symbol Description
1		Tachometer	Indicates the engine’s rotational speed in revolutions per minute (RPM), allowing the operator to monitor engine performance.
2		Stop	Indicates a serious tractor malfunction that requires immediate attention. When this red light flashes, it is crucial to shut down the engine immediately to prevent further damage.
3		Turn Signal (Right)	Indicates when the tractor’s right turn signal is activated, alerting other road users of the intended direction.
4		Engine oil pressure	Warns the operator when engine oil pressure drops below a safe level, indicating potential engine damage or oil system malfunction.
5		Handbrake	Illuminates when the handbrake or parking brake is engaged, reminding the operator to disengage it before driving.
6		Alternator	Indicates a malfunction in the tractor’s charging system, typically caused by a faulty alternator or battery, which may result in battery discharge.
7		Transmission oil temperature	Warns the operator when the transmission oil temperature exceeds safe operating levels, indicating potential overheating or insufficient cooling.
8		Engine error	Indicates the presence of a fault code or error condition in the engine control system, prompting the operator to address the issue promptly.
9		Operator seat	Illuminates when the operator’s seat is unoccupied, reminding the operator to sit properly for safe operation.
10		Air filter clogging	Warns the operator when the air filter becomes clogged or restricted, reducing airflow to the engine and affecting performance.
11		Fuel tank gauge	Displays the level of fuel remaining in the tractor’s fuel tank, allowing the operator to monitor fuel consumption and plan refueling.
12		Engine temperature	Warns the operator when the engine coolant temperature exceeds safe operating limits, indicating potential overheating.
13		Transmission oil filter clogging	Indicates a restricted or clogged transmission oil filter, which can impede hydraulic function and transmission performance.
14		Brake fluid level	Alerts the operator to low brake fluid levels in the tractor’s brake system, indicating potential brake failure or leakage.
15		Screen	Displays various information and settings related to the tractor’s operation, such as engine RPM, speed, fuel level, and diagnostic codes.
16		PTO 1000 rpm	Indicates engagement of the tractor’s power take-off (PTO) system at 1000 revolutions per minute.
17		PTO 540E rpm	Indicates engagement of the tractor’s power take-off (PTO) system at 540E revolutions per minute.
18		Water cooling temperature gauge	Displays the temperature of the engine’s cooling system, allowing the operator to monitor engine temperature and prevent overheating.
19		PTO 540 rpm	Indicates engagement of the tractor’s power take-off (PTO) system at 540 revolutions per minute
20		Super creep gear	Indicates engagement of the tractor’s super creep gear, which provides exceptionally slow speeds for specific applications.
21		Engine heater	Illuminates when the engine block heater is in operation, helping to warm the engine for easier starting in cold conditions
22		4WD lock	Indicates engagement of the tractor’s four-wheel-drive (4WD) system with differential lock, providing increased traction in challenging terrain.
23		Turn Signal Trailer	Illuminates when the tractor’s trailer lights are activated, indicating the presence of a connected trailer.
24		Differential lock	Indicates engagement of the tractor’s differential lock, enhancing traction in slippery or uneven terrain.
25		Turn Signal (Left)	Indicates when the tractor’s left turn signal is activated, alerting other road users of the intended direction.
26		Failure alert	Illuminates to indicate the presence of non-critical faults or malfunctions in the tractor’s systems, requiring attention but not immediate action.
27		Headlight	Illuminates the tractor’s headlights for visibility in low-light conditions or during nighttime operation.

All Massey Ferguson Instrument Panel Symbols / Lights

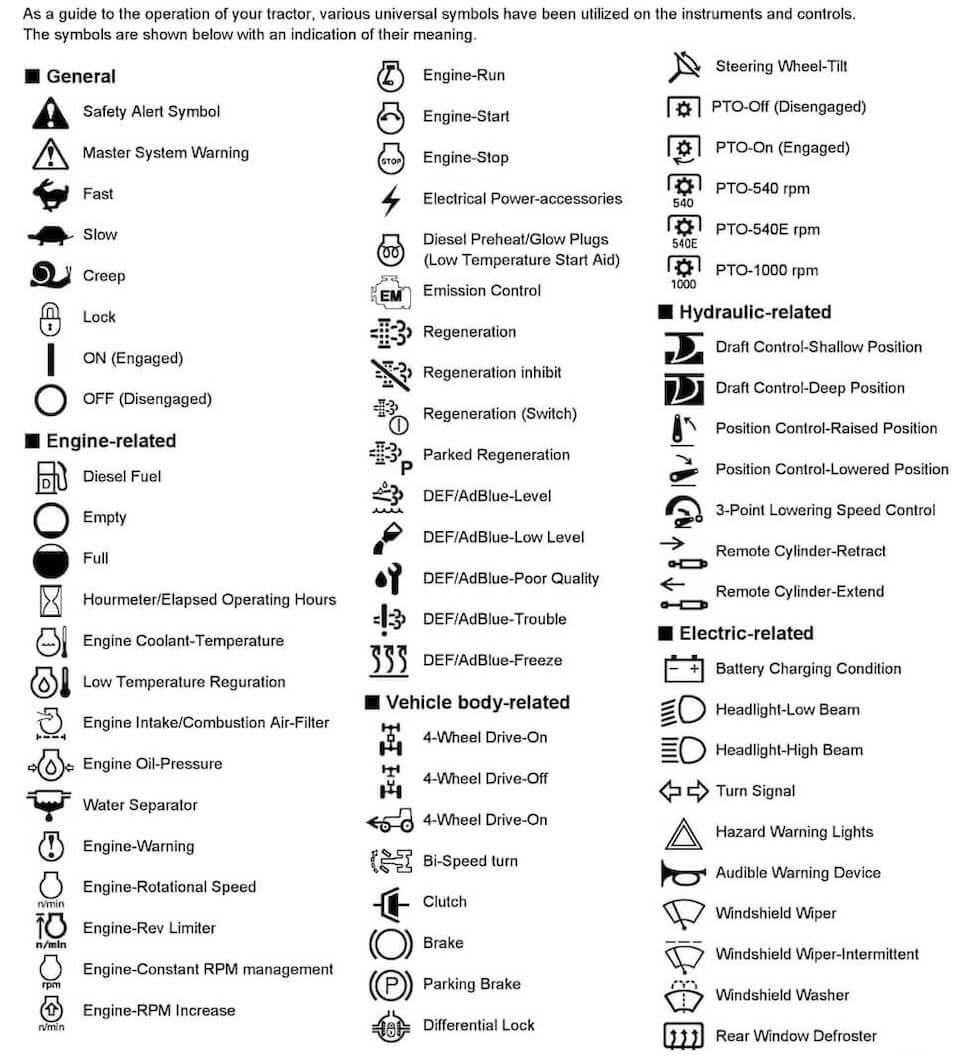

International Universal Tractor Dashboard Symbols are standardized symbols used on tractor instrument panels to convey essential information to the operator quickly and clearly. By using universal symbols, tractor manufacturers ensure that operators worldwide can easily interpret the information displayed on the dashboard, regardless of language barriers or regional variations.

To facilitate tractor operation, a range of international universal symbols has been incorporated onto the instruments, controls, and switches. These symbols and their corresponding meanings are provided below for easy reference.

Dashboard symbols allow for the transmission of critical information in a concise and easily understandable format. This enables operators to promptly identify potential issues or operating conditions that require attention without needing to decipher complex messages or text. Clear and intuitive dashboard symbols contribute to the safe operation of tractors by providing timely warnings about mechanical problems, system malfunctions, or hazardous conditions. Prompt recognition of these warnings allows operators to take appropriate action to mitigate risks and prevent accidents.

General Instrument Cluster Symbols

Symbol	Name	Instrument Cluster Symbol Description
	Safety Alert Symbol	Indicates a safety alert or warning.
	Stop	Indicates a serious tractor malfunction in the tractor’s systems that requires immediate attention.
	Master System Warning	Alerts about a critical issue with the tractor’s master system.
	Read Operator’s Manual	Indicates the need to consult the operator’s manual for information.
	Hazard Warning Lights	Activates the hazard lights to warn others of potential danger.
	Audible Warning Device	Indicates the status of the audible warning device.
	Fast	Indicates a high-speed setting or mode.
	Slow	Indicates a low-speed setting or mode.
	Creep	Indicates engagement of the tractor’s super creep gear, which provides exceptionally slow speeds for specific applications.
	High Speed Travel	Indicates that the tractor is operating in high speed travel mode.
	Mid Speed Travel	Shows the tractor is operating at medium speed.
	Low Speed Travel	Signals the tractor is in low-speed mode.
	High Range	Indicates that the tractor is in high gear range, suitable for higher speed operations.
	Mid Range	Shows the transmission is in medium gear range.
	Low Range	Indicates that the tractor is in low gear range, suitable for lower speed operations requiring more power.
	Cruise Control	Indicates that cruise control is engaged. Maintains a constant speed set by the operator.
	Tractor Cruise Control	Indicates that the cruise control feature is activated, maintaining a set speed without manual throttle control.
	Limp Home	Activates a reduced power mode for emergency situations.
	Lock	Indicates that a function or system is locked or engaged.
	Unlock	Indicates that a function or system is unlocked.
	ON (Engaged)	Indicates that a system or function is active or engaged.
	OFF (Disengaged)	Indicates that a system or function is inactive or disengaged.
	Transmission Neutral Indicator	indicates that the tractor is in neutral gear. This light signifies that the transmission is in a neutral position, meaning the tractor is not engaged in any forward or reverse movement.
	Operator Presence Sensor (OPS)	Illuminates when the tractor operator’s seat is unoccupied, reminding the operator to sit properly for safe operation.
	Operator Presence Sensor	Illuminates when the tractor operator’s seat is unoccupied.
	Service	Indicates that the tractor requires servicing or maintenance.
	Escape	Allows exiting a menu or mode.

Engine-related Dash Symbols

Symbol	Name	Instrument Cluster Symbol Description
	Fuel Level	Indicates the level of fuel in the tank.
	Diesel Fuel	Indicates the level of diesel fuel in the tank.
	Hourmeter / Elapsed Operating Hours	Displays the total operating hours or elapsed time.
	Engine Temperature / Coolant Temperature	Warns the operator when the engine coolant temperature exceeds safe operating limits, indicating potential overheating.
	Engine Coolant Temperature	Engine coolant temperature warning light.
	Low Coolant Level	Warns that the engine coolant level is low and needs to be refilled.
	Engine Intake / Combustion Air Filter	Indicates the condition of the engine air filter. Warns the operator when the air filter becomes clogged or restricted, reducing airflow to the engine and affecting performance.
	Engine Oil Pressure	Indicates the oil pressure in the engine. Warns the operator when engine oil pressure drops below a safe level, indicating potential engine damage or oil system malfunction.
	Water Separator	Indicates the status of the water separator in the fuel system.
	Water in Fuel Warning	Indicates that there is water in the diesel fuel. This can be a serious issue, as water in diesel fuel can cause damage to the engine and fuel system.
	Engine Warning	Indicates the presence of a fault code or error condition in the engine control system, prompting the operator to address the issue promptly.
	Engine Alert	Indicates various functions and warnings related to the engine and its operation (Engine Check).
	Engine Rotational Speed	Displays the rotational speed of the engine.
	Engine Rev Limiter	Limits the maximum engine speed to prevent damage.
	Engine Over Speed	Alerts when the engine exceeds its maximum safe speed.
	Engine RPM Memory A	Stores and recalls a specific engine RPM setting.
	Engine RPM Adjuster	Allows adjustment of the engine RPM.
	Engine RPM Increase	Increases the engine RPM.
	Engine Run	Indicates that the engine is running.
	Engine Start	Initiates the engine starting process.
	Engine Stop	Stops the engine.
	Engine Heater (Low Temperature Start Aid)	Illuminates when the engine block heater is in operation, helping to warm the engine for easier starting in cold conditions. Diesel Preheat / Glow Plugs.
	Diesel Engine Preheat	Indicates that the diesel engine preheat function is active, aiding in cold starts.
	Diesel Preheat/Glow Plugs (Low Temperature Start Aid)	Indicates the glow plugs are active, preheating the engine cylinders for easier starting in cold conditions.
	Regeneration	Initiates the regeneration process for the diesel particulate filter.
	Regeneration Inhibit	Prevents regeneration from occurring.
	Regeneration Switch	Activates the regeneration process manually.
	Parked Regeneration	Initiates regeneration while the vehicle is stationary.
	DEF / AdBlue-Level	Indicates the level of Diesel Exhaust Fluid (DEF) or AdBlue.
	DEF / AdBlue Low Level	Alerts when the DEF or AdBlue level is low.
	DEF / AdBlue Poor Quality	Alerts when the quality of DEF or AdBlue is compromised.
	DEF / AdBlue Trouble	Indicates a problem with the DEF or AdBlue system.
	DEF / AdBlue Freeze	Alerts when DEF or AdBlue is at risk of freezing.

Body-related Dash Symbols

Symbol	Name	Instrument Cluster Symbol Description
	Travel Direction	Indicates the current direction of tractor travel.
	Travel Direction Forward	Indicates forward travel direction.
	Travel Direction Rearward	Indicates reverse travel direction.
	4-Wheel Drive On	Indicates that the tractor’s 4-wheel drive system is engaged.
	4-Wheel Drive Off	Indicates that the tractor’s 4-wheel drive system is disengaged.
	Four-wheel On	Engages the four-wheel drive system.
	Four-wheel Automatic	Automatically adjusts the four-wheel drive system based on conditions.
	Headland Management System	Manages tractor operations during headland turns.
	Auto Transmission	Engages automatic transmission mode.
	Auto Transmission Sensitivity	Adjusts the sensitivity of the automatic transmission.
	Auto Transmission Road Control	Optimizes transmission settings for road conditions.
	Auto Transmission Field Control	Optimizes transmission settings for field conditions.
	Transmission Oil Filter	Indicates a restricted or clogged transmission oil filter, which can impede hydraulic function and transmission performance.
	Transmission Oil Filter	Warns of an issue with the transmission oil filter, such as needing replacement or cleaning.
	Transmission Oil Temperature	Warns the operator when the transmission oil temperature exceeds safe operating levels, indicating potential overheating or insufficient cooling.
	Gear Shifting Warning	Indicates a problem with gear shifting.
	Clutch	Engages or disengages the tractor clutch.
	Brake	Alerts the operator to low brake fluid levels in the tractor’s brake system, indicating potential brake failure or leakage.
	Parking Brake	Engages the tractor parking brake. Illuminates when the handbrake or parking brake is engaged, reminding the operator to disengage it before driving.
	Air Brake	Indicates the status of the air brake system.
	Brake Failure / Malfunction	Alerts about brake system failure or malfunction.
	Differential Lock	Indicates engagement of the tractor’s differential lock, enhancing traction in slippery or uneven terrain.
	Differential Lock Automatic	Automatically engages the differential lock based on conditions.
	Steering Wheel Tilt	Adjusts the tilt angle of the steering wheel.
	Steering Wheel Telescope	Adjusts the telescoping position of the steering wheel.
	Automatic Steering Control	Engages automatic steering control.
	Steering Oil Filter	Indicates the status of the steering oil filter.
	Front Suspension	Indicates the status of the front suspension system.
	Front Suspension Automatic	Automatically adjusts the front suspension based on conditions.
	Front Suspension Down	Lowers the front suspension.
	Front Suspension Up	Raises the front suspension.
	Front Suspension Lock	Locks the front suspension in position.

PTO-related Dash Symbols

Symbol	Name	Instrument Cluster Symbol Description
	PTO Off (Disengaged)	Deactivates the power take-off.
	PTO On (Engaged)	Activates the power take-off.
	PTO 540 rpm	Indicates engagement of the tractor’s power take-off (PTO) system at 540 revolutions per minute.
	PTO 540E rpm	Indicates the power take-off speed of 540E rpm.
	PTO 1000 rpm	Indicates engagement of the tractor’s power take-off (PTO) system at 1000 revolutions per minute.
	PTO 1000E rpm	Indicates the power take-off speed of 1000E rpm.
	PTO Front	Indicates the front power take-off is active for front-mounted implements.
	PTO F Front	Indicates the front power take-off is active for front-mounted implements.
	PTO Rear	Indicates the rear power take-off is active for front-mounted implements.
	PTO R Rear	Indicates the rear power take-off is active for front-mounted implements.

Hydraulic-related Dash Symbols

Symbol	Name	Instrument Cluster Symbol Description
	Draft Control	Manages the draft control system for implements.
	Automatic Draft Operation	Indicates that the automatic draft control system is active, maintaining consistent soil penetration.
	Automatic Tilling Depth Operation	Indicates that the automatic tilling depth control is active.
	Position Control	Controls the height or position of attached implements.
	Lift Arm Control Up / Transport	Raises or lowers lift arms for transport mode.
	Lift Arm Control Upward	Raises tractor lift arms.
	Lift Arm Control Down	Lowers tractor lift arms.
	Lift Arm Control Downward	Lowers lift arms.
	Lift Arm Control Block	Locks lift arms in position.
	Lift Arm Control Float	Allows tractor lift arms to float.
	Lift Arm Control Lock	Locks tractor lift arm controls.
	Lift Arm Height	Indicates the height of the lift arms.
	3-Point Lifting / Lowering	Controls the three-point hitch for lifting or lowering implements.
	Remote Cylinder Retract	Retracts remote hydraulic cylinders.
	Remote Cylinder Extend	Extends remote hydraulic cylinders.
	Remote Cylinder Float	Allows remote hydraulic cylinders to float.
	Remote Cylinder Lock A	Locks remote hydraulic cylinder control.
	Remote Cylinder Lock B	Locks remote tractor hydraulic cylinder control.
	Auxiliary Operation Indicator	Indicates that an auxiliary function is active.
	Auxiliary Hydraulic Port	Shows the status of auxiliary hydraulic ports.
	AUX Electric Port	Shows the status of the auxiliary electric port.
	AUX Electric Port indicator	Indicates that the auxiliary electric port is active.
	High Flow Indicator	Indicates that the hydraulic system is operating in high flow mode.
	High Flow	Indicates high hydraulic flow is active.
	AUX Hydraulic Port Hold M/F	Indicates the auxiliary hydraulic port hold mode/function is active.
	AUX 14-Pin C Symbol	Shows the status of the 14-pin auxiliary electrical connector.
	Hydraulic Lock Device	Indicates that the hydraulic lock device is engaged, preventing unintended hydraulic movements.
	Hydraulic Oil Temperature	Hydraulic oil temperature warning light.
	Hydraulic Oil Filter	Indicates the status of the hydraulic oil filter.
	Lift Arm Raise / Bucket Up	Indicates the lift arm is raising or the bucket is being lifted
	Lift Arm Lower / Bucket Down	Indicates the lift arm is lowering or the bucket is being lowered
	Loader Bucket Dump	Indicates the Kubota loader bucket is being dumped
	Loader Bucket Rollback / Tilt	Indicates the loader bucket is being rolled back or tilted
	Loader Bucket Float	Indicates the Kubota loader bucket is in float mode
	Loader Quick Hitch Lock	Indicates the loader quick hitch is locked. Locks the loader bucket or attachment into position quickly
	Loader Bucket Self Leveling	Indicates the loader bucket is self-leveling. Automatically adjusts the loader bucket to maintain a level position
	Ride Control	Indicates that the ride control feature is active, improving ride comfort by damping loader arm movements.
	Quick Attachment Unlock	Indicates that the quick attachment locking mechanism is disengaged / the quick attachment system is unlocked.
	Self Leveling Indicator	Indicates that the self-leveling function of the loader is active, keeping the bucket level as the arms are raised or lowered.
	Tailgate Safety Cover	Shows the tailgate safety cover is engaged.

Electric-related Dash Symbols

Symbol	Name	Instrument Cluster Symbol Description
	Battery Charging Condition	Indicates a malfunction in the tractor’s charging system, typically caused by a faulty alternator or battery, which may result in battery discharge.
	Electrical Power Accessories	Indicates the status of electrical power accessories.
	Master Lighting Switch	Controls the master lighting system.
	Headlight Low Beam	Activates low beam headlights.
	Headlight High Beam	Illuminates the tractor’s headlights for visibility in low-light conditions or during nighttime operation.
	Headlight Flashing	Activates the headlight flash function.
	Work Light	Activates tractor work lights.
	Position Lamps	Controls position lamps.
	Turn Signal	Activates tractor turn signals.
	Turn Signal Trailer	Activates turn signals for trailers.
	Beacon Light	Controls beacon lights.
	Windshield Wiper	Activates windshield wipers.
	Windshield Wiper Intermittent	Activates intermittent windshield wiper function.
	Windshield Washer	Activates windshield washer.
	Rear Window Defroster	Activates rear window defroster.
	Air Conditioner	Activates air conditioner.

Dashboard symbols related to maintenance reminders or component status help operators adhere to recommended service intervals and identify potential maintenance needs before they develop into more significant issues. This proactive approach can minimize downtime and prolong the lifespan of the Massey Ferguson tractors:

• 1000 Series – 1080, 1100, 1130, 1150.
• 1000 Compact Series – 1010, 1020, 1030, 1035, 1040, 1045.
• 1004 Series – 1014, 1024, 1114, 1134.
• 1100 Series – 1140, 1145, 1160, 1180, 1190.
• 1200 Compact Series – 1205, 1210, 1215, 1220, 1230, 1233, 1235, 1240, 1250, 1260.
• 1300 Series – 1325, 1335, 1345.
• 1400 Series – 1417, 1423, 1428, 1429, 1431, 1433, 1440, 1445, 1455.
• 1500 Series – 1523, 1526, 1528, 1529, 1531, 1532, 1533, 1540, 1547, 1552, 1560.
• 1600 Series – 1635, 1643, 1648, 1652, 1655, 1660.
• 1700 Series – 1726E, 1734E, 1736, 1739E, 1742, 1749, 1754, 1758, 1759.
• 1700E Series – 1735E, 1740E.
• 1700M Series – 1735M, 1740M, 1750M, 1755M, 1760M.
• 1800E Series – 1825E, 1835E, 1840E.
• 1800M Series – 1835M, 1840M.
• 200 One Series – 231, 231S, 241, 271, 281.
• 200 Three Series – Massey Ferguson 243, 263.
• 2000 Series – 2620, 2640, 2675, 2680, 2705, 2720, 2745, 2770, 2775, 2800, 2805.
• 2200 Series – 2210, 2220, 2225, 2230, 2235.
• 2400 Series – 2405, 2410, 2415, 2430, 2435, 2440.
• 2600 Series – 2605, 2615, 2625, 2635.
• 2600 HD Series – 2650 HD, 2660 HD, 2670 HD, 2680 HD.
• 2600H Series – 2604H, 2605H, 2606H, 2607H.
• 2700E Series – 2706E, 2750E, 2760E.
• 2800E Series – 2850E, 2860E.
• 2800M Series – 2850M, 2855M, 2860M.
• 3 Series – MF 3SP.75, 3GE.75, 3SP.95, 3VI.95, 3GE.95, 3GE.105, 3SP.115.
• 300 Series – 340, 350, 355, 360, 362, 365, 375, 383, 390, 390T, 393, 396, 398, 399
• 3000 Series – 3050, 3060, 3070, 3090.
• 302 Series – Massey Ferguson 342, 352.
• 303 Series – 353, 363, 373.
• 304 Specialty Series – 354S, 364S, 374S, 384S, 394S.
• 3100 Series – 3115, 3120, 3120T, 3125, 3140.
• 3200 Series – 3210, 3220, 3225, 3235, 3245, 3255.
• 3300 Series – 3306, 3307, 3308, 3315, 3325, 3330, 3340, 3350, 3355.
• 3400 Series – 3425, 3435, 3445, 3455.
• 3600 Series – 3625, 3625F, 3630, 3635, 3635F, 3640F, 3645, 3650, 3650F, 3655, 3660, 3660F, 3670, 3680, 3690.
• 3700 Series – 3707F, 3708F, 3709F, 3710F.
• 400 Series – 410, 415, 420, 425, 430, 431, 435, 440, 451, 460, 461, 465, 471, 475, 481, 491, 492.
• 400 Xtra Series – 425 Xtra, 435 Xtra, 440 Xtra, 455 Xtra, 460 Xtra, 470 Xtra, 480 Xtra.
• 4000 4WD Series – 4800, 4840, 4880, 4900.
• 4200 Series – 4215, 4220, 4225, 4233, 4235, 4243, 4245, 4253, 4255, 4260, 4263, 4270.
• 4200 Latin America Series – 4265, 4275, 4283, 4290, 4291, 4292, 4297, 4299.
• 4300 Series – 4315, 4320, 4325, 4335, 4345, 4355, 4360, 4365, 4370.
• 4400 Series – 4435, 4445, 4455.
• 4600 Series – 4608, 4609, 4610.
• 4600M Series – 4607M, 4609M, 4610M.
• 4700 Series – 4708, 4709.
• 4700 Global Series – 4707, 4708, 4709, 4710.
• 4700M Series – 4708M, 4709M, 4710M.
• 500 Series – 533, 543, 550, 563, 565, 573, 575, 583, 590, 593, 596.
• 5000 Series – 5275, 5285, 5290, 5300, 5310, 5320.
• 5400 Series – 5410, 5420, 5425, 5430, 5435, 5440, 5445, 5460, 5460SA, 5465, 5470, 5470SA, 5475, 5475SA, 5480.
• 5600 Series – 5609, 5610, 5611, 5612, 5613.
• 5700 Series – Massey Ferguson 5710, 5711.
• 5700SL Series – 5710SL, 5711SL, 5712SL, 5713SL.
• 5S Series – 5S.105, 5S.115, 5S.125, 5S.135, 5S.145.
• 600 Series – 650, 660, 670, 680, 690, 690T, 698, 699.
• 6000 Series – 6350, 6360.
• 6100 Series – 6110, 6120, 6130, 6140, 6150, 6170, 6180, 6190.
• 6200 Series – 6245, 6255, 6265, 6270, 6280, 6290.
• 6400 Series – 6445, 6455, 6460, 6465, 6470, 6475, 6480, 6485, 6490, 6495, 6497, 6499.
• 6600 Series – 6614, 6615, 6616.
• 6700 Series – 6712, 6713.
• 6700S Series – 6714S, 6715S, 6716S.
• 6S Series – Massey Ferguson 6S.135, 6S.145, 6S.155, 6S.165, 6S.180.
• 7100 Series – 7140, 7150, 7170, 7180.
• 7400 Series – 7465, 7475, 7480, 7485, 7490, 7495, 7497, 7499.
• 7600 Series – 7614, 7615, 7616, 7618, 7619, 7620, 7622, 7624, 7626.
• 7700 Series – 7714, 7715, 7716, 7718, 7719, 7720, 7722, 7724, 7726.
• 7700S Series – 7715S, 7716S, 7718S, 7720S, 7722S, 7724S, 7726S.
• 7S Series – Massey Ferguson 7S.155, 7S.165, 7S.180, 7S.190, 7S.210.
• 8100 Series – 8110, 8120, 8130, 8140, 8150, 8160, 8170.
• 8200 Series – 8220, 8240, 8245, 8250, 8260, 8270, 8280.
• 8400 Series – 8450, 8460, 8470, 8480.
• 8600 Series – 8650, 8660, 8670, 8680, 8690.
• 8700 Series – 8727, 8730, 8732, 8735, 8737.
• 8700S Series – 8727S, 8730S, 8732S, 8735S, 8737S, 8740S.
• 8S Series – Massey Ferguson 8S.205, 8S.225, 8S.245, 8S.265, 8S.285, 8S.305.
• 9S Series – Massey Ferguson 9S.285, 9S.310, 9S.340, 9S.370, 9S.400, 9S.425.
• GC Series – GC2300, GC2400, GC2600.
• GC1700 Series – GC1705, GC1715, GC1723E, GC1725M.
• 1000 Series – 1080, 1100, 1130, 1150.
• 1000 Compact Series – 1010, 1020, 1030, 1035, 1040, 1045.
• 1004 Series – 1014, 1024, 1114, 1134.
• 1100 Series – 1140, 1145, 1160, 1180, 1190.
• 1200 Compact Series – 1205, 1210, 1215, 1220, 1230, 1233, 1235, 1240, 1250, 1260.
• 1300 Series – Massey Ferguson 1325, 1335, 1345.
• 1400 Series – 1417, 1423, 1428, 1429, 1431, 1433, 1440, 1445, 1455.
• 1500 Series – 1523, 1526, 1528, 1529, 1531, 1532, 1533, 1540, 1547, 1552, 1560.
• 1600 Series – 1635, 1643, 1648, 1652, 1655, 1660.
• 1700 Series – 1726E, 1734E, 1736, 1739E, 1742, 1749, 1754, 1758, 1759.
• 1700E Series – 1735E, 1740E.
• 1700M Series – 1735M, 1740M, 1750M, 1755M, 1760M.

Color of Massey Ferguson Warning Lights

These Massey Ferguson warning lights alert the operator to potential issues with the tractor that could affect safety.

For example, warnings about low oil pressure, high coolant temperature, or brake system malfunctions prompt immediate action to prevent accidents or damage to the tractor.

• Red Warning Lights: This light signals a critical issue that could harm the engine. If illuminated, halt the tractor immediately and investigate the problem.
• Amber Warning Lights: This light indicates a less severe issue than the red warning light but still warrants attention. If feasible, continue operating the tractor until you can safely reach a service facility.
• Green Warning Lights: This light signifies the activation of the pre-heat system, which warms up the engine. This is a normal operation, requiring no immediate action.
• Blue Warning Lights: This light warns of low engine coolant level. Add coolant promptly to prevent engine overheating and potential damage.
• Yellow Warning Lights: This light indicates a full diesel particulate filter that requires emptying. Continue operating the tractor until you can access a service facility for maintenance.

Massey Ferguson warning lights related to emissions control systems, such as DPF or DEF warnings, help ensure that the tractor remains compliant with environmental regulations. Addressing these warnings promptly helps maintain emissions compliance and reduces environmental impact.

How to Reset Massey Ferguson Warning Lights?

To reset Massey Ferguson warning lights, follow these general steps:

1. Identify the Issue: Before resetting any Massey Ferguson warning lights, ensure that you’ve addressed the underlying problem that caused the light to illuminate. Ignoring the root cause can lead to further issues.
2. Consult the Manual: Refer to your Massey Ferguson tractor’s manual for specific instructions on resetting warning lights. Different models may have different procedures.
3. Disconnect the Battery: In some cases, disconnecting the tractor’s battery for a few minutes may reset the warning lights. However, this should be done carefully, ensuring all safety precautions are followed.
4. Use Diagnostic Tools: Modern Massey Ferguson tractors may require diagnostic tools to reset warning lights. These tools can communicate with the tractor’s onboard computer system to clear fault codes and reset lights.
5. Visit a Service Center: If you’re unable to reset the warning lights yourself or if the issue persists after resetting, it’s advisable to visit an authorized Massey Ferguson service center. Trained technicians can diagnose the problem accurately and reset the warning lights using specialized equipment if necessary.
6. Address Maintenance Issues: Once the warning lights are reset, ensure that any maintenance or repairs required to prevent the issue from recurring are carried out promptly.

Always prioritize safety and proper maintenance procedures when dealing with warning lights on your MF tractor. If you’re unsure or uncomfortable performing the reset yourself, seek assistance from a qualified technician or service center.

Overall, Massey Ferguson warning lights and dash symbols play a crucial role in ensuring tractor safety, reliability, and efficiency while facilitating preventive maintenance and compliance with regulatory requirements.
