CAT Dozer Size Chart: Small, Medium & Large Caterpillar Bulldozer Specs

The CAT Dozer Size Chart offers a comprehensive guide to the diverse range of bulldozer sizes available from Caterpillar, categorized into “Small”, “Medium”, and “Large” classifications. This chart serves as a valuable resource for professionals and enthusiasts alike, providing insights into the dimensions, capabilities, and applications of Caterpillar dozers across various size categories.

Caterpillar Dozer Size Chart with Specs

Whether for compact landscaping projects or large-scale earthmoving operations, this chart empowers users to select the ideal CAT Bulldozers size to suit their specific needs and requirements.

New Caterpillar Bulldozer Sizes

What are the different sizes of Caterpillar dozers? Small, medium, and large Caterpillar bulldozers categorized by net power and operating weight:

  • Small Dozers – Operating Weight under 6.000 lb and NET Power under 130 hp.
  • Medium Dozers – Operating Weight 60.000-100.000 lb & NET Power 130-400 hp.
  • Large Dozers – Operating Weight up to 100.000 lb and NET Power up to 400 hp.

These specifications may vary depending on specific models and configurations within each series. It’s essential to consult CAT’s official documentation or contact a CAT dealer for precise information tailored to your needs.

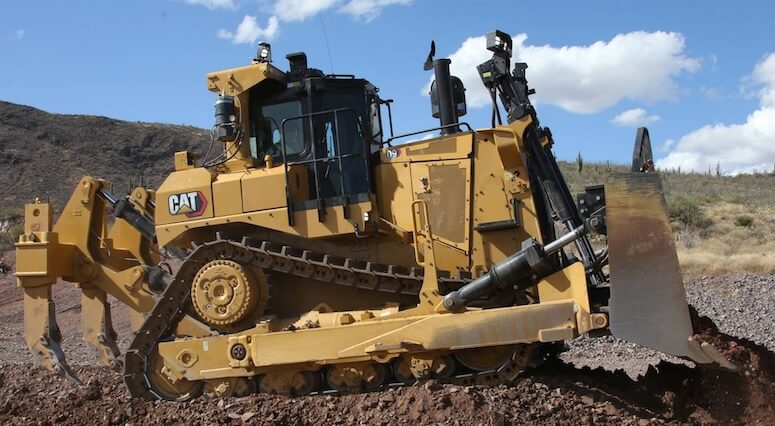

CAT Dozer Size Chart

Explore the CAT Dozer Size Chart, a comprehensive guide categorizing Caterpillar bulldozers by model, operating weight, engine specifications, and net power.

Model Engine Power – Net Operating Weight
Small Dozers
D1 Cat® C3.6 80 HP 17855 lb
D2 Cat® C3.6 92 HP 18382 lb
D3 Cat® C3.6 104 HP 20639 lb
Medium Dozers
D4 Cat® C4.4 130 HP 29259 lb
D5 Cat® C7.1 170 HP 42263 lb
D6 Cat® C9.3B 215 HP 50733 lb
D6 XE Cat® C9.3B 215 HP 51333 lb
D7 Cat® C9.3B 265 HP 65644 lb
D8 Cat® C15 354 HP 87600 lb
Large Dozers
D9 Cat® C18 452 HP 110225 lb
D10 Cat® C27 602 HP 154888 lb
D11 Cat® C32 850 HP 229800 lb
D11 CD Cat® C32 850 HP 229800 lb

CAT Dozer Size Chart

Net power for Caterpillar engines undergoes testing according to ISO 9249:2007 and SAE J1349:2011 standards.

As advertised, it represents the power accessible at the flywheel with the inclusion of the fan, air intake system, exhaust system, and alternator.

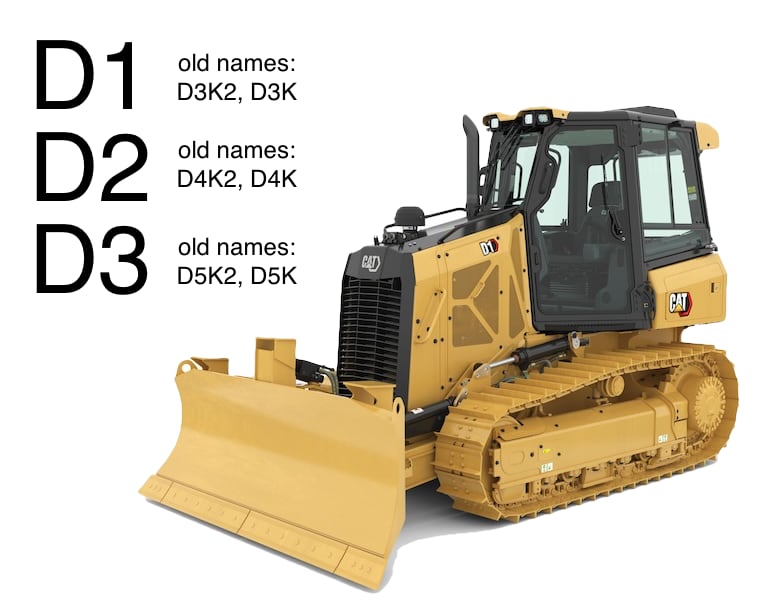

Small CAT Dozers Sizes & Specs

CAT small bulldozers, with less than 130 hp, are engineered to maximize speed, portability, maneuverability, versatility, and precision in finish gradingSmall CAT Dozers Specs and Sizes

Dozer Model Engine Power – Net Operating Weight Blade Capacity (SAE) Blade Width (LGP) Blade Height (LGP)
D1 Cat® C3.6 80 HP 17855 lb 2.17 yd3 124 in 33.8 in
D2 Cat® C3.6 92 HP 18382 lb 2.42 yd3 124 in 38.5 in
D3 Cat® C3.6 104 HP 20639 lb 3.06 yd3 126.7 in 39.8 in

These Caterpillar crawler dozers excel in residential construction projects, tackling tasks like lot clearing and grading, road slope adjustments, back-filling, and meticulous landscaping and driveway construction.

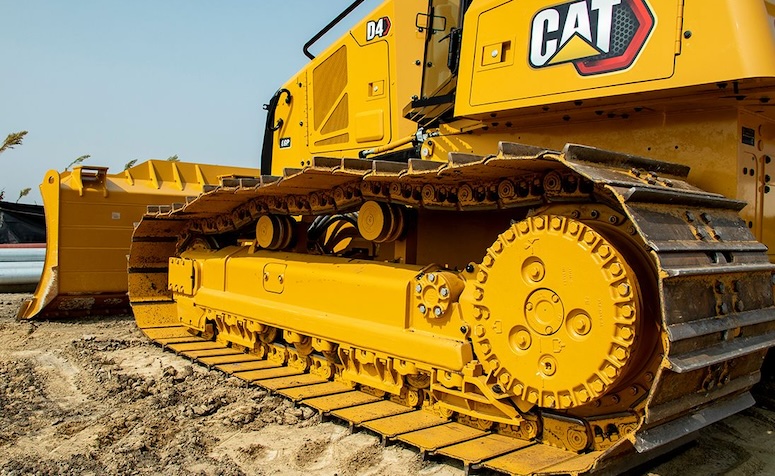

Medium CAT Dozers Sizes & Specs

CAT medium bulldozers streamline material movement, enabling quicker task completion. Enhanced fuel efficiency and user-friendly features simplify service and maintenance, lowering overall ownership and operational expenses.

Medium CAT Dozers Specs and Sizes

Dozer Model Engine Power – Net Operating Weight Blade Capacity Blade Type
D4 Cat® C4.4 130 HP 29259 lb 4.26 yd3;
4.98 yd3 (LGP)
VPAT or VPAT Foldable
D5 Cat® C7.1 170 HP 42263 lb 4.6 yd3;
5.5 yd3 (LGP)
D6 Cat® C9.3B 215 HP 50733 lb 7.5 yd3 (Push Arm SU);
7.6 yd3 (LGP Push Arm 30″ SU);
5.0 yd3 (LGP Push Arm 36″ Straight);
5.4 yd3 (VPAT);
5.9 yd3 (LGP 30″ VPAT);
6.5 yd3 (LGP 36″ VPAT)
Semi-Universal (SU) / Straight / VPAT
D6 XE Cat® C9.3B 215 HP 51333 lb 7.5 yd3 (Push Arm SU);
7.6 yd3 (LGP Push Arm 30″ SU);
5.0 yd3 (LGP Push Arm 36″ Straight);
5.4 yd3 (VPAT);
5.9 yd3 (LGP 30″ VPAT);
6.5 yd3 (LGP 36″ VPAT)
Semi-Universal (SU) / Straight / VPAT
D7 Cat® C9.3B 265 HP 65644 lb 10.0 yd3 (SU);
8.0 yd3 (LGP Straight);
22.0 yd3 (Universal Landfill)
Semi-Universal (SU) / Straight / Universal Landfil
D8 Cat® C15 354 HP 87600 lb 13.0 yd3 (SU);
12.9 yd3 (LGP SU);
21.0 yd3 (Universal Landfil);
27.9 yd3 (LGP Universal Landfil)
Semi-Universal (SU) / Universal Landfil

Moreover, integrated GRADE technology expedites operations, ensuring efficient progress from initial pass to final grading.

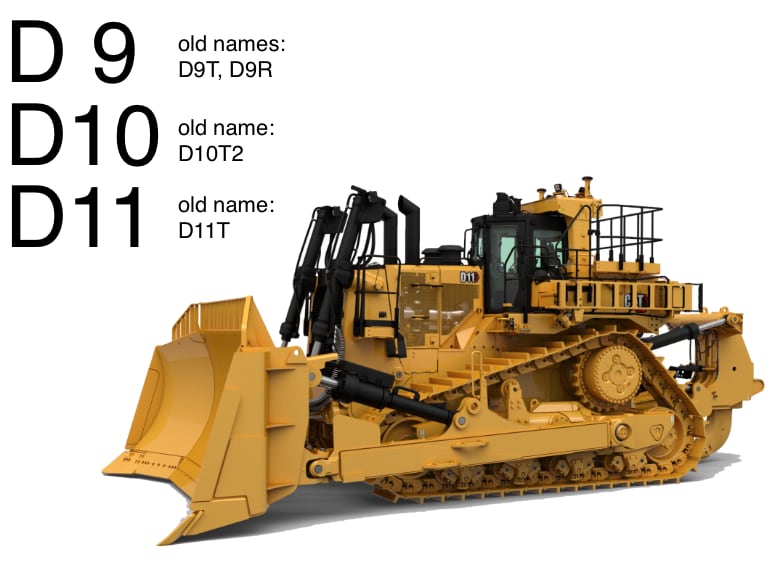

Large CAT Dozers Sizes & Specs

Cat large dozers are designed for tough working conditions. Elevated sprockets increase productivity, simplify maintenance, reduce downtime with modular components and raise final drives and associated power train components out of the work environment.

Large CAT Dozers Specs and Sizes

Dozer Model Engine Power – Net Operating Weight Blade Capacity (SAE J1265) Fuel Tank Capacity
D9 Cat® C18 452 HP 110225 lb 17.8 yd3 (Semi-Universal);
21.7 yd3 (Universal Blade)
254 gal (US)
D10 Cat® C27 602 HP 154888 lb 24.2 yd3 (10SU ABR);
28.7 yd3 (10U ABR)
335 gal (US)
D11 Cat® C32 850 HP 229800 lb 35.6 yd3 (Semi-Universal);
45.0 yd3 (U-Blade);
55.0 yd3 (Universal Blade);
57.0 yd3 (Carry Dozer Blade)
500 gal (US)
D11 CD Cat® C32 850 HP 229800 lb 35.6 yd3 (Semi-Universal);
45.0 yd3 (U-Blade);
55.0 yd3 (Universal Blade);
57.0 yd3 (Carry Dozer Blade)
500 gal (US)

Caterpillar mining dozers keep material moving with the reliability and low operating costs.

Non-road CAT diesel engines complying with U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final), and Korea Tier 4 Final regulations must exclusively utilize Ultra Low Sulfur Diesel (ULSD) fuels, which contain 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less.

How to Choose a CAT Dozer?

Choosing a CAT dozer involves considering several key factors to ensure it meets your specific needs and requirements. Here’s a step-by-step guide:

  1. Determine your project requirements: Assess the type of terrain, soil conditions, and the specific tasks the dozer will perform. Consider factors such as grading, excavation, land clearing, and material handling.
  2. Define the size and power requirements: CAT offers a range of dozer models with varying sizes and power ratings. Choose a dozer size and power output that align with the scale and scope of your projects.
  3. Evaluate the terrain and underfoot conditions: Different dozer models are designed for specific terrains, such as rocky, sandy, or muddy soils. Select a dozer with features and options suited to the ground conditions you’ll encounter.
  4. Consider productivity features: Look for productivity-enhancing features such as advanced grade control systems, automated functions, and operator assist technologies. These features can improve efficiency, accuracy, and overall performance on the job site.
  5. Assess operator comfort and safety: A comfortable and ergonomic operator environment is essential for productivity and safety. Evaluate features such as cab design, visibility, controls layout, and noise levels to ensure operator comfort and efficiency.
  6. Review maintenance and serviceability: Choose a Caterpillar dozer model with easy access to maintenance points, simplified service procedures, and durable components. Minimizing downtime for maintenance and repairs is crucial for maximizing productivity and reducing operating costs.
  7. Consider aftermarket support and dealer network: Ensure that CAT’s dealer network provides comprehensive aftermarket support, including parts availability, service options, and technical assistance. A reliable support network can help maximize uptime and overall equipment performance.

By considering these factors and conducting thorough research, you can select the right Caterpillar dozer model to meet your project requirements and achieve optimal results on the job site.

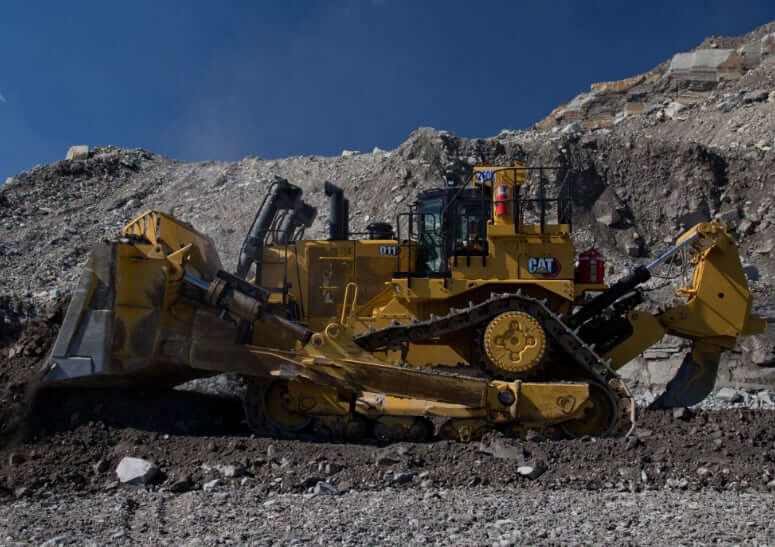

Largest Caterpillar Dozer in the World

The largest Caterpillar dozer in the world is the CAT D11. The D11 is a massive crawler bulldozer designed for demanding earth-moving applications, including mining, quarrying, and large-scale construction projects.

Largest Caterpillar Dozer in the World

It features a powerful Cat C32 engine with net power ranging from approximately 850 to 955 horsepower (depending on the configuration), making it one of the most powerful bulldozers available.

The CAT D11 is renowned for its impressive size, robust construction, and high productivity. It is equipped with advanced features such as electronic controls, automated functions, and integrated technology solutions to optimize performance, efficiency, and operator comfort.

The Caterpillar D11 is a powerful crawler dozer for demanding earth-moving applications, such as mining and large-scale construction projects.

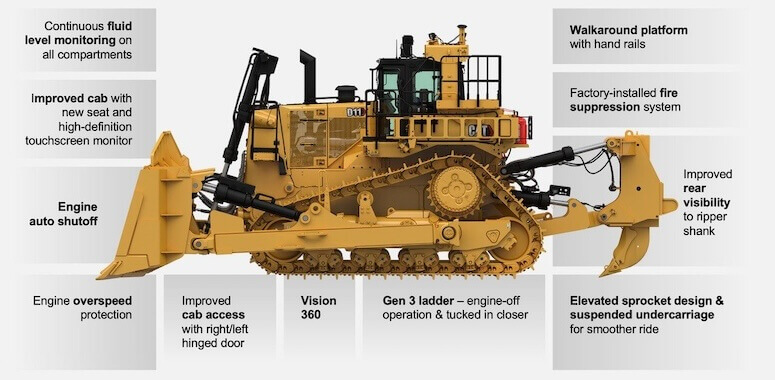

CAT D11 Specs

CAT D11 Key Specifications:

  • Engine: Cat® C32.
  • Net power – 850 to 955 hp.
  • Operating weight: 229,800 lb (104,235 kg).
  • Track gauge: 114 in.
  • Ground clearance: 31.4 in.
  • Blade capacity:
    • Semi-Universal (SU) Capacity – 35,6 yd3;
    • U-Blade Capacity – 45 yd3;
    • Reclamation Universal Blade capacity (SAE J1265) – 55 yd3;
    • Carry Dozer Blade capacity (SAE J1265) – 57 yd3.
  • Dimensions:
    • Width at Outside of Track (710 mm Track Shoe) – 149.8 in;
    • Length with SU-Blade (No rear attachment) – 345.1 in;
    • Overall Length SU-Blade and SS Ripper – 421.7 in.
  • Fuel Tank capacity: Total Volume – 500 gal (US) / Usable Volume – 475 gal (US).
  • Transmission: 1.0 Forward 2.5 mile/h; 2.0 Forward 4.4 mile/h; 3.0 Forward 7.6 mile/h; 1.0 Reverse 3 mile/h; 2.0 Reverse 5.3 mile/h; 3.0 Reverse 9.1 mile/h; Drawbar Pull – 3 Forward 46250 ft·lbf; Drawbar Pull – 1 Forward 148200 ft·lbf; Drawbar Pull – 2 Forward 82300 ft·lbf.
  • Hydraulic system: Variable displacement piston pump. Combined Pump Output (Implement) – 177 gal/min. Hydraulic System Chassis + Blade and Ripper (Carrydozer) – 143.4 gal (US).
  • Safety features: ROPS (Rollover Protective Structure) meets the following criteria ISO 3471:2008. FOPS (Falling Objects Protective Structure) meets the following criteria – ISO 3449:2005 LEVEL II.

Please note that specifications may vary based on the configuration, model year, and optional features chosen for the Cat D11. It’s always recommended to consult with Caterpillar or authorized dealers for the most accurate and up-to-date information regarding their equipment.

CAT D11 Dozer at Work

CAT D11 Dozer Pros:

The CAT D11 dozer is known for its formidable capabilities, earning several pros:

  • Powerhouse Performance: With its robust engine and high horsepower, the CAT D11 delivers exceptional pushing power, making it ideal for heavy-duty earthmoving and mining operations.
  • Advanced Technology: Equipped with state-of-the-art technology such as integrated GPS and automated systems, the D11 enhances productivity, precision, and efficiency on the job site.
  • Durability and Reliability: Built with rugged construction and high-quality materials, the CAT D11 is renowned for its durability and reliability even in the most demanding environments, ensuring minimal downtime and maximum productivity.
  • Operator Comfort and Safety: Designed with ergonomic features, advanced controls, and enhanced visibility, the CAT D11 prioritizes operator comfort and safety, reducing fatigue and promoting efficiency during long hours of operation.
  • Versatility: The CAT D11 offers versatility with various blade and ripper configurations, allowing operators to adapt to different applications and terrain conditions with ease.

CAT D11 Dozer Cons:

Despite its many strengths, the CAT D11 dozer does have some drawbacks:

  • High Operating Costs: The initial purchase price, maintenance, and fuel costs of the CAT D11 are significant, making it a substantial investment for companies.
  • Limited Maneuverability: Due to its large size and weight, the CAT D11 may have limited maneuverability in tight spaces or congested work areas, requiring careful planning and coordination on the job site.
  • Environmental Impact: The CAT D11’s powerful engine and heavy-duty operation can result in higher emissions and environmental impact compared to smaller, more fuel-efficient machines.
  • Maintenance Requirements: The CAT D11’s complex systems and components may require regular maintenance and servicing, leading to downtime and increased maintenance costs over time.
  • Operator Skill Required: Operating the CAT D11 requires skilled and experienced operators due to its size, power, and advanced technology, which may limit accessibility to less experienced personnel.

While the CAT D11 dozer offers exceptional performance and capabilities, it’s essential to consider these potential drawbacks when evaluating its suitability for specific projects and applications.

In conclusion, the CAT dozer size chart provides a comprehensive overview of the range of bulldozers offered by Caterpillar, showcasing their diverse capabilities and specifications. From compact models suitable for smaller-scale projects to large-scale machines designed for heavy-duty applications, Caterpillar offers a wide variety of options to meet the needs of various industries and job sites. With powerful engines, advanced technology, and robust construction, CAT bulldozers are known for their durability, efficiency, and performance in demanding conditions. Whether it’s pushing material, grading terrain, or performing other tasks, Caterpillar dozers are equipped to handle a wide range of tasks with precision and reliability. By analyzing the CAT dozer size chart, customers can make informed decisions based on their specific requirements, ensuring they choose the right machine for their projects.

Comments: 4
  1. Jonathan Field

    Wow, interesting! Caterpillar has changed the names of its bulldozer models! How long ago did this happen?

    1. David R. Ledford (author)

      In 2020, Caterpillar revamped its bulldozer naming system to streamline machine designations. As a result, bulldozer names now exclude letter suffixes following the numbers, with each machine’s name directly indicating its power rating:

      CAT D3K becomes the D1
      CAT D4K becomes the D2
      CAT D5K becomes the D3
      CAT D6K becomes the D4
      CAT D6N becomes the D5
      CAT D6T becomes the D6
      CAT D7E becomes the D7
      CAT D8T becomes the D8
      CAT D9T becomes the D9
      CAT D10T becomes the D10
      CAT D11T becomes the D11

  2. Andrew Harbert

    If I choose the same type and size of bulldozer, which brand is better to buy – Caterpillar, Komatsu or John Deere?

    1. Jonathan Field

      I worked with CAT equipment for many years, so I would buy a bulldozer from this manufacturer!
