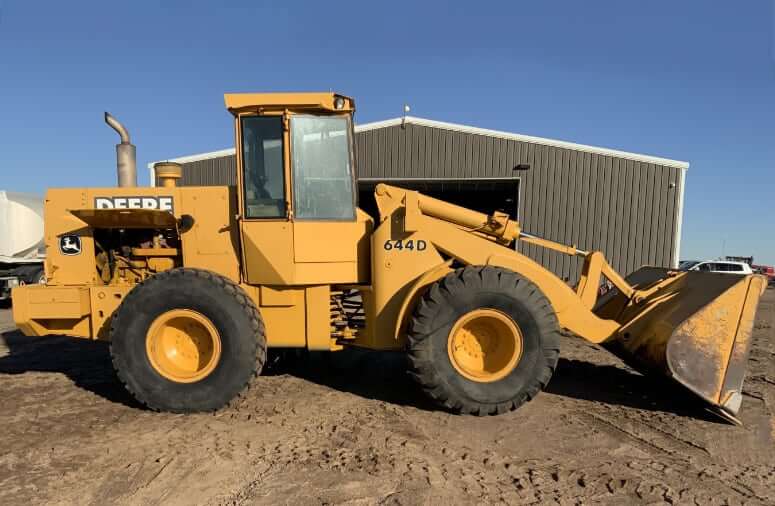

Bucket
| Bucket Capacity, Heaped | 3.0 yd3 (2.3 m3) |
| Bucket Capacity, Struck | 2.5 yd3 (1.9 m3) |
| Bucket Width | 104.7 in (2660 mm) |
| Hinge Pin – Max Height | 152 in (3862 mm) |
| Reach At Max Lift And Dump | 36.7 in (933 mm) |
| Dump Clearance At Max Raise | 117 in (2970 mm) |
| Breakout Force | 24430 lbf (109 kN) |
| Tipping Load | 25210 lb (11435 kg) |
| Max Lift Capacity at Max Height | 14680 lb (6660 kg) |
| Max Lift Capacity at Ground Level | 31325 lb (14210 kg) |
Dimensions
| Length w/ Bucket On Ground | 277 in (7035 mm) |
| Width Over Tires | 102.6 in (2605 mm) |
| Height to Top of Cab | 126 in (3200 mm) |
| Wheelbase | 115 in (2920 mm) |
| Ground Clearance | 20.2 in (514 mm) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | John Deere |
| Engine Model | John Deere 6-466T |
| Displacement | 466 cu in (7.7 L) |
| Net Power | 155 hp (116 kw) |
| Gross Power | 165 hp (123 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 480 lb ft (651 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged |
Operational Specs
| Operating Weight | 29320 lb (13300 kg) |
| Max Operating Weight (Multipurpose Bucket) | 30270 lb (13730 kg) |
| Operating Voltage | 12 V |
| Alternator | 42 amps |
| Battery | 2x 12 V, CCA 625 |
| Rear Axle Oscillation | 22° |
| Tire Size | 16.00-24, 12 PA, grader tread, G2 20.5-25, 12 PA, rock tread, L3 20.5-25, 12 PR, loader tread, L2 wi or wo valve stem protector 20.5-25, 16 PA, rock tread, L3 w/stem protector 20.5-25 XRAT 23.5-25, 20 PR, rock tread, L3 w/valve stem protector |
| Turning Radius | 16.6 ft (5030 mm) |
Transmission
| Transmission Type | Power shift planetary |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 2 |
| Max Forward Speed | 27.3 mph (43.9 km/h) |
| Max Reverse Speed | 8.2 mph (13.2 km/h) |
| Service Brakes | Power-actuated, 4-wheel inboard-mounted, wet disk. Foot-operated by either pedal |
| Parking Brake | 10 x 1.5 in (254 x 38 mm) expanding shoe on transmission, output shaft, foot-operated. Includes transmission disconnect with warning light and buzzer |
Hydraulic System
| Pump Type | Gear type pump |
| Pump Flow Capacity | 63 gal/min (238.5 L/min) |
| Relief Valve Setting | 2625 psi (18099 kPa) |
| Raise Time | 6.1 sec |
| Dump Time | 2.0 sec |
| Lower Time | 4.3 sec |
Service Refill Capacities
| Fuel Tank Capacity | 67 gal (254 L) |
| Engine Oil Capacity (w/ Filter) | 5.1 gal (19 L) |
| Cooling System Capacity | 7.4 gal (28 L) |
| Hydraulic System Capacity | 25.1 gal (95 L) |
| Transmission Oil Capacity | 9.8 gal (37 L) |
| Front Axle/Diff Fluid Capacity | 6.1 gal (23 L) |
| Rear Axle/Diff Fluid Capacity | 6.1 gal (23 L) |
