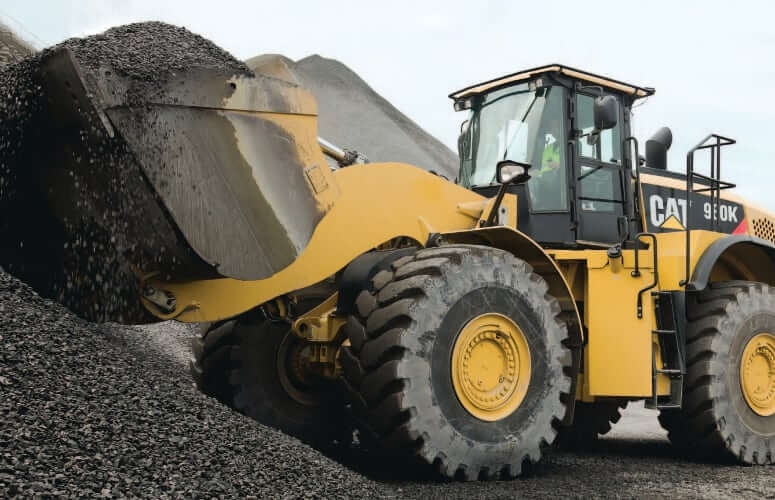

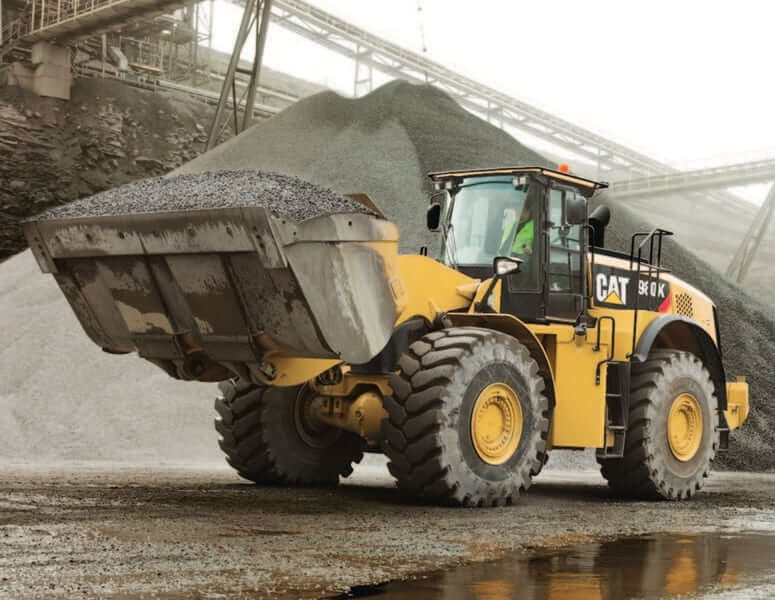

Loader Performance
CAT 980K Bucket Type | Rock, Pin On | HD Rock, Pin On | Light Material, Pin On |
---|---|---|---|
Edge Type | Teeth and Segments | Teeth and Segments | Bolt-On Edges |
Bucket Capacity, Rated | 5.86 yd3 (4.48 m3) | 7.07 yd3 (5.41 m3) | 10.73 yd3 (8.20 m3) |
Bucket Capacity, Struck | 4.48 yd3 (3.43 m3) | 6.33 yd3 (4.84 m3) | 8.46 yd3 (6.47 m3) |
Bucket Width | 137.9 in (3504 mm) | 143.5 in (3645 mm) | 145.2 in (3688 mm) |
Dump Clearance at Maximum Lift and 45° Discharge | 120.1 in (3051 mm) | 115.7 in (2941 mm) | 114.8 in (2917 mm) |
Reach at Maximum Lift and 45° Discharge | 70.0 in (1788 mm) | 77.4 in (1965 mm) | 66.9 in (1700 mm) |
Reach at Level Lift Arm and Bucket Level | 131.9 in (3359 mm) | 140.2 in (3561 mm) | 134.3 in (3411 mm) |
Digging Depth | 4.1 in (106 mm) | 3.0 in (77 mm) | 4.3 in (108 mm) |
Overall Length | 324.4 in (9843 mm) | 330.0 in (10,051 mm) | 389.1 in (9883 mm) |
Overall Height with Bucket at Maximum Lift | 244.1 in (6204 mm) | 251.2 in (6378 mm) | 257.3 in (6536 mm) |
Loader Clearance Circle with Bucket at Carry Position | 631.7 in (16093 mm) | 643.3 in (16340 mm) | 639.1 in (16234 mm) |
Static Tipping Load, Straight (ISO) | 48238 lb (21886 kg) | 45601 lb (20690 kg) | 45887 lb (20819 kg) |
Static Tipping Load, Straight (Rigid Tire) | 51270 lb (23262 kg) | 48644 lb (22070 kg) | 49012 lb (22238 kg) |
Static Tipping Load, Articulated (ISO) | 42469 lb (19269 kg) | 39871 lb (18090 kg) | 40318 lb (18293 kg) |
Static Tipping Load, Articulated (Rigid Tire) | 45172 lb (20495 kg) | 42589 lb (19323 kg) | 43125 lb (19567 kg) |
Breakout Force | 49824 lbf (221 kN) | 46121 lbf (205 kN) | 41956 lbf (186 kN) |
Operating Weight | 70819 lb (32132 kg) | 72504 lb (32897 kg) | 70156 lb (31831 kg) |

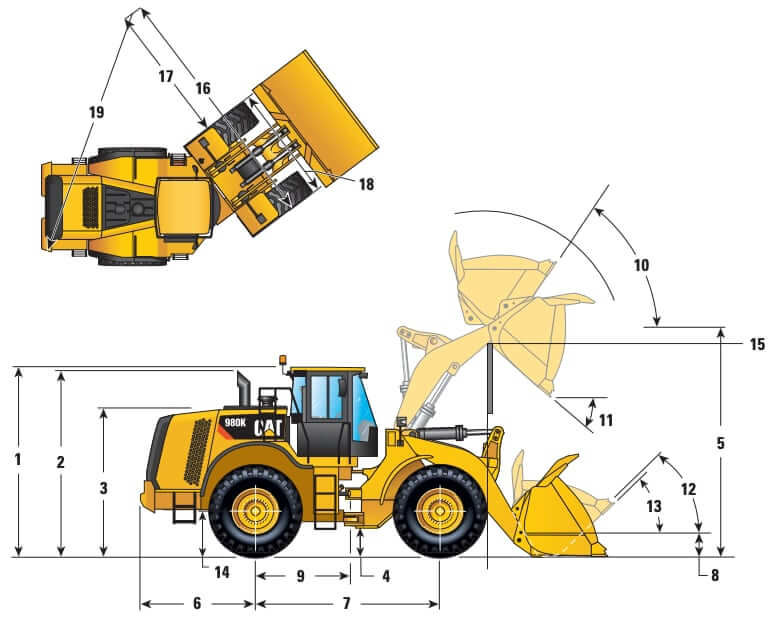

Dimensions
1. Height to Top of ROPS | 150.0 in (3809 mm) |
2. Height to Top of Exhaust Pipe | 147.1 in (3737 mm) |
3. Height to Top of Hood | 122.4 in (3109 mm) |
4. Ground Clearance with 29.5R25 | 18.1 in (460 mm) |
5. B-Pin Height, Standard | 178.7 in (4539 mm) |
5. B-Pin Height, High-Lift | 187.4 in (4760 mm) |
6. Center Line of Rear Axle to Edge of Counterweight | 98.8 in (2510 mm) |
7. Wheelbase | 145.7 in (3700 mm) |
8. B-Pin Height @ Carry, Standard | 26.5 in (673 mm) |
9. Center Line of Rear Axle to Hitch | 72.8 in (1850 mm) |
10. Rack Back @ Maximum Lift | 61° |
11. Dump Angle @ Maximum Lift | 52° |
12. Rack Back @ Carry | 49° |
13. Rack Back @ Ground | 41° |
14. Height to Center Line of Axle | 34.8 in (885 mm) |
15. Lift Arm Clearance | 149.4 in (3795 mm) |
15. Lift Arm Clearance @ High Lift | 159.1 in (4041 mm) |
16. Clearance Circle to Outside of Tires | 282.8 in (7183 mm) |
17. Clearance Circle to Inside of Tires | 152.6 in (3875 mm) |
18. Width Over Tires | 130.2 in (3307 mm) |
19. Clearance Circle to Outside Edge of Counterweight | 281.9 in (7160 mm) |
All dimensions are approximate and based on L4 Michelin 29.5R25 XLDD1 Radial tires.
Engine Details
Number of Cylinders | 6 |
Engine Make | Caterpillar |
Engine Model | CAT C13 ACERT |
Displacement | 762.8 cu in (12.6 L) |
Bore | 5.1 in (130 mm) |
Stroke | 6.2 in (157 mm) |
Gross Power | 406 hp (303 kw) |
Net Power | 369 hp (274 kw) |
Power Measured @ | 1600 rpm |
Peak Torque | 1541 lb ft (2089 Nm) |
Torque Measured @ | 1300 rpm |
Fuel System | High-pressure Mechanical Electronic Unit Injector (MEUI-C) |
Lubrication System | Gear driven oil pump |
Cooling System | Fan, radiator, electronically controlled, hydraulically driven, temperature sensing, on demand |
Air Cleaner | Precleaner, engine air intake |
Aftertreatment | Diesel Particulate Filter (DPF) |
Aspiration | Turbocharged and Air-to-Air Aftercooled |
Emission Standards | US EPA Tier 4 Interim + EU Stage IIIB |

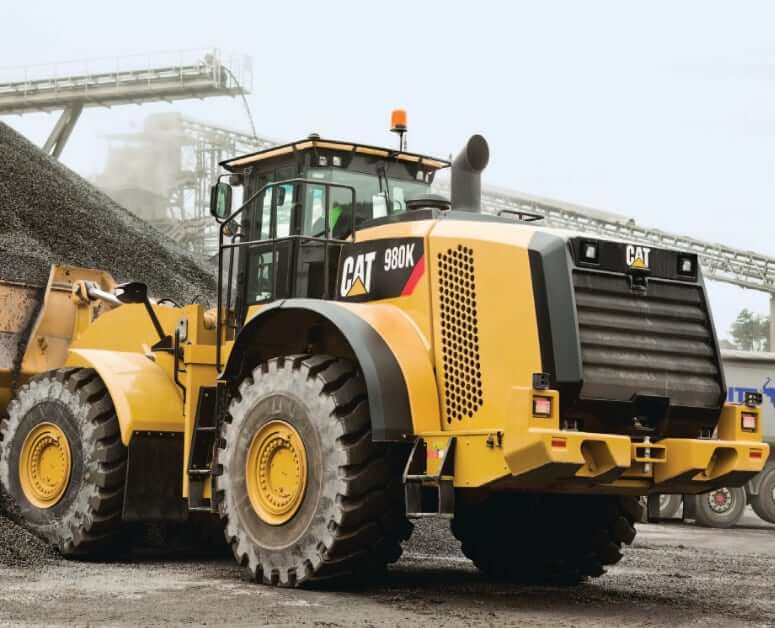

Operational Specs
Operating Weight | 68862 lb (31244 kg) |
Bucket Capacities | 5.25 to 16.0 yd3 (4.0 to 12.2 m3) |
Operating Voltage | 24 V |
Alternator | 150 amps |
Battery | 4x 12 V, CCA 1000 |
Lighting System | 4x halogen work lights; 2x halogen roading lights (with signals); 2x halogen rear vision lights (hood mounted) |
Standard Tire Size | 29.5-25 |
Recommended Tires | 29.5R25 VMT BS L3 Radial 29.5R25 XHA2 MX L3 Radial 29.5R25 XLDD1 MX L4 Radial 29.5R25 VSNT BS L4 Radial 29.5R25 VSDL BS L5 Radial 29.5R25 XLDD2 MX L5 Radial 29.5R25 X MINE D2 MX L5 Radial |
Operator Environment
ROPS | SAE J1040 APR88 and ISO 3471:1994 |
FOPS | SAE J231 JAN81 and ISO:1992 Level II |
Operator Seat | Air suspension seat with 6-way adjustable Cat Optimized Seating System |
Seat Belt | Retractable seat belt, 2 in (51 mm) wide |
HVAC | Air conditioner, heater, and defroster (auto temp and fan) |
Noise Level (interior) | 72 dB(A) |
Noise Level (exterior) | 109 dB(A) |
Transmission
Transmission Type | Powershift transmission with torque converter |
Number of Forward Gears | 4 |
Number of Reverse Gears | 4 |
Max Forward Speed | 22.6 mph (42.8 km/h) |
Max Reverse Speed | 24.9 mph (40.0 km/h) |
Axles and Brakes
Front Axle | Fixed |
Rear Axle Oscillating | ±13° |
Axle Oil Cooler | Optional |
Maximum Single-Wheel Rise And Fall | 21.6 in (548 mm) |
Service Brakes | Full hydraulic enclosed wet-disc with Integrated Braking System (IBS) |
Parking Brake | Electro-hydraulic park brake |
Brakes Standards | Meet OSHA, SAE J1473 OCT90 and ISO 3450-1985 required standards |
Hydraulic System
Type | Load sensing hydraulics |
Implement System Pump Type | Gear |
Pump Flow Capacity | 121.5 gal/min (460 L/min) |
Pump Flow Capacity, 3rd Function (Optional) | 79.3 gal/min (300 L/min) |
Maximum Operating Pressure (Implement System) | 4496 psi (31000 kPa) |
Maximum Operating Pressure (Implement System, 3rd Function) | 3000 psi (20700 kPa) |
Steering System Pump Type | Piston |
Hydraulic Cycle Times
Raise from Carry Position | 6.4 sec |
Dump, at Maximum Raise | 1.7 sec |
Lower, Empty, Float Down | 3.3 sec |
Total Hydraulic Cycle Time | 11.4 sec |
Service Refill Capacities
Fuel Tank Capacity | 118.1 gal (447 L) |
Engine Oil Capacity (w/ filter) | 9.8 gal (37 L) |
Cooling System Capacity | 16.6 gal (63 L) |
Hydraulic System Capacity (w/ tank) | 73.9 gal (280 L) |
Hydraulic Tank Capacity | 44.9 gal (170 L) |
Transmission Oil Capacity | 17.4 gal (66 L) |
Front Axle/Differential Fluid Capacity | 22.2 gal (84 L) |
Rear Axle/Differential Fluid Capacity | 22.2 gal (84 L) |
Central Lubrication System | 1.06 gal (4 L) |
