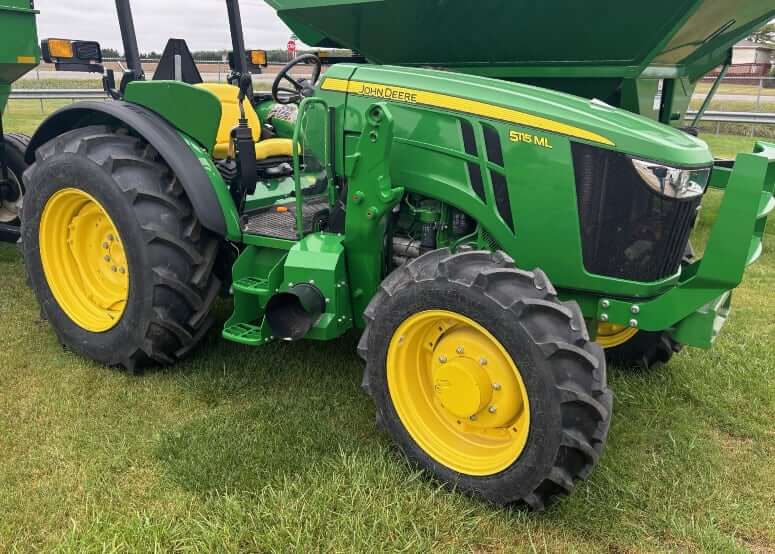

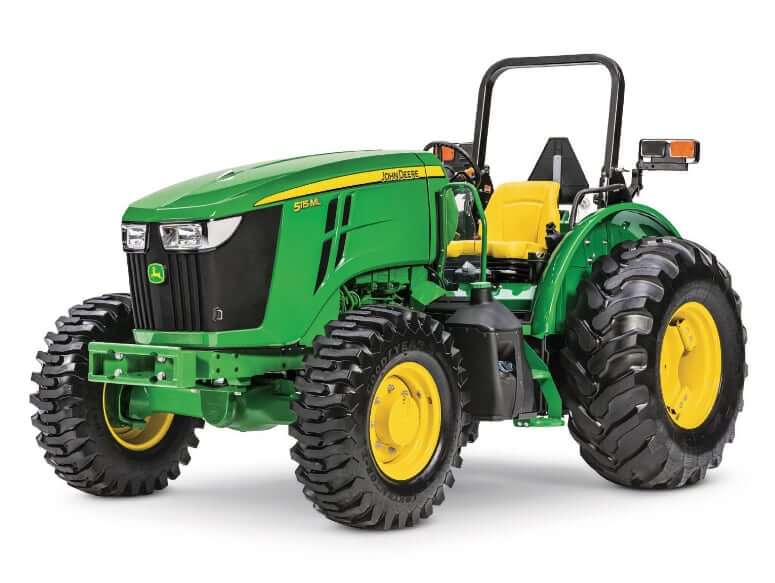

Dimensions
| Wheelbase | 92.5 in (2350 mm) |
| Height to Top of ROPS | 67.3 in (1709 mm) |
| Ground Clearance (Front Axle) | 14.9 in (379 mm) |
| Front Wheel Tread Range | 51.1 – 78.6 in (1299 – 1997 mm) |
| Turning Radius With Brakes | 131.5 in (3.34 m) |
| Turning Radius Without Brakes | 149.6 in (3.80 m) |

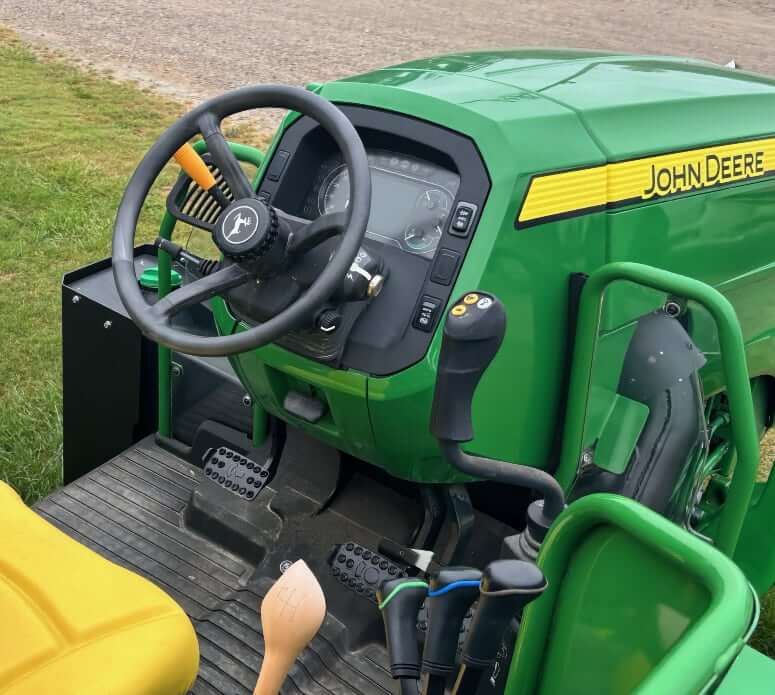

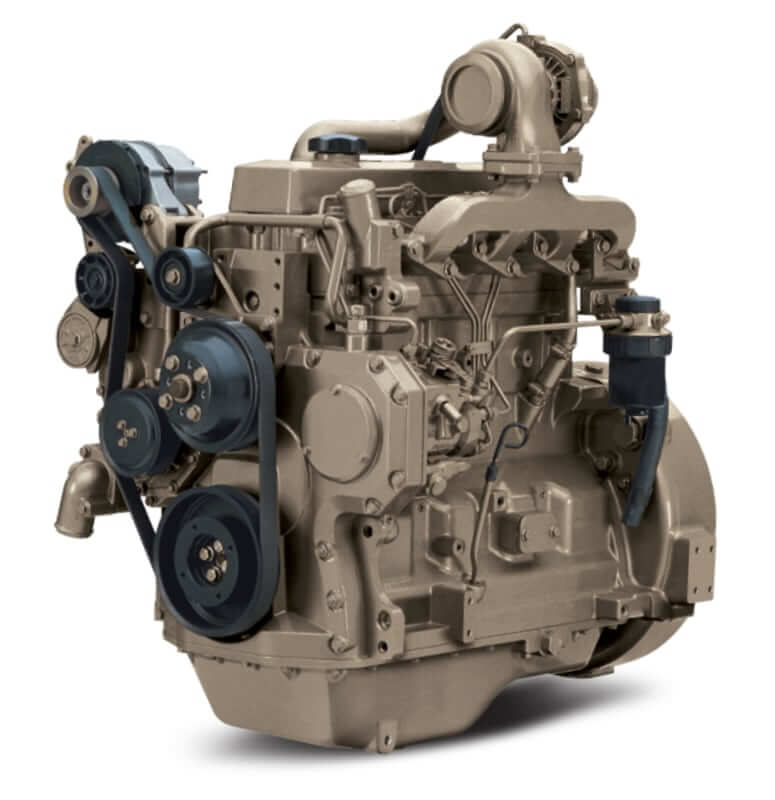

Engine Details
| Number Of Cylinders | 4 |
| Engine Make | John Deere PowerTech |
| Engine Model | PowerTech M 4.5L (4045HF150) |
| Displacement | 276 cu in (4.5 L) |
| Engine Family | LJDXL04.5315 |
| Engine Power | 115 hp (85 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 367 lb ft (498 Nm) |
| Torque Measured @ | 1400 rpm |
| Torque Rise | 30% |
| Aspiration | Turbocharged |
| Emission Standards | EPA Final Tier 4 |
Operating Specs
| Shipping Weight (PowrReverser models) | 8298 lb (3764 kg) |
| Shipping Weight (PowrQuad models) | 8740 lb (3975 kg) |
| Operating Voltage | 12 V |
| Alternator | 90 amps (120 amps) |
| Battery | 12 V, 75 Ah, CCA 950 |
Transmission
| Type | PowrReverser | PowrQuad w/ creeper | 32F/16R PowrQuad |
|---|---|---|---|
| Gears F/R | 16 / 16 | 16 / 16 | 32 / 16 |
| Max Travel Speed | 18 mph (30 km/h) | 24 mph (40 km/h) | 24 mph (40 km/h) |
Axle, Tires & Brakes
| Front Tire Size (2WD) | 11.5L-15in. 8PR F3 Bias |
| Rear Tire Size (2WD) | 19.5L-24 10PR R4 Bias |
| Front Tire Size (MFWD) | 12.5/80-18 12PR I3 (R4-type tread) Bias |
| Rear Tire Size (MFWD) | 19.5L-24 10PR R4 Bias |
| Rear Axle Type | Flanged. Inboard planetary |
| Rear Axle Differential Controls | Electrohydraulic |
| Service Brakes | Hydraulic wet disc |

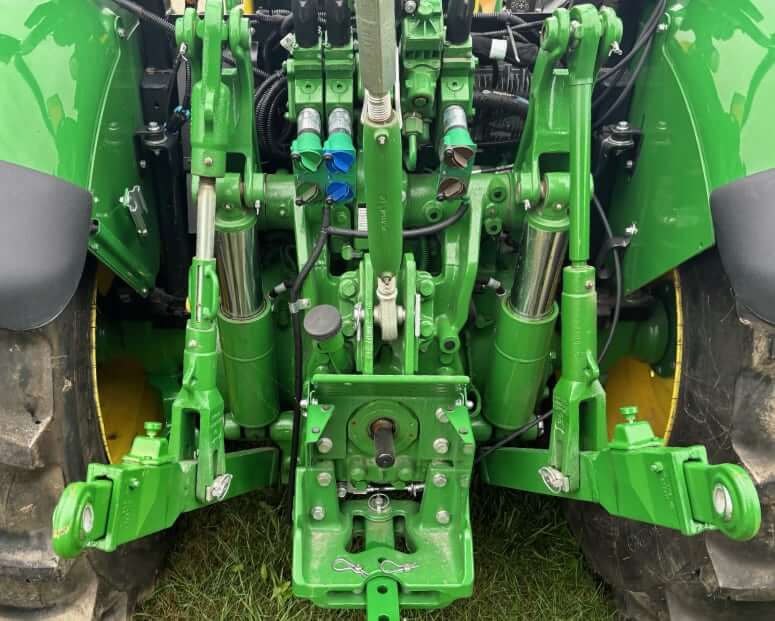

PTO (Power Take-Off)
| PTO Type | Independent |
| PTO Actuation | Electro-hydraulic |
| PTO Speeds | Standard: 540/540E / Optional: 540/540E/1000 |
| Engine Speeds | 540 @ 2100 rpm, 540E @ 1645 rpm, 1000 @ 2103 rpm |
| PTO Power | 100 hp (74.6 kw) |
Hydraulic System
| Hydraulic Type | Open Center. Optional: Pressure-and-flow compensated (PFC) system |
| Joystick SCV Control | Optional |
| Pump Rated Output (Standard) | 24.7 gal/min (94 L/min) |
| Pump Rated Output (Optional) | 31 gpm (117 L/min) |
| Available Flow @ One Rear SCV (Standard) | 18.4 gal/min (70 L/min) |
| Available Flow @ One Rear SCV (Optional) | 26.4 gpm (100 L/min) |
| Maximum Hydraulic Power | 31.1 hp (23.2 kw) |
| Maximum Operating Pressure | 2900 psi (20000 kPa) |
| Remote Control Valves Available (Rear) | up to 3 |
| Remote Control Valves Available (Mid) | up to 2 |
| Hitch Draft Control Load Sense Type | Mechanical. Optional: Electrohydraulic |
| Maximum Lift Capacity Behind Lift Points (Standard) | 4900 lb (2223 kg) |
| Maximum Lift Capacity Behind Lift Points (Optional) | 5654 lb (2565 kg) |
| Maximum Lift Capacity Behind Lift Points (PowrQuad) | 6975 lb (3164 kg). Optional: 7868 lb (3569 kg) |
| Hitch category (SAE designation) | Category 2 |
Service Refill Capacities
| Fuel Tank Capacity (Standard) | 29.5 gal (112 L) |
| Fuel Tank Capacity (PowrQuad High Capacity) | 38.0 gal (144 L) |
| Engine Oil Capacity (w/ Filter) | 3.2 gal (12 L) |
| Cooling System Capacity | 3.6 gal (13.8 L) |
| Transmission + Hydraulic (Open Center) Capacity | 10.4 gal (39.5 L) |
| Transmission + Hydraulic (Close Center) Capacity | 12.5 gal (47.5 L) |
| MFWD Differential Housing | 1.3 gal (5 L) |
| MFWD Hubs (Each) | 0.2 gal (0.8 L) |
| DEF Tank Capacity | 3.2 gal (12 L) |
