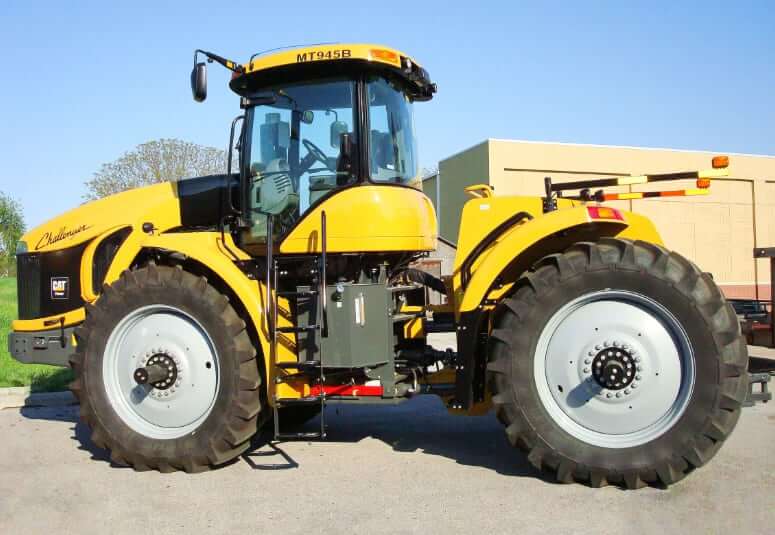

Dimensions
| Overall Length | 298 in (7569 mm) |
| Wheelbase | 155.5 in (3950 mm) |
| Overall Width | 191.8 in (4871 mm) |
| Height With ROPS | 151 in (3835 mm) |
Operational Specs
| Operating Weight | 50000 lb (22680 kg) |
| Shipping Weight | 39266 lb (17810 kg) |
| Operating Voltage | 12 V |
| Alternator | 185 amps |
| Battery | 4x 12 V, CCA 1000 |
| Drive | 4WD |
| Steering | Articulated power steering |
| Turning Angle | 42° |
| Oscillation Angle | 13° |
| Final Drive | Inboard Compund Planetary |
| Tire Size | 710/70R42 Duals; 520/85R46 |
| Service Brakes | Wet Disk in Axle |
| Differential Lock | Electro hydraulic wet disc (Optional) |
| Centerline Turning Radius | 16 ft (4.8 m) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | Caterpillar |
| Engine Model | Cat C15 ACERT Tier III |
| Displacement | 927.6 cu in (15.2 L) |
| Gross Power | 430 hp (320.7 kw) |
| Power Measured @ | 1800 rpm |
| PTO Power | 360 hp (268.5 kw) |
| Peak Torque | 1600 lb ft (2169 Nm) |
| Torque Measured @ | 1400 rpm |
| Torque Rise | 42% |
| Aspiration | Turbocharged / Air-to-Air Aftercooled |
| Emission Standards | US EPA Tier 3 / EU Stage IIIA |
PTO (Power Take-Off)
| Rear PTO Type | Independent |
| Rear PTO Speed | 1000 rpm |
| PTO Power (claimed) | 360 hp (268.5 kw) |
| PTO / Engine RPM | 1000 @ 2000 |
| PTO Shaft Diameter | 1.75 in (45 mm), 20-spline |
| Control | Electronic Control |
Transmission
| Transmission Type | Caterpillar Powershift 16F / 4R |
| Number Of Forward Gears | 16 |
| Number Of Reverse Gears | 4 |
| Max Speed | 24.6 mph (39.6 km/h) |
Hydraulic System
| Type | Load Independent Flow Division (Closed-Center, Pressure-Flow Compensated) |
| Standard Pump Flow | 43.5 gal/min (164.7 L/min) |
| High Flow Pump (Optional) | 59.0 gal/min (224.2 L/min) |
| Relief Valve Setting | 2900 psi (20000 kPa) |
| Number Of Remote Control Valves | 4 to 6 |
| 3 Point Hitch Type | Cat 3/4N or 4 (Optional) |
| 3 Point Hitch Lift Capacity @ 24 Inches | 19500 lb (8845 kg) |
Service Refill Capacities
| Fuel Tank Capacity | 390 gal (1476 L) |
| Engine Oil Capacity | 7.9 gal (30 L) |
| Cooling System Capacity | 13 gal (49 L) |
| Hydraulic System Capacity | 38 gal (145 L) |
| Transmission Oil Capacity | 48 gal (185 L) |
