Loader

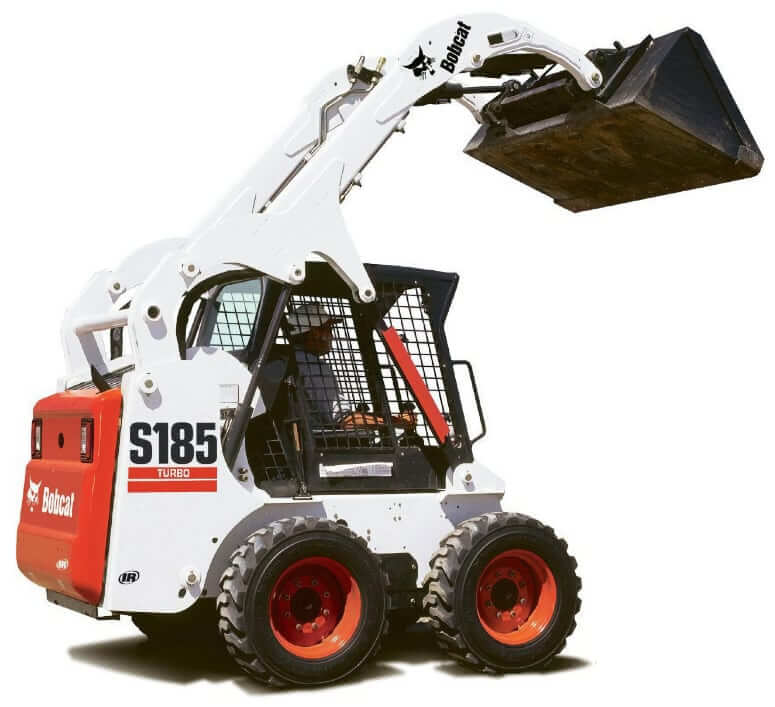

| Tipping Load | 4076 lb (1849 kg) |
| Rated Operating Capacity (ROC), SAE J732 | 1850 lb (839 kg) |
| ROC with Counterweight (optional) | 1950 lb (885 kg) |
| Lift Breakout Force (SAE) | 3500 lbf (15.57 kN) |
| Tilt Breakout Force (SAE) | 3425 lbf (15.24 kN) |
| Push Force | 4200 lbf (18.58 kN) |
| Bucket Width (Standard) | 68 in (1727 mm) |
| Bucket Width (Option #1) | 62 in (1575 mm) |
| Bucket Width (Option #2) | 74 in (1880 mm) |

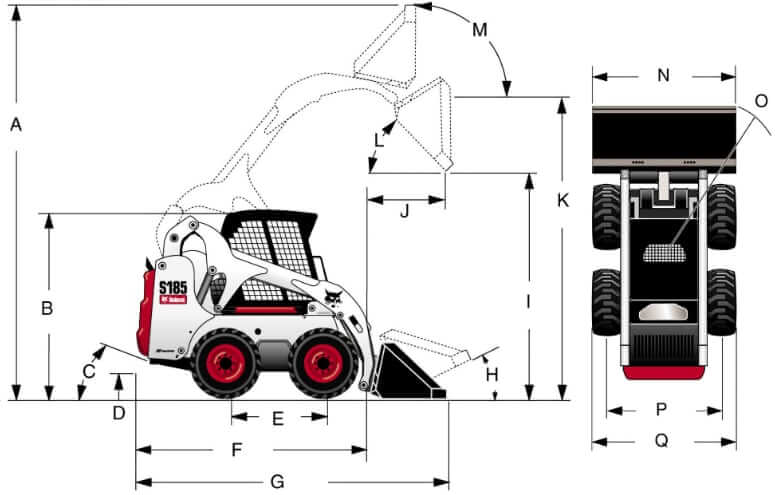

Dimensions
| A. Operating Height | 152.1 in (3863 mm) |
| B. Height with Operator Cab | 76.3 in (1938 mm) |
| C. Angle of Departure | 23° |
| D. Ground Clearance | 7.5 in (191 mm) |
| E. Wheelbase | 40.6 in (1030 mm) |
| F. Length without Attachment | 101.8 in (2586 mm) |
| G. Length with Standard Bucket | 130.3 in (3309 mm) |
| H. Rollback @ Carry Position | 27° |
| I. Dump Height with Standard Bucket | 91.0 in (2310 mm) |
| J. Dump Reach @ Maximum Height | 29.6 in (752 mm) |
| K. Height to Bucket Hinge Pin | 118.2 in (3002 mm) |
| L. Dump Angle @ Maximum Height | 42° |
| M. Rollback Fully Raised @ Maximum Height | 95° |
| N. Width Over Bucket | 68 in (1727 mm) |
| O. Turning Radius with Standard Bucket | 78.8 in (2001 mm) |
| O. Turning Radius Rear Clearance of Machine | 62.2 in (1579 mm) |
| P. Wheel Tread (10-16.5) | 56.4 in (1433 mm) |
| Q. Width Over Tires (10-16.5) | 66.0 in (1676 mm) |
| Carry Position | 9.0 in (229 mm) |
Engine Details
| Engine Model | Kubota V2607-DI-T-E3B | Kubota V2003-M-DI-T-E2B |
|---|---|---|
| Number of Cylinders | 4 | 4 |
| Displacement | 160 cu in (2.6 L) | 122 cu in (2.0 L) |
| Bore | 3.43 in (87 mm) | 3.27 in (83 mm) |
| Stroke | 4.33 in (110 mm) | 3.64 in (92.4 mm) |
| Gross Horsepower | 61 hp (45.5 kw) | 59 hp (44 kw) |
| Net Horsepower | 58 hp (43.3 kw) | 56 hp (42 kw) |
| Power Measured @ | 2700 rpm | 2800 rpm |
| Peak Torque | 148 lb ft (201 Nm) | 120.8 lb ft (164 Nm) |
| Torque Measured @ | 1425 rpm | 1825 rpm |
| Fuel Consumption | ≈2.7 gph (10.2 L/h) | ≈2.0 gph (9.1 L/h) |
| Fuel System | In-line pump | In-line pump |
| Air Cleaner | Dry replaceable paper cartridge with safety element | Dry replaceable cartridge w/safety element |
| Lubrication System | Gear Pump Pressure | Pressure system with filter |
| Aspiration | Turbocharged | Turbocharged |
| Emission Standards | US EPA/CARB interim Tier 4 + EU Stage IIIA | US EPA/CARB Tier 2 + EU Stage II |
Operational Specs

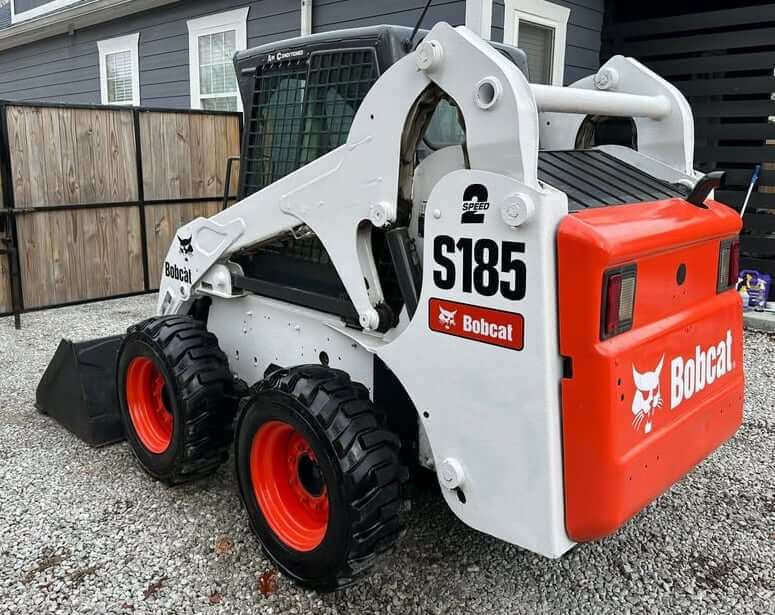

| Operating Weight | 6220 lb (2821 kg) |
| Tipping Load | 4076 lb (1849 kg) |
| Rated Operating Capacity | 1850 lb (839 kg) |
| Operating Voltage | 12 V |
| Alternator | 90 amps |
| Battery | 12 V, RC: 115 min, CCA 600 |
| Starter | 12 V, gear type, 3.6 hp (2.7 kw) |
| Tire Size (Standard) | 10×16.5 |
| Tire Size (Optional) | 31.5×13-16.5 |

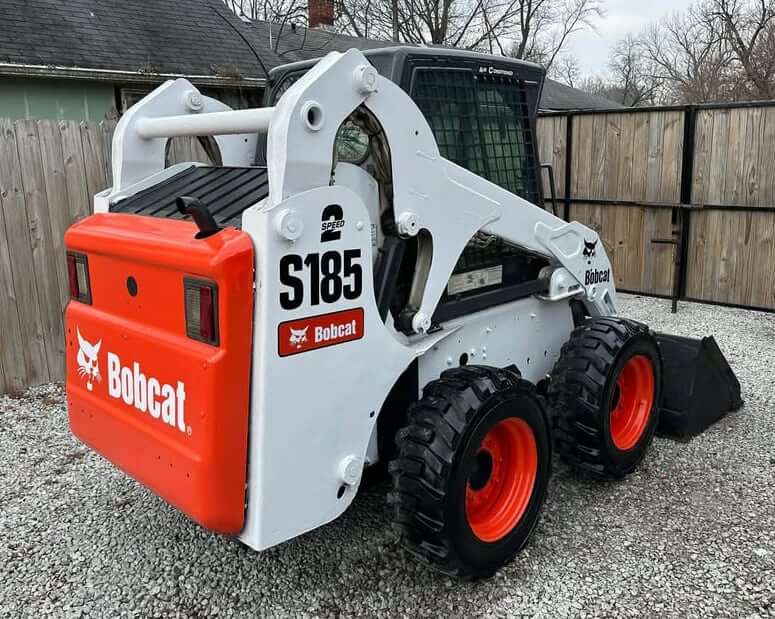

Power Train
| Type | Fully hydrostatic transmission, 4WD |
| Number of Gears | Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors |
| Max Travel Speed (Single Speed) | 7.3 mph (11.8 km/h) |
| Max Travel Speed (2-Speed) | 7.5 mph (12.1 km/h), low 11.1 mph (17.9 km/h), high |
| Final Drive Chains | Prestressed #80 HSOC endless roller chain (no master link) and sprockets in sealed chaincase with oil lubrication. Two chains per side with no idler sprocket |
| Service Brakes | Two independent hydrostatic systems controlled by two hand operated steering levers or optional joystick(s) |
| Secondary Brake | One of the hydrostatic transmissions |
| Parking Brake | Mechanical disc, manually operated switch on front instrument panel |
Operator Environment
| Cab (Options) | Open Cab Package / Heated Cab Package / A/C Heated Cab Package |
| ROPS | SAE-J1040 and ISO 3471 |
| FOPS | SAE-J1043 and ISO 3449, Level I |
| Operator Seat | Cushion suspension seat |
| Working Lights | 2x Front + 2 Rear working lights |
| Noise Level Operator LpA | 85 dB(A) |

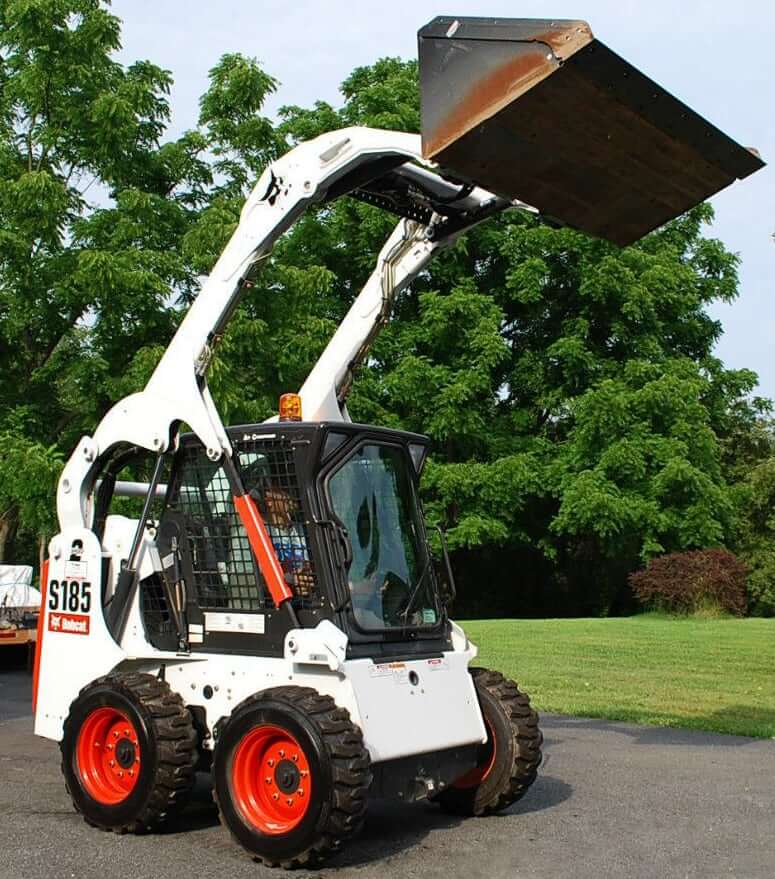

Hydraulic System
| Type | Open center hydraulic system |
| Hydraulic Pump Type | Engine driven, gear type |
| Standard Pump Flow | 16.9 gal/min (64 L/min) |
| High Flow Pump Flow (optional) | 26.4 gal/min (100 L/min) |
| Standard Relief Pressure at Quick Couplers | 3250 – 3350 psi (22400 – 23100 kPa) |
| Hydraulic Filter | Full flow replaceable, 3-micron synthetic media element |
| Fluid Lines | SAE Standard tubelines, hoses and fittings |

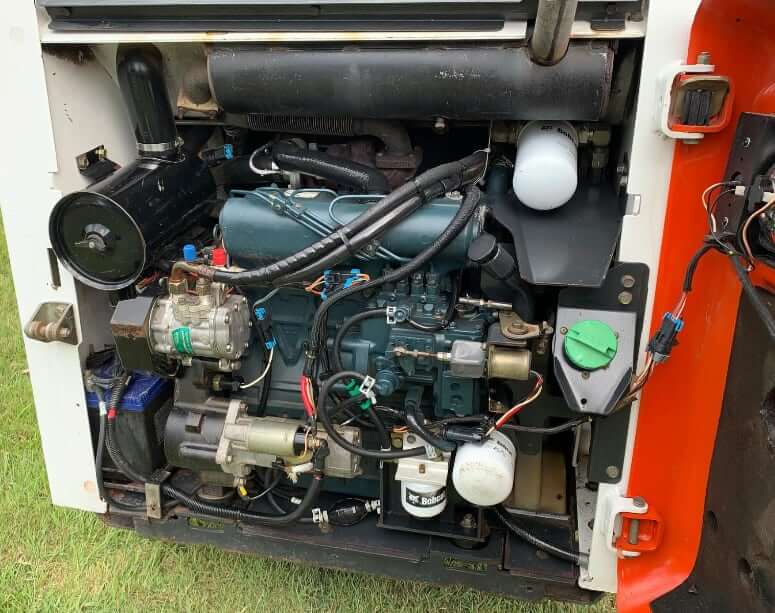

Service Refill Capacities
| Engine Model | Kubota V2607 | Kubota V2003 |
|---|---|---|
| Fuel Tank Capacity | 24 gal (90.8 L) | 24 gal (90.8 L) |
| Engine Oil Capacity (w/ Filter) | 3.0 gal (9.7 L) | 2.1 gal (8.7 L) |
| Cooling System Capacity (Cab w/o HVAC) | 3.3 gal (12.6 L) | 2.6 gal (10.2 L) |
| Cooling System Capacity (Cab w/ HVAC) | 3.6 gal (13.7 L) | 2.9 gal (11.3 L) |
| Hydraulic System Fluid Capacity | 9 gal (34.1 L) | 9 gal (34.1 L) |
| Hydraulic Tank Capacity | 4.8 gal (18.2 L) | 4.8 gal (18.2 L) |
| Chaincase Reservoir Capacity | 8 gal (30.3 L) | 8 gal (30.3 L) |
Bobcat S185 Filters
| Filter | Part Number |
|---|---|
| Air Filter (Inner), S/N: 5176 25001-; 5181 15001-; 5190 28001-; 5192 15001-; 5250 11001-; 5251 11001-; 5252 11001-; 5253 11001-; 5303 11001-; 5304 11001-; ABRT 11001- | 6598362 |
| Air Filter (Inner), S/N: A3L9 11001-; A3LH 11001-; AEYU 11001- | 6698058 |
| Air Filter (Outer), S/N: 5176 25001-; 5181 15001-; 5190 28001-; 5192 15001-; 5250 11001-; 5251 11001-; 5252 11001-; 5253 11001-; 5303 11001-; 5304 11001-; ABRT 11001- | 6598492 |
| Air Filter (Outer), S/N: A3L9 11001-; A3LH 11001-; AEYU 11001- | 6698057 |
| Engine Oil Filter | 6675517 |
| Fuel Filter | 6667352 |
| Hydraulic Filter, S/N: 5176 25001-; 5181 15001-; 5190 28001-; 5192 15001-; 5250 11001-; 5251 11001-; 5252 11001-; 5253 11001-; 5303 11001-; 5304 11001-; ABRT 11001- | 6661248 6661807 |
| Hydraulic Filter, S/N: A3L9 11001-; A3LH 11001-; AEYU 11001- | 6661248 |
| Case Drain Filter | 6661022 |
| Hydraulic Fill/Breather Cap | 7025626 |
| Cooling/Charge Filter, S/N: 5176 25001-; 5181 15001-; 5190 28001-; 5192 15001-; 5250 11001-; 5251 11001-; 5252 11001-; 5253 11001- | 6686926 |
| Cooling/Charge Filter, S/N: 5303 11001-; 5304 11001-; ABRT 11001-; A3L9 11001-; A3LH 11001-; AEYU 11001- | 6686926 6692337 |
| Heater Filter | 6677983 |
| Recirculating Air Filter | 6678207 |
The Bobcat S185 Skid Steer Loader is a versatile and compact machine designed for a wide range of construction, landscaping, agriculture, and material-handling tasks. Powered by a reliable diesel engine and featuring a standard rated operating capacity of 1850 pounds (1950 lbs with counterweight), the S185 strikes a balance between power and maneuverability.
With its vertical lift path, it excels in applications requiring high lift and reach – such as loading trucks and placing pallets – while maintaining stability and performance in confined spaces. Known for its durability, responsive controls, and compatibility with a variety of attachments, the Bobcat S185 continues to be a popular choice for contractors and operators seeking dependable mid-size skid steer performance.

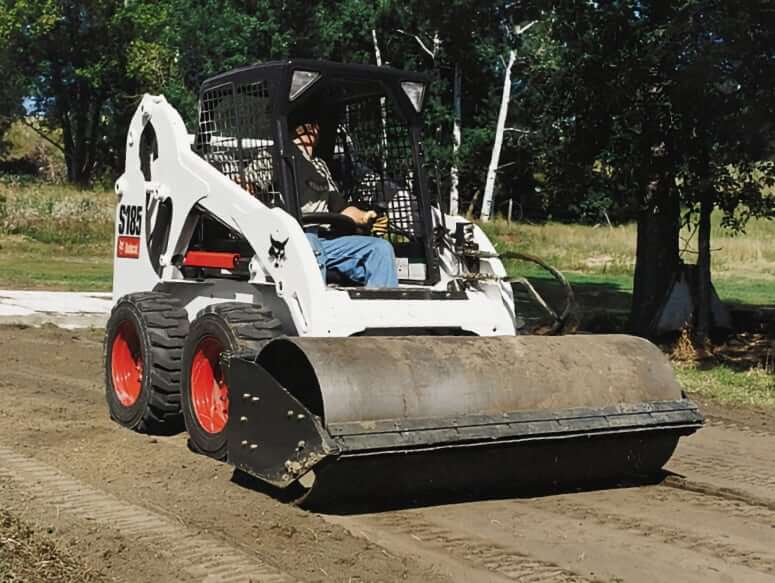

The Bobcat S185 Skid Steer Loader is compatible with a wide range of performance-enhancing attachments that expand its utility across construction, landscaping, agriculture, and snow management tasks. Designed to take full advantage of the S185’s powerful hydraulic system and compact frame, these attachments offer flexibility for digging, grading, lifting, trenching, cutting, sweeping, and more. Many of the more advanced attachments, such as the angle broom, concrete mixer, snowblower, and soil conditioner, require the Bobcat Attachment Control Kit to function properly – ensuring precise control and optimized performance. From industrial grapples and planers to sweepers, trenchers, and tree spades, the S185 supports an extensive toolkit that allows operators to tackle diverse jobs with speed and efficiency.
