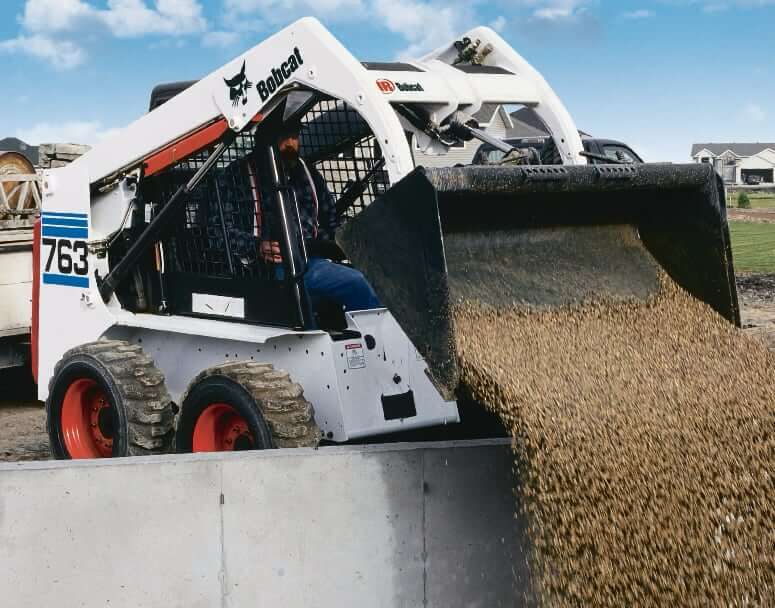

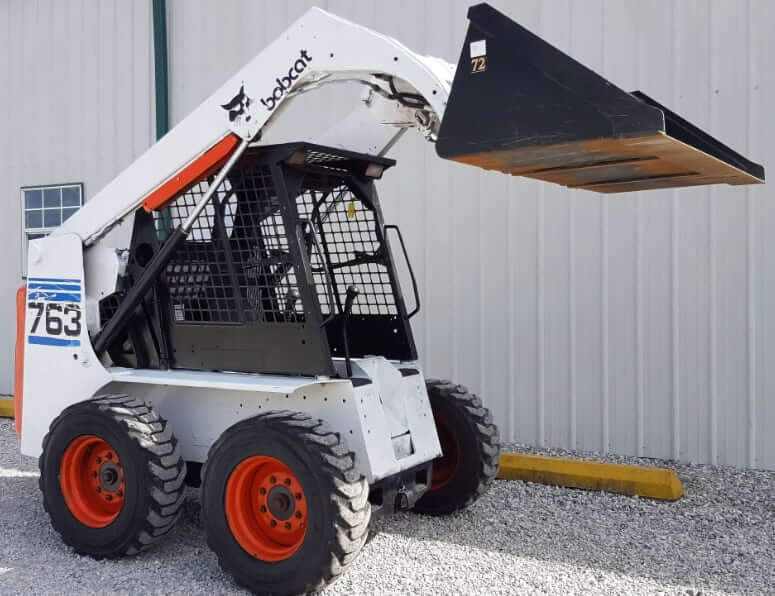

Loader
| Tipping Load |
3000 lb (1361 kg) |
| Rated Operating Capacity (ROC) |
1500 lb (680 kg) |
| ROC with Counterweight |
1600 lb (706 kg) |
| Lift Breakout Force (SAE) |
2800 lbf (12.5 kN) |
| Tilt Breakout Force (SAE) |
3100 lbf (13.8 kN) |
| Bucket Width (Standard) |
68 in (1727 mm) |
| Bucket Width (Option #1) |
62 in (1575 mm) |
| Bucket Width (Option #2) |
74 in (1880 mm) |

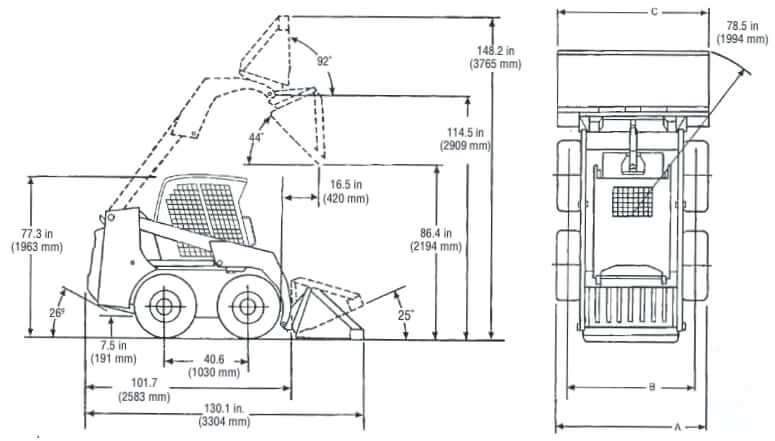

Dimensions
| Operating Height |
148.2 in (3765 mm) |
| Height with Operator Cab |
77.3 in (1963 mm) |
| Length without Attachment |
101.7 in (2583 mm) |
| Length with Standard Bucket |
130.1 in (3304 mm) |
| A. Width over Tires (10-16.5 Bobcat Heavy Duty) |
60 in (1524 mm) |
| B. Wheel Tread (10-16.5 Bobcat Heavy Duty) |
48.5 in (1232 mm) |
| C. Width over Standard Bucket |
68 in (1727 mm) |
| Ground Clearance |
7.5 in (191 mm) |
| Angle of Departure |
26° |
| Wheelbase |
40.6 in (1030 mm) |
| Turning Radius |
78.5 in (1994 mm) |
| Dump Height with Standard Bucket |
86.4 in (2194 mm) |
| Height to Bucket Hinge Pin |
114.5 in (2909 mm) |
| Dump Reach @ Maximum Height |
16.5 in (420 mm) |
| Dump Angle @ Maximum Height |
44° |
| Rollback Fully Raised @ Maximum Height |
92° |
| Rollback @ Ground |
25° |
Tires
| Tire Size |
Tire Type |
Width over Tires |
| 10-16.5 |
Bobcat Heavy Duty |
60 in (1524 mm) |
| 31×15.5-15 |
Uitra, Grip Lug Tread |
66 in (1676 mm) |
| 6.5-16 |
Solid Tire |
60 in (1524 mm) |
| 10-31 |
Bobcat Solid Tire |
66 in (1676 mm) |
| 17.5-15 |
AirBoss Segmented |
60 in (1524 mm) |
| 10-16.5 |
AirBoss Segmented |
64 in (1626 mm) |

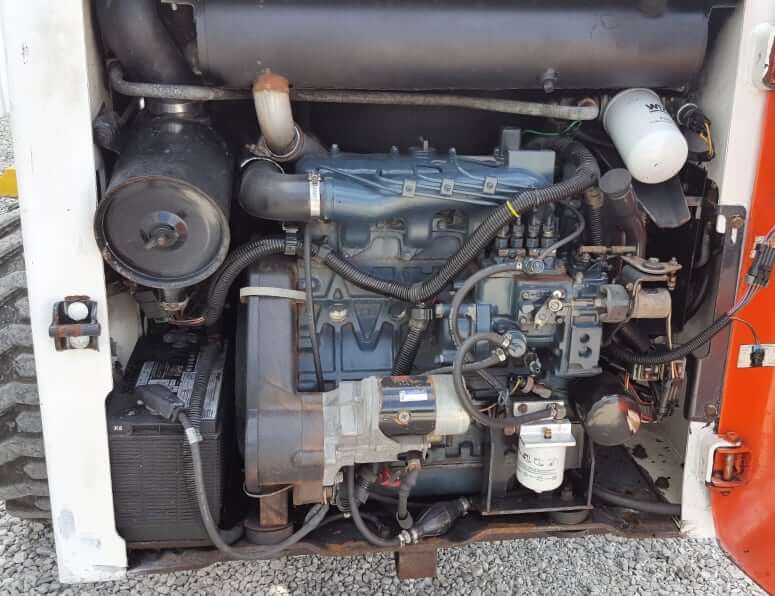

Engine Details
| Number of Cylinders |
4 |
| Engine Make |
Kubota |
| Engine Model |
Kubota V2203-EB |
| Displacement |
134 cu in (2.197 L) |
| Bore |
3.43 in (87 mm) |
| Stroke |
3.64 in (92.5 mm) |
| Gross Horsepower |
50 hp (37 kw) |
| Net Horsepower |
46 hp (34 kw) |
| Power Measured @ |
2800 rpm |
| Peak Torque |
114 lb ft (154 Nm) |
| Torque Measured @ |
1600 rpm |
| Lubrication System |
Pressure system with filter |
| Fuel System |
In-line pump |
| Air Cleaner |
Dry replaceable cartridge with safety element |
| Combustion System |
Direct injection |
| Aspiration |
Naturally aspirated |

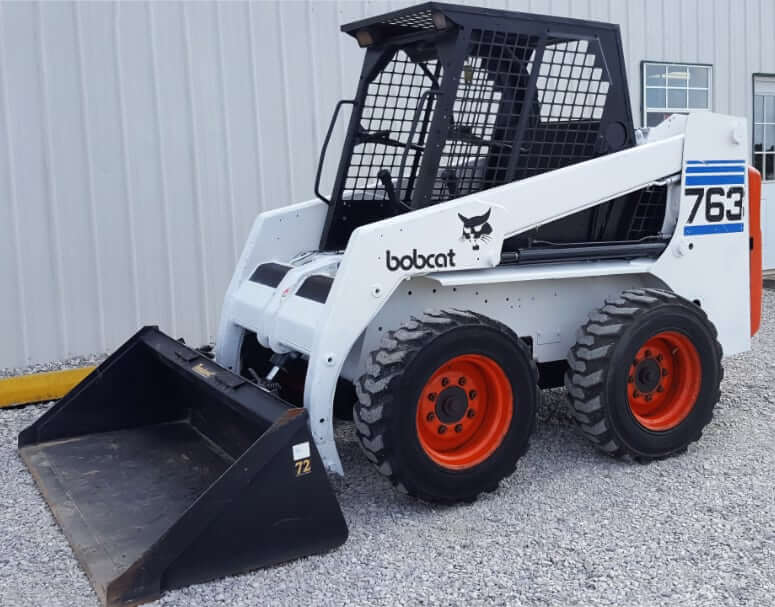

Operational Specs
| Operating Weight, Bobcat 763 |
5368 lb (2435 kg) |
| Operating Weight, Bobcat 763H |
5408 lb (2453 kg) |
| Tipping Load |
3000 lb (1361 kg) |
| Rated Operating Capacity (ROC) |
1500 lb (680 kg) |
| ROC with Counterweight |
1600 lb (706 kg) |
| Operating Voltage |
12 V |
| Alternator |
55 amps / 90 amps – later |
| Starter |
12 V, 3.62 hp (2.7 kw) / 12 V, 3.89 hp (2.9 kw) – later |
| Battery |
12 V, RC: 115 min, CCA 600 |
Operator Environment
| Cab |
Open Cab |
| Cab (Optional) |
Deluxe Cab with Heater |
| ROPS / FOPS |
SAE J1040 and SAE J1043 |
| Working Lights |
2x Front working lights + 2 Rear working lights |
| Operator Seat |
Adjustable Cushion Seat |
| Operator Seat (Optional) |
Fully-adjustable suspension seat (Vinyl or Cloth Cover) |
| Noise Level Operator LpA |
85 dB(A) |
| Noise Level LWA |
103 dB(A) |
Transmissiom
| Main Drive |
Hydrostatic, 4WD |
| Transmission Type |
Infinitely variable tandem hydrostatic piston pumps, driving 2 fully reversing hydrostatic motors |
| Final Drive |
#80 HS roller chain & sprockets in sealed chaincase with oil lubrication |
| Total Engine to Wheel Reduction |
33:1 |
| Axle Torque |
4700 lb ft (6373 Nm) |
| Max Travel Speed |
7.0 mph (11.3 km/h) |
| Service Brakes |
Two independent hydrostatic systems controlled by two hand operated steering levers |
| Secondary Brake |
One of the hydrostatic transmissions |
| Parking Brake |
Foot operated pedal (Earlier) / Push button (Later) |
Hydraulic System
| Model |
Bobcat 763 |
Bobcat 763H |
| Type |
Open center hydraulics |
Open center hydraulics |
| Hydraulic Pump Type |
Engine driven, gear type pump |
Engine driven, gear type pump |
| Standard Pump Flow |
15 gpm (57 L/min) |
15 gpm (57 L/min) |
| High Flow Pump Capacity |
|
25 gpm (95 L/min) |
| Relief Pressure at Quick Couplers |
3000 psi (20684 kPa) |
| Control Valve |
3-spool, open center type w/float detent on lift and electrically controlled auxiliary spool. |
| Filter |
Full flow replaceable, No. 3 micron synthetic media element |
| Fluid Lines |
SAE standard tubelines, hoses, and fittings |
Service Refill Capacities
| Fuel Tank Capacity |
14 gal (53 L) |
| Engine Oil Capacity (w/ filter) |
1.9 gal (7.1 L) |
| Cooling System Capacity (w/o heater) |
2.3 gal (8.7 L) |
| Cooling System Capacity (w/ heater) |
2.5 gal (9.3 L) |
| Hydraulic System / Tank Capacity (SN -512264899) |
8.5 gal (32.2 L) / 6.1 gal (23 L) |
| Hydraulic System / Tank Capacity (SN 512264900-) |
6 gal (22.7 L) / 3.5 gal (13.2 L) |
| Chaincase Reservoir |
9 gal (34 L) |
Bobcat 763 Filters
| Filter |
Part Number |
| Inner Air Filter |
6598362 |
| Outer Air Filter |
6598492 |
| Engine Oil Filter |
6675517 |
| Fuel Filter |
6667352 |
| Hydraulic Oil Filter |
6661248 |
| Hydraulic Oil Filter (In-Line) |
6661807 |
| Heater Filter |
6660880 |

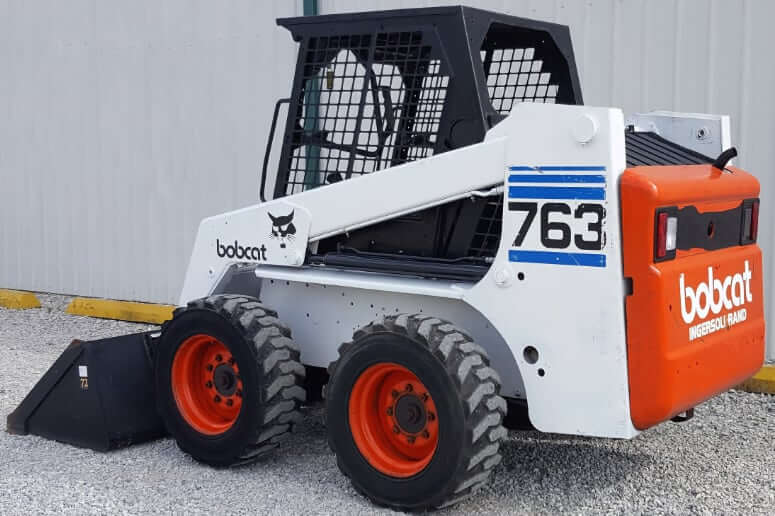

The Bobcat 763 and Bobcat 763H skid steer loaders are compact, versatile, and widely popular machines in the Bobcat lineup, known for their reliability and performance in a variety of construction, landscaping, and agricultural tasks. Powered by a robust diesel engine, the 763 offers impressive lifting capacity, agile maneuverability, and user-friendly controls in a compact frame that excels in tight workspaces.
The Bobcat 763H is a high-flow variant of the standard 763, equipped with an upgraded hydraulic system to handle demanding attachments that require greater flow and pressure, such as cold planers, stump grinders, and high-performance trenchers. Both models are compatible with a wide range of Bobcat-approved attachments, making them highly adaptable machines suited for grading, digging, material handling, snow removal, and more.
