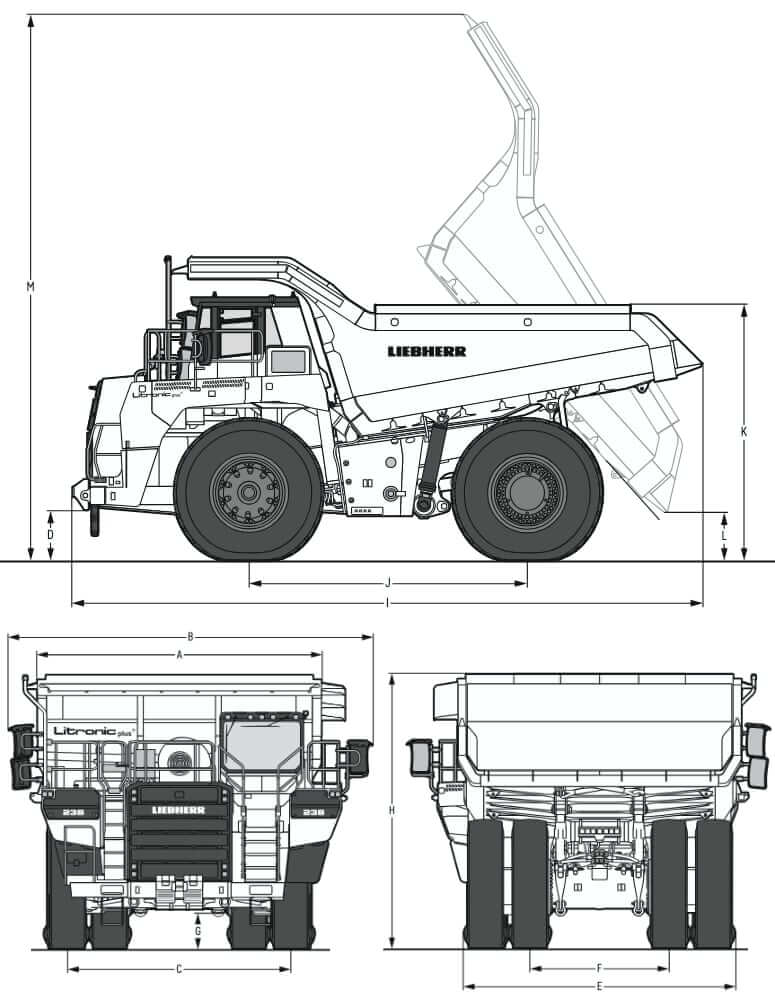

Dimensions
| A. Outside Body Width | 226.5 in (5752 mm) |
| B. Overall Truck Width (Operating Width) | 290 in (7380 mm) |
| C. Centerline Front Tire Width | 176 in (4518 mm) |
| D. Bumper to Ground Clearance | 42.2 in (1073 mm) |
| E. Overall (Rear Dual) Tire Width | 216.0 in (5484 mm) |
| F. Dual Spacing | 111.2 in (2824 mm) |
| G. Rear Axle Clearance | 34.5 in (876 mm) |
| H. Front Canopy Height (EVW) | 220 in (5688 mm) |
| I. Overall Truck Length | 450 in (11447 mm) |
| J. Wheelbase | 199 in (5060 mm) |
| K. Loading Height (EVW) | 188.7 in (4792 mm) |
| L. Dump Clearance (EVW) | 40.4 in (1027 mm) |
| M. Body Raised Height | 397.9 in (10087 mm) |

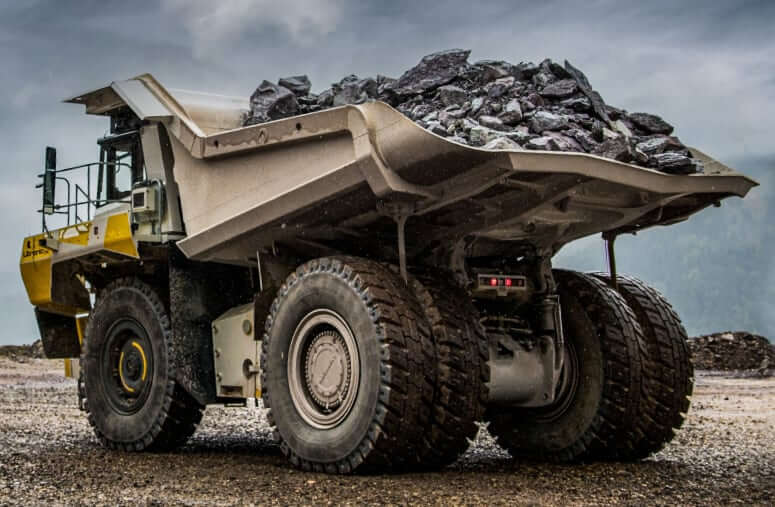

Body & Dump System
| Capacity, Heaped (SAE) | 81.8 yd3 (62.5 m3) |
| Capacity, Cone Model @ 30° angle of repose | 72.7 yd3 (55.6 m3) |
| Rated Payload | 220000 lb (100000 kg) |
| Dump System | Hydraulically controlled dump system with cylinders end position and stage change damping function. |
| Hoist Cylinder Type | Two stage telescopic cylinder with double acting second stage |
| Body Raise Time (high idle) | 13 s |
| Body Power Down (high idle) | 13 s |
| Total Dump Cycle Time | 26 s |
| Dumping Angle | 48° |
| Overburden Body | Flat floor body with box type bolsters on sidewalls and floor plate. Canopy reaching to front of the cab. Eye brow cover over driver side cab walkway. Lifting eyes integrated into sidewalls. Freeboard allowance of approx. 200 mm incorporated into design |

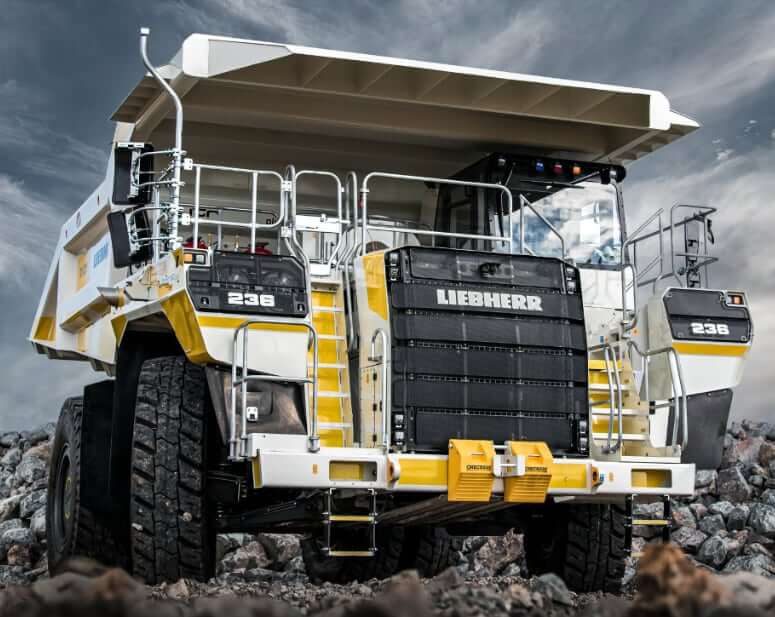

Weight
| Nominal Payload | 220000 lb (100000 kg) |
| Gross Vehicle Weight (GVW) | 396000 lb (180000 kg) |
| Empty Vehicle Weight (EVW) | 176000 lb (80000 kg) |
| Chassis Weight | 134000 lb (61000 kg) |
| Body Weight | 33000 lb (15000 kg) |
Weight Distribution
| Liebherr T236 | Empty | Loaded |
|---|---|---|
| Front Axle | 51 % | 34.5 % |
| Rear Axle | 49 % | 65.5 % |
Engine Details
| Number of Cylinders | 12 |
| Engine Make | Cummins |
| Engine Model | Cummins QST 30-C |
| Displacement | 1861 cu in (30.5 L) |
| Bore | 5.51 in (140 mm) |
| Stroke | 6.49 in (165 mm) |
| Gross Power | 1200 hp (895 kw) |
| Power Measured @ | 1950 rpm |
| Peak Torque | 3751 lb ft (5086 Nm) |
| Torque Measured @ | 1400 rpm |
| Torque Rise | 25 % |
| Starting System | Dual parallel electric gear reduction |
| Exhaust Pipe | Side mounted muffler with insulated exhaust pipes |
| Fuel Filter | 2-stage filtration with water separation |
| Oil Filtration | 4X Fleetguards Venturi combo lubrication filters |
| Fan Drive Type | Variable speed hydraulic engine fan |
| Air Cleaner | Donaldson STG16, dry-type double element, cyclonic pre-cleaner and mechanical dust indicator |
| Aspiration | Turbocharged, air-to-air charge air cooling |
| Emission Standards | US EPA Tier 2 + EU Stage II |

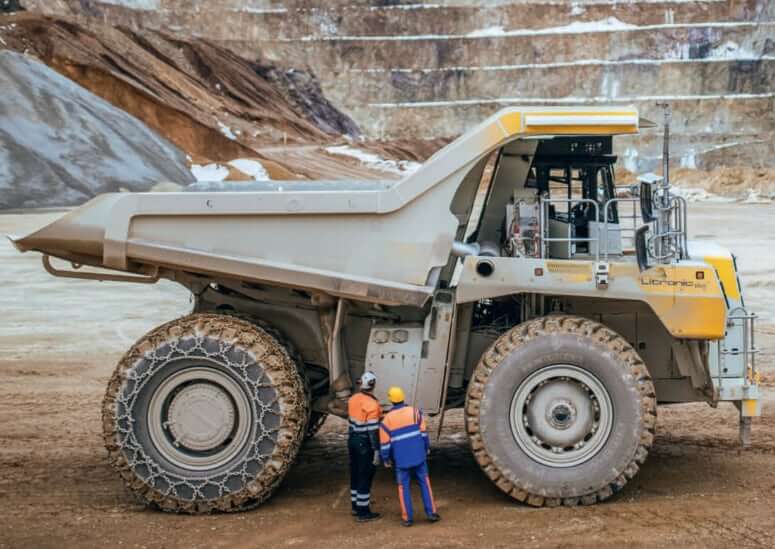

Operational Specs
| Operating Weight | 396000 lb (180000 kg) |
| Payload Capacity | 220000 lb (100000 kg) |
| Operating Voltage | 24 V |
| Wiring | Heavy duty harness design with IP-68 protection class for exposed connectors |
| Battery | 4x 12 V, 180 Ah |
| Operator Seat | Air suspended seats with integrated compressor and seat heating, 3-point safety belt, armrest |
| ROPS | ISO 3471: 2008 |
| FOPS | ISO 3449: 2005, level II |
| Tire Size | 27.00 R49 |
| Rims | 19.5″ x 49″ bolt-on rims bolt-on rims single gutter rim as standard (optional double gutter rim) |
Electric Drive System
| Type | Liebherr Litronic Plus Generation 2 high efficiency drive system with integrated active front end for engine retarding operation |
| Max Travel Speed | 34 mph (55 km/h) |
| Traction Motors | Liebherr compact asynchronous motors, forced air cooled |
| Traction Motor Power Rating | 500 kW |
| Alternator Power Rating | 900 kW |
| System Voltage Level | 690 V AC / 900 V DC |
| Air Cooling System | Variable speed hydraulic driven radial blower |
| Alternator | Liebherr dual bearing AC synchronous brushless with external excitation, forced air cooled. Alternator excitation inhibit system with lockout mechanism for installation of personnel locks |
| Control Modules | Liebherr liquid cooled IGBT frequency converters in modularized configuration with integrated short circuiting and grounding device |
Steering System
| Type | Double A-arm front wheel arrangement with oil nitrogen suspension struts. Steering system with double acting full hydraulic power steering and central idler arm. Rear axle in a four bar linkage arrangement. |
| Rear Axle Oscillation | 6° |
| Steering Angle | ±40° |
| Effective Cylinder Stroke, Front | 11 in (278 mm) |
| Effective Cylinder Stroke, Rear | 6 in (150 mm) |
| Steering System Standards | ISO 5010 |
| Turning Radius on Front Wheel Track w/ Standard Tires According to ISO 7457 | 11.1 m / 36’5″ |
| Machine Clearance Turning Circle According to ISO 7457 | 13.2 m / 43’3″ |
Braking System
| Type | Hydraulically controlled 4 corner oil cooled multiple wet disc brake system including service brakes and park brakes |
| Brake Standards | ISO 3450 |
| Service Brake Actuation | Hydraulic controlled |
| Parking Brake | spring applied, hydraulic released |
| Retarder | Wet disc brake system in conjunction with active front end of electric drive system |
| Retarder Capacity (continuous) | 1,045 kW |
| Retarder Actuation | 4 corner electro hydraulic actuation of front and rear brakes |
| Secondary Brake Actuation | Electronic controlled hydraulic release park brake actuation pressure |

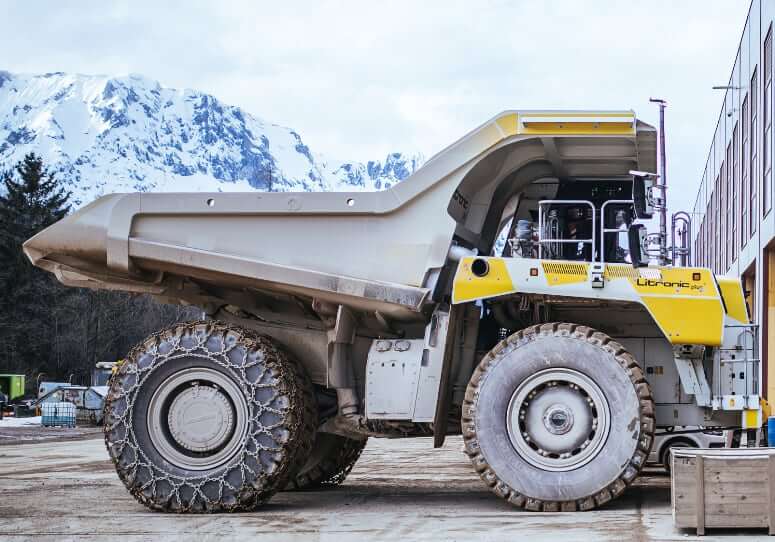

Service Refill Capacities
| Fuel Tank Capacity | 285 gal (1080 L) |
| Engine Oil Capacity (w/ filter) | 35 gal (133 L) |
| Cooling System Capacity | 98 gal (370 L) |
| Final Drive Fluid Capacity | 37 gal (140 L) |
| Suspension Fluid Capacity | 14 gal (53 L) |
| Pump Drive Splitterbox Capacity | 2.8 gal (10.5 L) |
| Front Wheels (each) | 4.4 gal (16.4 L) |
| Steering + Fan Drives Hydraulic Tank Capacity | 53 gal (200 L) |
| Steering System (w/ tank) | 95 gal (360 L) |
| Brake / Hoist Hydraulic Tank Capacity | 92 gal (350 L) |
| Brake / Hoist Hydraulic System (w/ tank) | 222 gal (840 L) |
| Grease System Capacity | 35 lb (16 kg) |
