Working Range
| LiuGong 9018F | Cab, Arm 47.6 in (1.21 m) | Canopy, Arm 42.1 in (1070 mm) |
|---|---|---|
| Boom Size | 66.5 in (1690 mm) | 66.5 in (1690 mm) |
| A. Max Digging Reach | 159.1 in (4040 mm) | 153.9 in (3910 mm) |
| B. Max Digging Reach at Ground Level | 156.7 in (3980 mm) | 151.6 in (3850 mm) |
| C. Max Digging Depth | 95.7 in (2430 mm) | 90.2 in (2290 mm) |
| D. Max Vertical Wall Digging Depth | 76.8 in (1950 mm) | 71.6 in (1820 mm) |
| E. Max Digging Height | 136.8 in (3475 mm) | 133.3 in (3385 mm) |
| F. Max Dumping Height | 96.9 in (2460 mm) | 93.3 in (2370 mm) |
| G. Min Front Swing Radius | 66.9 in (1700 mm) | 65.4 in (1660 mm) |
| Bucket Digging Force (ISO) | 3,597 lbf (16 kN) | 3,597 lbf (16 kN) |
| Arm Digging Force (ISO) | 1,776 lbf (8 kN) | 2,023 lbf (9 kN) |
| Bucket Capacity | 0.078 yd3 (0.06 m3) | 0.078 yd3 (0.06 m3) |
| Bucket Tip Radius | 21.6 in (548 mm) | 21.6 in (548 mm) |
Dimensions
| LiuGong 9018F | Cab, Arm 47.6 in (1.21 m) | Canopy, Arm 42.1 in (1070 mm) |
|---|---|---|
| A. Shipping Length | 144.1 in (3668 mm) | 122.0 in (3099 mm) |
| B. Max Shipping Height (to Top of Cab/Canopy) | 96.0 in (2438 mm) | 96.0 in (2438 mm) |
| C. Track Gauge (Retractable) | 29.5 in (750 mm) | 29.5 in (750 mm) |
| C. Track Gauge (Unretractable) | 41.7 in (1060 mm) | 41.7 in (1060 mm) |
| D. Undercarriage Width (Retractable) | 38.6 in (980 mm) | 38.6 in (980 mm) |
| D. Undercarriage Width (Unretractable) | 50.9 in (1295 mm) | 50.9 in (1295 mm) |
| E. Length to Center of Rollers | 48.4 in (1230 mm) | 48.4 in (1230 mm) |
| F. Track Length | 62.2 in (1580 mm) | 62.2 in (1580 mm) |
| G. Track Width | 9.1 in (230 mm) | 9.1 in (230 mm) |
| H. Tail Swing Radius | 42.1 in (1070 mm) | 42.1 in (1070 mm) |
| I. Counterweight Ground Clearance | 17.1 in (435 mm) | 17.1 in (435 mm) |
| Overall Height of Cab | 64.4 in (1635 mm) | 65.7 in (1670 mm) |
| Overall Width of Upper Structure | 38.6 in (980 mm) | 38.6 in (980 mm) |
| Max Boom Offset (Right / Left) | 16.5 / 22.0 in (419 / 558 mm) | 16.5 / 22.0 in (419 / 558 mm) |
| Max Boom Swing Angle (Right / Left) | 58° / 72° | 58° / 72° |

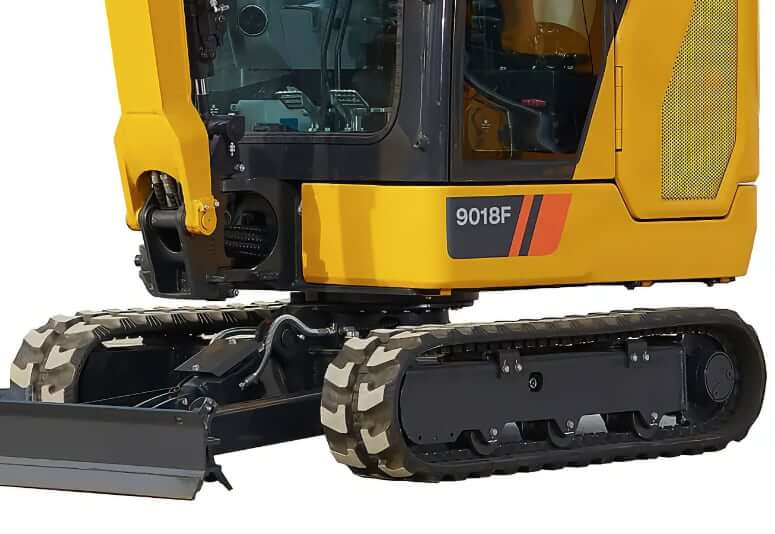

Undercarriage
| Shoe Size | 9 in (230 mm) |
| Shoe Type | Rubber track assembly |
| Track Gauge (retractable) | 29.5 in (750 mm) |
| Track Gauge (unretractabe) | 41.7 in (1060 mm) |
| Number of Track Rollers per Side | 3 |
| Number of Carrier Rollers perr Side | – |
Swing Mechanism
| Swing Speed | 9.5 rpm |
| Swing Torque | 1563 lbf (2.12 kNm) |
| Reduction | Planetary gear reduction driven by high torque axial piston motor |
| Swing Brake | Swing parking brake (wet disc) resets within 5 seconds after swing pilot controls return to neutral |

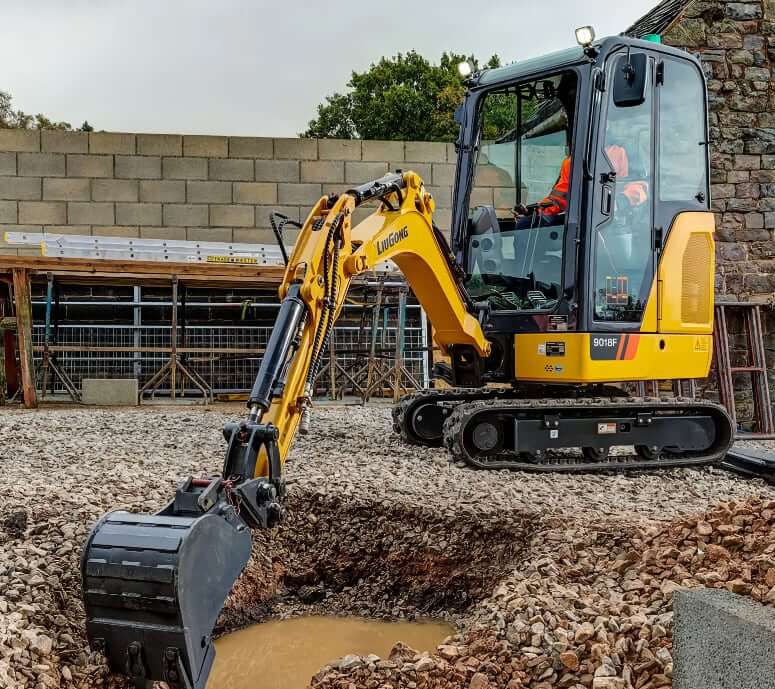

Buckets
| Bucket Size | Capacity | Weight | Teeth |
|---|---|---|---|
| GP, 9.1 in (230 mm) | 0.02 yd3 (0.015 m3) | 64 lb (29 kg) | 2 |
| GP, 11.8 in (300 mm) | 0.03 yd3 (0.022 m3) | 68 lb (31 kg) | 3 |
| GP, 17.9 in (455 mm) | 0.05 yd3 (0.038 m3) | 93 lb (42 kg) | 3 |
| GP, 19.5 in (495 mm) Standard | 0.06 yd3 (0.045 m3) | 101 lb (46 kg) | 3 |
| GP, 23.6 in (600 mm) | 0.07 yd3 (0.056 m3) | 117 lb (53 kg) | 3 |

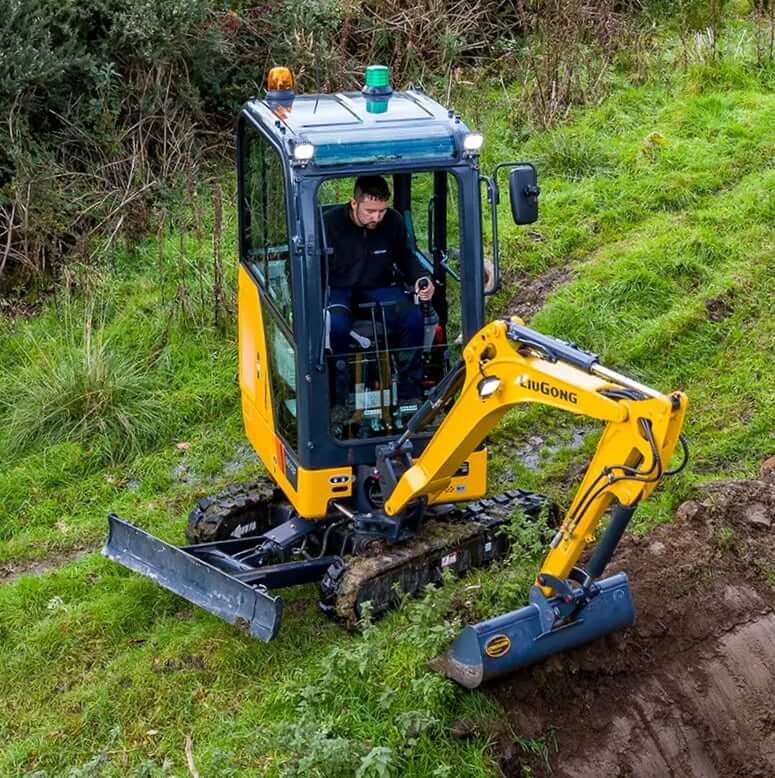

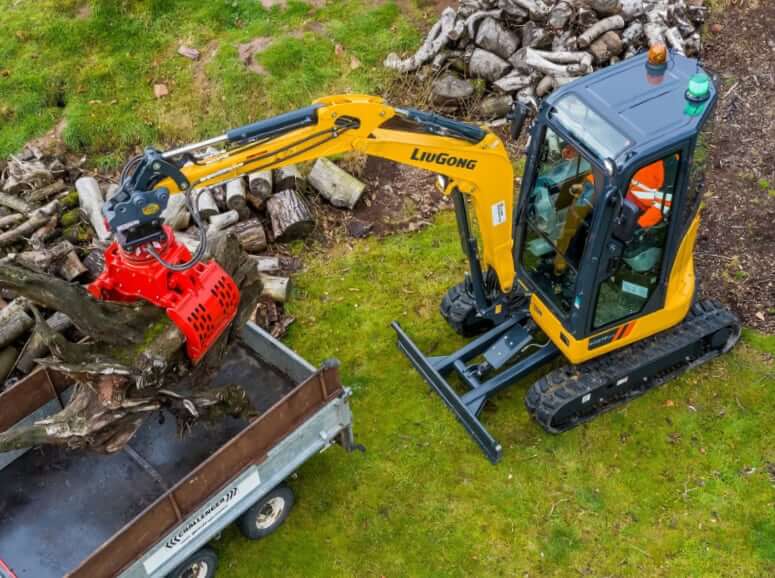

Dozer Blade
| Type | 2-way dozer blade, foldable. Blade-to-bucket capability |
| Dozer Blade Width (Retractable) | 38.6 in (980 mm) |
| Dozer Blade Width (Unretractable) | 50.9 in (1295 mm) |
| Dozer Blade Up | 9.4 in (240 mm) |
| Dozer Blade Down | 9.4 in (240 mm) |
Engine Details
| Number of Cylinders | 3 |
| Engine Make | Yanmar |
| Engine Model | Yanmar 3TNV80F |
| Displacement | 77.5 cu in (1.3 L) |
| Bore | 3.1 in (80 mm) |
| Stroke | 3.3 in (84 mm) |
| Net Power | 60.4 hp (45 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 48.2 lb ft (65.3 Nm) |
| Torque Measured @ | 1600 rpm |
| Fuel System | Indirect injection |
| Air Cleaner | Dry type 2-stage air filter |
| Aspiration | Naturally aspirated |
| Emission Standards | US EPA Tier 4 Final + EU Stage V |

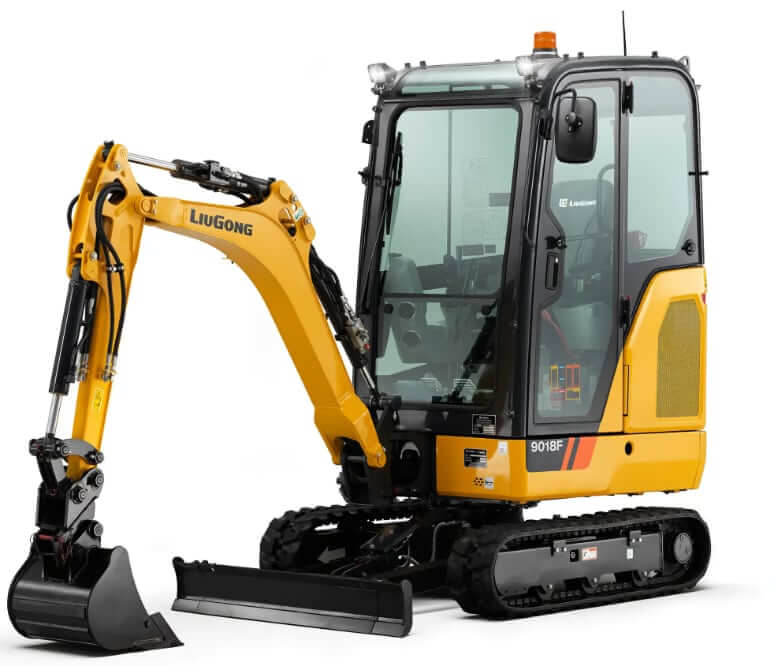

Operational Specs
| Operating Weight (Cab) | 4189 lb (1900 kg) |
| Operating Weight (Canopy) | 3968 lb (1800 kg) |
| Counterweight (Optional) | 66 lb (30 kg) |
| Counterweight, Extra (Optional) | 154 lb (70 kg) |
| Operator Station | Enclosed cab with ROPS (ISO 3471) / Open canopy with TOPS (ISO 12117) |
| HVAC | Heater and defroster (enclosed cab only) |
| Operating Voltage | 12 V |
| Alternator | 40 amps |
| Battery | 12 V maintenance free battery |
| Starter | 12 V, 1.9 hp (1.4 kw) |
| Working Lights | 4x cab mounted front + 1x boom mounted working lights |
| Noise Level (inside cab) | 78 dB(A) |
| Noise Level (exterior) | 90 dB(A) |
| Control Pattern | Control pattern-change valve SAE-BHL |
| Monitor | Display hour meter, tachometer indicator engine oil pressure, low fuel level, air filter plugging, overheating high fuel level, engine coolant, battery, hydraulic oil temperature |

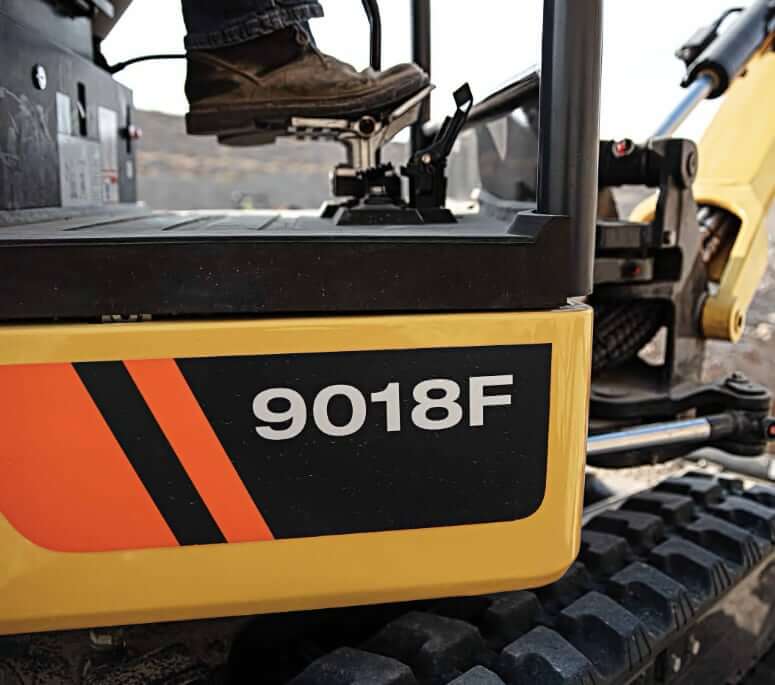

Drivetrain
| Transmission Type | Hydrostatic |
| Hydraulic Motors | 2-speed axial piston motors with wet disc brakes |
| Steering System | Steering controlled by two detachable hand levers with pedals |
| Max Travel Speed (Low) | 1.7 mph (2.7 km/h) |
| Max Travel Speed (High) | 2.8 mph (4.5 km/h) |
| Gradeability | 30° (58%) |
| Max Drawbar Pull | 3597 lb ft (16 kN) |

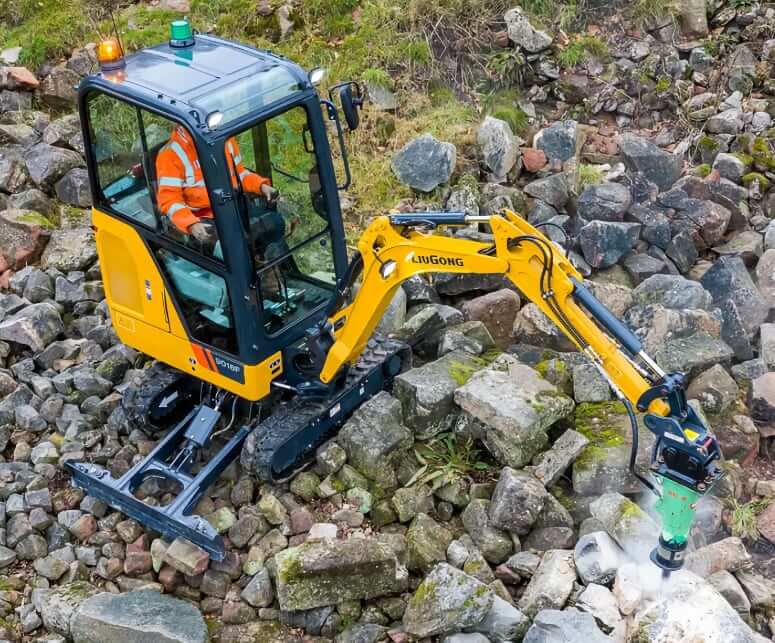

Hydraulic System
| Type | Closed center |
| Pump Type | Variable displacement load sensing piston pump |
| Main Pump Flow Capacity | 15 gal/min (55 L/min) |
| Hydraulic Auxiliary Lines | Dual way auxiliary lines, with multifunctional joystick control |
| AUX Circuit Switch | Manual switch on auxiliary circuit 1-way / 2-way |
| Relief Valve Setting (Implement) | 3046 psi (21000 kPa) |
| Relief Valve Setting (Travel circuit) | 3046 psi (21000 kPa) |
| Relief Valve Setting (Slew circuit) | 1914 psi (13200 kPa) |
| Relief Valve Setting (Pilot circuit) | 566 psi (3900 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 7.4 gal (28 L) |
| Engine Oil Capacity (w/ filter) | 1.2 gal (4.4 L) |
| Cooling System Capacity | 0.9 gal (3.3 L) |
| Hydraulic System Capacity (w/ tank) | 6.3 gal (24 L) |
