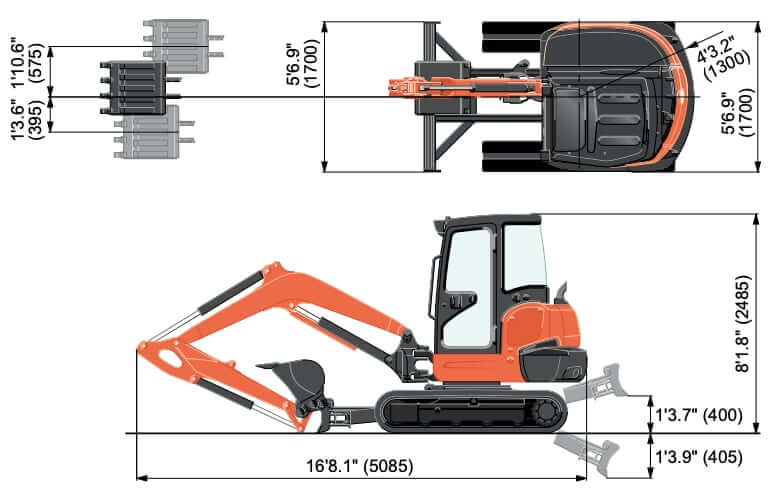

Dimensions
| Overall Length | 200.2 in (5085 mm) |
| Overall Width | 66.9 in (1700 mm) |
| Overall Width (6-in-1 blade) | 70.9 in (1800 mm) |
| Overall Height (Canopy) | 97.84 in (2485 mm) |
| Overall Height (Cab) | 97.84 in (2485 mm) |
| Ground Clearance | 13 in (330 mm) |

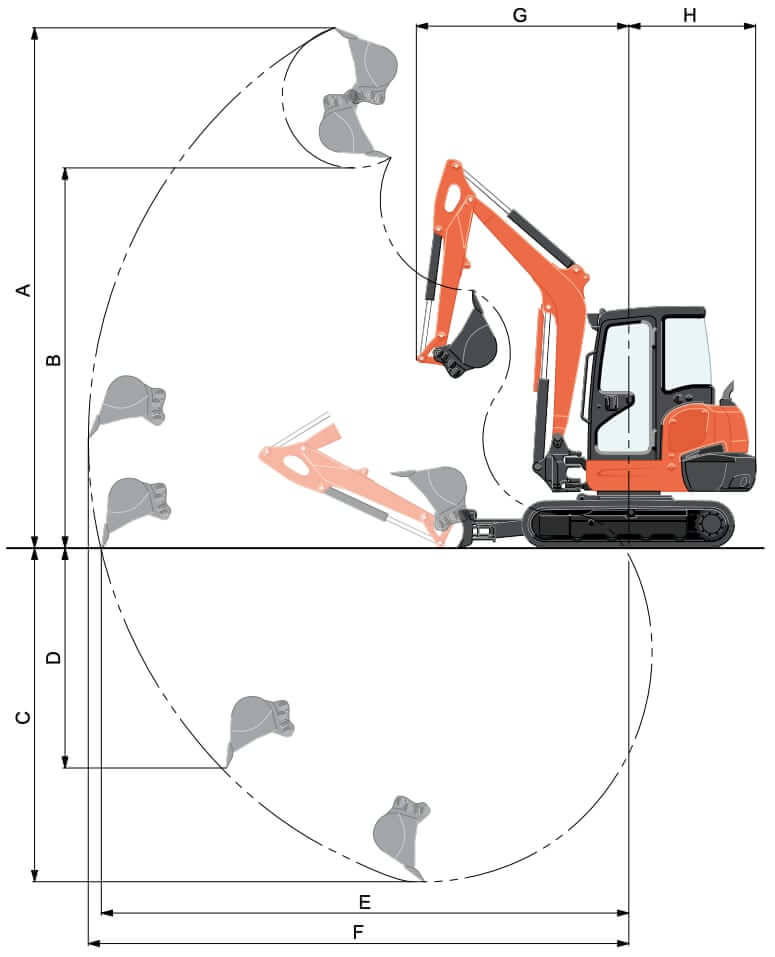

Working Range
| A. Max Digging Height | 210 in (5335 mm) |
| B. Max Dumping Height | 153.5 in (3900 mm) |
| C. Max Digging Depth | 134.7 in (3420 mm) |
| D. Max Vertical Digging Depth | 88.8 in (2255 mm) |
| E. Max Digging Radius at Ground Level | 213 in (5410 mm) |
| F. Max Digging Radius | 218.1 in (5540 mm) |
| G. Min Turning Radius (w/o swing) | 85.8 in (2180 mm) |
| G. Min Turning Radius (w/ swing) | 71.1 in (1805 mm) |
| H. Min Tail Turning Radius | 51.2 in (1300 mm) |

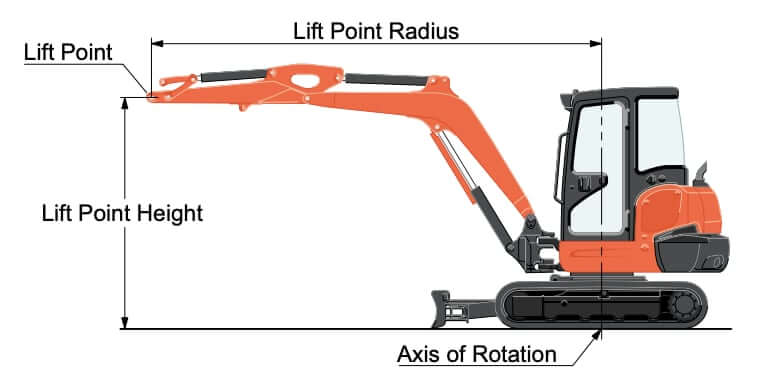

Lift Capacity
| Lifting Capacity Over-Front Blade Down | |||
|---|---|---|---|
| Lift Point Height | 8 ft | 12 ft | 14 ft |
| 6 ft | 2720 lb (1234 kg) | 1910 lb (866 kg) | 1750 lb (794 kg) |
| 4 ft | 3540 lb (1606 kg) | 2130 lb (966 kg) | 1860 lb (844 kg) |
| 2 ft | 4080 lb (1850 kg) | 2320 lb (1052 kg) | 1960 lb (889 kg) |
| Ground Level | 4250 lb (1928 kg) | 2430 lb (1102 kg) | 2010 lb (912 kg) |
| Lifting Capacity Over-Side | |||
|---|---|---|---|
| Lift Point Height | 8 ft | 12 ft | 14 ft |
| 6 ft | 2720 lb (1234 kg) | 1600 lb (726 kg) | 1270 lb (576 kg) |
| 4 ft | 2760 lb (1252 kg) | 1550 lb (703 kg) | 1250 lb (567 kg) |
| 2 ft | 2650 lb (1202 kg) | 1510 lb (685 kg) | 1220 lb (553 kg) |
| Ground Level | 2600 lb (1179 kg) | 1480 lb (671 kg) | 1210 lb (549 kg) |

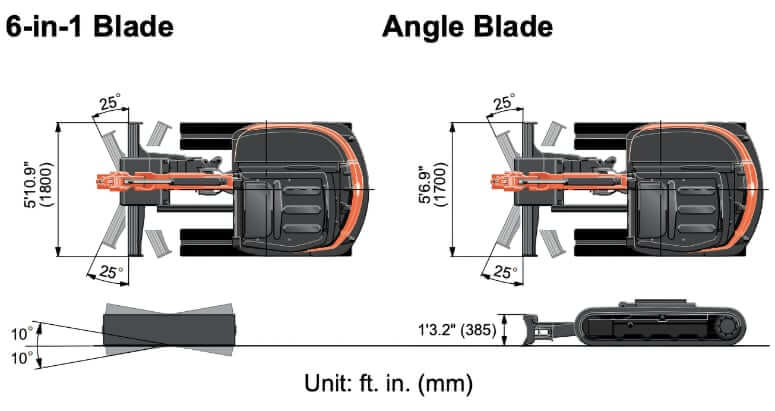

Dozer Blade
| Type | Dozer Blade | Angle Blade | 6-in-1 Blade |
|---|---|---|---|
| Blade Width | 66.9 in (1700 mm) | 66.9 in (1700 mm) | 70.9 in (1800 mm) |
| Blade Height | 13.8 in (350 mm) | 15.2 in (385 mm) | 15.2 in (385 mm) |
| Max Lift Above Ground | 15.7 in (400 mm) | 16.5 in (420 mm) | 16.9 in (430 mm) |
| Max Drop Below Ground | 15.9 in (405 mm) | 20.1 in (510 mm) | 20.9 in (530 mm) |
| Angle, Left / Right | 25° | 25° | |
| Angle, Tilt | 10° |

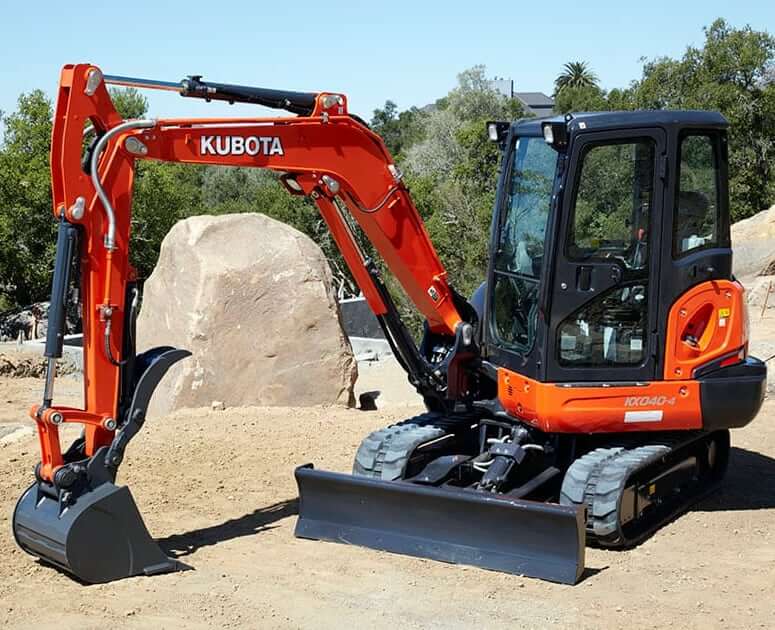

Weight
| Kubota KX040-4 | Dozer Blade | Angle Blade | 6-in-1 Blade |
|---|---|---|---|
| Operating Weight, Rubber Track (Canopy / Cab) | 9195 lb (4170 kg) / 9500 lb (4310 kg) | 9545 lb (4330 kg) / 9855 lb (4470 kg) | 9900 lb (4490 kg) / 10210 lb (4630 kg) |
| Ground Contact Pressure, Rubber Track (Canopy / Cab) | 4.53 psi (31.2 kPa) / 4.68 psi (32.3 kPa) | 4.70 psi (32.4 kPa) / 4.86 psi (33.5 kPa) | 4.87 psi (33.6 kPa) / 5.02 psi (34.6 kPa) |
| Operating Weight, Steel Track (Canopy / Cab) | 9350 lb (4240 kg) / 9655 lb (4380 kg) | 9700 lb (4400 kg) / 10010 lb (4540 kg) | 10050 lb (4560 kg) / 10360 lb (4700 kg) |
| Ground Contact Pressure, Steel Track (Canopy / Cab) | 4.61 psi (31.8 kPa) / 4.76 psi (32.8 kPa) | 4.78 psi (33.0) / 4.93 psi (34.0) | 4.95 psi (34.1 kPa) / 5.10 psi (35.2 kPa) |
Swing Mechanism
| Swing Speed | 9.2 rpm |
| Boom Swing Angle, Left | 70° |
| Boom Swing Angle, Right | 55° |
| Tail Swing Radius | 51.2 in (1300 mm) |
Engine Details
| Number Of Cylinders | 3 |
| Engine Make | Kubota |
| Engine Model | Kubota D1803-CR-TE4 |
| Displacement | 111.4 cu in (1.826 L) |
| Bore | 3.43 in (87 mm) |
| Stroke | 4.03 in (102.4 mm) |
| Gross Power | 40.4 hp (30.2 kw) |
| Net Power | 38.9 hp (29.1 kw) |
| Power Measured @ | 2200 rpm |
| Low Idling Speed @ | 1150 rpm |
| Cooling Method | Liquid cooled |
| Radiator Core Type | Low noise, F shaped blades |
| Combustion System | Direct injection |
| Fuel System | Common rail system |
| Oil Filtration | Spin-on type |
| Air Filter Type | Dual element, cyclonic |
| Aspiration | Turbocharged and Aftercooled |
| Emission Standards | US EPA/CARB Tier 4 + EU Stage IIIB |

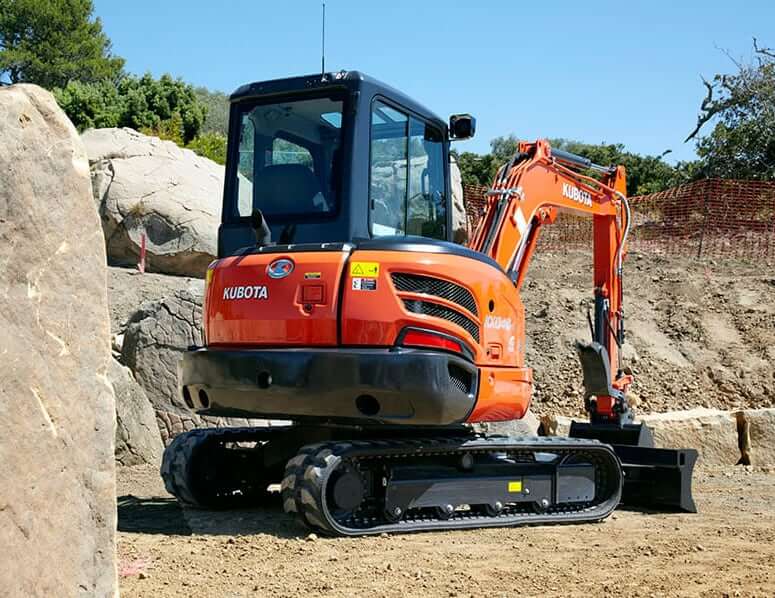

Drive System
| Type | 2-speed travel with auto-shift |
| Max Travel Speed, Low | 3.1 mph (5.0 km/h) |
| Max Travel Speed, High | 1.8 mph (2.9 km/h) |
| Type of Tracks | Rubber / Steel |
| Shoe Width | 13.8 in (350 mm) |
| Tumbler Distance | 67.3 in (1710 mm) |
| Crawler Length | 85.6 in (2175 mm) |
| Upper Track Roller (per side) | 1 |
| Track Idlers (per side) | 4 double-flange track rollers |
| Max Traction Force (Low Speed) | 9747 lbf (43.3 kN) |
| Max Climbing Angle | 20° (36%) |
| Angle in Case of Crossing Slope | 15° (27%) |
| Service Brakes | Disc brake |
| Parking Brake | Auto House Parking Brake automatically locks the house in the position it was in when the engine was shut off |
Electrical
| Operating Voltage | 12 V |
| Alternator | 40 amps |
| Battery | 12 V, 52 Ah, CCA 680, RC: 125 min, GP24(90D26L) |
| Ground | Negative |
| Working Lights | 2 working lights on cab and 1 light on the boom |
| Instrument Panel | Digital / LCD display |
Operator Environment
| ROPS | ROPS/OPG (TOP Guard, Level I) ISO 10262 |
| Operator Seat | Weight-adjustable full suspension seat with retractable seat belt |
| Controls | Hydraulic pilot control levers with wrist rests. Travel levers with foot pedals. Two pattern selection system |
| Instrument Cluster | Digital panel |
| Sound Level (in cab) | 76 dB(A) |

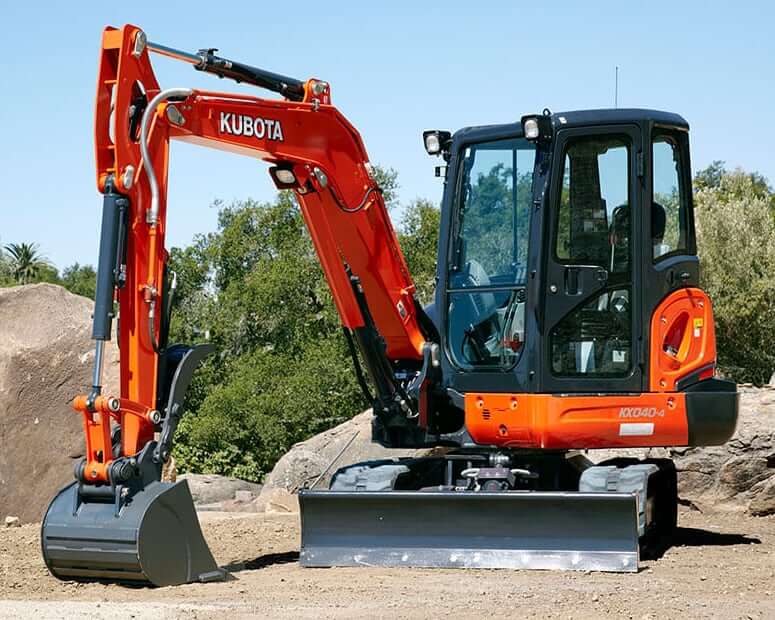

Hydraulic System
| Type | Load sensing system |
| Hydraulic Circuit 1 | Adjustable maximum oil flow on auxiliary hydraulic circuits |
| Hydraulic Circuit 2 (Optional) | Additional auxiliary hydraulic circuit 2 (adjustable max. oil flow control) |
| Hydraulic Pump Flow Capacity | 24.4 gal/min (92.4 L/min) |
| Auxiliary Hydraulic Flow, AUX1 | 17.2 gal/min (65 L/min) |
| AUX1 Max Pressure | 2500 psi (17200 kPa) |
| Auxiliary Hydraulic Flow, AUX2 (Thumb port) | 9.8 gal/min (37 L/min) |
| AUX2 Max Pressure | 2500 psi (17200 kPa) |
| Max Breakout Force, Bucket | 9535 lbf (42.4 kN) |
| Max Breakout Force, Arm | 4112 lbf (18.3 kN) |

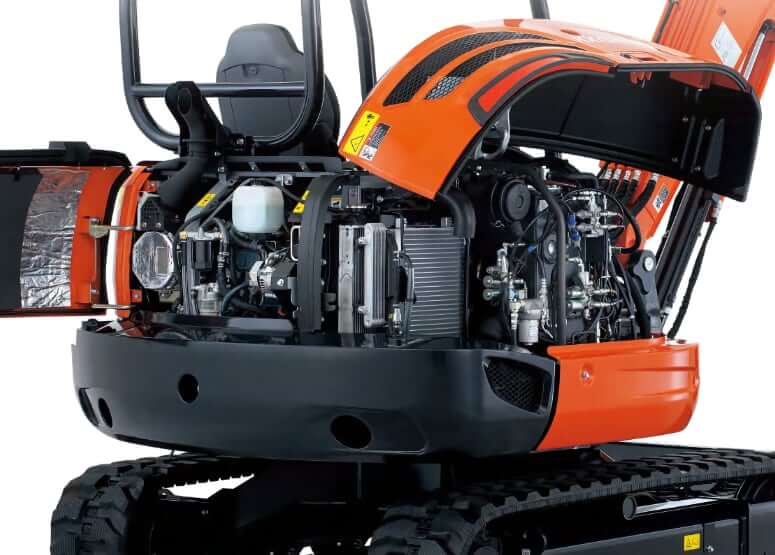

Service Refill Capacities
| Fuel Tank Capacity | 17 gal (64 L) |
| Engine Oil Capacity | 1.32 gal (5 L) |
| Cooling System Capacity | 1.85 gal (7 L) |
| Hydraulic System Capacity | 19.6 gal (74 L) |
| Hydraulic Tank Capacity | 11.1 gal (42 L) |
| Travel Reduction Unit | 0.17 gal (0.65 L) |
| Changing Engine Oil | Every 500 hours, or every 1 year |
