Operating Specs
| Towing Ability (w/o load) |
66000 lb (30000 kg) |
| Towing Ability (w/ full load) |
57200 lb (26000 kg) |
| Max Speed (w/o load) |
15.5 mph (25 km/h) |
| Max Speed (w/ full load) |
14.3 mph (23 km/h) |
| Drive Safety Speed |
15 mph (18 mph) |
| Max Gradeability (w/ full load) |
26% |
Boom
| Telescopic Boom Angle |
3.5° – 60° |

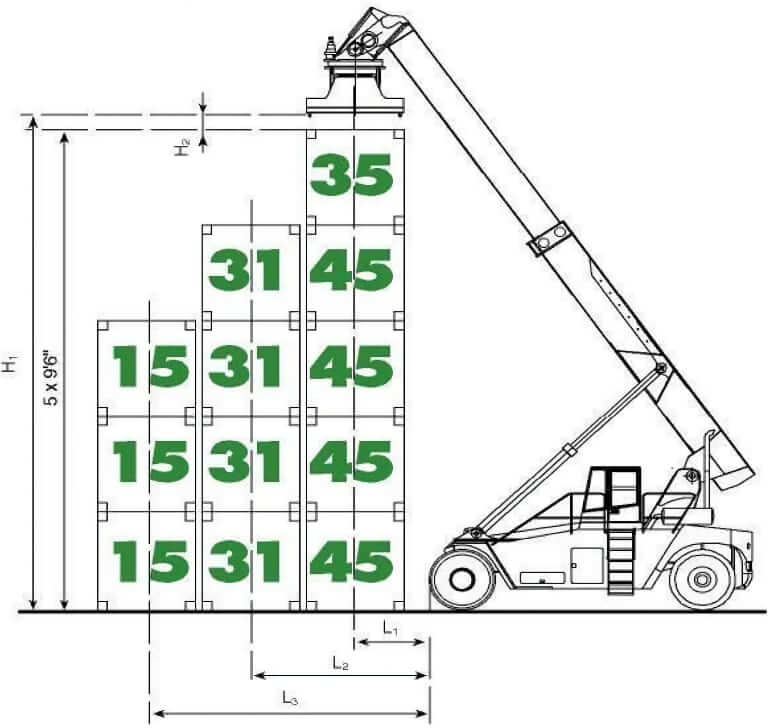

| Max. Lifting Capacity at L1 |
99208 lb (45000 Kg) |
| Max. Lifting Capacity at L2 |
68343 lb (31000 Kg) |
| Max. Lifting Capacity at L3 |
33069 lb (15000 Kg) |
| L1 – Distance front of wheel to load row 1 |
54.3 in / 82.7 in (1380 mm / 2100 mm) |
| L2 – Distance front of wheel to load row 2 |
151.6 in (3850 mm) |
| L3 – Distance front of wheel to load row 3 |
250 in (6350 mm) |
| H1：Lift Under Twist-lock |
590.6 in (15000 mm) |
| H2：Lifting High Clearance |
19.7 in (500 mm) |
Top-Pick Spreader
| Model |
SRP2-45 |
| Type |
Telescopic type for ISO 20′ – 40′ containers |
| Rotation |
-95° / +180° |
| SSDE Shifting |
±31.5 in (±800 mm) Size specific dose estimate |
| Description |
Nr. 2 anti-damping cylinders / Nr. 2 motor-brakes for rotation |
Weight w/ Top-Pick Spreader
| Weight |
No load |
Full Load |
| Front Axle |
79189 lb (35995 kg) |
214786 lb (97630 kg) |
| Rear Axle |
792111 lb (36005 kg) |
42614 lb (19370 kg) |
| Total |
158400 lb (72000 kg) |
257400 lb (117000 kg) |

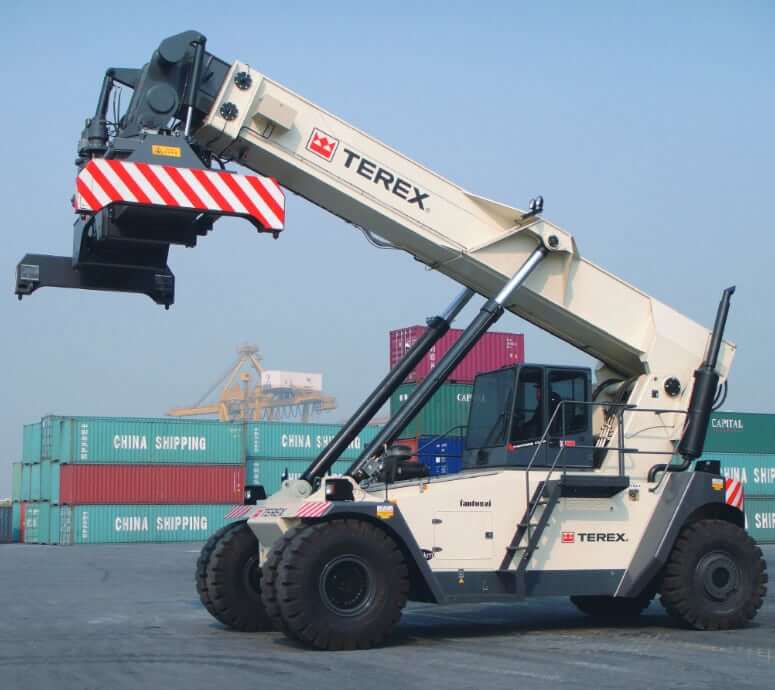

Dimensions
| Overall Length |
447.6 in (11370 mm) |
| Wheelbase |
236.2 in (6000 mm) |
| Rear Overhang |
49.2 in (1250 mm) |
| Overall Width (w Spreader) |
238.2 in (6050 mm) |
| Front Width |
165.4 in (4200 mm) |
| Rear Width |
130 in (3300 mm) |
| Front Track Gauge |
122.8 in (3118 mm) |
| Rear Track Gauge |
109 in (2771 mm) |
| Overall Height |
209.3 in (5315 mm) |
| Height to Top of Cab |
153.1 in (3890 mm) |
| Height to Operator’s Seat |
106.3 in (2700 mm) |
| Ground Clearance |
17.7 in (450 mm) |

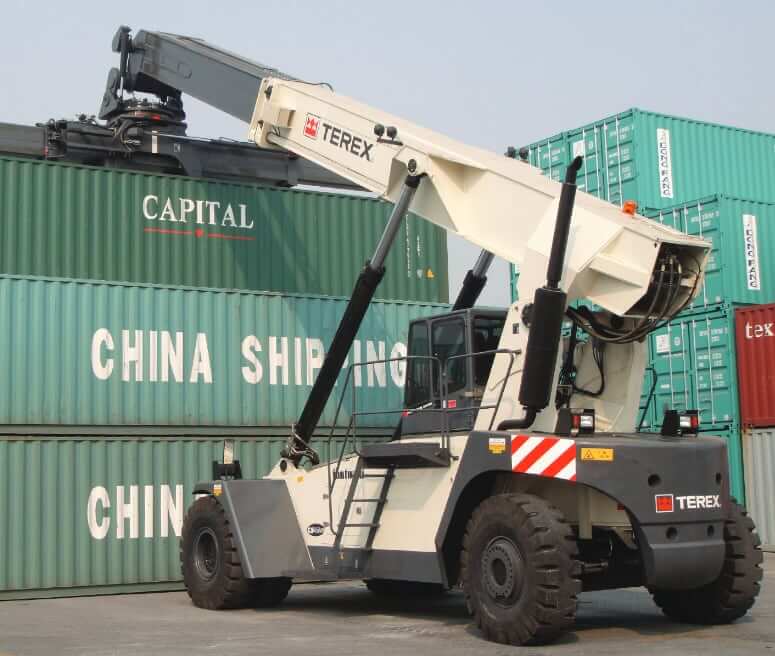

Data for: FANTUZZI Terex CS45KM Reach Stacker (Container Handlers) base version
Engine Details
| Engine Model |
Cummins QSM11 |
Volvo TAD1350VE |
| Number of Cylinders |
6 |
6 |
| Displ. |
661 cu in (10.8 L) |
780 cu in (12.8 L) |
| Bore |
4.9 in (125 mm) |
5.2 in (131 mm) |
| Stroke |
5.8 in (147 mm) |
6.2 in (158 mm) |
| Engine Power |
320 hp (239 kw) |
348 hp (256 kw) |
| Power Measured @ |
1800 rpm |
1900 rpm |
| Peak Torque |
1090 lb ft (1478 Nm) |
1313 lb ft (1780 Nm) |
| Torque Measured @ |
1400 rpm |
1268 rpm |
| Aspiration |
Turbocharged |
Turbocharged |
| Emission Standards |
EPA Tier 3, EU Stage IIIA |
EPA Tier 3, EU Stage IIIA |
Transmission
| Transmission Type |
Powershift transmission DANA (CLARK) 15.5HR36415-10 |
| Clutch Type |
Hydraulic torque converter |
| Number of Gears |
4F x 4R |
Axles & Brakes
| Front Axle |
Rigid double reduction differential KESSLER D 102PL341/528-NLB(101.1250.3E). |
| Front Axle Epicyclic hub reduction |
Removable halfshafts |
| Rear Axle |
Rear axle KONECRANES. Oscillating equalizer – Single cylinder |
| Service Brakes |
Hydraulically operated wet disc brakes (front axle) |
| Parking Brake |
Mechanically powered brake disc |
| Number Of Front Wheels |
4 |
| Number Of Rear Wheels |
2 |
| Tire Size |
18.00-25 P.R. 40 Tubeless (Inflating pressure – 10 bar) |
Hydraulic System
| Type |
2 main proportional distributors with regenerative system |
| Main Pump |
2 double gear pumps (No1. KP40.87-06S8-ZMF/MD/40.63-LME; No2. KP40.87-06S8-ZMF/MD-CSC/20.20 D) |
| Maximum Pressure |
3626 psi (25000 kPa) |
| Hydraulic System Filters |
4x 10 Micron filters on return line + 2x 10 Micron filters on delivery line |
| Cooling System |
Hydraulic oil cooling system + Brakes oil cooling system |

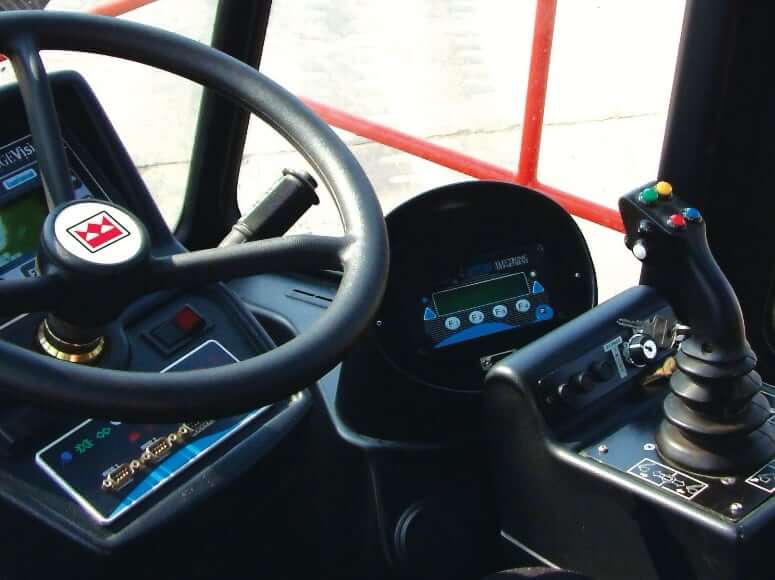

Operator Environment
| Cab |
Safety glass total visibility. Wipers on rear, front and top wind screen |
| Sound Level (inside cab, closed doors) |
80 dB(A) |
| HVAC |
Heating and Cooling Airconditioner |
| Instrument Cluster |
Ergonomic dashboard and control panel |
| Operator’s Seat |
Adjustable seat and steering wheel + Secondary seat |
| Joystick |
Multifunction joystick |
Service Refill Capacities
| Fuel Tank Capacity |
153 gal (580 L) |
| Engine Oil Capacity |
9.2 gal (35 L) |
| Cooling System Capacity |
18.5 gal (70 L) |
| Hydraulic System Capacity |
225 gal (850 L) |
| Transmission Oil Capacity |
18.5 gal (70 L) |
| Drive Axle Capacity |
24.8 gal (94 L) |
