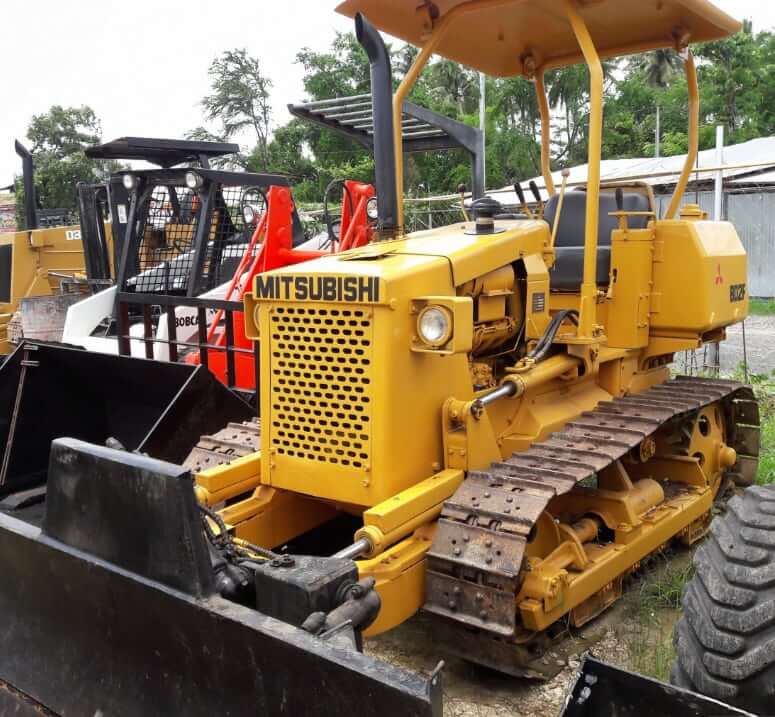

Dimensions
| Length w/ Dozer Blade | 133.7 in (3395 mm) |
| Length w/o Dozer Blade | 95.1 in (2415 mm) |
| Width Over Tracks | 59.1 in (1500 mm) |
| Height to Top of ROPS | 85.6 in (2175 mm) |
| Length of Track on Ground | 67.3 in (1710 mm) |
| Ground Clearance | 11.8 in (300 mm) |

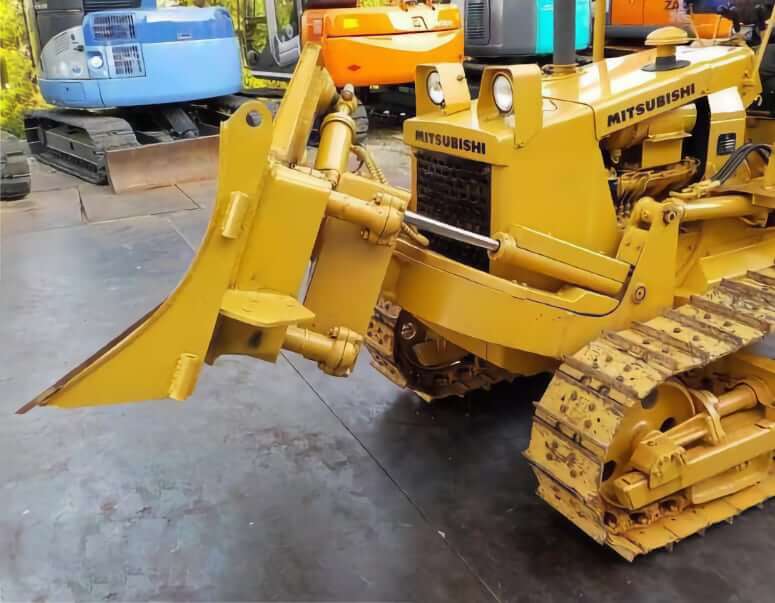

Standard Blade
| Blade Type | 6-Way dozer blade |
| Blade Width | 90.2 in (2290 mm) |
| Blade Height | 23.1 in (585 mm) |
Weight
| Operating Weight, BD2F-1B0 | 7672 lb (3480 kg) |
| Operating Weight, BD2F-1B5 | 7849 lb (3560 kg) |
| Operating Weight, BD2FSS-1B2 | 8708 lb (3950 kg) |
| Operating Weight, BD2FSS-1B7 | 8885 lb (4030 kg) |
| Operating Weight, BD2FS-1B6 | 9436 lb (4280 kg) |
| Power Angling / Tilt Blade Weight | 1213 lb (550 kg) |
| Power Tilt Blade Weight | 882 lb (400 kg) |
| Loader Bucket Weight | 529 lb (240 kg) |
S – Swamp Dozer with Broad Straight Blade and Track Shoe Width 20 in (500 mm)
SS – Super Swamp Dozer with Broad Straight Blade and Track Shoe Width 28 in (710 mm)
Undercarriage
| Track Gauge | 47.2 in (1200 mm) |
| Length of Track on Ground | 67.3 in (1710 mm) |
| Track Shoe Width (Standard) | 11.8 in (300 mm) |
| Track Shoe Width (Optional for Swamp Dozer) | 20 in (500 mm) |
| Track Shoe Width (Optional for Super Swamp Dozer) | 28 in (710 mm) |

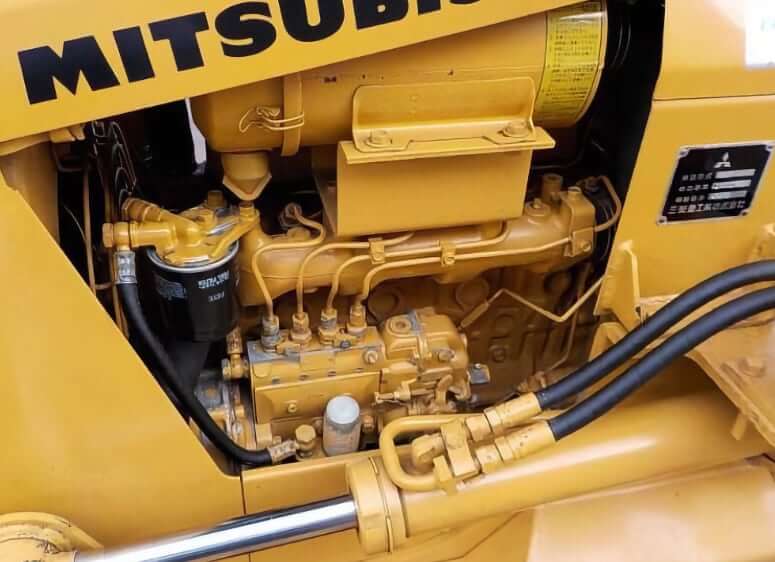

Engine Details
| Number of Cylinders | 4 |
| Engine Make | Mitsubishi |
| Engine Model | Mitsubishi S4E |
| Displacement | 159 cu in (2.6 L) |
| Bore | 3.7 in (94 mm) |
| Stroke | 3.7 in (94 mm) |
| Gross Power | 37 hp (27.6 kw) |
| Power Measured @ | 2400 rpm |
| Peak Torque | 112.1 lb ft (151 Nm) |
| Torque Measured @ | 1200 rpm |
| Aspiration | Naturally aspirated |
| Compression Ratio | 19:1 |
Transmission
| Model | DD | DPS |
|---|---|---|
| Type | Direct Drive Transmission | Direct Power Shift |
| Number of Forward Gears | 3 | 3 |
| Number of Reverse Gears | 2 | 3 |
| Max Travel Speed, Forward | 4.8 mph (7.7 km/h) | 4.8 mph (7.7 km/h) |
| Max Travel Speed, Reverse | 3.9 mph (6.3 km/h) | 3.9 mph (6.3 km/h) |
Operational Specs
| Operating Voltage | 24 V |
| Alternator | 12.5 A |
| Battery | 2x 12 V, 60 Ah |
| Starter | 24 V, 4.6 hp (3.4 kw) pinion-shift type |
Hydraulic System
| Max Hydraulic Pressure | 2560 psi (17700 kPa) |
| Main Pump Flow Capacity | 14.3 gal/min (54 L/min) |
| Hydraulic Pump Speed | 2400 rpm |
Service Refill Capacities
| Fuel Tank Capacity | 16 gal (60 L) |
| Engine Oil Capacity (w/ Filter) | 2.1 gal (8 L) |
| Cooling System Capacity | 4.2 gal (16 L) |
| Main Clutch Capacity | 1.5 gal (5.5 L) |
| Transmission Case Capacity | 2.5 gal (9.5 L) |
| Final Drives (each) | 1.7 gal (6.5 L) |
| Hydraulic Tank Capacity | 8.7 gal (33 L) |
