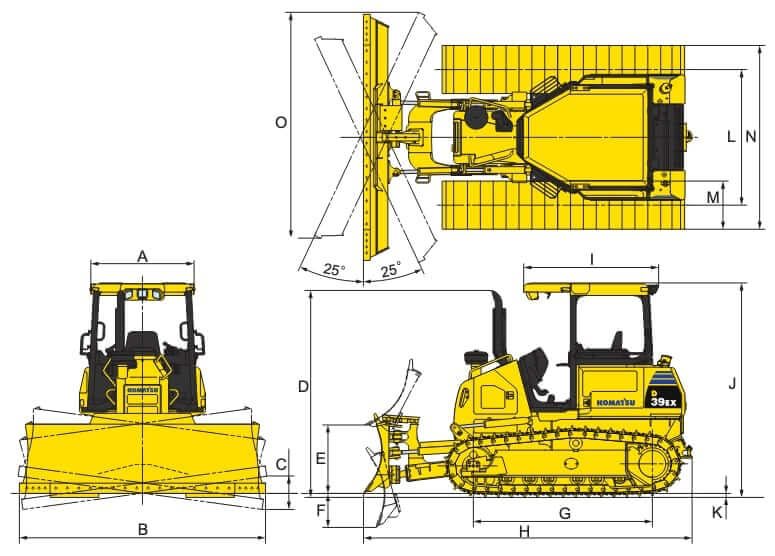

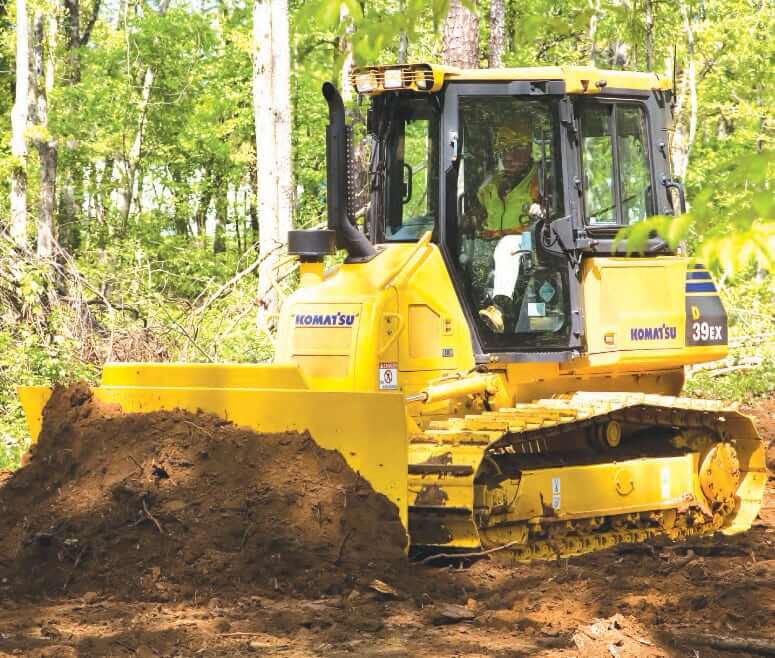

Dimensions
| A. Width of Cab | 4’2″ (1280 mm) |
| B. Width of Blade | 8’11” (2710 mm) |
| C. Max Tilt at Blade Corner | 1’3″ (370 mm) |
| D. Height to Exhaust Stack | 8’11” (2730 mm) |
| E. Maximum Lift above Ground | 2’11” (900 mm) |
| F. Maximum Drop below Ground | 1’6″ (450 mm) |
| G. Length of Track on Ground | 7’9″ (2360 mm) |
| H. Overall Length w/ Blade | 14’3″ (4335 mm) |
| I. Length of Cab | 7’4″ (2245 mm) |
| J. Height to Top of Cab | 9’4″ (2835 mm) |
| K. Grouser Height | 2.1″ (53 mm) |
| L. Track Gauge | 5’5″ (1650 mm) |
| M. Width of Track Shoe | 18.1″ (460 mm) |
| N. Width over Tracks | 6’11” (2110 mm) |
| O. Width across End Bits (Blade Angled 25°) | 8’2″ (2490 mm) |
| Ground Clearance | 15.2″ (385 mm) |
| Minimum Turning Radius | 7’3″ (2200 mm) |
Dozer Blade
| Blade Width | 8’11” (2710 mm) |
| Blade Height | 3’3″ (980 mm) |
| Blade Capacity | 2.89 yd3 (2.21 m3) |
| Blade Angle (Both Directions) | 25° |
| Maximum Tilt Adjustment | 1’5″ (440 mm) |
| Maximum Lift above Ground | 2’11” (900 mm) |
| Maximum Drop below Ground | 1’6″ (450 mm) |
| Width across End Bits (Blade Angled 25°) | 8’2″ (2490 mm) |
Undercarriage
| Number Of Track Rollers Per Side | 6 |
| Number Of Shoes Per Side | 39 |
| Type of Shoes (standard) | Single grouser |
| Suspension | Rigid type |
| Track Rollerframe | Monocoque, large section, durable construction |
| Grouser Height | 2.1″ (53 mm) |
| Track Gauge | 5’5″ (1650 mm) |
| Standard Shoe Size | 18.1″ (460 mm) |
| Length of Track on Ground | 7’9″ (2360 mm) |
| Ground Contact Area | 3365 in2 (21710 cm2) |
| Ground Pressure (w/ blade, ROPS cab) | 5.92 psi (40.8 kPa) |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Komatsu |
| Engine Model | Komatsu SAA4D107E-1 |
| Displacement | 272 cu in (4.46 L) |
| Bore | 4.21 in (107 mm) |
| Stroke | 4.88 in (124 mm) |
| Gross Power | 107 hp (79.9 kw) |
| Net Power | 105 hp (79 kw) |
| Power Measured @ | 2200 rpm |
| Aspiration | Turbocharged, air-to-air aftercooled |
| Lubrication Method | Gear pump, force lubrication. Full-flow oil filter |
| Fan Drive Type | Hydraulic |
| Emission Standards | EPA Tier 3 and EU Stage 3A |
Transmission
| Transmission Type | Dual-path electronically controlled Hydrostatic Transmission (HST) with Quick-shift and variable speed settings |
| Number of Gears | 3F / 3R |
| Max Forward Speed | 5.3 mph (8.5 km/h) |
| Max Reverse Speed | 5.3 mph (8.5 km/h) |
| Steering | Palm Command Control System (PCCS) joystick control for all directional movements |
| Final Drives | Two-stage planetary gear integrated into axial piston travel motors |
| Parking Brake | An adjustment-free spring-applied hydraulic release wet parking brake is located in each final drive |
Operational Specs
| Base Weight (w/o Blade) | 17196 lb (7800 kg) |
| Max Operating Weight | 19930 lb (9040 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 35 amps |
| Battery | 2x 12 V, 92 Ah, large capacity |
| Starter | 5.5 kW |
Hydraulic System
| Type | Closed-center Load Sensing System (CLSS) designed for precise control and for efficient simultaneous operation |
| Pump Type | Piston-type hydraulic pump |
| Pump Flow Capacity | 26.2 gal/min (99 L/min) |
| Relief Valve Pressure | 3983 psi (27400 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 51.5 gal (195 L) |
| Engine Oil Capacity | 4 gal (15 L) |
| Cooling System Capacity | 6.1 gal (23 L) |
| Hydraulic System Fluid Capacity | 15.9 gal (60 L) |
| Final Drive (each side) | 0.9 gal (3.5 L) |
