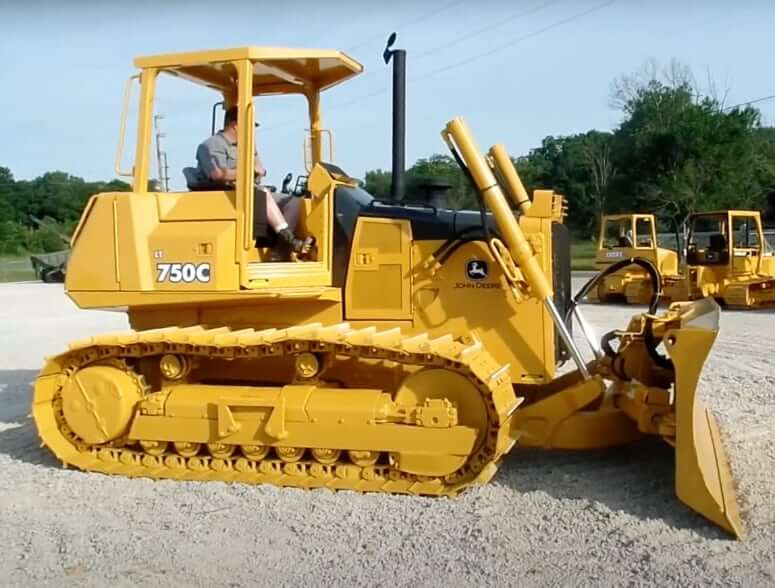

Dimensions
| Dozer | Deere 750C LT | Deere 750C WT |
|---|---|---|
| Length w/ Semi-U Blade | 197.3 in (5011 mm) | 197.3 in (5011 mm) |
| Overall Length w/ Semi-U Blade + Extended Drawbar | 206.2 in (5234 mm) | 206.2 in (5234 mm) |
| Length w/ PAT Blade | 195.1 in (4955 mm) | – |
| Overall Length w/ PAT Blade + Extended Drawbar | 204 in (5178 mm) | – |
| Length w/ Straight Blade | – | 195.1 in (4956 mm) |
| Overall Length w/ Straight Blade + Extended Drawbar | – | 204 in (5179 mm) |
| Length of Track On Ground | 102 in (2591 mm) | 102 in (2591 mm) |
| Width Over Tracks | 96 in (2438 m) | 96 in (2438 m) |
| Height to Top of Cab / Canopy | 120.7 in. (3065 mm) | 120.7 in. (3065 mm) |
| Height to Top of Exhaust Stack | 124.6 in (3165 mm) | 124.6 in (3165 mm) |
| Ground Clearance | 14.6 in (371 mm) | 14.6 in (371 mm) |

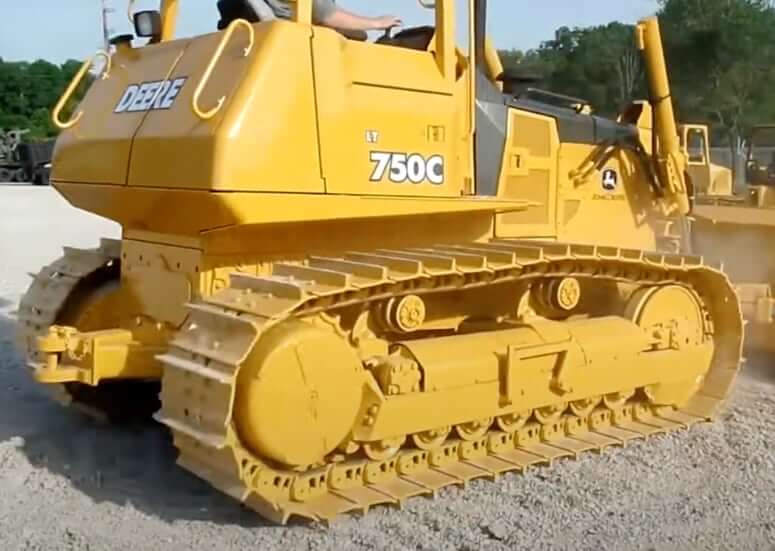

Weight
| Dozer | Deere 750C LT | Deere 750C WT |
|---|---|---|
| Operating Weight (w/ Semi-U Blade) | 31712 lb (14415 kg) | 33843 lb (15383 kg) |
| Operating Weight (w/ PAT Blade) | 33736 lb (15335 kg) | – |
| Operating Weight (w/ Straight Blade) | – | 33324 lb (15147 kg) |
| Weight of Cab (w/o Air Conditioner) | 2080 lb (945 kg) | 2080 lb (945 kg) |
| Weight of Canopy | 1430 lb (650 kg) | 1430 lb (650 kg) |
| Drawbar Weight (Rigid) | 154 lb (70 kg) | 154 lb (70 kg) |
| Drawbar Weight (Extended Rigid) | 282 lb (128 kg) | 282 lb (128 kg) |
| Tank Guard Weight | 950 lb (432 kg) | 950 lb (432 kg) |
| Heavy-duty Transverse Case Cover w/ Doors | 698 lb (317 kg) | 698 lb (317 kg) |
| Complete Push Beam Assemblies for Straight or Semi-U Blades | 1700 lb (773 kg) | 1903 lb (865 kg) |
| Complete PAT Dozer C-frame Assembly | 2834 lb (1288 kg) | – |
| Tracks – Dura-Trax Lubricated Chain w/ Split Swamp Shoe, 34 in (865 mm) | – | 6366 lb (2894 kg) |

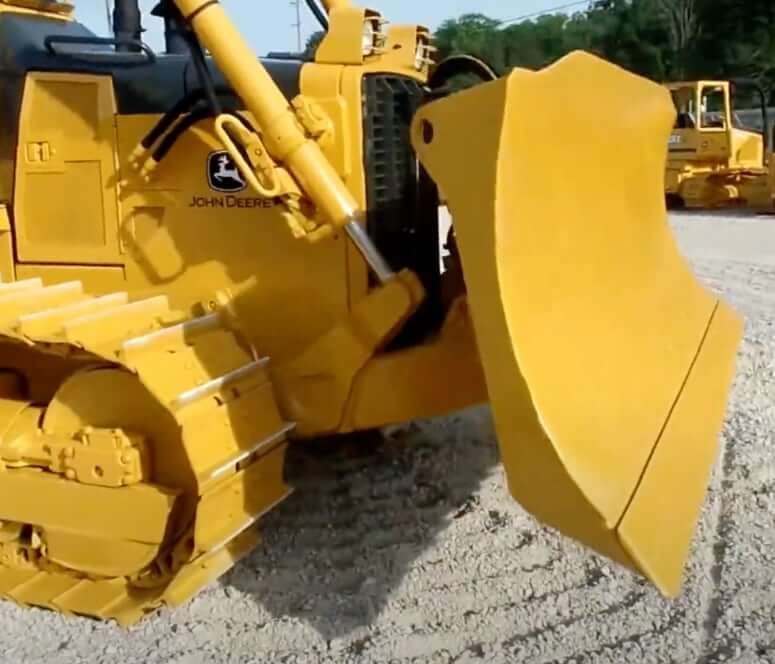

Dozer Blade
| Dozer | 750C LT | 750C WT |
|---|---|---|
| Blade Width (Semi-U) | 126.6 in (3216 mm) | 144.0 in (3658 mm) |
| Blade Width (PAT) | 129.3 in (3283 mm) | – |
| Blade Width (Straight) | – | 132.4 in (3363 mm) |
| Blade Height (Semi-U) | 50.5 in (1283 mm) | 45 in (1143 mm) |
| Blade Height (PAT) | 47.0 in (1193 mm) | – |
| Blade Height (Straight) | – | 38.4 in (976 mm) |
| Blade Lift Height (Semi-U) | 42.2 in (1072 mm) | 42.2 in (1072 mm) |
| Blade Lift Height (PAT) | 35.4 in (899 mm) | – |
| Blade Lift Height (Straight) | – | 42.2 in (1072 mm) |
| Blade Digging Depth (Semi-U) | 20.2 in (513 mm) | 20.2 in (513 mm) |
| Blade Digging Depth (PAT) | 33.4 in (848 mm) | – |
| Blade Digging Depth (Straight) | – | 20.2 in (513 mm) |
| Blade Tilt, Uses Tilt Jack (Semi-U) | 27.6 in (700 mm) | 37.6 in (955 mm) |
| Blade Tilt, Uses Tilt Jack (PAT) | 16.2 in (413 mm) | – |
| Blade Tilt, Uses Tilt Jack (Straight) | – | 34.6 in (878 mm) |
| Blade Capacity (Semi-U) | 5.60 yd3 (4.28 m3) | 5.60 yd3 (4.28 m3) |
| Blade Capacity (PAT) | 4.60 yd3 (3.52 m3) | – |
| Blade Capacity (Straight) | – | 3.25 yd3 (2.48 m3) |
| Cut Reach | 3.5 in (89 m) | – |
| Cast Reach | 12.8 in (326 m) | – |
| PAT Blade Angle | 24° | – |
| Cutting Edge Angle | 60° | – |

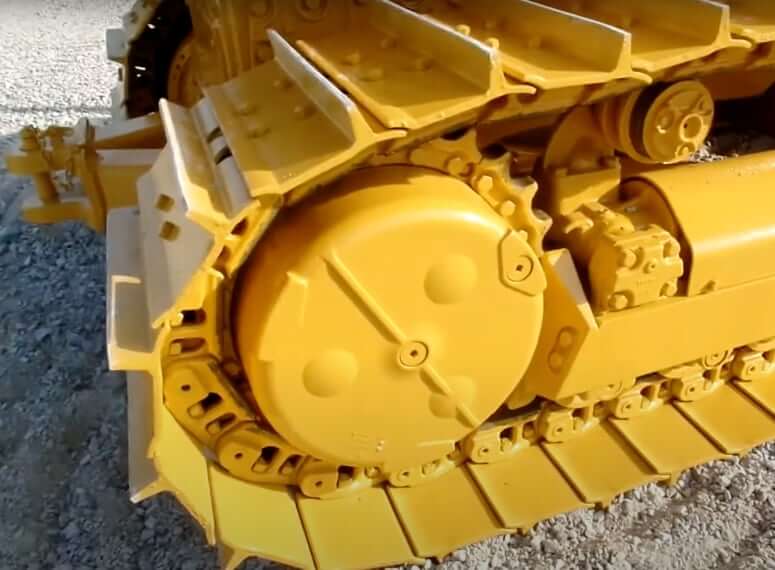

Undercarriage
| Dozer | 750C LT | 750C WT |
|---|---|---|
| Shoe Size | 22 in (560 mm) | 34 in (865 mm) |
| Number of Track Rollers per Side | 7 | 7 |
| Number of Shoes per Side | 40 | 40 |
| Oscillation at Front Roller | 8.9 in (226 mm) | 8.9 in (226 mm) |
| Tread Depth w/ Single-Bar Grousers (Moderate duty) | 2.2 in (56 mm) | 2.2 in (56 mm) |
| Tread Depth w/ Single-Bar Grousers (Extreme duty) | 2.7 in (68 mm) | – |
| Tread Depth w/ Swamp Shoes | – | 3.15 in (80 mm) |
| Track Pitch | 7.5 in (190 mm) | 7.5 in (190 mm) |
| Track Gauge | 74 in (1880 mm) | 74 in (1880 mm) |
| Length of Track on Ground | 102 in (2591 mm) | 102 in (2591 mm) |
| Ground Contact Area | 4488 in2 (2.89 m2) | 6936 in2 (4.47 m2) |
| Ground Pressure (Semi-U) | 7.1 psi (49.0 kPa) | 4.91 psi (33.9 kPa) |
| Ground Pressure (PAT Blade) | 7.5 psi (51.7 kPa) | – |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | John Deere |
| Engine Model | John Deere 6068T |
| Displacement | 414 cu in (6.8 L) |
| Bore | 4.21 in (107 mm) |
| Stroke | 5.00 in (127 mm) |
| Gross Power | 148 hp (110 kw) |
| Net Power | 140 hp (104 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 420 lb ft (570 Nm) |
| Torque Measured @ | 1300 rpm |
| Fuel Consumption, Typical | 3.8 – 5.5 gal/h (14.4 – 20.8 L/h) |
| Lubrication System | Pressure system with full-flow spin-on filter and oil-to-water cooler |
| Air Cleaner | Dual stage dry type with safety element, precleaner, and underhood restriction indicator |
| Muffler | Underhood muffler with vertical exhaust stack |
| Aspiration | Turbocharged (altitude-compensating) |
Operational Specs
| Operating Weight (750C LT w/ Semi-U Blade) | 31712 lb (14415 kg) |
| Operating Weight (750C WT w/ Semi-U Blade) | 33843 lb (15383 kg) |
| Max Drawbar Pull | 51000 lb (227 kN) |
| Operating Voltage | 24 V |
| Alternator | 45 amps |
| Battery | 2x 12 V, CCA 950, RC: 190 min |
| Operator Seat | Deluxe suspension cloth seat or Deluxe air suspension vinyl and cloth seat |
| Seat Belt | 3 in (76 mm) with retractors (conforms to SAE J386) |
| Built-in Diagnostics | Fault code retrieval / Onboard diagnostics for monitors, controller(s), wiring, gauges, sensors, etc. |
Transmission
| Type | Automatic, dual-path, hydrostatic transmission |
| Number of Gears | Load sensing feature automatically adjusts speed and power to match changing load conditions |
| Max Forward Speed | 6.8 mph (11 km/h) |
| Max Reverse Speed | 6.8 mph (11 km/h) |
| Final Drives | Double-reduction, planetary final drives transfer torque loads over three gear sets; mounted independently of track frames and dozer push frames for isolation from shock loads |
| Steering | Single-lever steering, speed, and direction control, and counterrotation. Hydrostatic steering eliminates steering clutches and brakes |
| Service Brakes | Hydrostatic (dynamic) braking stops machine when the direction / steering control lever is moved to neutral, the decelerator is depressed to the end of travel, or the brake pedal is depressed |
| Parking Brake | Exclusive safety feature engages wet, multiple-disc brakes whenever the engine stops, whenever the operator applies the brake pedal, or whenever the park lock lever is placed in the start position |

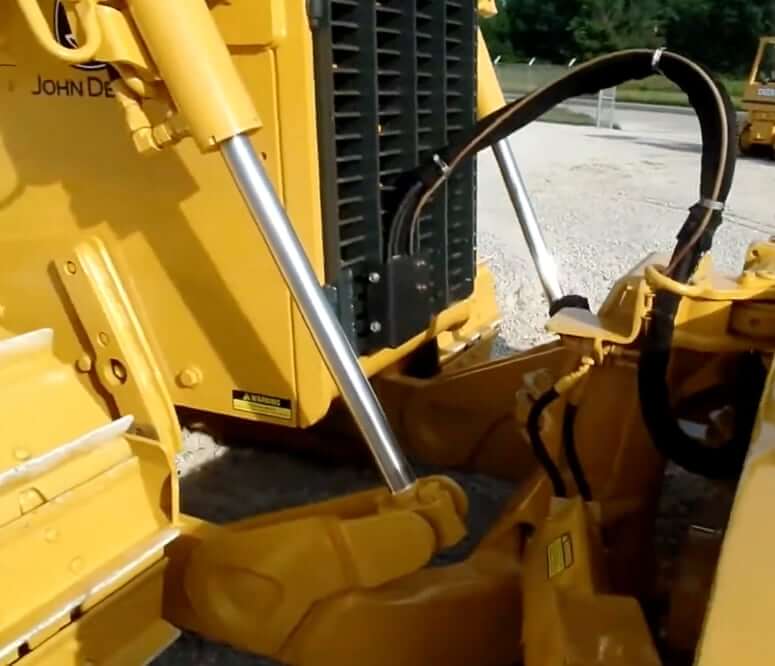

Hydraulic System
| Type | Open center |
| Pump Type | Gear pump |
| Pump Flow Capacity | 38 gal/min (144 L/min) |
| Relief Valve Pressure | 2000 psi (13790 kPa) |
| Control (Standard dozer blade) | T-bar, 2 function |
| Control (All-Hydraulic PAT dozer blade) | T-bar, 3 function |
| Cylinders | Heat-treated, chrome-plated, polished cylinder rods with hardened steel pivot pins |
| Hydraulic Filter, Return Oil | 10 micron |
Service Refill Capacities
| Fuel Tank Capacity | 74 gal (280 L) |
| Engine Oil Capacity (w/ filter) | 5.1 gal (19 L) |
| Cooling System Capacity | 7 gal (26.5 L) |
| Transmission / Hydraulic Oil Capacity | 22 gal (83.3 L) |
| Final Drives Capacity, 1st reduction (each) | 6.25 gal (23.6 L) |
| Final Drives Capacity, 2nd reduction (each) | 3.25 gal (12.3 L) |
| Hydraulic Tank Capacity | 18 gal (68 L) |
