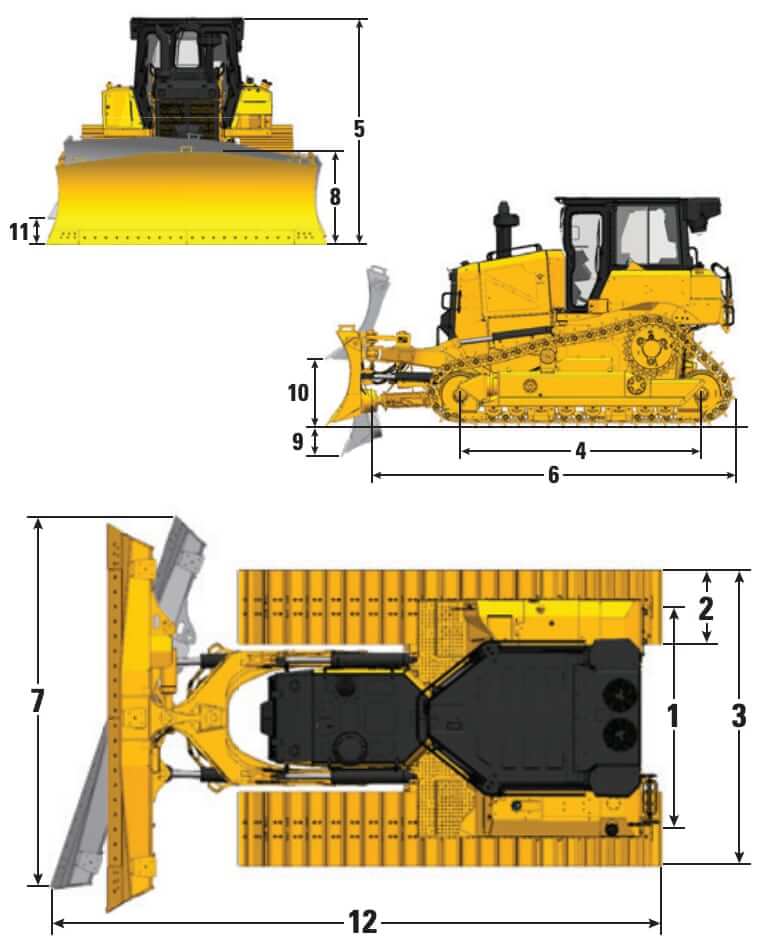

Dimensions
| CAT D6 | VPAT | LGP 30″ VPAT | LGP 36″ VPAT |
|---|---|---|---|
| 1. Track Gauge | 82 in (2080 mm) | 90 in (2286 mm) | 94 in (2390 mm) |
| 2. Width of Maximum Track Shoe | 24 in (610 mm) | 30 in (760 mm) | 36 in (915 mm) |
| 3. Width over Tracks | 105.9 in (2690 mm) | 119.9 in (3046 mm) | 130.1 in (3305 mm) |
| 4. Length of Track on Ground | 127.8 in (3247 mm) | 132.1 in (3355 mm) | 132.1 in (3355 mm) |
| Ground Clearance | 16.6 in (422 mm) | 15.6 in (395 mm) | 15.1 in (383 mm) |
| Oscillation at Front Idler | 4.4 in (112 mm) | 4.8 in (121 mm) | 4.8 in (121 mm) |
| 5. Machine Height | 125.5 in (3188 mm) | 127.5 in (3238 mm) | 127.5 in (3238 mm) |
| 6. Length of Machine without Blade | 202.1 in (5134 mm) | 202.1 in (5134 mm) | 202.1 in (5134 mm) |

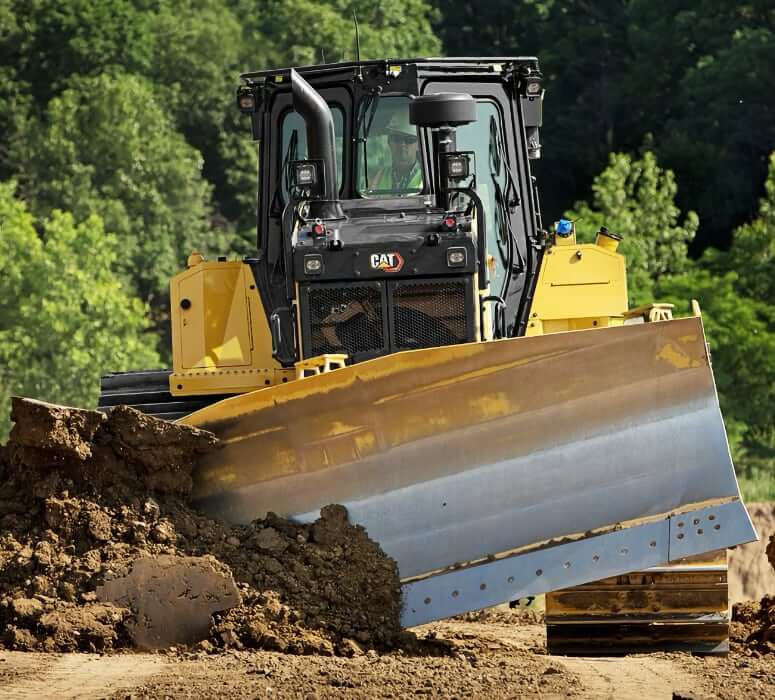

Blades
| CAT D6 VPAT | 6 VPAT Blade | 6 VPAT LGP (30 in) Blade | 6 VPAT LGP (36 in) Blade |
|---|---|---|---|
| Capacity (ISO 9246) | 5.4 yd3 (4.1 m3) | 5.9 yd3 (4.5 m3) | 6.5 yd3 (4.86 m3) |
| 7. Width across End Bits | 144.9 in (3680 mm) | 157.5 in (4000 mm) | 170.9 in (4340 mm) |
| Width without End Bits | 140.6 in (3570 mm) | 153.1 in (3890 mm) | 166.5 in (4230 mm) |
| Width across End Bits (Blade Angled) | 132.4 in (3363 mm) | 143.9 in (3655 mm) | 156.1 in (3966 mm) |
| Width without End Bits (Blade Angled) | 128.6 in (3266 mm) | 139.9 in (3554 mm) | 152.3 in (3868 mm) |
| Maximum Blade Angle | 24.1° | 24.1° | 24.1° |
| 8. Height | 51.7 in (1312 mm) | 51.7 in (1312 mm) | 51.7 in (1312 mm) |
| 9. Dig Depth | 27.5 in (698 mm) | 27.5 in (698 mm) | 27.5 in (698 mm) |
| 10. Lift Height | 44.5 in (1131 mm) | 44.5 in (1131 mm) | 44.5 in (1131 mm) |
| 11. Maximum Tilt at Blade Corner | 22.7 in (576 mm) | 24.6 in (625 mm) | 26.9 in (684 mm) |
| Maximum Tilt Angle | 9° | 9° | 9° |
| Pitch Adjustment | +3.1° / -2.9° | +3.1° / -2.9° | +3.1° / -2.9° |
| 12. Length of Machine (Blade Straight) | 222.9 in (5662 mm) | 222.9 in (5662 mm) | 222.9 in (5662 mm) |
| Length of Machine (Blade Angled) | 250.6 in (6365 mm) | 253.1 in (6430 mm) | 255.9 in (6500 mm) |
| Blade Weight | 3166 lb (1436 kg) | 3351 lb (1520 kg) | 3574 lb (1621 kg) |
Undercarriage
| CAT D6 | VPAT | LGP 30″, VPAT | LGP 36″, VPAT |
|---|---|---|---|
| Number of Shoes per Side | 45 | 46 | 46 |
| Number of Track Rollers per Side | 8 | 8 (10) | 8 (10) |
| Number of Carrier Rollers per Side | 2 | 2 | 2 |
| Shoe Size | 24 in (610 mm) | 30 in (760 mm) | 36 in (915 mm) |
| Track Pitch | 7.9 in (202.8 mm) | 7.9 in (202.8 mm) | 7.9 in (202.8 mm) |
| Grouser Height (Moderate Service) | 2.6 in (65 mm) | 2.6 in (65 mm) | 2.6 in (65 mm) |
| Ground Contact Area (ISO 16754) | 6933 in2 (4.47 m2) | 8666 in2 (5.59 m2) | 10399 in2 (6.71 m2) |
| Ground Pressure (ISO 16754) | 7.1 psi (49 kPa) | 5.9 psi (40 kPa) | 5.0 psi (34 kPa) |
Winch
| Winch model | Cat PA56 |
| Winch Drive | PTO Mechanical |
| Control | Electrical |
| Operating Weight | 3487 lb (1582 kg) |
| Oil Capacity | 11.5 gal (43.5 L) |
| Increased Tractor Length (Standard) | 20.4 in (516 mm) |
| Increased Tractor Length (LGP 36″) | 14.4 in (365 mm) |
| Drum Diameter | 10 in (254 mm) |
| Rope Diameter (Recommended) | 0.88 in (22 mm) |
| Rope Diameter (Optional) | 1.0 in (25 mm) |
| Drum Working Capacity, 0.88 in (22 mm) | 180 ft (55 m) |
| Drum Working Capacity, 1.0 in (25 mm) | 163 ft (50 m) |
| Cable Ferrule Size (O.D. x Length) | 2.1 x 2.6 in (54 x 67 mm) |
| Line Pull (Max Bare Drum) | 89800 lbf (399 kN) |
| Line Speed (Max Bare Drum), Low / Standard Speed | 57 ft/min (17 m/min) / 107 ft/min (33 m/min) |
| Line Pull (Max Full Drum) | 89800 lbf (399 kN) |
| Line Speed (Max Full Drum), Low / Standard Speed | 94 ft/min (29 m/min) / 179 ft/min (55 m/min) |
Ripper
| Type | Fixed Parallelogram |
| Number of Pockets | 3 |
| Ramp Angle | 31° |
| Maximum Clearance Raised (under tip) | 26.1 in (664 mm) |
| Maximum Penetration | 22.5 in (571 mm) |
| Pocket Spacing | 39.4 in (1000 mm) |
| Shank Gauge | 78.8 in (2000 mm) |
| Shank Section | 2.9 x 6.9 in (74 x 175 mm) |
| Overall Beam Width | 86 in (2190 mm) |
| Beam Cross Section | 8.8 x 12 in (219 x 304 mm) |
| Maximum Penetration Force | 15470 lbf (68.8 kN) |
| Pryout Force | 28350 lbf (126 kN) |
| Ripper Weight w/ One Shank | 3417 lb (1550 kg) |
| Each Additional Shank | 161 lb (73 kg) |
Weight
| CAT D6 | VPAT | LGP 30″, VPAT | LGP 36″, VPAT |
|---|---|---|---|
| Operating Weight | 49108 lb (22275 kg) | 50733 lb (23012 kg) | 51912 lb (23547 kg) |
| Shipping Weight | 45223 lb (20513 kg) | 46645 lb (21158 kg) | 47604 lb (21593 kg) |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | Caterpillar |
| Engine Model | Cat C9.3B |
| Displacement | 567.5 cu in (9.3 L) |
| Bore | 4.5 in (115 mm) |
| Stroke | 5.9 in (149 mm) |
| Gross Power | 251 hp (187 kw) |
| Net Power | 215 hp (161 kw) |
| Drawbar Power | 153 hp (114 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 1540 lb ft (2088 Nm) |
| Torque Measured @ | 1400 rpm |
| Fuel System | Direct injection |
| Compression Ratio | 17.0:1 |
| Air Cleaner | Air cleaner with precleaner, automatic dust ejection and under-hood intake |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | DOC+DPF+SCR |
| Aspiration | Turbocharged aftercooled (TA) |
| Emission Standards | US EPA Tier 4 Final + EU Stage V |
Electrical Specs
| Operating Voltage | 24 V |
| Alternator | 150 amps |
| Battery | 2x 12 V, CCA 1400, heavy duty, maintenance free |
| Starter | 24 V, heavy duty |
| Working Lights | 6x LED Lights (Optional: 12 LED for 360° light coverage) |
Operator Environment
| Cab Safety | ROPS / FOPS |
| ROPS Standard | ISO 3471:2008 |
| FOPS Standard | ISO 3449:2005 Level II |
| HVAC | Distributed HVAC ducting with automatic temperature control. Cat Advanced Cabin Filtration is standard |
| Operator Seat | Cloth seat with mechanical adjustable lumbar support |
| Operator Seat (Optional) | Deluxe leather heated/ventilated seat with electronic adjustable lumbar support |
| Noise Level (interior) | 77 dB(A) |
| Noise Level (exterior) | 113 dB(A) |
| Monitor | Full-color 10-inch (254 mm) touchscreen grade display |
Transmission
| Type | Fully automatic 4-speed transmission with lock-up clutch torque divider |
| Max Forward Speed | 7.2 mph (11.7 km/h) |
| Max Reverse Speed | 7.2 mph (11.7 km/h) |
| Service Brakes | ISO 10265:2008 |
| Parking Brake | Electronic parking brake |
| Traction Control | Standard |
| Steer Assist | Automatically maintaining straight travel with light loads or heavy loads on flat ground and side slopes w/o GNSS |
| Final Drives | Double reduction planetary final drives |
Hydraulic System
| Type | Load sensing hydraulics |
| Pump Type | Independent steering and implement pumps |
| Implement Pump Flow | 56 gal/min (212 L/min) |
| Steering Pump Flow | 52 gal/min (198 L/min) |
| Fan Pump Flow at Max Fan | 11 gal/min (42 L/min) |
| Implement Relief Pressure | 4000 psi (27600 kPa) |
| Steering Relief Pressure, Electronic | 6168 psi (42500 kPa) |
| Steering Relief Pressure, System Max | 6938 psi (47800 kPa) |
| Electronic Hydraulic Lockout Switch | Standard |
Service Refill Capacities
| Fuel Tank Capacity | 90 gal (341 L) |
| DEF Tank Capacity | 7.4 gal (28 L) |
| Engine Oil Capacity (w/ filter) | 6.5 gal (24.5 L) |
| Cooling System Capacity | 16.6 gal (63 L) |
| Hydraulic System Capacity (w/ tank) | 20.3 gal (77 L) |
| Hydraulic Tank Capacity | 15.8 gal (60 L) |
| Transmission Oil Capacity | 39.1 gal (148 L) |
| Final Drives Capacity (each side) | 4.8 gal (18.2 L) |
| Roller Frames Capacity (each) | 17.2 – 22.5 gal (65 – 85 L) |
| Pivot Shaft Compartment | 0.74 gal (2.8 L) |
| Winch Housing Capacity | 11.5 gal (43.5 L) |
