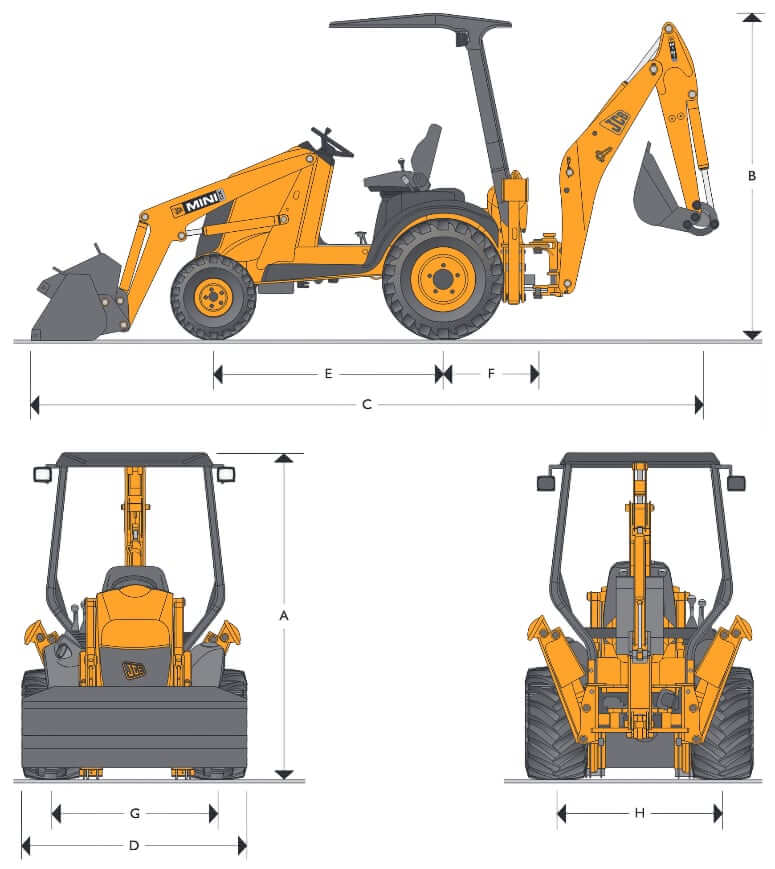

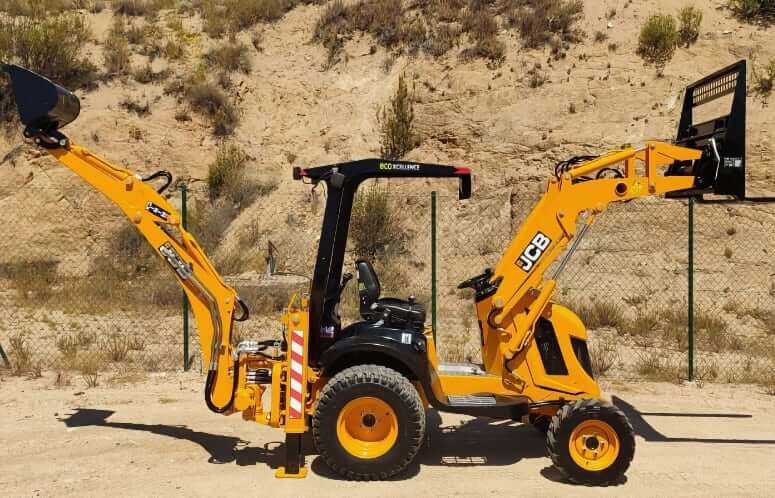

Dimensions
| A. Height to Canopy | 83.7 in (2125 mm) |
| B. Transport Height | 83.7 in (2125 mm) |
| C. Transport Length | 178.3 in (4530 mm) |
| D. Overall Width (over Tyres) | 57.9 in (1470 mm) |
| E. Wheelbase | 61.4 in (1559 mm) |
| F. Slew Centre to Rear Axle Centre Distance | 24.8 in (630 mm) |
| G. Front Wheel Track | 42.5 in (1080 mm) |
| H. Rear Wheel Track | 43.1 in (1095 mm) |
| Departure Angle | 19° |
| Approach Angle | 75.4° |
| Interface Angle/Ramp to Ground Plane | 127° |

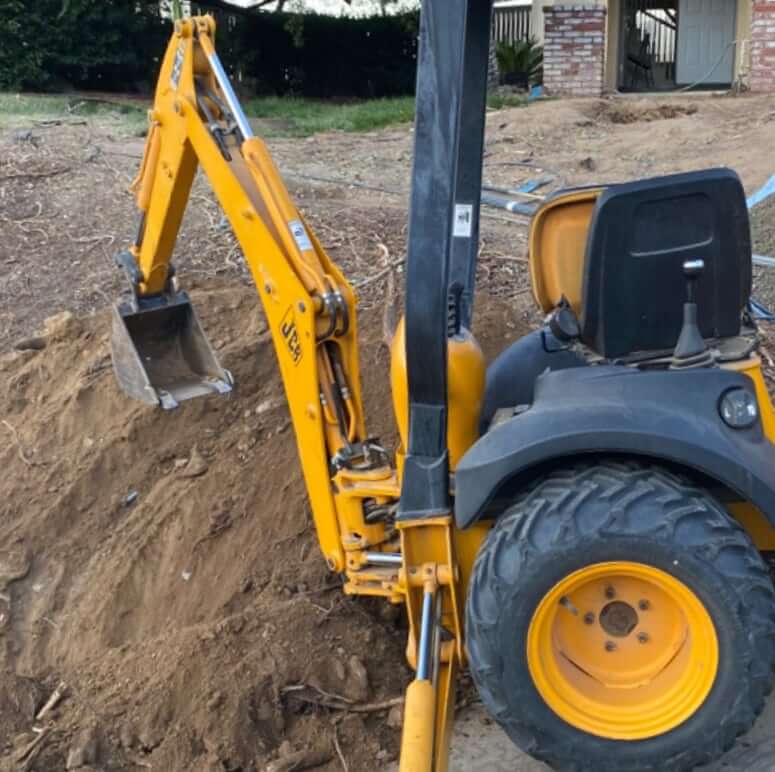

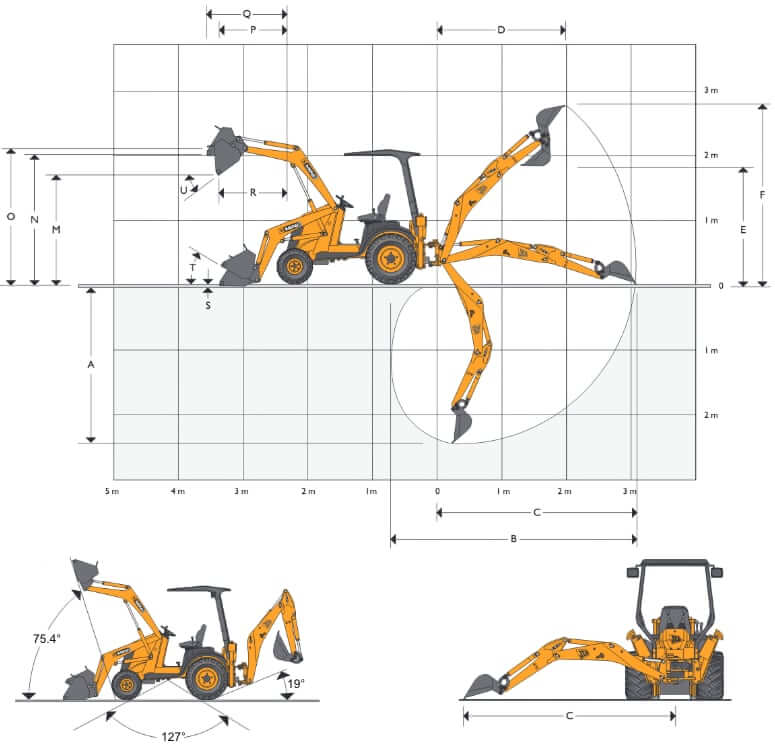

Backhoe Performance
| A. Maximum Dig Depth | 100 in (2540 mm) |
| A. Maximum Dig Depth 2ft Flat Bottom | 98.4 in (2499 mm) |
| B. Reach – Ground Level to Rear Wheel Centre | 147.2 in (3740 mm) |
| C. Reach – Ground Level to Slew Centre | 122.4 in (3110 mm) |
| D. Reach – At Full Height to Slew Centre | 79.7 in (2025 mm) |
| E. Maximum Loadover Height | 75.5 in (1918 mm) |
| F. Maximum Working Height | 113.9 in (2894 mm) |
| Swing Arc | 180° |
| Bucket Tearout | 2884 lbf (12.83 kN) |
| Dipper Tearout | 3320 lbf (14.77 kN) |

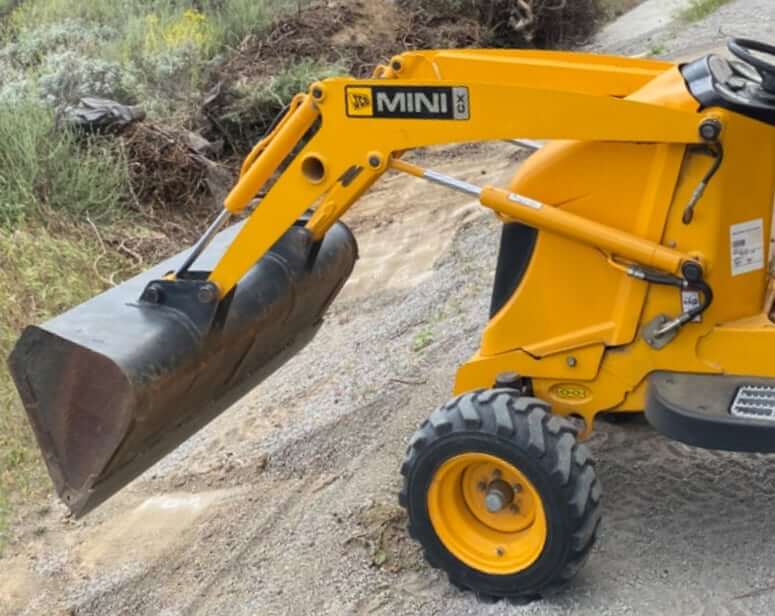

Loader Performance
| M. Dump Height | 68.2 in (1732 mm) |
| N. Loadover Height | 79.4 in (2017 mm) |
| O. Pin Height | 84.6 in (2150 mm) |
| P. Reach at Ground Level (Toe Plate Horizontal) | 39.8 in (1010 mm) |
| Q. Maximum Reach at Full Height | 41.9 in (1065 mm) |
| R. Reach at Full Height – Fully Dumped | 36.2 in (920 mm) |
| S. Dig Depth (Toe Plate Horizontal) Clearance | 2.6 in (65 mm) |
| T. Rollback at Ground Level | 36.5° |
| U. Dump Angle | 30° |
| Bucket Breakout Force | 3607 lbf (16.04 kN) |
| Maximum Hydraulic Lift Capacity | 3444 lb (1562 kg) |
| GP Bucket Capacity | 0.30 yd3 (0.25 m3) |
Engine Details
| Engine Model | Perkins 103-10 | Perkins 403C-11 |
|---|---|---|
| Number Of Cylinders | 3 | 3 |
| Displacement | 58.2 cu in (0.954 L) | 69.0 cu in (1.131 L) |
| Bore | 2.9 in (75 mm) | 3.03 in (77 mm) |
| Stroke | 2.8 in (72 mm) | 3.19 in (81 mm) |
| Gross Power | 20.5 hp (15.1 kw) | 22.5 hp (16.8 kw) |
| Net Power | 20 hp (14.7 kw) | 22 hp (16.4 kw) |
| Power Measured @ | 2800 rpm | 2800 rpm |
| Peak Torque | 43 lb ft (58 Nm) | 42.5 lb ft (57.3 Nm) |
| Torque Measured @ | 2000 rpm | 2800 rpm |
| Aspiration | Naturally aspirated | Naturally aspirated |
| Emission Standards | EU 97/68/EC Stage I | US EPA Tier 2 + EU Stage II |
Operational Specs
| Operating Weight | 3373 lb (1530 kg) |
| Loader Operating Capacity | 1488 lb (675 kg) |
| Operating Voltage | 12 V |
| Alternator | 40 amps |
| Battery | 12 V, 26 Ah |
| Cab | Full ROPS/FOPS canopy |
| Operator Seat | Fully adjustable static seat, 180° turn, with seat belt fitted as standard |
| Front Tire Size | 28×8.5 – 12 6ply |
| Rear Tire Size | 400/50 – 15 6ply traction tyre (Standard) / 31×15.5 – 15 6ply turf tyre (Optional) |
Transmission
| Type | Hydrostatic Transmission |
| Max Forward Speed | 6.2 mph (10 km/h) |
| Max Reverse Speed | 3.7 mph (6 km/h) |
| Number of Gears | 2 |
| Forward/Reverse Lever | Located under the steering wheel |
Steering
| Steering Axle | Front |
| Steering Turns (lock to lock) | 3.25 |
| Kerb-kerb Turning Circle | 230 in (5842 mm) |
| Kerb-kerb Loader Clearance Circle | 282 in (7163 mm) |
| Service Brakes | The JCB hydrostatic transmission provides the primary braking service, which is engaged simply by releasing either drive pedal |
| Parking Brake | An independent rear axle mounted disk and calliper type parking brake |
| Brake Lever | Automotive style lever to the left of the operator seat, acts as secondary braking service |
Hydraulic System
| Pump Type | The fixed displacement pump supplies oil to steering, excavator and loader services |
| Pump Flow Capacity | 8.5 gal/min (32 L/min) |
| Relief Valve Pressure | 2901 psi (20000 kPa) |
Service Refill Capacities
| Engine Model | Perkins 103-10 | Perkins 403C-11 |
|---|---|---|
| Fuel Tank Capacity | 6.4 gal (29 L) | 6.4 gal (29 L) |
| Engine Oil Capacity | 0.77 gal (3.5 L) | 0.97 gal (4.4 L) |
| Cooling System Capacity | 0.81 gal (3.7 L) | 0.81 gal (3.7 L) |
| Hydraulic System Capacity | 11.7 gal (53 L) | 11.7 gal (53 L) |
| Rear Axle Fluid Capacity | 0.31 gal (1.41 L) | 0.31 gal (1.41 L) |
