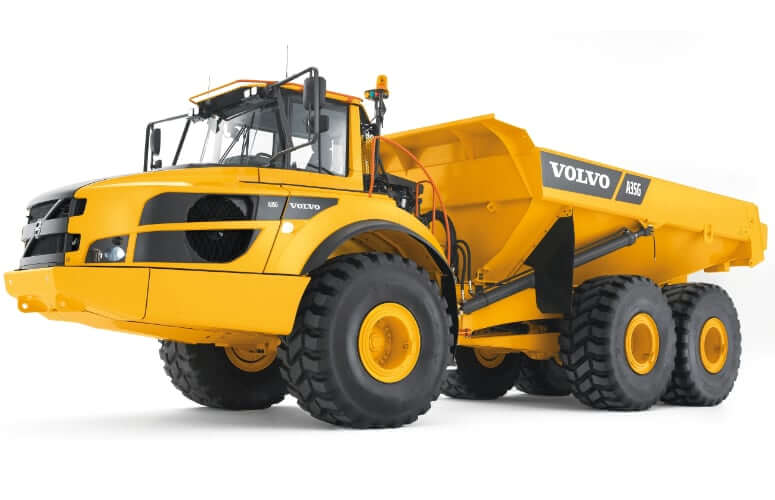

Capacity
| Capacity – Heaped |
27.7 yd3 (21.2 m3) |
| Capacity – Struck |
21.7 yd3 (16.6 m3) |
| Payload Capacity |
76059 lb (34500 kg) |
Weights
| A35G with 26.5R25 Tires |
Operating Weight (Unloaded) |
Operating Weight (Loaded) |
| Front Axle |
34613 lb (15700 kg) |
42329 lb (19200 kg) |
| Rear Axle |
29983 lb (13600 kg) |
98326 lb (44600 kg) |
| Total |
64595 lb (29300 kg) |
140655 lb (63800 kg) |
Operating weight includes all fluids and operator. Volvo A35G with tires 775/65R25, add 440 lb (200 kg) / axle.

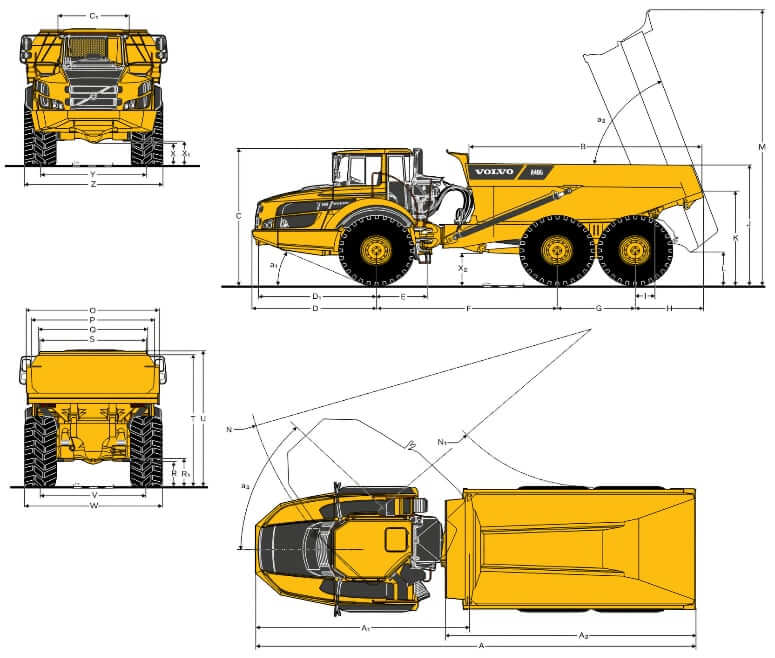

Dimensions
| A. Overall Length |
440.0 in (11180 mm) |
| A1. |
215.6 in (5476 mm) |
| A2. |
245.8 in (6241 mm) |
| B. |
219.2 in (5568 mm) |
| C. Overall Height |
139.7 in (3547 mm) |
| C1. |
69.8 in (1772 mm) |
| D. |
122.0 in (3100 mm) |
| D1. |
115.8 in (2942 mm) |
| E. |
50.3 in (1277 mm) |
| F. Wheelbase |
180.2 in (4578 mm) |
| G. |
71.7 in (1820 mm) |
| H. |
66.3 in (1683 mm) |
| I. |
25.6 in (650 mm) |
| J. |
118.7 in (3014 mm) |
| K. |
90.7 in (2304 mm) |
| L. Dump Ground Clearance |
35.0 in (890 mm) |
| M. Dump Height |
284.8 in (7236 mm) |
| N. |
349.2 in (8866 mm) |
| N1. |
173.9 in (4416 mm) |
| O. |
126.6 in (3216 mm) |
| P. |
114.3 in (2902 mm) |
| Q. |
100.5 in (2553 mm) |
| R. |
22.2 in (564 mm) |
| R1. |
25.7 in (652 mm) |
| S. |
95.4 in (2423 mm) |
| T. |
133.1 in (3382 mm) |
| U. |
137.7 in (3498 mm) |
| V. |
99.7 in (2534 mm) |
| W. Overall Width |
126.8 in (3221 mm) |
| X. Ground Clearance |
19.7 in (500 mm) |
| X1. |
23.3 in (592 mm) |
| X2. |
29.1 in (738 mm) |
| Y. |
99.7 in (2534 mm) |
| Z. |
126.8 in (3221 mm) |
| a1. |
23.6° |
| a2. |
72° |
| a3. |
45° |

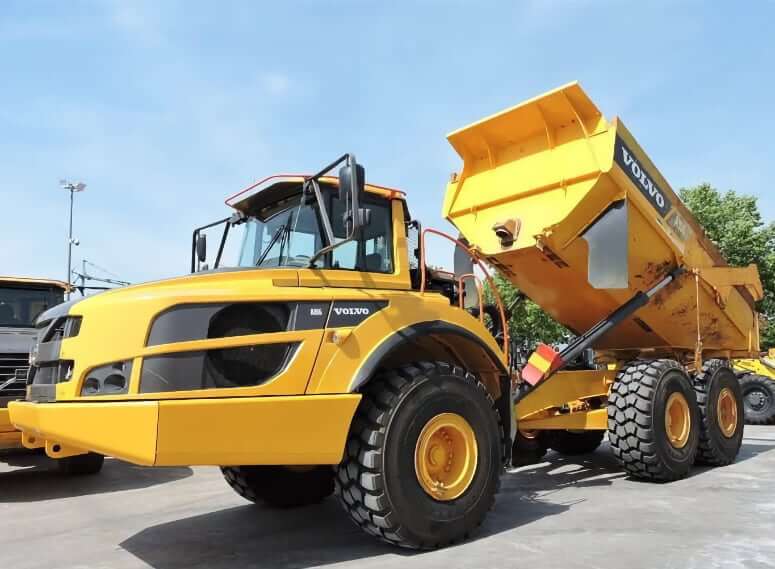

Dumping System
| Dumping Cylinders |
Two single stage double acting cylinders |
| Brakes |
Patented load and dump brake |
| Tipping Time with Load |
12 sec |
| Lower Time |
10 sec |
| Dump Angle |
72° |
Body
| Body Material |
HB450 steel |
| Plate Thickness-Front |
0.31 in (8 mm) |
| Plate Thickness-Sides |
0.43 in (11 mm) |
| Plate Thickness-Bottom |
0.55 in (14 mm) |
| Plate Thickness-Chute |
0.63 in (16 mm) |
Engine Details
| Number of Cylinders |
6 |
| Engine Make |
Volvo |
| Engine Model |
Volvo D13J |
| Displacement |
781 cu in (12.8 L) |
| Bore |
5.16 in (131 mm) |
| Stroke |
6.22 in (158 mm) |
| Horsepower, Gross |
451 hp (336 kw) |
| Flywheel Power |
447 hp (333 kw) |
| Power Measured @ |
1900 rpm |
| Peak Torque |
1775 lb ft (2407 Nm) |
| Torque Measured @ |
1050 rpm |
| Injection System |
Common Rail |
| Aspiration |
Turbocharged |
| Emission Standards |
US EPA Tier 4 Final + EU Stage V |
Operational Specs
| Max Operating Weight |
64595 lb (29300 kg) |
| Payload Capacity |
76059 lb (34500 kg) |
| Operating Voltage |
24 V |
| Alternator |
120 A |
| Battery |
2x 12 V, 170 Ah |
| Starter |
24 V, 12.1 hp (9 kW) |
| Tire Size (Standard) |
26.5R25 |
| Tire Size (Optional) |
775/65R25 |
| Sound level in cab (ISO 6396), LpA |
72 dB(A) |
| External sound level (ISO 6395), LWA |
112 dB(A) |
Transmission
| Transmission Type |
Fully automatic Volvo PowerTronic planetary transmission PT 2529 |
| Number of Gears |
9F / 3R |
| Max Forward Speed |
35.4 mph (57 km/h) |
| Max Reverse Speed |
11.2 mph (18 km/h) |
| Torque Converter |
2.1:1. Torque converter with built-in lock-up function |
| Dropbox |
Volvo IL2 ATC |
| Axles |
Volvo ARB H35 |
| Retarder |
Service brake retarder function and Volvo Engine Brake (VEB) |
| Service Brakes |
Fully hydraulic, wet multiple disc brakes with enclosed, forced oil-cooled multiple discs on all wheels. 2 circuit brake system |
| Parking Brake |
Spring-applied disc brake acting on the trailer unit propeller shaft. When the parking brake is applied, the longitudinal differential locked |
Hydraulic System
| Maximum System Pressure |
3771 psi (26000 kPa) |
| Pump Type |
4 variable displacement piston pumps driven by the flywheel PTO |
| Hydraulic Oil Filters |
Two return oil filters with magnetic cores provide effective oil filtration |
Service Refill Capacities
| Fuel Tank Capacity |
126.8 gal (480 L) |
| DEF Tank Capacity |
10.3 gal (39 L) |
| Engine Oil Capacity |
13.2 gal (50 L) |
| Cooling System Capacity |
11.6 gal (44 L) |
| Transmission Oil Capacity |
11.4 gal (43 L) |
| Brake Cooling System Capacity |
49.7 gal (188 L) |
| Dropbox Capacity |
2.4 gal (9 L) |
| Front Axle Fluid Capacity |
6.6 gal (25 L) |
| Bogie Axles Fluid Capacity |
13.5 gal (51 L) |
| Hydraulic Tank Capacity |
46 gal (174 L) |
