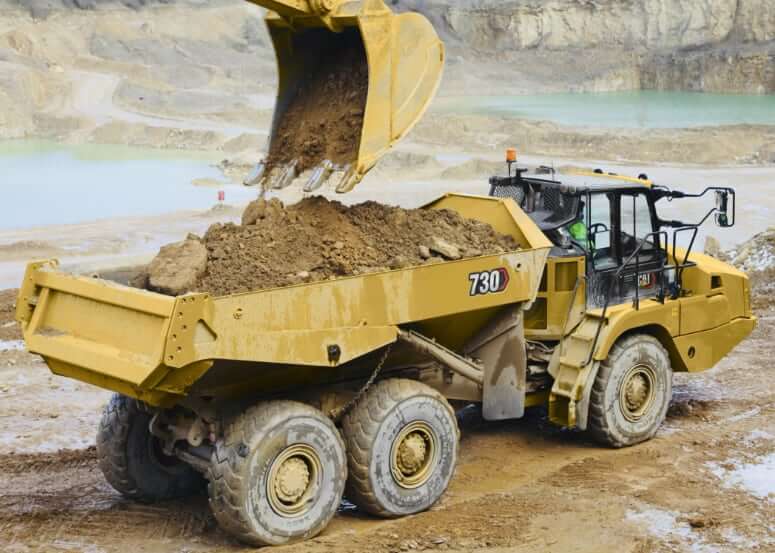

Body Capacities
Rated Payload |
61729 lb (28000 kg) |
Capacity Heaped (Sae 2:1) |
23 yd3 (17.5 m3) |
Capacity Struck |
17.4 yd3 (13.3 m3) |
Tailgate Heaped Sae 2:1 |
24.6 yd3 (18.8 m3) |
Tailgate Struck |
18.2 yd3 (13.9 m3) |
Raise Time |
12 sec |
Lower Time |
8 sec |
Body Plate Thickness
Body Plate Type |
High strength Brinell HB450 wear resistant steel |
Front Plate |
0.28 in (7.0 mm) |
Base Plate |
0.51 in (13 mm) |
Side Plates |
0.43 in (11 mm) |

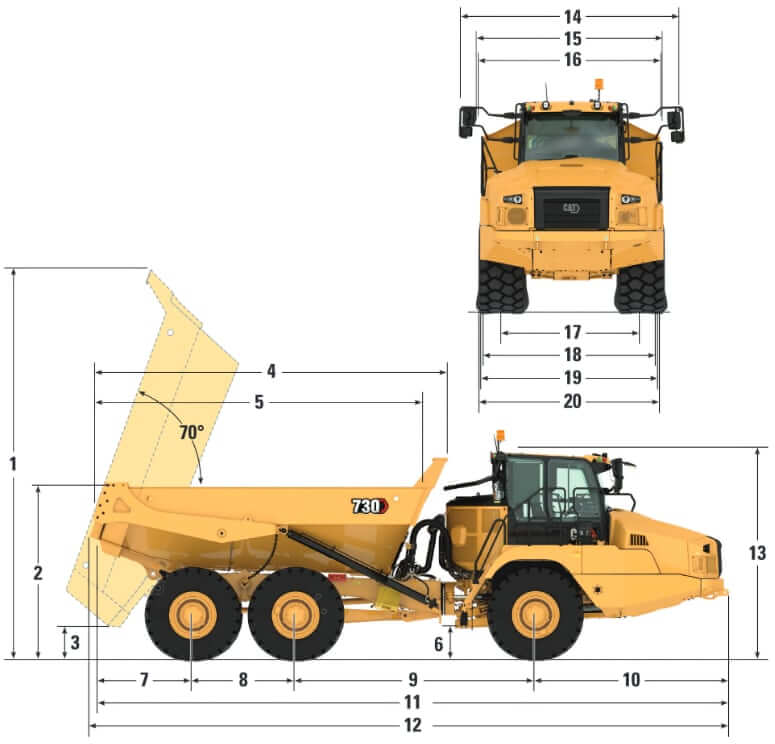

Dimensions
1. Body Height Fully Tipped |
21’3″ (6468 mm) |
2. Load Over Height |
9’5″ (2916 mm) |
3. Ground Clearance – Body Fully Tipped |
1’10” (563 mm) |
4. Body Length |
19’0″ (5783 mm) |
5. Body Length Inside |
17’9″ (5411 mm) |
6. Ground Clearance |
1’9″ (545 mm) |
7. Rear Axle Center to Body Rear |
5’1″ (1556 mm) |
8. Mid Axle to Rear Axle Center |
5’7″ (1700 mm) |
9. Mid Axle to Front Axle (Centers) |
13’1″ (3979 mm) |
10. Front Axle Center to Machine Front |
10’6″ (3210 mm) |
11. Overall Length |
34’3″ (10445 mm) |
12. Overall Length with Tailgate |
34’8″ (10593 mm) |
13. Height Transport Position |
11’6″ (3508 mm) |
14. Overall Width |
12’1″ (3676 mm) |
15. Width Over Tailgate/Width Including Tailgate |
9’10” (2984 mm) |
16. Body Width |
9’6″ (2902 mm) |
17. Track Width |
7’6″ (2275 mm) |
18. Width Over Tire |
9’5″ (2877 mm) |
19. Width Over Fenders |
9’8″ (2950 mm) |
20. Max Laden Over Tire Bulge |
9’8″ (2950 mm) |
Turning Circle
Steering – Lock To Lock |
4.75 seconds @ 60 rpm |
Turning Dimensions – Sae Turning Radius |
294 in (7468 mm) |
Turning Dimensions – Clearance Radius |
318 in (8077 mm) |
Turning Dimensions – Inside Radius |
153 in (3886 mm) |
Turning Dimensions – Aisle Width |
210 in (5334 mm) |
Dimensions are for machines equipped with 23.5R25 tires
Operating Weight
Weight |
Empty |
Rated Load |
Loaded |
Front Axle |
33069 lb (15000 kg) |
7231 lb (3280 kg) |
40300 lb (18280 kg) |
Center Axle |
10053 lb (4560 kg) |
27249 lb (12360 kg) |
37302 lb (16920 kg) |
Rear Axle |
9568 lb (4340 kg) |
27249 lb (12360 kg) |
36817 lb (16700 kg) |
Total Weight |
52690 lb (23900 kg) |
61729 lb (28000 kg) |
114420 lb (51900 kg) |
Engine Details
Engine Model |
Cat C13 |
Cat C11 ACERT |
Number Of Cylinders |
6 |
6 |
Gross Power |
375 hp (280 kw) |
329 hp (245 kw) |
Net Power |
367 hp (274 kw) |
325 hp (242 kw) |
Power Measured @ |
1800 rpm |
1800 rpm |
Peak Torque |
1554 lb ft (2107 Nm) |
1579 lb ft (2140.9 Nm) |
Torque Measured @ |
1200 rpm |
1200 rpm |
Displacement |
762.8 cu in (12.5 L) |
677.4 cu in (11.1 L) |
Bore |
5.1 in (130 mm) |
5.1 in (130 mm) |
Stroke |
6.2 in (157 mm) |
5.5 in (140 mm) |
Aspiration |
Turbocharged-Aftercooled (TA) |
Turbocharged Aftercooled (TA) |
Emission Standards |
U.S. EPA Tier 4 Final, EU Stage V, Korea Tier 5, Japan 2014 emission standards |
U.S. EPA Tier 3, EU Stage IIIA |

Operational Specs
Voltage |
24 V |
Battery |
2x 12V |
Tire Size |
23.5R25 |
Transmission
Type |
The Cat CX31 6-speed forward, single-speed reverse transmission features Advanced Productivity Electronic Control Strategy (APECS) |
Clutch |
Electronic Clutch Pressure Control (ECPC) which deliver smooth gear changes with improved acceleration and higher productivity |
Number Of Gears |
6F x 1R |
Forward 1 |
5 mph (8 km/h) |
Forward 2 |
9 mph (15 km/h) |
Forward 3 |
14 mph (22 km/h) |
Forward 4 |
21 mph (34 km/h) |
Forward 5 |
29 mph (47 km/h) |
Forward 6 |
34 mph (55 km/h) |
Reverse 1 |
6 mph (9 km/h) |
Operator Environment
FOPS |
ISO 3449 Level II 2005 |
ROPS |
ISO 3471 2008 |
Sound Levels – Interior Cab |
72 dB(A) |
Brakes Standarts |
ISO 3450 2011 |
Steering Standarts |
ISO 5010 2007 |
The operator sound exposure Leq measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 72 dB(A), for the cab offered by CAT, when properly installed and maintained and tested with the doors and windows closed. Hearing protection may be needed when operating with an open operator station and cab for extended periods or in noisy environments.
Service Refill Capacities
Engine Model |
Cat C13 |
Cat C11 |
+Fuel Tank Capacity |
108.8 gal (412 L) |
94 gal (355 L) |
+Cooling System Capacity |
21.9 gal (83 L) |
18 gal (67 L) |
+Engine Oil Capacity |
10 gal (38 L) |
11 gal (41 L) |
Transmission Oil Capacity |
12.4 gal (47 L) |
9.5 gal (36 L) |
Hydraulic System Capacity |
29.1 gal (110 L) |
49 gal (151 L) |
Differential + Final Drives |
33.1 gal (125 L) |
43.3 gal (164 L) |
Output Transfer Gear Box (OTG) |
6.3 gal (24 L) |
4.8 gal (18 L) |
DEF Tank Capacity |
5.3 gal (20 L) |
– |
Loader/Truck Pass Matching
Hydraulic Excavators: Cat 336F/336F XE – Passes |
5–6 |
Hydraulic Excavators: Cat 349F/349F XE – Passes |
4–5 |
Wheel Loaders: Cat 966M/966M XE – Passes |
4 |
Wheel Loader: Cat 962M – Passes |
4–5 |
Wheel Loader: Cat 950M – Passes |
5 |
Wheel Loaders: Cat 972M/972M XE – Passes |
3–4 |
An optimum system match gives you a major productivity advantage. The Cat 730 is an excellent match for the Cat 349F and 336F Excavators; and Cat 972M, 966M, 962M and 950M Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.
