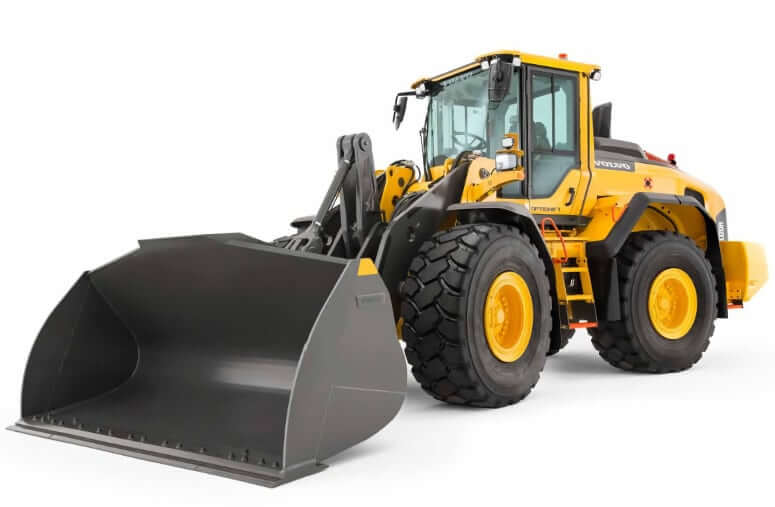

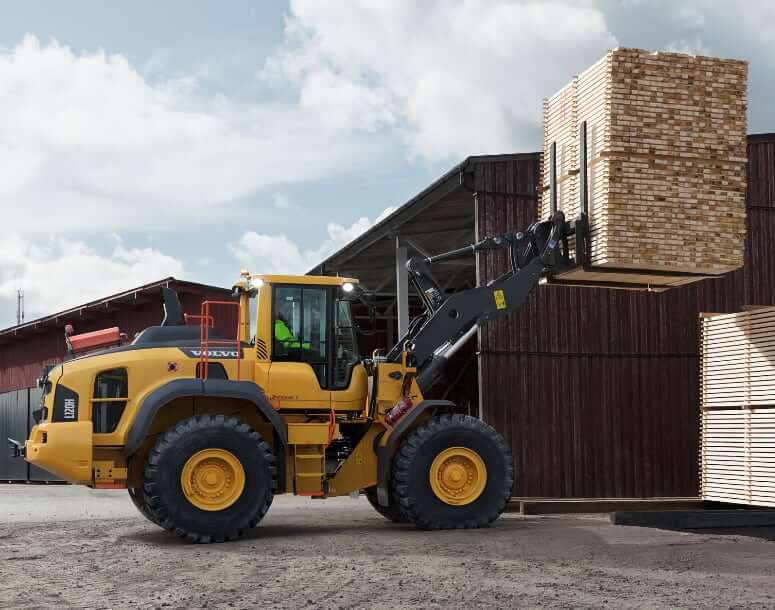

Loader Performance
| Standard Bucket Capacity | 4.3 yd3 (3.3 m3) |
| Standard Bucket Width | 118.1 in (3000 mm) |
| Static Tipping Load, Straight | 31857 lb (14450 kg) |
| Static Tipping Load, at 35° Turn | 28197 lb (12790 kg) |
| Static Tipping Load, at Full Turn | 27117 lb (12300 kg) |
| Breakout Force | 39004 lbf (173.5 kN) |
| Hinge Pin – Max Height | 161.4 in (4100 mm) |
| Clearance at 45° Dump | 106.3 in (2700 mm) |
| Reach at 45° Dump | 54.7 in (1390 mm) |
Dimensions
| Length With Bucket on Ground | 328.3 in (8340 mm) |
| Width Over Tires | 105.1 in (2670 mm) |
| Height to Top of Cab | 133.1 in (3380 mm) |
| Wheelbase | 126 in (3200 mm) |
| Ground Clearance | 17.3 in (440 mm) |
| Tire Size (Standard) | 23.5 R25 L3 |
| Tire Size (Optional) | 750/65 R25 |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | Volvo |
| Engine Model | Volvo D8J |
| Displacement | 470 cu in (7.7 L) |
| Bore | 4.33 in (110 mm) |
| Stroke | 5.31 in (135 mm) |
| Net Power | 276 hp (203 kw) |
| Power Measured @ | 1500 rpm |
| Max Torque | 981 lb ft (1330 Nm) |
| Torque Measured @ | 1350 rpm |
| Aspiration | Turbocharged |
Operational Specs
| Operating Weight | 42902 lb (19460 kg) |
| Max Operating Weight (w/ Rehandling Bucket, 3.8 m3) | 44820 lb (20330 kg) |
| Operating Voltage | 24 V |
| Alternator | 2x 80 amps |
| Battery | 2x 12 V, 170 Ah, CCA 1000 |
| Starter | 7.4 hp (5.5 kw) |
| Noise Level, LpA (in cab) | 68 dB(A) |
| Noise Level, LwA (exterior) | 106 dB(A) |

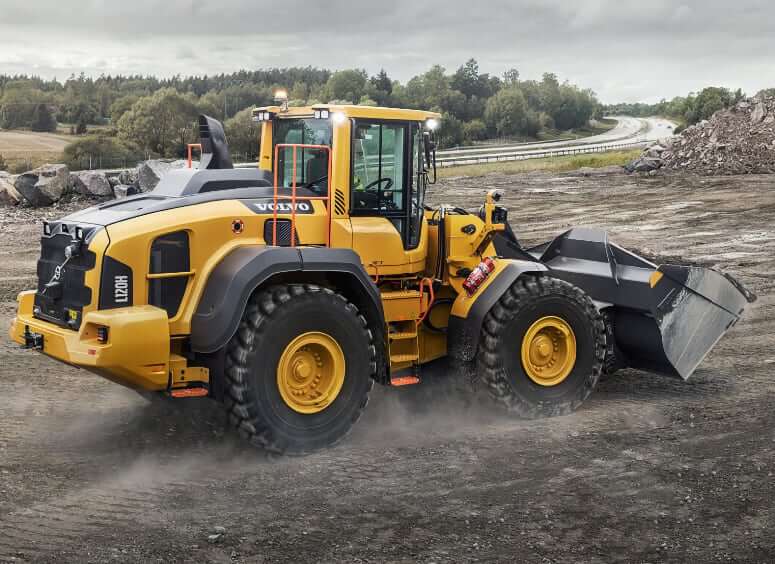

Transmission
| Type | Automatic Power Shift transmission |
| Model | Volvo HTE 206C |
| Number off Gears | 4F/ 4R |
| Max Forward Speed | 24.9 mph (40 km/h) |
| Max reverse Speed | 24.9 mph (40 km/h) |
| Torque Converter Type | Single-stage |
| Torque Multiplication, Stall Ratio | 2.47:1 |
| Service Brakes | Volvo dual-circuit system with nitrogen charged acculmulators. Outboard mounted hydraulically operated, fully sealed oil circulation cooled wet disc brakes. ISO 3450 |
| Parking Brake | Dry disc brake. Applied by spring force, electro-hydraulic release with a switch on the instrument panel |
| Secondary Brake | Dual brake circuits with rechargeable accumulators. One circuit or the parking brake fulfills all safety requirements |
Axles
| Front Axle Type | Volvo AWB 31 |
| Rear Axle Type | Volvo AWB 30 |
| Rear Axle Oscillation | 13° |
Steering System
| Articulation Angle | ±40° |
| Steering Pump Type | Load-sensing axial piston pump with variable displacement |
| Steering Cylinders | 2 |
| Cylinder Bore | 3.2 in (80 mm) |
| Stroke | 1.6 ft in (486 mm) |
| Rod Diameter | 2 in (50 mm) |
Hydraulic System
| Pump Type | 2x load-sensing axial piston pumps with variable displacement. The steering system always has priority |
| Valves | Double-acting 2-spool valve. The main valve is controlled by a 2-spool pilot valve |
| Lift Function | The valve has four positions; raise, hold, lower and floating position. Inductive/magnetic automatic boom kickout can be switched on and off and is adjustable to any position between maximum reach and full lifting height |
| Tilt function | The valve has three functions including rollback, hold and dump. Inductive/magnetic automatic tilt can be adjusted to the desired bucket angle |
| Pump 1 Flow (main) | 33.8 gal/min (128 L/min) |
| Pump 1 Working Pressure (main) | 4206 psi (29000 kPa) |
| Pump 2 Flow (steering, brake, pilot) | 33.8 gal/min (128 L/min) |
| Pump 2 Working Pressure (steering, brake, pilot) | 4496 psi (31000 kPa) |
| Pump 3 Flow (brake and cooling fan system) | 8.7 gal/min (33 L/min) |
| Pump 3 Working Pressure (brake and cooling fan system) | 3046 psi (21000 kPa) |
| Pilot System Working Pressure | 508 psi (3500 kPa) |
| Loader Cylinders | Double-acting cylinders for all functions |
| Hydraulic Filter | Full flow filtration through 10 micron (absolute) filter cartridge |
Hydraulic Cycle Times
| Lift Time (Unloaded) | 5.4 sec |
| Lower Time (Unloaded) | 2.5 sec |
| Tilt Time | 2.1 sec |
| Total Cycle Time | 10 sec |

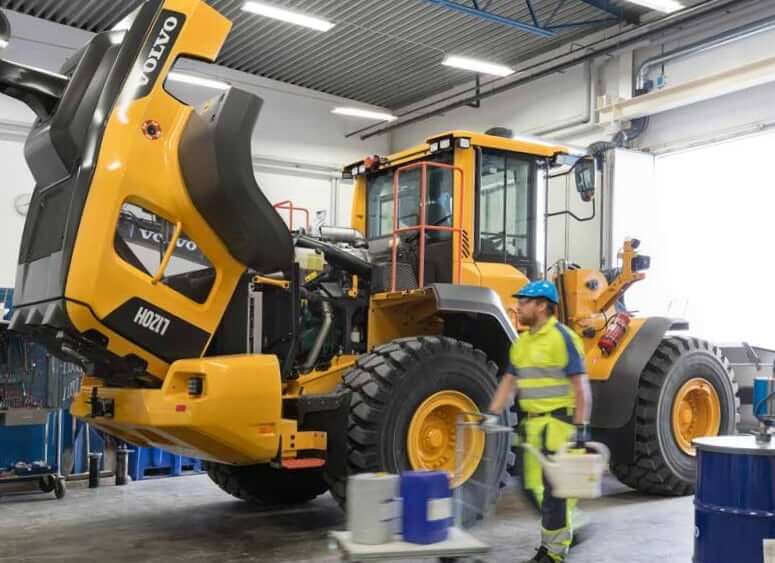

Service Refill Capacities
| Fuel Tank Capacity | 71.4 gal (270 L) |
| DEF Tank Capacity | 6.7 gal (25 L) |
| Engine Oil Capacity | 5.9 gal (22 L) |
| Cooling System Capacity | 11.4 gal (43 L) |
| Transmission Oil Capacity | 10.1 gal (38 L) |
| Front Axle Fluid Capacity | 9.6 gal (36 L) |
| Rear Axle Fluid Capacity | 10.9 gal (41 L) |
| Hydraulic System Capacity | 35.2 gal (133 L) |
