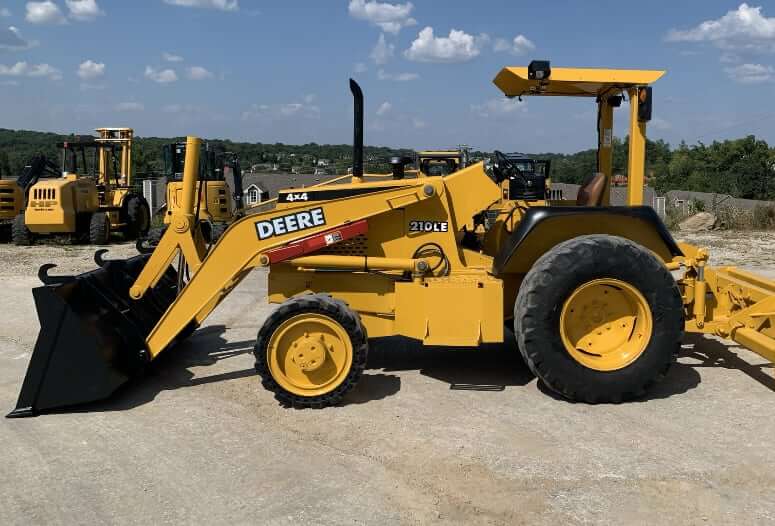

Loader Performance
| John Deere 210LE | HD Bucket, 1.00 yd3 (0.76 m3) | HD Bucket, 1.12 yd3 (0.86 m3) | Multi-purpose, 1.25 yd3 (0.96 m3) |
|---|---|---|---|
| Breakout Force | 7900 lbf (35.14 kN) | 7750 lbf (34.47 kN) | 6900 lbf (30.69 kN) |
| Lifting Capacity, Full Height | 5280 lb (2395 kg) | 5100 lb (2313 kg) | 4600 lb (2086 kg) |
| Height to Bucket Hinge Pin, Maximum | 136.7 in (3470 mm) | 136.7 in (3470 mm) | 136.7 in (3470 mm) |
| Dump Clearance, Bucket at 45° | 100.6 in (2560 mm) | 100.4 in (2550 mm) | 96.5 in (2450 mm) |
| Reach at Full Height, Bucket at 41.6° | 34.4 in (875 mm) | 33.8 in (858 mm) | 35.4 in (899 mm) |
| Rollback Angle at Ground Level | 44° | 44° | 44° |
| Digging Depth Below Ground, Bucket Level | 9.6 in (245 mm) | 10.2 in (259 mm) | 11.8 in (300 mm) |
| Raising Time to Full Height | 5.2 sec | 5.2 sec | 5.2 sec |
| Bucket Dump Time | 1.5 sec | 1.5 sec | 1.5 sec |
| Bucket Lowering Time (Power Down) | 2.4 sec | 2.4 sec | 2.4 sec |

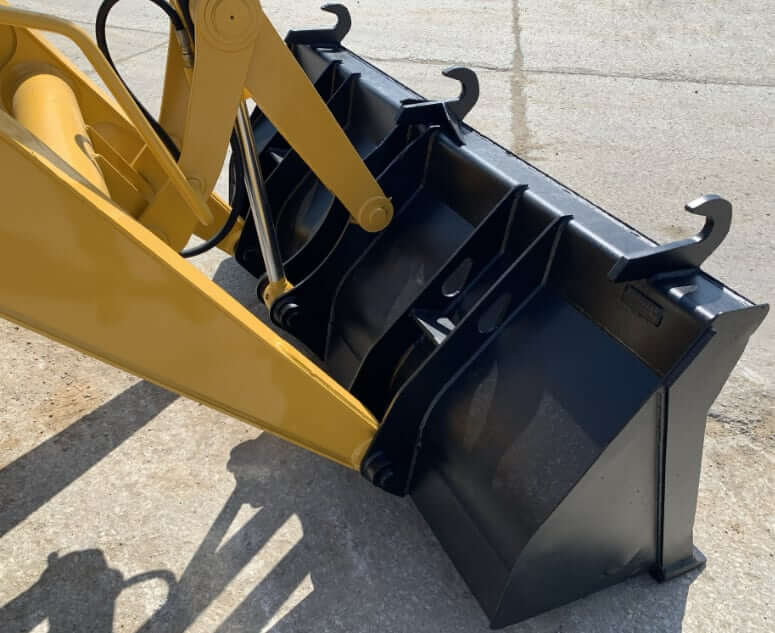

Loader Buckets
| Bucket Type | Width | Capacity | Weight |
|---|---|---|---|
| Heavy-Duty Long Lip | 86 in (2180 mm) | 1.00 yd3 (0.76 m3) | 710 lb (322 kg) |
| Heavy-Duty Long Lip | 86 in (2180 mm) | 1.12 yd3 (0.86 m3) | 940 lb (426 kg) |
| Multipurpose | 86 in (2180 mm) | 1.25 yd3 (0.96 m3) | 1450 lb (658 kg) |

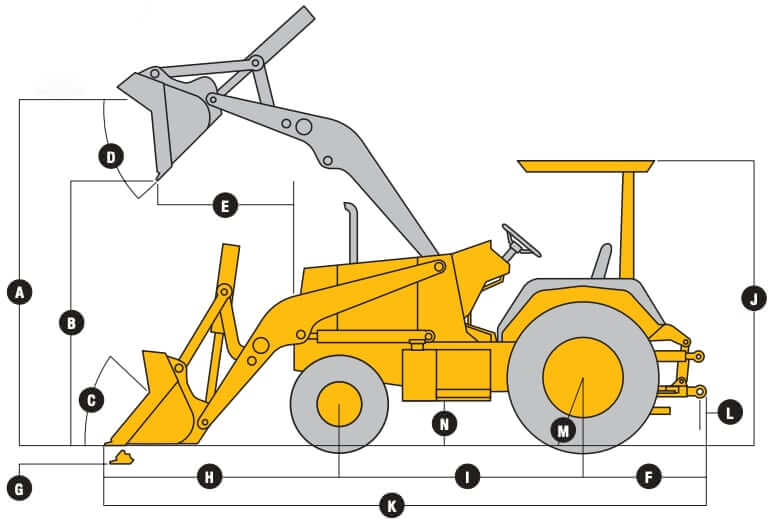

Dimensions
| A. At 45° Dump Angle | 130.9 in (3330 mm) |
| A. At Full Height | 136.7 in (3470 mm) |
| B. At 45° Dump Angle | 100.6 in (2560 mm) |
| B. At Full Height | 105.7 in (2690 mm) |
| C. Bucket Pin 11 in (280 mm) Off Ground | 44° |
| D. At Full Height | 41.6° |
| E. At 45° Dump Angle | 37 in (940 mm) |
| E. At Full Height | 34.4 in (874 mm) |
| F. Lower Link Horizontal | 45 in (1143 mm) |
| G. Bucket Digging Depth | 9.6 in (245 mm) |
| H. Bucket Level on Ground | 78.1 in (1984 mm) |
| H. Bucket Rolled Back, Pin 11 in (280 mm) Off Ground | 76.6 in (1946 mm) |
| I. Wheelbase | 83.3 in (2116 mm) |
| J. Transport Height to Top of ROPS | 97.6 in (2479 mm) |
| K. Overall Length w/ Bucket Level on Ground | 206 in (5200 mm) |
| L. Lower Link Pin Center | 1.6 in (40 mm) |
| M. Static Loaded Radius | 23 in (584 mm) |
| N. Ground Clearance Under MFWD Axle | 11.3 in (287 mm) |
| N. Ground Clearance Under Transmission | 12.3 in (312 mm) |
| Width Over Rear Tires | 84.0 in (2134 mm) |
Engine Details
| Engine Model | John Deere 4045D | John Deere 4045T |
|---|---|---|
| Number of Cylinders | 4 | 4 |
| Displacement | 276 cu in (4.524 L) | 276 cu in (4.524 L) |
| Bore | 4.17 in (106 mm) | 4.17 in (106 mm) |
| Stroke | 5.00 in (127 mm) | 5.00 in (127 mm) |
| Gross Power | 78 hp (58.2 kw) | 84.5 hp (63 kw) |
| Net Power | 73 hp (54.4 kw) | 80 hp (60 kw) |
| Power Measured @ | 2200 rpm | 2200 rpm |
| Max Torque | 220 lb ft (298 Nm) | 220 lb ft (298 Nm) |
| Torque Measured @ | 1700 rpm | 1700 rpm |
| Torque Rise | 26 % | 26 % |
| Lubrication System | Pressure system with spin-on filter and cooler | Pressure system with spin-on filter and cooler |
| Air Cleaner | Dual stage dry type with safety element, evacuator valve, and prescreener | Dual stage dry type with safety element, evacuator valve, and prescreener |
| Aspiration | Naturally aspirated | Turbocharged |

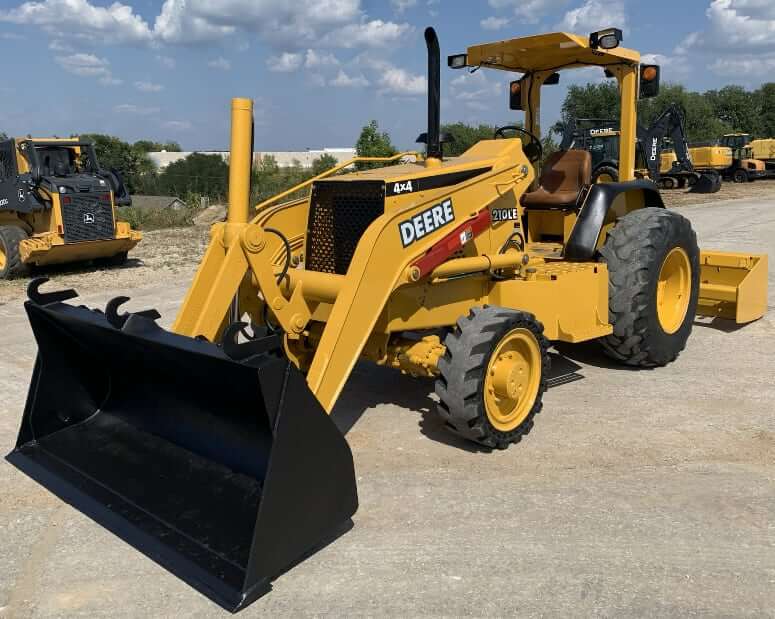

Operational Specs
| Operating Weight | 9130 lb (4141 kg) |
| Max Operating Weight | 16000 lb (7257 kg) |
| Hitch Weight / Drawbar | 535 lb (243 kg) |
| Wheel Weight | 1100 lb (499 kg) |
| Operating Voltage | 12 V |
| Alternator | 65 amps |
| Battery | 12 V, CCA 925, RC: 180 min |
| Battery (Optional) | 2x 12 V, CCA 1850, RC: 360 min |
| Front Tire Size | 12-16.5 8 PR NHS |
| Rear Tire Size | 16.9-24 8 PR R4 |
Operator Environment
| Operator Station | Two-post ROPS/FOPS canopy with steel roof (SAE J1040) |
| Operator Seat | Suspension vinyl seat with flip-up armrests, backrest angle adjustment, swivel base, |
| Seat Belt | 3 in (76.2 mm) seat belt with retractor |

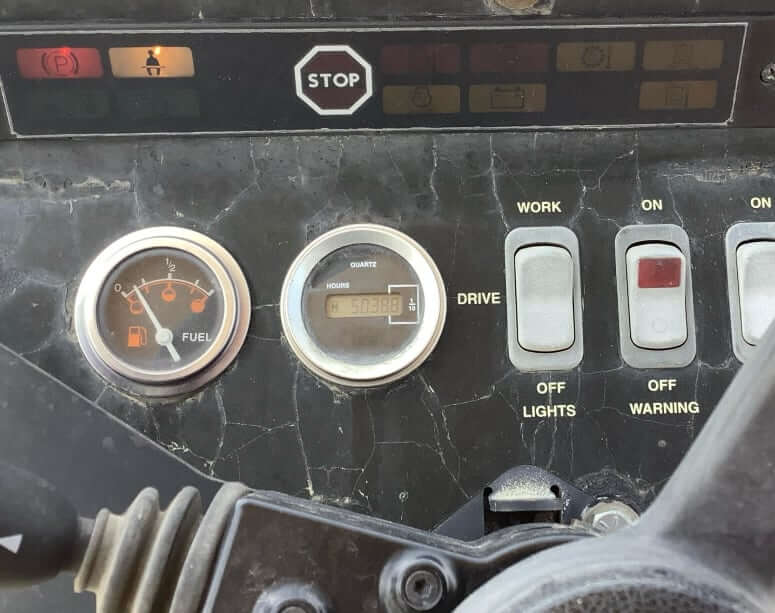

| Fuel Gauge | Electric, illuminated |
| Hourmeter | Electric |
| Monitor System | Engine air filter restriction indicator / Alternator indicator / Engine coolant temperature indicator with audible warning / Engine oil pressure indicator with audible warning / Hydraulic filter restriction indicator / Torque converter oil temperature indicator / Parking brake on/off indicator with audible warning / Seat belt indicator / MFWD on/off indicator |
Transmission
| Type (Standard) | Helical-cut gear, collar-shift transmission synchronized in all gears with hydraulic reverser |
| Type (Optional) | Full-power-shifted transmission |
| Torque Converter | Single stage, dual phase with 2.63:1 |
| Number of Gears | 4F / 4R (4F / 3R) |
| Max Forward Speed | 20.5 mph (33 km/h) |
| Max Reverse Speed | 20.5 mph (33 km/h) |
| Final Drives | Heavy-duty, inboard planetary final drives evenly distribute shock loads over three gears |
| Service Brakes | Hydraulic multi wet disc, mounted inboard, self adjusting and self equalizing |
| Parking Brake | Spring applied, hydraulically released multi wet disc, independent of service brakes, switch-operated electrical control, self engaging with engine shutdown |
Steering
| Steering Type | Hydrostatic power steering (SAE J1151), emergency steering (SAE J53) |
| Steering Wheel Turns, Stop to Stop | 3 |
| Front Axle Type | Mechanical-front-wheel-drive (MFWD) |
| Curb Turning Radius, w/ Brakes | 10 ft. 11 in. (3.34 m) |
| Curb Turning Radius, w/o Brakes | 13 ft. 8 in. (4.17 m) |
| Bucket Clearance Circle, w/ Brakes | 29 ft. 9 in. (9.07 m) |
| Bucket Clearance Circle, w/o Brakes | 35 ft. 3 in. (10.74 m) |
| Axle Oscillations Stop to Stop, Both Axles | 22° |
| Front Axle Ratings (SAE J43) | 17340 lb (7865 kg) |
| Rear Axle Ratings (SAE J43) | 12610 lb (5720 kg) |

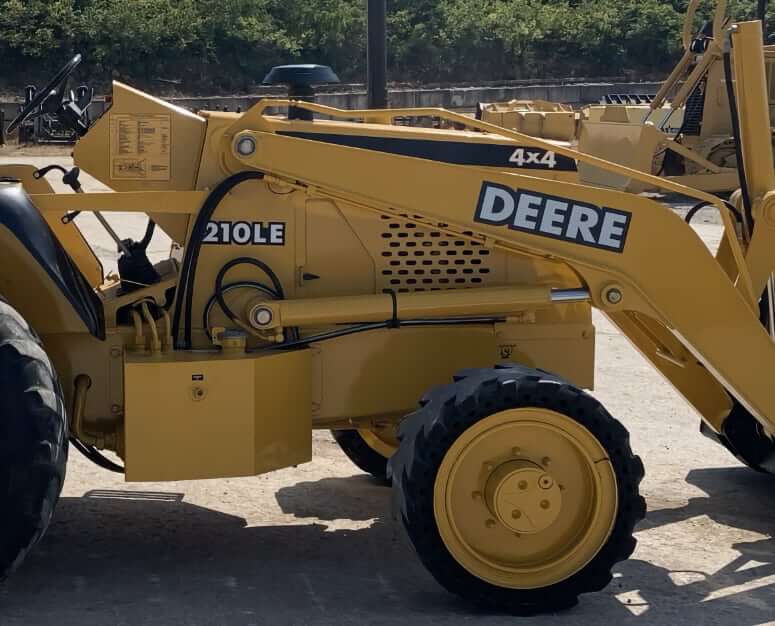

Hydraulic System
| Type | Open center hydraulics |
| Pump Type | Gear type with integral priority valve |
| Pump Flow Capacity | 25 gal/min (94.5 L/min) |
| Relief Valve Setting | 2750 psi (19000 kPa) |
| Hydraulic Oil Filtration | 10-micron, spin-on enclosed replaceable element |
3-Point Hitch
| 3 Point Hitch Type | Category II |
| 3 Point Hitch Functions | Heavy duty, integral to vehicle mainframe, with individual lever control of the lift, tilt, pitch, and auxiliary functions and with down force and float on the lift circuit |
| Controlled Hydraulic Flow | 10 gal/min (37.9 L/min) |
| 3-Point Hitch Lift Capacity @ 24″ | 3790 lbf (16.85 kN) |
| 3-Point Hitch Lift Capacity @ ends | 6870 lbf (30.57 kN) |
| Sectional Hydraulic Valve | Lift, with down-pressure and float / Tilt, single / Pitch / Fourth function auxiliary with capped hoses, 6 gal/min (22.7 L/min) |
| Cylinders | 1x Lift / 1x Tilt / 1x Pitch |

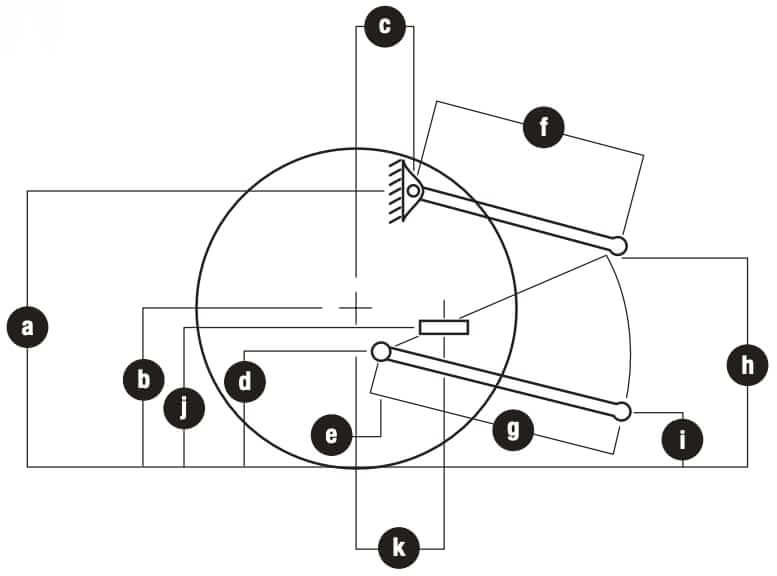

3-Point Hitch Dimensions
| a. Height of Hole for Top Link | 30.8 in (783 mm) |
| b. Height of Rear Axle Center | 23.0 in (584 mm) |
| c. Top Link Hole Distance From Rear Axle Center | 17.7 in (450 mm) |
| d. Height of Lower Link Point | 18.3 in (465 mm) |
| e. Lower Link Point Distance From Rear Axle Center | 14.0 in (356 mm) |
| f. Pitch Cylinder (Top Link) Retracted | 22.5 in (572 mm) Min. |
| f. Pitch Cylinder (Top Link) Extended | 31.0 in (788 mm) Max. |
| g. Lower Link Length | 29.5 in (749 mm) |
| h. Maximum Height of Lower Link | 28.1 in (714 mm) |
| i. Minimum Height of Lower Link | 7.7 in (196 mm) |
| j. Height of Drawbar | 12.8 in (325 mm) |
| k. Hitch Pin From Rear Axle Center | 33.2 in (843 mm) |
Service Refill Capacities
| Fuel Tank Capacity | 26 gal (98 L) |
| Engine Oil Capacity (w/ filter) | 2.3 gal (8.5 L) |
| Cooling System Capacity | 4.3 gal (16 L) |
| Torque Converter + Transmission Oil Capacity | 3.7 gal (14 L) |
| Hydraulic System Capacity | 14.4 gal (54.5 L) |
| Rear Axle / Differential Fluid Capacity | 3.5 gal (13 L) |
| Front MFWD Axlel Fluid Capacity | 2.3 gal. (8.5 L) |
