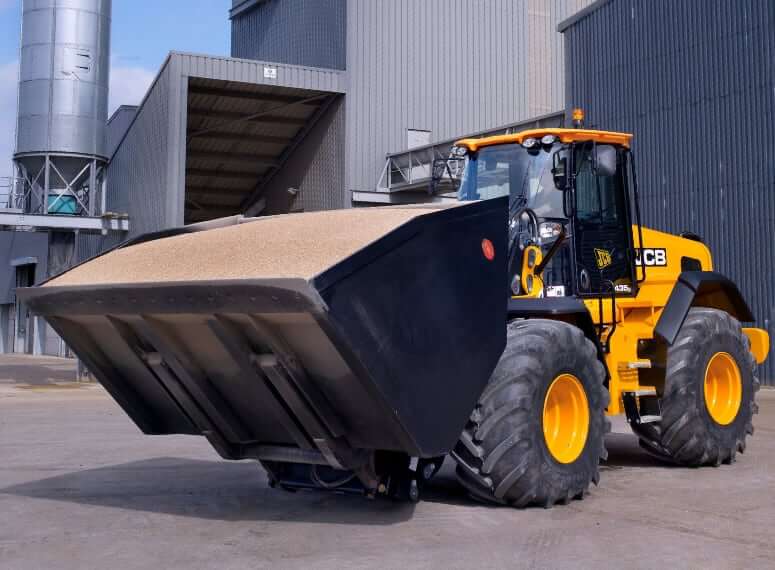

Loader Performance
| Tipping Load (straight) | 21497 lb (9751 kg) |
| Tipping Load (full turn) | 18841 lb (8546 kg) |
| Payload | 9420 lb (4273 kg) |
| Bucket Capacity – Heaped | 2.5 yd3 (1.9 m3) |
| Bucket Capacity – Struck | 2.1 yd3 (1.6 m3) |
| Max Material Density | 3791 lb/yd3 (2249 kg/m3) |
| Bucket Width | 100.4 in (2550 mm) |
| Breakout Force | 31024 lbf (138 kN) |
| Max Hinge Pin Height | 155.8 in (3958 mm) |
| Max Operating Height | 202.6 in (5147 mm) |
| Dump Height (45° dump) | 115.9 in (2944 mm) |
| Reach at Dump Height | 37.2 in (946 mm) |
| Reach Max (45° dump) – horizontal arm | 66.7 in (1693 mm) |
| Load over Height | 142.2 in (3612 mm) |
| Max Dump Angle | 49° |
| Rollback Angle (full height) | 58° |
| Rollback at Carry | 48° |
| Rollback at Ground Level | 43° |
| Dig Depth | 1.9 in (47 mm) |

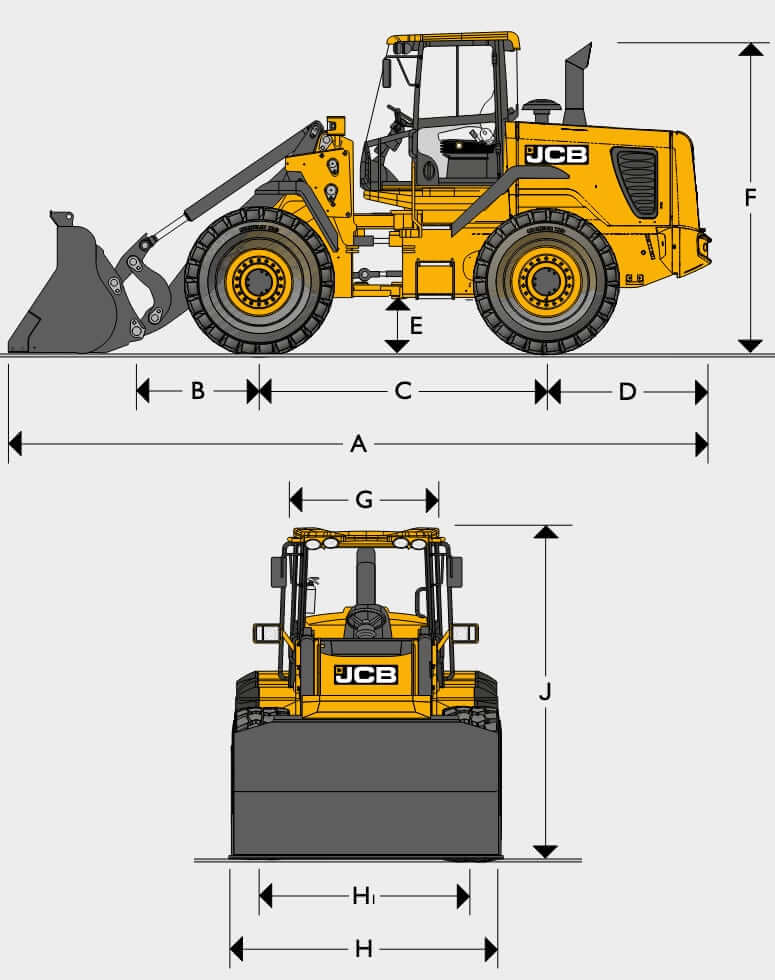

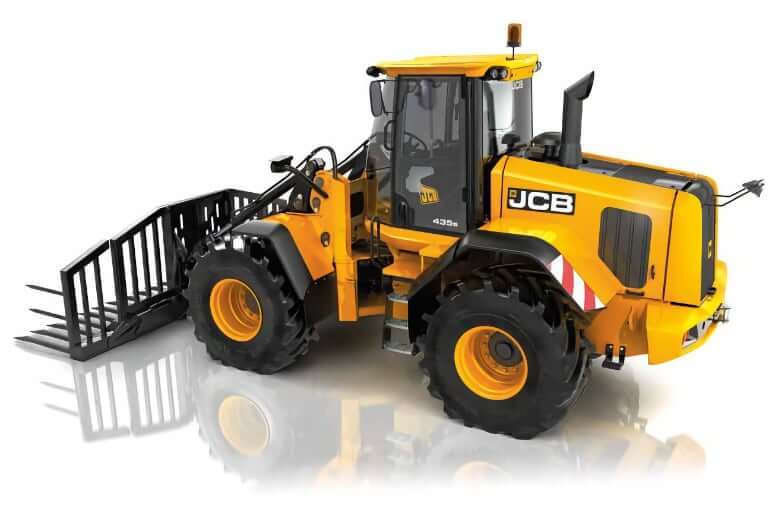

Dimensions
| A. Overall Length | 268.9 in (6831 mm) |
| B. Axle to Pivot Pin | 43.1 in (1096 mm) |
| C. Wheelbase | 118.1 in (3000 mm) |
| D. Axle to Counterweight Face | 71.5 in (1816 mm) |
| E. Minimum Ground Clearance | 19.4 in (494 mm) |
| F. Height over Exhaust | 127.4 in (3236 mm) |
| G. Width over Cab | 55.1 in (1400 mm) |
| H. Width over Tires | 107.9 in (2740 mm) |
| H1. Wheel Track | 84.7 in (2152 mm) |
| J. Height over Cab | 133.3 in (3387 mm) |
Weights
| Operating Weight | 28929 lb (13122 kg) |
| Max Operating Weight | 32551 lb (14765 kg) |
| Extra Counterweight | 838 lb (380 kg) |
| Heavy-duty Counterweight | 1962 lb (890 kg) |
| Front Axle Weight | 2381 lb (1080 kg) |
| Rear Axle Weight | 1797 lb (815 kg) |
| Max Front Axle Load | 14176 lb (6430 kg) |
| Max Rear Axle Load | 16001 lb (7258 kg) |
| GP Bucket Weight (1.9 m3) | 1786 lb (810 kg) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | Cummins |
| Engine Model | Cummins QSB6.7 |
| Displacement | 408.9 cu in (6.7 L) |
| Bore | 4.21 in (107 mm) |
| Stroke | 4.88 in (124 mm) |
| Net Power | 206 hp (154 kw) |
| Gross Power | 230 hp (172 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 697 lb ft (945 Nm) |
| Torque Measured @ | 1500 rpm |
| Fan Drive Type | Hydraulically driven cooling fan |
| Air Cleaner | Cyclonic pre-filter with engine fan scavenge system |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Tier 4i + EU Stage IIIB |
Operational Specs
| Operating Weight | 28929 lb (13122 kg) |
| Tipping Load (straight) | 21497 lb (9751 kg) |
| Tipping Load (full turn) | 18841 lb (8546 kg) |
| Payload | 9420 lb (4273 kg) |
| Operating Voltage | 24 V |
| Alternator | 70 amps |
| Battery | 2x 12 V, 110 Ah |
| Articulation Angle | ±40° |
| Rear Axle Oscillation | ±10.5° |
| Front Axle Type | ZF MT-L3085 II |
| Rear Axle Type | ZF MT-L3075 II |
| Drive | 4WD |
| Tire Size | 620/75 R26 MEGAXBIB, 620/75 R26 DT824, 750/65 R26 MEGAXBIB, 750/65 R26 DT824 |
| Turning Radius (inside) | 110 in (2791 mm) |
| Turning Radius (over bucket) | 228 in (5790 mm) |
| Service Brakes | Hydraulic power braking on all wheels. Dual circuit with accumulator back-up. Hub mounted, oil immersed, multi-plate disc brakes with organic brake linings are environmentally acceptable |
| Parking Brake | Mechanical type operating on transmission output shaft |

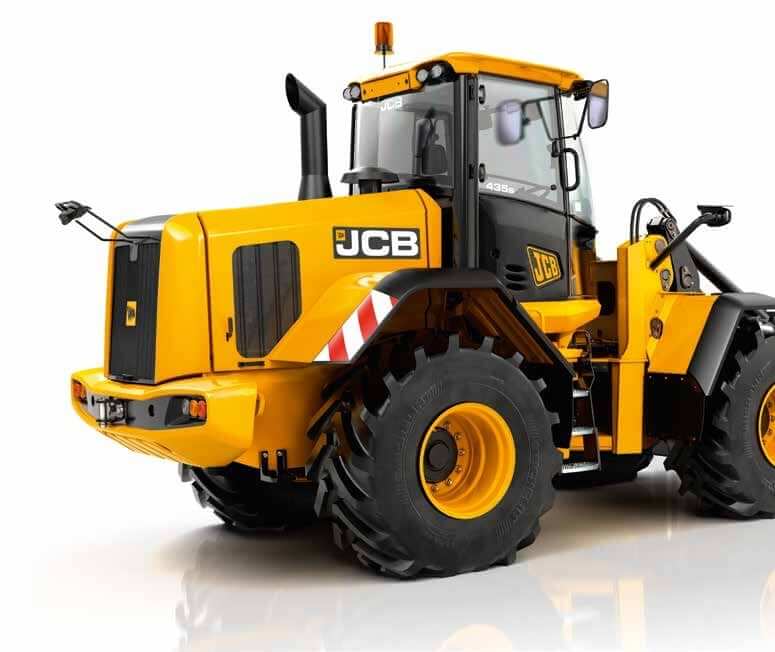

Transmission
| Transmission Type | 6-speed automatic smooth shift transmission with lock up converter ZF 6WG210 |
| Number of Gears | 6F / 3R |
| Max Forward Speed | 32.5 mph (52.3 km/h) |
| Max Reverse Speed | 22.5 mph (36.1 km/h) |
Hydraulic System
| Type | Load sensing hydraulics |
| Pump Type | Twin variable displacement piston pumps |
| Pump 1 Flow Capacity | 34.9 gal/min (132 L/min) |
| Pump 1 Max Pressure | 3626 psi (25000 kPa) |
| Pump 2 Flow Capacity | 34.9 gal/min (132 L/min) |
| Pump 2 Max Pressure | 2321 psi (16000 kPa) |
| Steering Pump Pressure | 2756 psi (19000 kPa) |
| AUX Circuits (3 or 4) | Auxiliary circuits (3 or 4) controlled via additional lever next to joystick, joystick mounted proportional buttons or additional multi lever with column mounted changeover switch |
Hydraulic Cycle Times
| Arms Raise Time (full bucket) | 4.7 sec |
| Bucket Dump Time (full bucket) | 1.8 sec |
| Arms Lower Time (empty bucket) | 2.8 sec |
| Total Cycle Time | 9.3 sec |

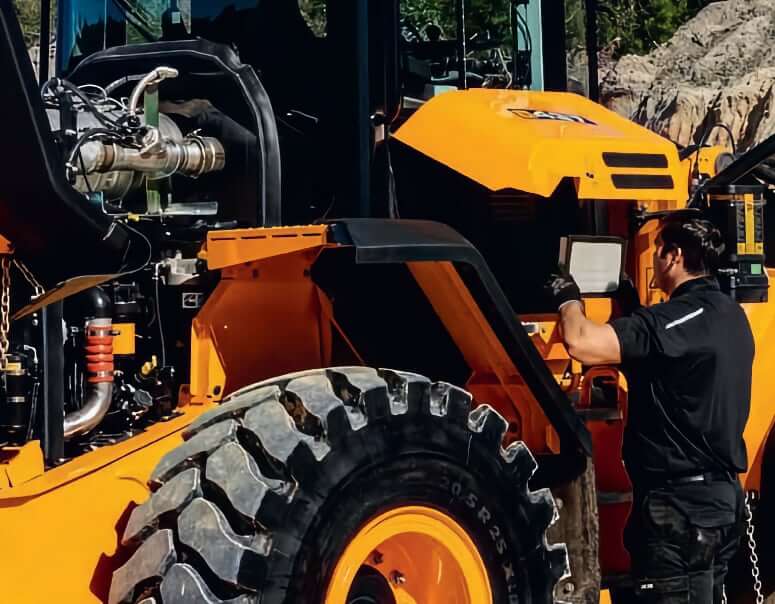

Service Refill Capacities
| Fuel Tank Capacity | 105.7 gal (400 L) |
| DEF Tank Capacity | 10.6 gal (40 L) |
| Engine Oil Capacity | 4.8 gal (18 L) |
| Cooling System Capacity | 9.2 gal (35 L) |
| Hydraulic System Fluid Capacity | 55.5 gal (210 L) |
| Transmission Oil Capacity | 9.5 gal (36 L) |
| Front Axle Fluid Capacity | 9.2 gal (35 L) |
| Rear Axle Fluid Capacity | 6.1 gal (23 L) |
