| Tipping Load (straight) |
16784 lb (7613 kg) |
| Tipping Load (full turn) |
14588 lb (6617 kg) |
| Payload |
7293 lb (3308 kg) |
| Bucket Capacity – Heaped |
2.5 yd3 (1.9 m3) |
| Bucket Capacity – Struck |
2.1 yd3 (1.6 m3) |
| Bucket Width |
100.4 in (2550 mm) |
| Breakout Force |
27202 lbf (121 kN) |
| Max Material Density |
2935 lb/yd3 (1741 kg/m3) |
| Max Hinge Pin Height |
172.8 in (4388 mm) |
| Max Operating Height |
219.6 in (5577 mm) |
| Dump Height (45° dump) |
129.1 in (3278 mm) |
| Reach at Dump Height |
47.8 in (1214 mm) |
| Reach Max (45° dump) – Horizontal Arm |
84.6 in (2148 mm) |
| Load over Height |
159.1 in (4042 mm) |
| Max Dump Angle |
45° |
| Rollback Angle (full height) |
58° |
| Rollback at Carry |
50° |
| Rollback at Ground Level |
48° |
| Dig Depth |
4.3 in (110 mm) |

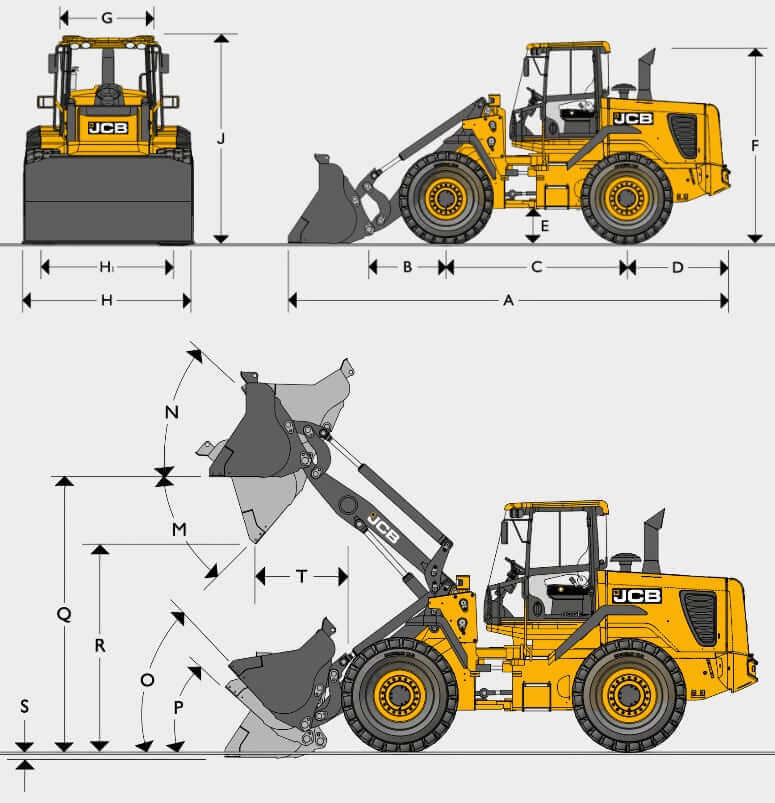

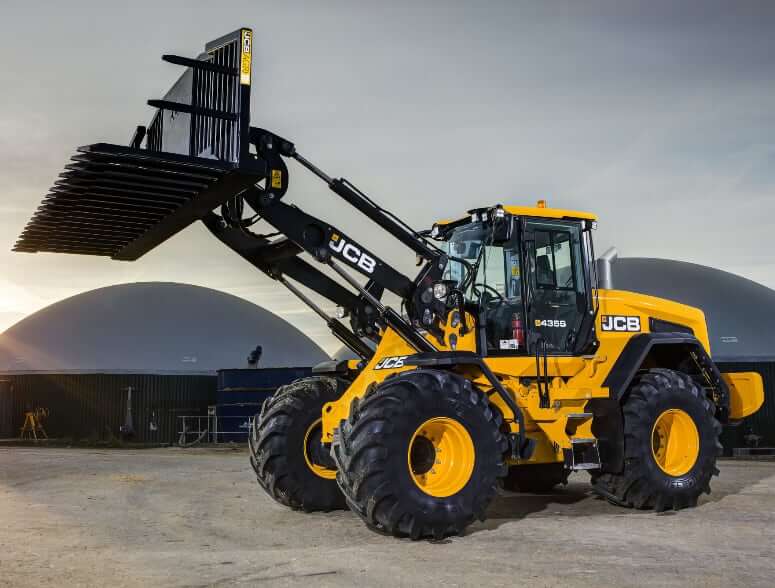

Dimensions
| A. Overall Length |
285.2 in (7244 mm) |
| B. Axle to Pivot Pin |
59.4 in (1509 mm) |
| C. Wheelbase |
118.1 in (3000 mm) |
| D. Axle to Counterweight Face |
71.5 in (1816 mm) |
| E. Minimum Ground Clearance |
19.4 in (494 mm) |
| F. Height over Exhaust |
127.4 in (3236 mm) |
| G. Width over Cab |
55.1 in (1400 mm) |
| H. Width over Tires |
107.9 in (2740 mm) |
| H1. Wheel Track |
84.7 in (2152 mm) |
| J. Height over Cab |
133.3 in (3387 mm) |
JCB 435S HL (Hi Lift Arm) data based on machine equipped with quickhitch mounted 1.9m3 bucket with bolt-on toeplates and 620/75 R26 Mega XBIB tires

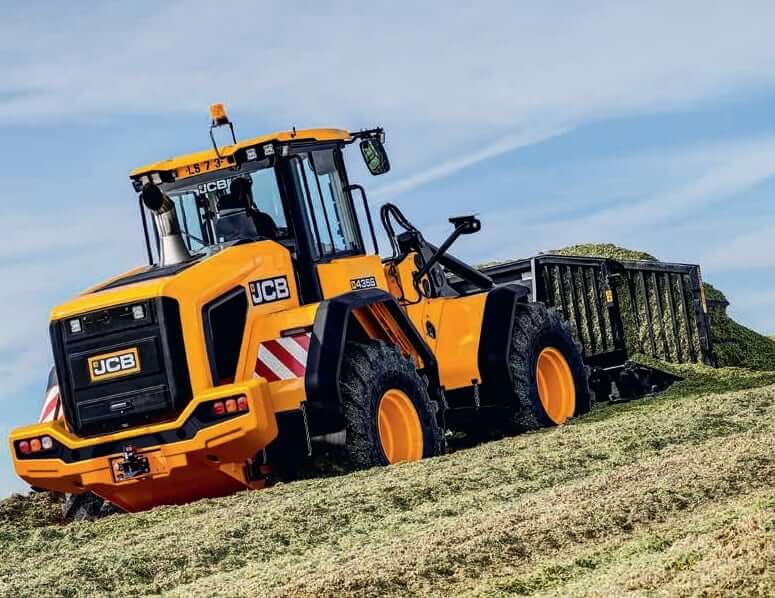

Weights
| Operating Weight |
30212 lb (13704 kg) |
| Max Operating Weight |
30871 lb (14003 kg) |
| GP Bucket Weight (1.9 m3) |
1786 lb (810 kg) |
| Extra Counterweight |
838 lb (380 kg) |
| Heavy-duty Counterweight |
1962 lb (890 kg) |
| Front Axle Weight |
2381 lb (1080 kg) |
| Rear Axle Weight |
1797 lb (815 kg) |
| Max Front Axle Load |
14176 lb (6430 kg) |
| Max Rear Axle Load |
16001 lb (7258 kg) |
Engine Details
| Number of Cylinders |
6 |
| Engine Make |
Cummins |
| Engine Model |
Cummins QSB6.7 |
| Displacement |
408.9 cu in (6.7 L) |
| Bore |
4.21 in (107 mm) |
| Stroke |
4.88 in (124 mm) |
| Gross Power |
230 hp (172 kw) |
| Net Power |
206 hp (154 kw) |
| Power Measured @ |
2100 rpm |
| Max Torque |
697 lb ft (945 Nm) |
| Torque Measured @ |
1500 rpm |
| Aspiration |
Turbocharged |
| Emission Standards |
US EPA Tier 4i + EU Stage IIIB |
Operational Specs
| Operating Weight |
30212 lb (13704 kg) |
| Tipping Load (straight) |
16784 lb (7613 kg) |
| Tipping Load (full turn) |
14588 lb (6617 kg) |
| Payload |
7293 lb (3308 kg) |
| Operating Voltage |
24 V |
| Alternator |
70 amps |
| Battery |
2x 12 V, 110 Ah |
| Articulation Angle |
±40° |
| Rear Axle Oscillation |
±10.5° |
| Front Axle Type |
ZF MT-L3085 II |
| Rear Axle Type |
ZF MT-L3075 II |
| Drive |
4WD |
| Tire Size |
620/75 R26 MEGAXBIB, 620/75 R26 DT824, 750/65 R26 MEGAXBIB, 750/65 R26 DT824 |
| Turning Radius (inside) |
110 in (2791 mm) |
| Turning Radius (over bucket) |
235.6 in (5985 mm) |
Transmission
| Transmission Type |
6-speed automatic smooth shift transmission with lock up converter ZF 6WG210 |
| Number of Gears |
6F / 3R |
| Max Forward Speed |
32.5 mph (52.3 km/h) |
| Max Reverse Speed |
22.5 mph (36.1 km/h) |
| Service Brakes |
Hydraulic power braking on all wheels. Dual circuit with accumulator back-up. Hub mounted, oil immersed, multi-plate disc brakes with organic brake linings are environmentally acceptable |
| Parking Brake |
Mechanical type operating on transmission output shaft |
Hydraulic System
| Type |
Load sensing hydraulic system |
| Pump Type |
Twin variable displacement piston pumps |
| AUX Circuits |
Auxiliary circuits (3 or 4) controlled via additional lever next to joystick, joystick mounted proportional buttons or additional multi lever with column mounted changeover switch |
| Pump 1 Flow Capacity |
34.9 gal/min (132 L/min) |
| Pump 1 Max Pressure |
3626 psi (25000 kPa) |
| Pump 2 Flow Capacity |
34.9 gal/min (132 L/min) |
| Pump 2 Max Pressure |
2321 psi (16000 kPa) |
| Steering Pump Pressure |
2756 psi (19000 kPa) |
Hydraulic Cycle Times
| Arms Raise Time (full bucket) |
4.7 sec |
| Bucket Dump Time (full bucket) |
1.8 sec |
| Arms Lower Time (empty bucket) |
2.8 sec |
| Total Cycle Time |
9.3 sec |
Service Refill Capacities
| Fuel Tank Capacity |
105.7 gal (400 L) |
| DEF Tank Capacity |
10.6 gal (40 L) |
| Engine Oil Capacity |
4.8 gal (18 L) |
| Cooling System Capacity |
9.2 gal (35 L) |
| Transmission Oil Capacity |
9.5 gal (36 L) |
| Front Axle Capacity |
9.2 gal (35 L) |
| Rear Axle Capacity |
6.1 gal (23 L) |
| Hydraulic System Capacity |
55.5 gal (210 L) |
