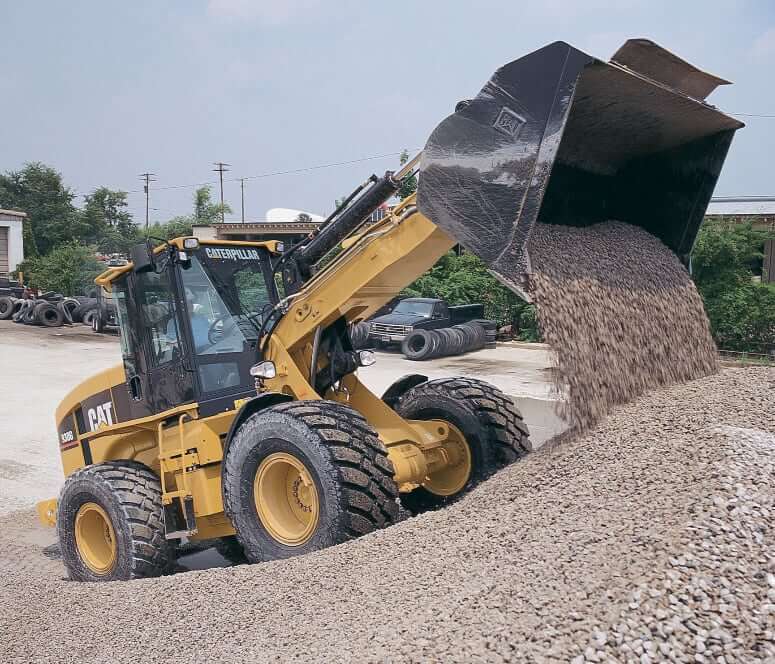

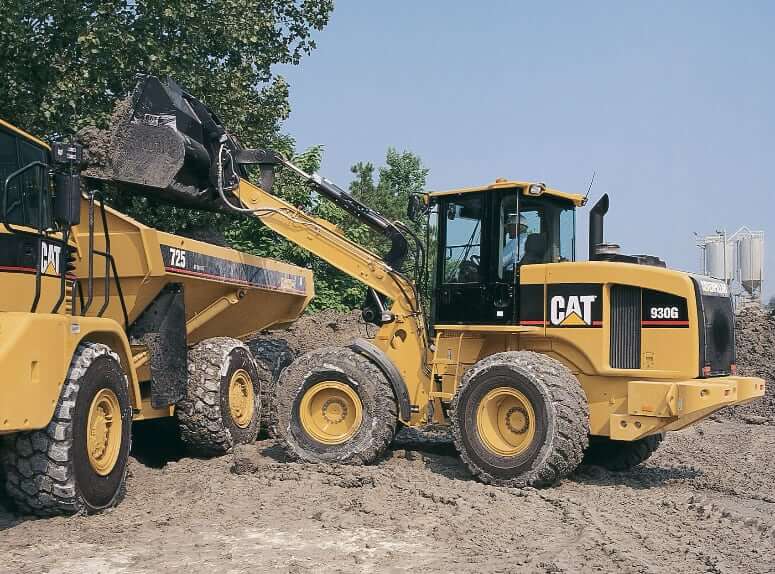

Loader Performance
| Bucket Capacity | 2.6-6.5 yd3 (2.1-5.0 m3) |
| Bucket Width (GP, Bolt-On, Cutting Edge) | 100.4 in (2550 mm) |
| Bucket Width (GP, Bolt-On, Teeth) | 101.8 in (2585 mm) |
| Breakout Force | 26639 – 32177 lbf (118.5 – 143.1 kN) |
| Static Tipping Load, Straight | 19520 – 20344 lb (8854 – 9228 kg) |
| Static Tipping Load, Articulated | 16876 – 17670 lb (7655 – 8015 kg) |
Dimensions

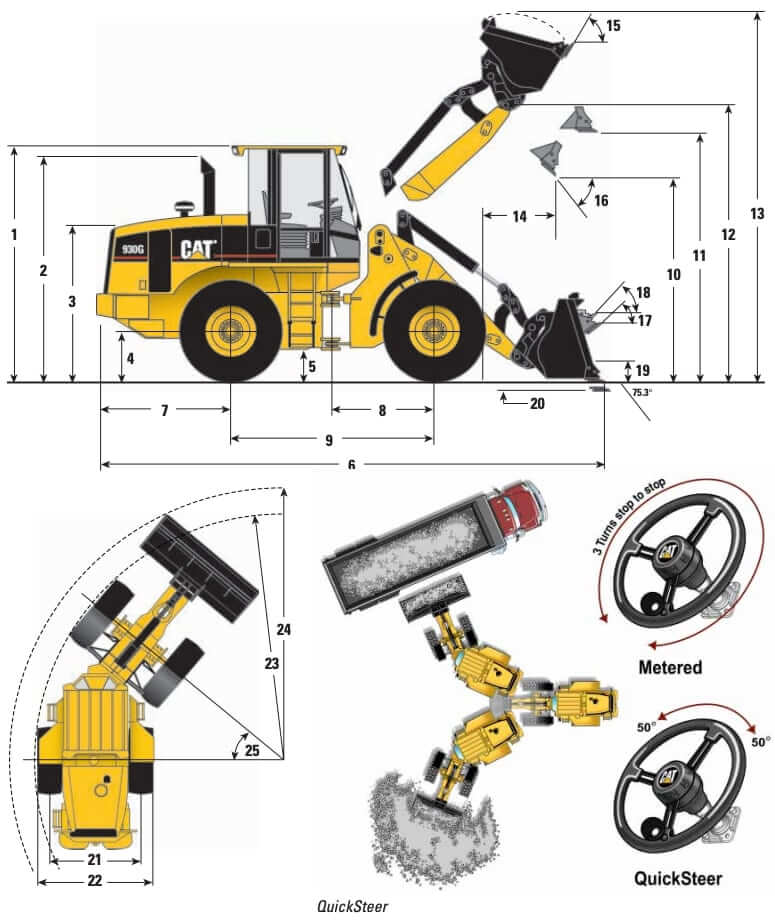

| Cat 390G with | Standard VersaLink | High Lift VersaLink |
|---|---|---|
| 1. Height to Top of ROPS/FOPS | 129.4 in (3288 mm) | 129.4 in (3288 mm) |
| 2. Height to Top of Exhaust Stack | 126.6 in (3215 mm) | 126.6 in (3215 mm) |
| 3. Height to Top of Hood | 88.3 in (2244 mm) | 88.3 in (2244 mm) |
| 4. Height to Center of Axle | 27.4 in (695 mm) | 27.4 in (695 mm) |
| 5. Ground Clearance | 16.6 in (421 mm) | 16.6 in (421 mm) |
| 6. Overall Length | 289.2 in (7390 mm) | 310.2 in (7877 mm) |
| 7. Length – Rear Axle to Bumper | 71.5 in (1816 mm) | 71.5 in (1816 mm) |
| 8. Center Line of Front Axle to Hitch | 57.1 in (1450 mm) | 57.1 in (1450 mm) |
| 9. Wheelbase | 114.2 in (2900 mm) | 114.2 in (2900 mm) |
| 10. Dump Clearance at Max Lift & 45° dump | 115.6 in (2936 mm) | 135.3 in (3436 mm) |
| 11. Bucket Clearance at Max Lift & level | 146.7 in (3726 mm) | 166.5 in (4226 mm) |
| 12. Bucket Pin Height at Max Lift | 160.2 in (4069 mm) | 179.5 in (4559 mm) |
| 13. Overall Height – Bucket Raised | 210.3 in (5344 mm) | 229.7 in (5835 mm) |
| 14. Reach at Max lift & 45° Dump | 42.3 in (1073 mm) | 42.3 in (1073 mm) |
| 15. Rack Back Angle at Max Lift | 60° | 62° |
| 16. Dump Angle at Max Lift | 45° | 45° |
| 17. Rack Back Angle at Ground | 51° | 52° |
| 18. Rack Back Angle at Carry | 53° | 57° |
| 19. Carry Height | 16.9 in (428 mm) | 22.7 in (577 mm) |
| 20. Digging Depth | 5.6 in (142 mm) | 6.2 in (157 mm) |
Dimensions listed are for Cat 930G with 2.7 yd3 (2.1 m3) bucket with bolt-on cutting edge, cab with A/C, optional counterweight, limited slip axles, heavy duty rear brakes, additional guarding, sound suppression, 176 lb (80 kg) operator and 600/65 R25 GP-3D tires.
Dimensions Depending on Tires
| Cat 390G with Tires | 17.5-25 12PR (L-2) | 20.5-25 12PR (L-2) | 600/65 R25 (L-2) |
|---|---|---|---|
| 21. Width at Tread Center | 76.8 in (1950 mm) | 76.8 in (1950 mm) | 76.8 in (1950 mm) |
| 22. Overall Width over Tires | 94.8 in (2407 mm) | 98.6 in (2504 mm) | 100.2 in (2544 mm) |
| 23. Minimum Turning Radius over Tires | 204.2 in (5186 mm) | 206.1 in (5236 mm) | 207.0 in (5256 mm) |
| 24. Minimum Turning Radius over Bucket | 228.7 in (5811 mm) | 228.7 in (5811 mm) | 228.7 in (5811 mm) |
| 25. Steering Angle – Left/Right | 40° | 40° | 40° |
| Change in Vertical Dimension | -2.1 in (-54 mm) | +0.4 in (+11 mm) | no change |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | Caterpillar |
| Engine Model | Cat 3056E DIT ATAAC |
| Displacement | 366 cu in (6 L) |
| Bore | 3.94 in (100 mm) |
| Stroke | 5.00 in (127 mm) |
| Gross Power | 161 hp (120 kw) |
| Net Power | 149 hp (111 kw) |
| Power Measured @ | 2000 rpm |
| Peak Torque | 512.6 lb ft (695 Nm) |
| Torque Measured @ | 1400 rpm |
| Air Cleaner | Dry type |
| Aspiration | Turbocharged and Air-To-Air Aftercooled |
| Emission Standards | US EPA Tier 2 + EU Stage II |

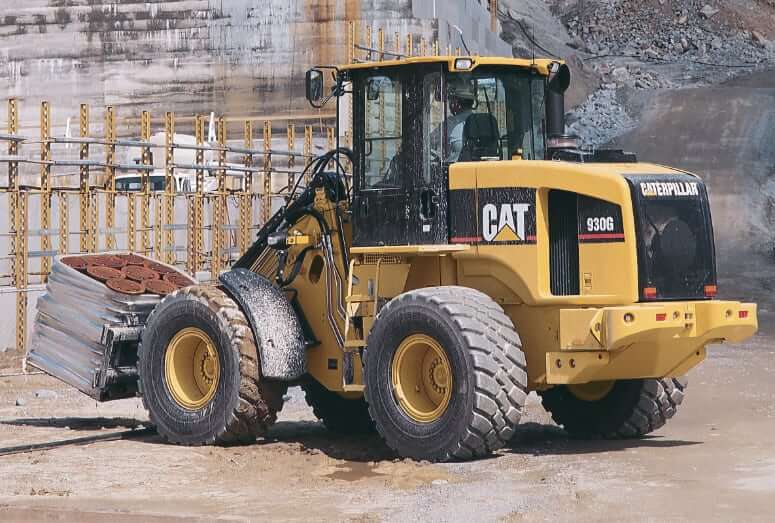

Operational Specs
| Operating Weight | 28725 lb (13029 kg) |
| Max Operating Weight | 29044 lb (13174 kg) |
| Counterweight (additional) | 1036 lb (470 kg) |
| Operating Voltage | 24 V |
| Alternator | 80 amps (95 amps) |
| Battery | 2x 12 V, CCA 950 |
| Standard Tire Size | 600/65 R25, radial (L-3) |
| Optional Tire Size | 7.5 – 25, 12PR (L-2) 17.5 – 25, 12PR (L-3) 17.5 R25, radial (L-2) 17.5 R25, radial (L-3) 20.5 – 25, 12PR (L-2) 20.5 – 25, 12PR (L-3) 20.5 R25, radial (L-2/3) |
Operator Environment

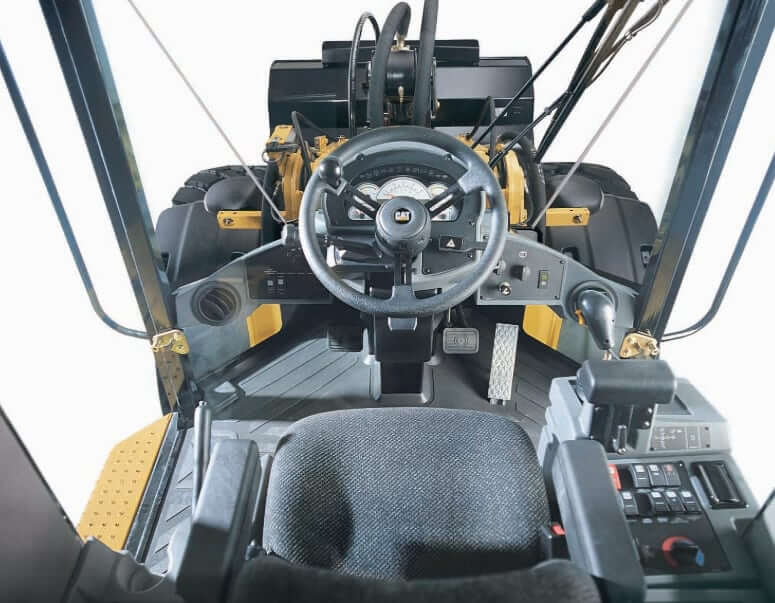

| Cab Type | Two door cab, fixed glass |
| ROPS Standard | SAE J1040 MAY94, ISO 3471-1994 |
| FOPS Standard | SAE J/ISO 3449 APR98 Level II, ISO 3449 1992 Level II |
| Operator Seat | Adjustable suspension, armrest (fabric or vinyl) |
| Seat Belt | 3 in (75 mm), retractable |
| CAT 930G Working Lights | 2x Halogen front work lights + AUX front lights + 2 front roading lights with turn signals + 2 rear lights |
| HVAC | Heater / defroster (Optional Air conditioner) |
| Noise Level (interior) | 74 dB(A) |

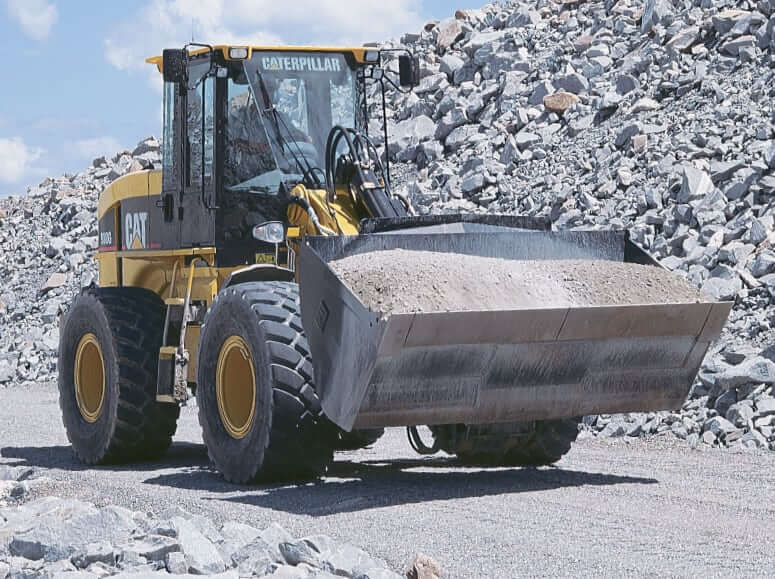

Transmission
| Type | Autoshift transmission, single lever control with F/N/R and kickdown button |
| Number of Gears | 4F/3R |
| Max Forward Speed | 23.8 mph (38.3 km/h) |
| Max Reverse Speed | 15 mph (24.1 km/h) |
| Service Brakes | Inboard oil-immersed disc brakes on front and rear axles. Adjustment-free, separate circuits for front and rear. Dual pedal braking system. Fully integrated with hydraulic system, no air system required |
| Secondary Brake | Indicator light alerts operator if brake pressure drops. Continually-charged nitrogen accumulators provide stopping power in case of engine power loss. |
| Parking Brake | Mechanical, shoe-type brake mounted on drive line for positive manual operation. Application of parking brake neutralizes the transmission |
Axles
| Front Axle Type | Fixed |
| Rear Axle Type | Oscillating |
| Rear Axle Oscillation | 11º |
| Rear Wheel Raise or Drop | 16.6 in (423 mm) with 17.5 tires or 12.8 in (326 mm) with 20.5 tires |
| Differentials | Differentials, conventional (front/rear) |
| Limited Slip Differentials | Optional on front, rear or both axles |
| Final Drives | Planetary final drives |
Steering System
| Steering Articulation | ±40° |
| Steering System Type | Load-sensing, closed-center steering system |
| Main Pump Type | Variable displacement axial pump |
| Max Pump Flow (Steering) | 17.6 gal/min (70 L/min) |
| Max Operating Pressure (Steering) | 3500 psi (24130 kPa) |
| Tilt Cylinder | A large tilt cylinder delivers exceptional backdrag performance |
| Hoses | Caterpillar XT hoses and couplings provide rugged, reliable performance with significantly reduced risk |
| Steering Cylinder Bore (2x) | 2.75 in (70 mm) |
| Minimum Turning Radius – Over Tires | 207 in (5257 mm) |
| Joystick Control | Low effort, joystick implement control improves efficiency with simultaneous lift and tilt functions |
Hydraulic System
| Type | Load-sensing, variable flow hydraulic system |
| Main Pump Type | Variable displacement axial pump |
| Max Pump Flow (Implement) | 58 gal/min (220 L/min) |
| Max Pressure (Implement) | 3755 psi (29300 kPa) |
| Implement Valve | Closed-centered implement valves, with pressure compensation |
| Auxiliary Hydraulics | Standard |
| Joystick | Optional Joystick with Integrated Third Function Controls |
Hydraulic Cycle Time
| Raise from Carry Position | 5.0 sec |
| Dump at Maximum Raise | 1.7 sec |
| Lower, Empty, Float Down | 2.8 sec |
| Total Hydraulic Cycle Time with Rated Payload | 9.5 sec |
Service Refill Capacities
| Fuel Tank Capacity | 59.4 gal (225 L) |
| Engine Oil Capacity (w/ filter) | 4.2 gal (16 L) |
| Cooling System Capacity | 10.6 gal (40 L) |
| Transmission Oil Capacity | 9.1 gal (34.5 L) |
| Front Differential + Final Drives | 6.9 gal (26 L) |
| Rear Differential + Final Drives | 6.6 gal (25 L) |
| Hydraulic System Capacity (w/ tank) | 33 gal (125 L) |
| Hydraulic Tank Capacity | 18.5 gal (70 L) |
CAT 930G Attachments

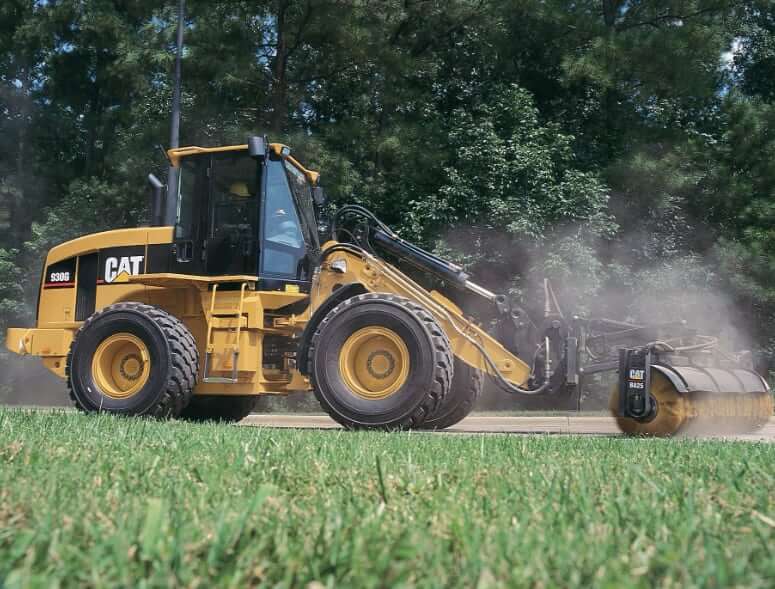

| Angle Brooms | BA30 Hydraulic (Overall Width 126 in / Sweeping Width 118.1 in / Brush Diameter 36 in) |
| General Purpose Buckets | 3.0 yd3 (2.3 m3), 100 in (2532 mm), IT Coupler, Base Edge 3.0 yd3 (2.3 m3), 100 in (2532 mm), Pin On, Base Edge |
| Log & Lumber Fork Carriages | 84 in (2134 mm) Carriage (Fusion Coupler / Non-swinging, Non-floating / 58.9 in Height) 70 in (1765 mm) Carriage (IT Coupler / Non-Swinging, Floating / 59.2 in Height) |

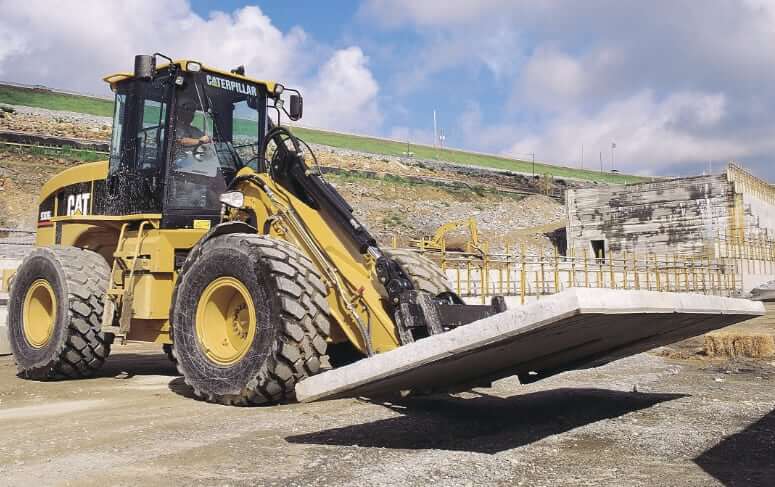

| Pallet Forks | 72 in (1829 mm) HPL-ISO Coupler, Class III Pallet Forks (61 in Height / 98.3 in Width / 1130.7 lb Weight) |
