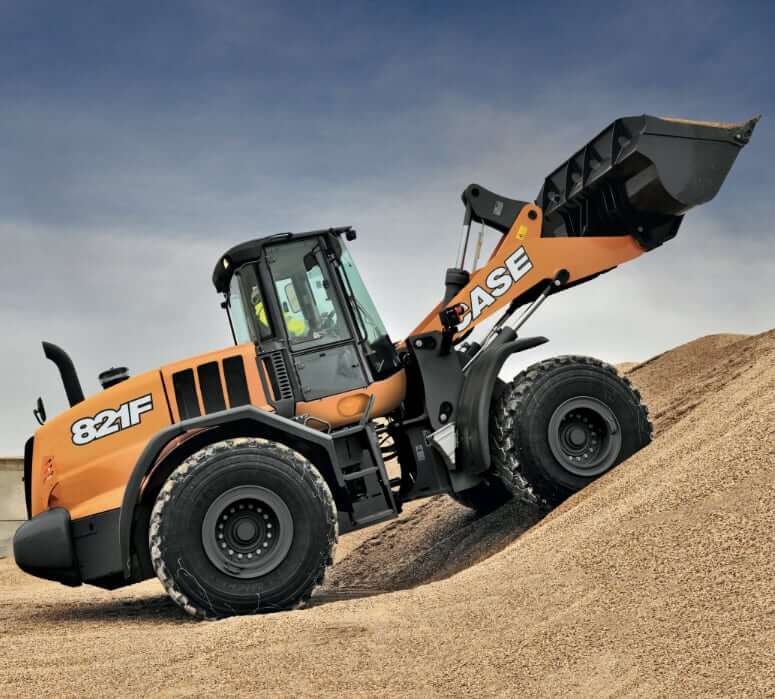

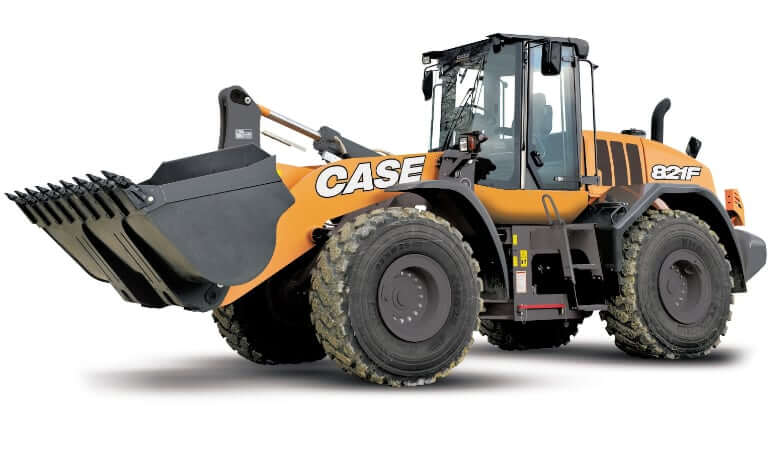

Loader Performance
| Case 821F Type | Z-BAR Bucket |
| Static Tipping (Straight) | 31490 lbf (14284 kg) |
| Static Tipping (Articulated at 40°) | 27264 lb (12367 kg) |
| Rated Lift Capacity (From ground) | 39804 lb (18055 kg) |
| Breakout Force | 34112 lbf (151.7 kN) |
| Bucket Width | 115.7 in (2940 mm) |
| Bucket Capacity (Heaped) | 4.2 yd3 (3.2 m3) |
| Bucket Payload | 13633 lb (6184 kg) |
| Bucket Weight | 3351 lb (1520 kg) |
| Dump Clearance at Max Raise | 116.5 in (2960 mm) |
| Hinge Pin – Max Height | 162.2 in (4120 mm) |
| Reach at Max Lift and Dump | 45.3 in (1150 mm) |
| Digging Depth | 2.8 in (70 mm) |
Dimensions
| Length with Bucket on Ground | 311 in (7900 mm) |
| Width Over Tires | 113.4 in (2885 mm) |
| Wheelbase | 131.5 in (3340 mm) |
| Height to Top of Cab | 135.8 in (3450 mm) |
| Ground Clearance | 17.3 in (440 mm) |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | FPT Industrial |
| Engine Model | FPT F4HFE613X |
| Displacement | 409 cu in (6.7 L) |
| Bore | 4.09 in (104 mm) |
| Stroke | 5.20 in (132 mm) |
| Gross Power | 230 hp (172 kw) |
| Power Measured @ | 1800 rpm |
| Peak Torque | 873.3 lb ft (1184 Nm) |
| Torque Measured @ | 1300 rpm |
| Torque Rise | 47 % |
| Fuel System | Second generation common rail (1600 bar) |
| Engine Oil Filter | Replaceable, full flow, spin-on cartridge |
| Air Cleaner | 2-element dry type air filter with warning restriction indicator |
| Aspiration | Turbocharged and Air to Air intercooler |
| Emission Standards | US EPA Tier 4 interim + EU stage IIIB |
Operational Specs

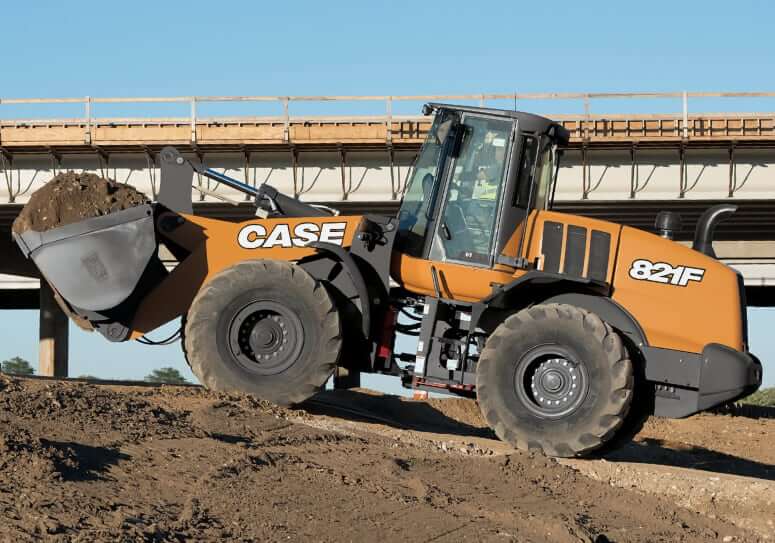

| Operating Weight | 38405 – 39785 lb (17420 – 18046 kg) |
| Operating Voltage | 24 V |
| Alternator | 65 amps |
| Battery | 2x 12 V, CCA 700 |
| Noise Level (interior) | 72 dB(A) |
| Noise Level (exterior) | 103 dB(A) |
| ROPS | ISO EN13510 |
| FOPS | ISO EN3449 |
| Turning Radius | 19.8 ft in (6032 mm) |
| Front Tire Size | 23.5 x 25 L3 |
| Rear Tire Size | 23.5 x 25 L3 |
Axles and Differential
| Drive | All-wheel drive with planetary axles kick-down function |
| Steering Type | Articulation |
| Front Axle | Heavy Duty axle +(ZF type MT-L3095-II) |
| Rear Axle | Standard axle (ZF type MT-L3085-II) |
| Rear Axle Oscillation | 24° |
| Front Auto-lock Differential | 100% of available torque is always guaranted on the wheel(s) with traction |
Transmission
| Type | Powershift with lock up (proshift) | Auto Powershift switchable to manual shifting |
|---|---|---|
| Number of Gears | 5F / 3R | 4F / 3R |
| Max Forward Speed | 24.8 mph (40 km/h) | 23.0 mph (37 km/h) |
| Max Reverse Speed | 17.4 mph (28 km/h) | 15.5 mph (25 km/h) |
| Service Brakes | Maintenance free, self-adjusting wet 4-wheel disc brakes | |
| Parking Brake | Spring-applied hydraulic release parking brake | |
Hydraulic System
| Type | Rexroth Closed-center, Load sensing hydraulic system. Main valve with 3 sections |
| Pump Type | Tandem Variable displacement pump |
| Pump Flow Capacity | 63.4 gal/min (240 L/min) |
| Relief Valve Setting (Implement) | 3625 psi (25000 kPa) |
| Relief Valve Setting (Steering) | 3500 psi (24132 kPa) |
| Loader Auxiliary Steering | Hydraulic orbital center-pivot articulating w/on-demand oil flow |
Hydraulic Cycle Times (Unloaded)
| Raising Time (loaded) | 6.2 sec |
| Dump Time (loaded) | 1.2 sec |
| Lowering Time (empty, power down) | 2.9 sec |
| Lowering Time (empty, float down) | 2.5 sec |
Service Refill Capacities
| Fuel Tank Capacity | 76.1 gal (288 L) |
| DEF Tank Capacity | 10.9 gal (41.3 L) |
| Engine Oil Capacity (w/ filter) | 4 gal (15 L) |
| Cooling System Capacity | 8 gal (30 L) |
| Transmission Oil Capacity (w/ filter) | 9.1 gal (34 L) |
| Front Axle/Diff Fluid Capacity | 10.6 gal (40 L) |
| Rear Axle/Diff Fluid Capacity | 10.6 gal (40 L) |
| Hydraulic System Capacity (w/ tank) | 47 gal (178 L) |
| Hydraulic Tank Capacity | 24 gal (91 L) |
what type of fluid do i put in hydrauulic system also what type of oil in the transmission
Hi, Bill. Use Case Akcela Hy-Tran Ultra for the hydraulic system / combined hydro-transmission circuits, as Case specifies. Use Akcela Transaxle Fluid 80W-140 (or a TO-4-compatible fluid) for the powershift transmission, as per the Case 821F service manual.
