Dimensions
| Overall Length | 132.3 in (3360 mm) |
| Overall Width | 65.4 in (1660 mm) |
| Wheelbase (Gear) | 76.1 in (1930 mm) |
| Wheelbase (HST) | 77.2 in (1960 mm) |
| Height to Top of Cab | 92.9 in (2360 mm) |
| Height to Top of ROPS | 102.4 in (2600 mm) |
| Ground Clearance | 14.8 in (375 mm) |
| Front Wheel Tread | 52.8 in (1340 mm) |
| Rear Wheel Tread | 52.4 – 64.4 in (1330 – 1635 mm) |
| Turning Radius | 98.4 in (2550 mm) |
Tire Sizes
| Type | Front Tire Size | Rear Tire Size |
|---|---|---|
| Ag (Standard) | 9.5×16 6PR | 16.9×24 6PR |
| Ag (Optional) | 9.5×16 6PR | 13.6×28 6PR |
| Lawn / Turf | 27×10.50-15 4PR | 44×18.00-20 4PR |
| Industrial (Standard) | 10-16.5 6PR | 17.5L-24 6PR |
| Industrial (Optional) | 10-16.5 6PR | 14.9-24 6PR |

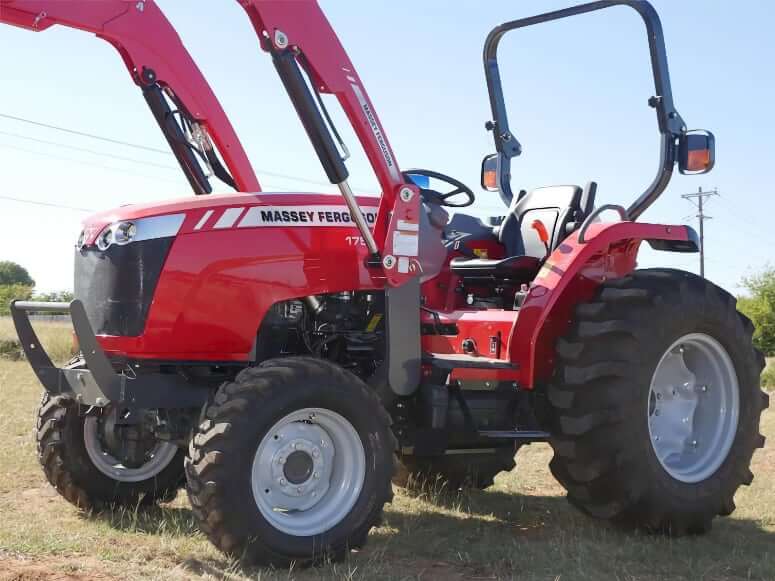

Weight
| Massey Ferguson 1754 | ROPS | Cab |
|---|---|---|
| HST Transmission | 4178 lb (1895 kg) | 4608 lb (2090 kg) |
| Power Shuttle | 4145 lb (1880 kg) | 4575 lb (1975 kg) |
| Front Axle Capacity | 4631 lb (2100 kg) | 4631 lb (2100 kg) |
| Rear Axle Capacity | 4631 lb (2100 kg) | 4631 lb (2100 kg) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Mitsubishi Heavy Industries |
| Engine Model | Mitsubishi K39 |
| Displacement | 134.7 cu in (2.2 L) |
| Bore | 3.39 in (86 mm) |
| Stroke | 3.74 in (95 mm) |
| Gross Power | 53.6 hp (40 kw) |
| Rated PTO (Gear) | 42.1 hp (31.4 kw) |
| Rated PTO (HST) | 40.9 hp (30.5 kw) |
| Power Measured @ | 2500 rpm |
| Peak Torque | 140.9 lb ft (191 Nm) |
| Torque Measured @ | 1800 rpm |
| Torque Rise | 25.1% |
| Low Idle | 950 rpm |
| High Idle | 2625 rpm |
| Fuel System | Common rail direct injection, electronic engine management |
| Air Cleaner | Dual stage dry, paper element |
| Aspiration | Turbocharged and intercooled |
| Aftertreatment | DOC + DPF |
| Emission Standards | US EPA Tier 4 Final |
Operational Specs
| Operating Weight (ROPS, Gear) | 4145 lb (1880 kg) |
| Operating Weight (Cab, HST) | 4608 lb (2090 kg) |
| Operator Station | Two-post folding ROPS / Cab with air-conditioning (optional) |
| Operating Voltage | 12 V |
| Alternator | 50 amps (ROPS) / 75 amps (Cab) |
| Battery | 12 V, CCA 710 |
| Starter | 12 V, 2.7 hp (2 kW) |
| Front Axle | Cast steel 4WD front axle with center drive line and bevel-gear final drives |
| Rear Axle | Drop-axle type with bull gear final drives |
| Differential lock | Mechanical engagement via right side heel pedal |
| Loader Joystick | Standard equipment, integrated into right hand console |
| Drive | Four-wheel drive |
| Steering System | Power steering |
| Max Operating Angle | ±20° |
PTO (Power Take-Off)
| PTO Type | Independent |
| PTO Speed | 540 rpm |
| PTO Shaft Design | 1 3/8 inch, 6-spline shaft |
| PTO Gear Selection | Mechanical, hand lever |
| PTO Engagement | Electro-hydraulically engaged |
| Rear PTO Control | Rear Fender Button |
| Main PTO Control | 2-Stage Button |
| Mid-PTO Type (Optional) | Independent |
| Mid-PTO Speed (Optional) | 2000 rpm |
Transmission
| Type | Power shuttle | Hydrostatic (HST) |
|---|---|---|
| Number of Gears | 12F / 12R | 3 Ranges |
| Shuttle Lever | Electronic lever, left side of steering wheel | Electronic lever, left side of steering wheel |
| Max Forward Speed | 16.6 mph (26.7 km/h) | 19.8 mph (31.9 km/h) |
| Max Reverse Speed | 14.6 mph (23.5 km/h) | 15.1 mph (24.3 km/h) |
| Cruise Control | – | Push button |
| Clutch Type | Wet multi-disc | – |
| Foot Pedals | Clutch, brakes, throttle | Travel, brakes |
| Service Brakes | Sealed wet disc brakes | Sealed wet disc brakes |
Hydraulic System
| Type | Open center |
| Pump Type | Gear pump |
| Implement Flow Capacity | 11.6 gal/min (43.8 L/min) |
| Steering Flow Capacity | 6.8 gal/min (25.6 L/min) |
| System Pressure | 2277 psi (15700 kPa) |
| Rear Valves | Up to 3 (1 standard on cab models) |
3-Point Hitch
| 3-Point Hitch Category | Category I |
| 3-Point Hitch Lift Capacity @ 24″ | 3086 lb (1400 kg) |
| Ball Ends | Telescopic |
| Adjustment | Single lift arm |
| Draft Control Sensing | Position control / Draft control (Optional) |
Service Refill Capacities
| Fuel Tank Capacity | 14.5 gal (55 L) |
| Engine Oil Capacity (w/ filter) | 2.2 gal (8.2 L) |
| Cooling System Capacity | 1.9 gal (7.3 L) |
| Transmission Oil Capacity | 10 gal (38 L) |
| 4WD Axle Fluid Capacity | 2.3 gal (8.5 L) |
| Engine Oil Type | SAE 5W-30 or SAE 10W-30 |
