The Kubota M7060 is a powerful and versatile utility tractor designed for productivity, comfort, and durability in both agricultural and commercial operations. Offered in multiple configurations to suit various needs – including 2WD or 4WD, ROPS or Cab, and 8-speed or 12-speed transmissions – the M7060 lineup includes the M7060HF, HFC, HD, HDC, HD12, and HDC12 models.
Whether equipped with an open operator station or a climate-controlled cab, the M7060 delivers dependable performance with its 71-horsepower engine, heavy-duty hydraulics, and smooth-shifting transmission. Known for its fuel efficiency and user-friendly controls, this tractor is ideal for a wide range of applications such as hay production, loader work, tillage, and utility chores.
Dimensions
| Kubota M7060 | 2WD (CAB only) | 4WD (CAB / ROPS) |
|---|---|---|
| Overall Length | 142.7 in (3625 mm) | 138.0 in (3505 mm) |
| Wheelbase | 84.4 in (2145 mm) | 83.1 in (2110 mm) |
| Overall Width | 73.0 in (1860 mm) | 73.0 in (1860 mm) |
| Overall Height with ROPS | 97.2 in (2470 mm) | |
| Overall Height with Cab | 101.0 in (2565 mm) | 101.0 in (2565 mm) |
| Ground Clearance | 18.1 in (460 mm) | 18.1 in (460 mm) |
| Min Turning Radius (w/o brake) | 10.8 ft (3300 mm) | 11.8 ft (3600 mm) |
| Front Tread | 55.9 – 71.7 in (1420 – 1820 mm) | 55.9, 59.8 in (1420, 1520 mm) |
| Rear Tread | 55.9 – 67.7 in (1420 – 1720mm) | 55.9 – 67.7 in (1420 – 1720 mm) |
| Front Tire Size | 7.5-16 | 9.5-24 |
| Rear Tire Size | 16.9-30 | 16.9-30 |

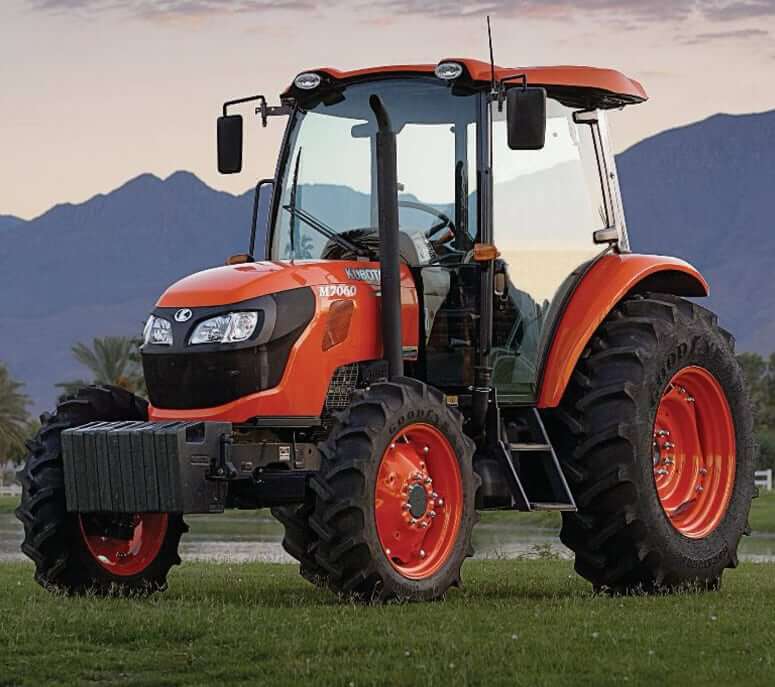

Weight
| Operating Weight (2WD, CAB) | 5248 lb (2380 kg) |
| Operating Weight (4WD, CAB) | 5380 lb (2440 kg) |
| Operating Weight (4WD, ROPS) | 5027 lb (2280 kg) |
| Rear Ballast (Cast Iron Disk) | 700 lb (316 kg) – 2x 350 lb (2x 158 kg) |
| Max Rear Ballast (Per Wheel) | 320 lb (146 kg) – 2x 160 lb (2x 73 kg) |
| Max Front Ballast (Front End Weights) | 830 lb (376 kg) – 8x 103.7 lb (8x 47 kg) |
| Liquid weight per 16.9-30 tire (75% filled) | 693 lb (314 kg) |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Kubota |
| Engine Model | Kubota V3307-CR-TE4 |
| Displacement | 203 cu in (3.33 L) |
| Bore | 3.7 in (94 mm) |
| Stroke | 4.7 in (120 mm) |
| Engine Type | Vertical, water cooled 4-cycle diesel engine |
| Net Horsepower | 71 hp (53 kw) |
| PTO Power (HD / HDCC) | 64 hp (47.7 kw) |
| PTO Power (HD12 / HDCC12) | 62 hp (46.2 kw) |
| Power Measured @ | 2400 rpm |
| Peak Torque | 192 lb ft (260 Nm) |
| Torque Measured @ | 1400 rpm |
| Combustion System | Direct injection |
| Fuel System | Common rail system |
| Aftertreatment | DOC + DPF |
| Aspiration | Turbocharged |
| Emission Standards | US CARB / EPA Tier 4 + EU Stage IIIB |
Electrical System
| Operating Voltage | 12 V |
| Alternator | 45 amps (ROPS) / 60 or 100 amps (Cab) |
| Battery | 12V, CCA 900, RC: 160 min |
| Ground | Negative |
| Starter | 12 V |
| Working Lights | 2 front halogen work lights + 2 rear halogen work lights |
Transmission
| Kubota M7060 | F8 / R8 (2WD/4WD) | F12 / R12 (4WD) |
|---|---|---|
| Type | Fully synchronized (4 speed) | Fully synchronized (6 speed) |
| Clutch Type | Multiple wet disc | Multiple wet disc |
| Number Of Gears | F8 / R8 | F12 / R12 |
| Shuttle Shift | Hydraulic-shuttle | Hydraulic-shuttle |
| Max Forward Speed | 18.0 mph (29.0 km/h) | 24.3 mph (38.9 km/h) |
| Max Reverse Speed | 17.7 mph (28.5 km/h) | 23.9 mph (38.3 km/h) |
| Steering | Hydraulic Power Steering | Hydraulic Power Steering |
| Rear Differential lock | Limited Slip Differential / Mechanical | Limited Slip Differential / Mechanical |
| Service Brakes | Mechanical wet disc | Hydraulic wet disc |

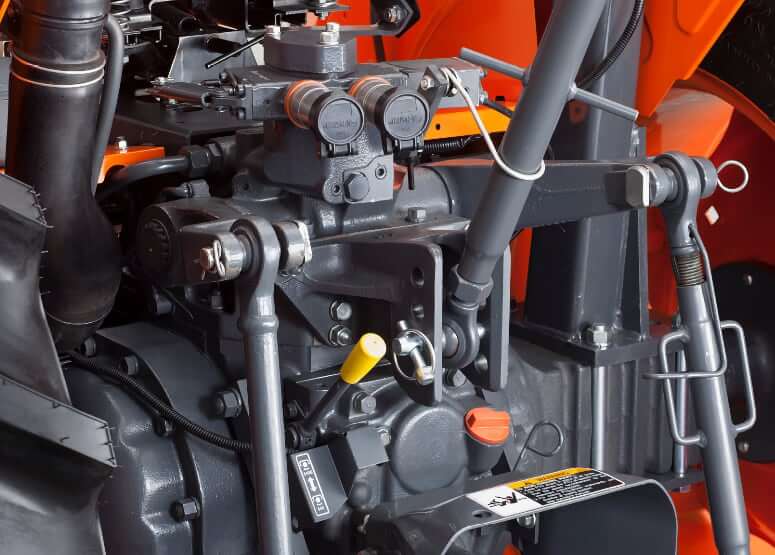

Hydraulic System
| Pump Flow Capacity (F8/R8 model) | 11.0 gal/min (41.6 L/min) |
| Pump Flow Capacity (F12/R12 model) | 16.2 gal/min (61.5 L/min) |
| System Pressure | 2770 psi (19100 kPa) |
| Number of Remote Valves | 1 (2nd, 3rd & flow control valve optional) |

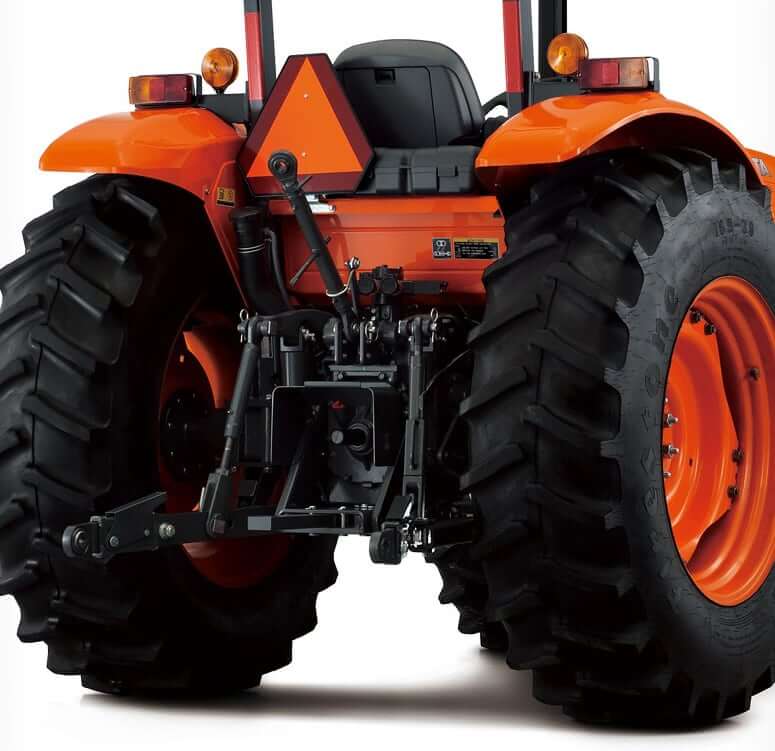

3-Point Hitch
| Hydraulic Control System | Position, draft (top link sensing) & mix control |
| Cylinder type | Two external cylinders |
| 3-Point Hitch | Telescopic lower link ends, Telescopic Stabilizers |
| 3-Point Hitch Type | Category I, II |
| 3 Point Hitch Lift Capacity @ Ends | 4189 lb (1900 kg) |
| 3 Point Hitch Lift Capacity @ 24″ | 3307 lb (1500 kg) |
PTO (Power Take-Off)
| Kubota M7060 | HD / HDCC | HD12 / HDCC12 |
|---|---|---|
| Rear PTO Type | Live-independent PTO, electro-hydraulic clutch with brake | Live-independent PTO, electro-hydraulic clutch with brake |
| Rear PTO Speed | 540 (optional: 540 / 540E) | 540 / 540E |
| PTO / Engine RPM | 540 @ 2160 | 540 @ 2160, 540E @ 1828 |
| PTO Horsepower | 64 hp (47.7 kw) | 62 hp (46.2 kw) |
| Rear PTO Shaft | 6 spline (F8/R8 model) | 6 spline (F12/R12 model) |
Drawbar
| Traction System | Swinging drawbar, adjustable in direction |
| Max Drawbar Load | 2200 lb (1000 kg) |
| Max Drawbar Load (Implement Axle) | 11000 lb (5000 kg) |
Service Refill Capacities
| Kubota M7060 | Cab 2WD | Cab 4WD | ROPS 4WD |
|---|---|---|---|
| Fuel Tank Capacity | 23.8 gal (90 L) | 23.8 gal (90 L) | 18.5 gal (70 L) |
| Engine Oil Capacity (w/ Filter) | 3.18 gal (12 L) | 3.18 gal (12 L) | 3.18 gal (12 L) |
| Cooling System Capacity | 2.13 gal (8 L) | 2.13 gal (8 L) | 2.13 gal (8 L) |
| Transmission Oil Capacity | 14.8 gal (56 L) | 14.8 gal (56 L) | 14.8 gal (56 L) |
| Front Differential Case Oil | 1.45 gal (5.5 L) | 1.45 gal (5.5 L) | |
| Front Axle Gear Case Oil | 0.93 gal (3.5 L) | 0.93 gal (3.5 L) |
Operator Environment

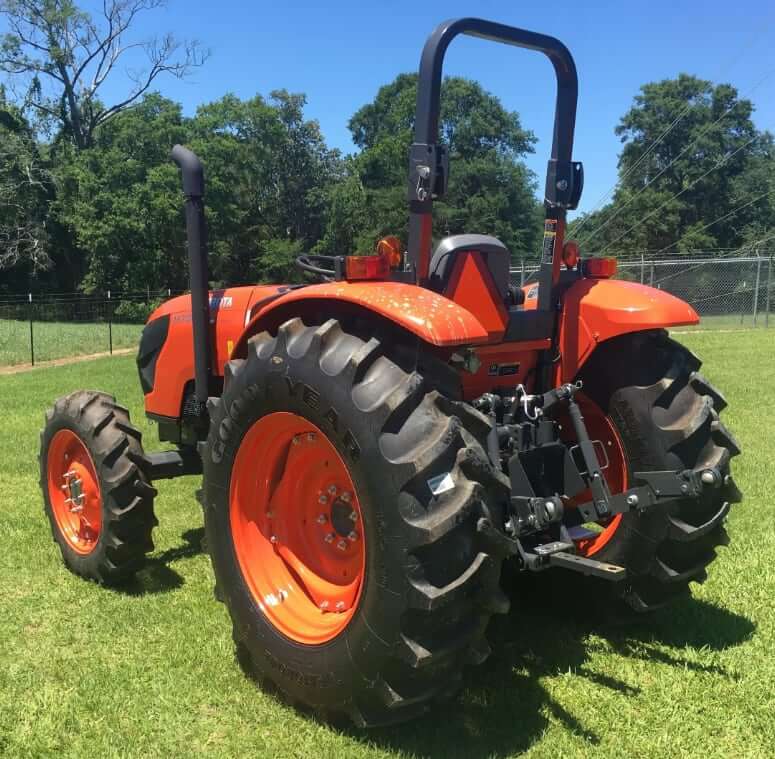

| ROPS | Factory certified two post foldable ROPS |
| Hood Type / Pedal Type | Full open, slanted, steel / Hanging |
| Deck Type (ISO-mounted w/rubber mat) | Semi-flat on ROPS models, full-flat on CAB models |
| Panel Type | Electronic |
| Fender shape | Wide, round |

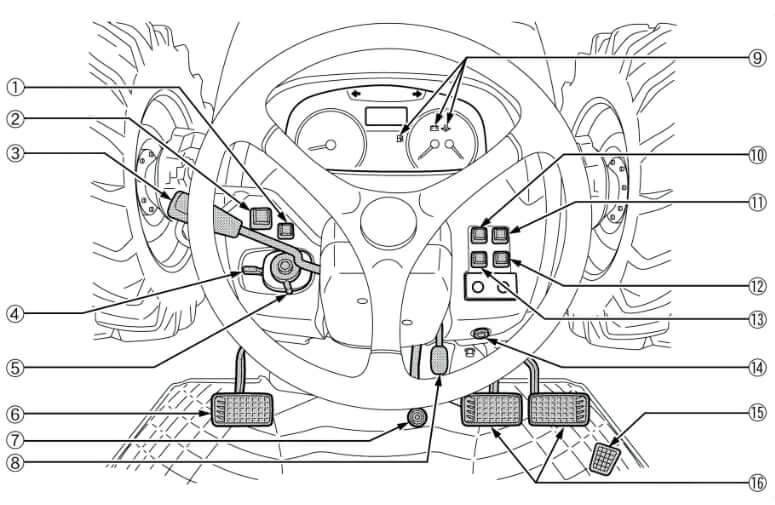

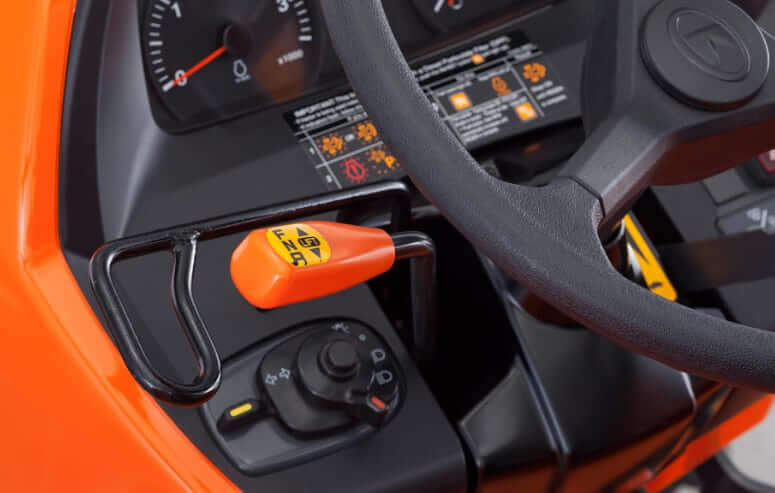

Instrument Panel: 1. Constant RPM management switch; 2. 4WD switch [F12/R12 model]; 3. Hydraulic-shuttle shift lever; 4. Turn signal light switch; 5. Head light switch; 6. Clutch pedal; 7. Tilt pedal; 8. Parking brake lever [F8/R8 model]; 9. Easy Checker(TM); 10. Parked regeneration switch; 11. DPF INHIBIT switch; 12. Hazard light switch; 13. Front work light switch; 14. Key switch; 15. Foot throttle; 16. Brake pedal.

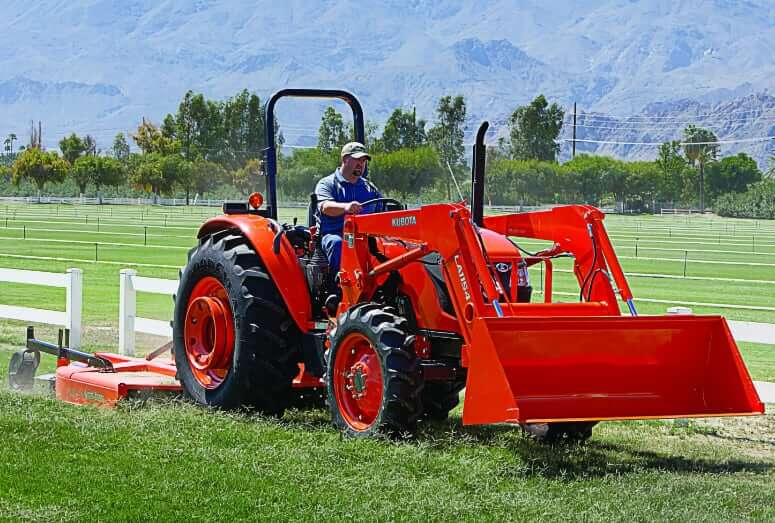

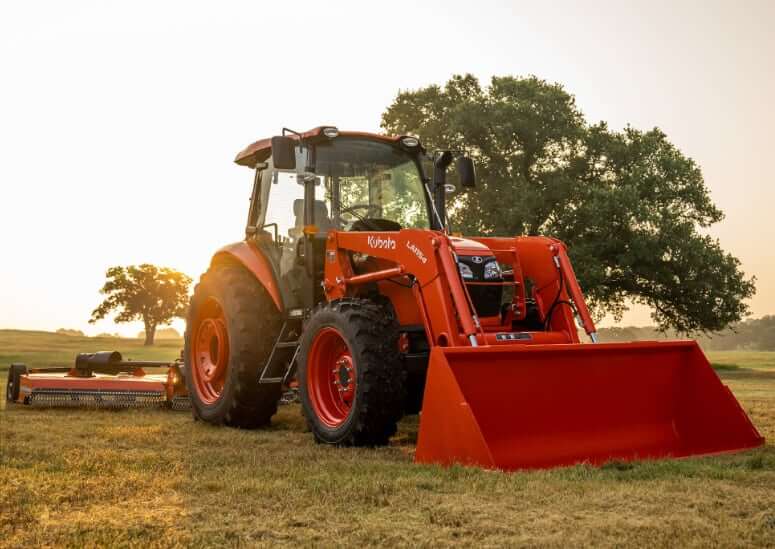

Kubota M7060 Attachments
The Kubota M7060 utility tractor supports a wide range of high-performance attachments designed to maximize its versatility and productivity across farming, landscaping, and construction tasks.
From heavy-duty implements like the LA1154 front loader to precision tillage tools such as rotary tillers, plows, and cultivators, the M7060 is built to handle it all.

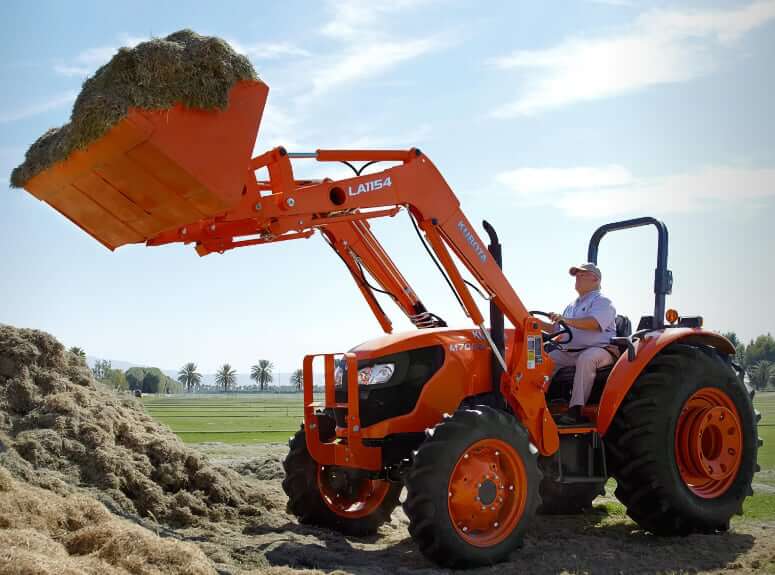

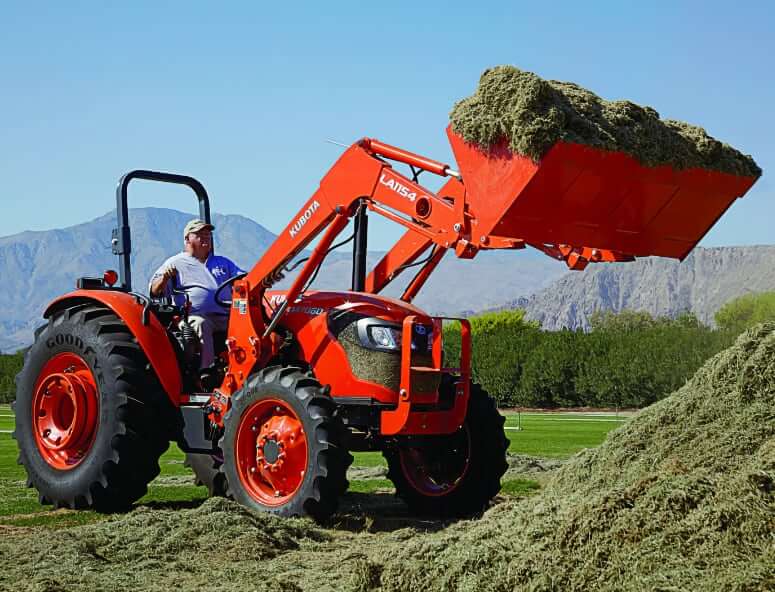

Kubota LA1154 Loader
| Kubota LA1154 | Height Position | Power Position |
|---|---|---|
| Maximum Lift Height (Pivot Pin) | 132.7 in (3370 mm) | 117.2 in (2977 mm) |
| Clearance w/Attachment Dump | 101.5 in (2577 mm) | 85.5 in (2172 mm) |
| Reach @ Maximum Height | 18.0 in (458 mm) | 35.9 in (911 mm) |
| Maximum Dump Angle | 43° | 60° |
| Reach w/Attachment on Ground | 76.7 in (1947 mm) | |
| Maximum Rollback Angle | 43° | |
| Digging Depth (When Bucket is Level) | 5.3 in (134 mm) | 4.4 in (111 mm) |
| Overall Height in Carry Position | 61.9 in (1573 mm) | |
| Material Bucket Width / Capacity (Heaped) | 72 in / 19.43 cu.ft. (0.55 m3) | |
| Lift Capacity (Bucket Center) | 2326 lb (1055 kg) | 2536 lb (1150 kg) |
| Lift Capacity to Max Height at Pivot Pin | 2469 lb (1120 kg) | 2928 lb (1328 kg) |
| Raising Time to Full Height w/out Load | 4.7 sec | |
| Lowering Time w/out Load (powerdown) | 3.6 sec | |
| Attachment Rollback Time | 3.0 sec | |
| Attachment Dumping Time | 2.8 sec | |
M7060 Implement Limitations
| Implement | Remarks | Limitations |
|---|---|---|
| Slurry Tank | Max. Tank Capacity | 790 gal (3000 L) |
| Max. Load Capacity | 8800 lb (4000 kg) | |
| Trailer | Max. Load Capacity | 11000 lb (5000 kg) |
| Max. Drawbar Load | 2200 lb (1000 kg) | |
| Rotary Cutter (Land Pride RCR 2596) | Max. Cutting Width | 84 in (2130 mm) |
| Max. Weight | 1200 lb (540 kg) | |
| Flail Mower (Land Pride FDR 2584) | Max. Cutting Width | 120 in (3050 mm) |
| Max. Weight | 1760 lb (800 kg) | |
| Sickle Bar | Max. Cutting Width | 84 in (2130 mm) |
| Sprayer | Mid Tank Capacity | 180 gal (680 L) |
| Rear 3P Tank Capacity | 180 gal (680 L) | |
| Drawbar Capacity | 1030 gal (4000 L) | |
| Rotary Tiller (Land Pride RTR 1274) | Max. Tilling Width | 91 in (2330 mm) |
| Max. Weight | 1760 lb (800 kg) | |
| Bottom Plow | Max. Size | 16 in x 3 / 18 in x 2 |
| Max. Weight (3P Type) | 1200 lb (550 kg) | |
| Disk Harrow (3P Type) | Max. Harrowing Width | 96 in (2450 mm) |
| Max. Weight | 1200 lb (550 kg) | |
| Disk Harrow (Drawbar Type) | Max. Harrowing Width | 120 in (3050 mm) |
| Disc Plow | Max. Size | 26 in x 3 |
| Max. Weight | 1200 lb (550 kg) | |
| Sub Soiler | Number of Cultivating Tines | 2 |
| Cultivating Depth | 18 in (450 mm) | |
| Cultivator | Max. Width | 168 in (4270 mm) |
| Number of Rows | 4 | |
| Max. Weight | 1200 lb (550 kg) | |
| Front Blade | Max. Cutting Width | 84 in (2130 mm) |
| Max. Oil Pressure | 2842 psi (19600 kPa) | |
| Rear Blade (Land Pride RB 1584) | Max. Cutting Width | 84 in (2130 mm) |
| Max. Oil Pressure | 2842 psi (19600 kPa) | |
| Front Loader | Lift Capacity (Max Height, Pivot Pin) | 2535 lb (1150 kg) |
| Max. Oil Pressure | 2842 psi (19600 kPa) | |
| Box Blade | Max. Cutting Width | 84 in (2130 mm) |
| Max. Weight | 1200 lb (550 kg) | |
| Snow Blade | Max. Width | 84 in (2130 mm) |
| Max. Weight | 1200 lb (550 kg) |
Compatible with front blades, rear blades, mowers, box blades, snow blowers, and pallet forks, this tractor excels in material handling, land preparation, and seasonal maintenance. Each attachment is engineered to match the power, hydraulic flow, and structural integrity of the M7060, ensuring dependable performance, ease of use, and extended service life for demanding operations.
