Dimensions
| Overall Length | 94.9 in (2410 mm) |
| Wheelbase | 61.4 in (1560 mm) |
| Overall Width | 49 in (1245 mm) |
| Height with ROPS | 85 in (2160 mm) |
| Ground Clearance | 12.8 in (325 mm) |
| Front Tread | 32.1 in (815 mm) |
| Rear Tread | 37.4 in (950 mm) |
| Turning Radius | 82.7 in (2100 mm) |
Tires
| Kubota B2601 HSD | Tire Size | Inflation Pressure |
|---|---|---|
| Front Tires | 6-12, 4PR 7-12,4PR 21×8.00-10, 4PR 22×8.50- 12, 4PR 23×8.50- 12Turf. 4PR 23×8.50- 12lnd.,4PR 24×8.50- 12, 4PR |
28 psi (200 kPa) 24 psi (170 kPa) 23 psi (160 kPa) 23 psi (160 kPa) 22 psi (150 kPa) 35 psi (250 kPa) 23 psi (160 kPa) |
| Rear Tires | 9.5-16, 4PR 9.5-18, 4PR 315/75D-15, 4PR 11.2-16, 4PR 12-16.5, 4PR 31×13.5-15, 4PR 31×15.5-15, 4PR 33×12.5-15, 4PR |
20 psi (140 kPa) 23 psi (160 kPa) 14 psi (100 kPa) 18 psi (130 kPa) 40 psi (270 kPa) 20 psi (140 kPa) 20 psi (140 kPa) 20 psi (140 kPa) |
Engine Details
| Number Of Cylinders | 3 |
| Engine Make | Kubota |
| Engine Model | Kubota D1105-E4-D32 E-TVCS |
| Displacement | 68.5 cu in (1.123 L) |
| Bore | 3.1 in (78 mm) |
| Stroke | 3.1 in (78.4 mm) |
| Gross Power | 24.3 hp (18.1 kw) |
| Power Measured @ | 2800 rpm |
| Peak Torque | 52 lb ft (71 Nm) |
| Torque Measured @ | 2200 rpm |
| Lubrication System | Forced lubrication |
| Fuel System | Indirect injection. In-line pump |
| Air Cleaner | Dual paper element |
| Aspiration | Naturally Aspirated |
| Emission Standards | US EPA Tier 4 + EU Stage V |
Operational Specs
| Operating Weight | 1632 lb (740 kg) |
| Operating Voltage | 12 V |
| Battery | 12 V, CCA 430, RC: 80 min |
| Max Drawbar Load | 660 lb (300 kg) |
| Trailer Loading Weight Max Capacity | 2210 lb (1000 kg) |
Transmission
| Type | 3-range hydrostatic transmission (HST) |
| Steering Type | Hydrostatic type power steering |
| Max Forward Speed | 12.7 mph (20.4 km/h) |
| Max Reverse Speed | 9.5 mph (15.3 km/h) |
| Differential Lock | Standard |
| Final Drive | Spur gear |
| Service Brakes | Multi-plate wet disc |
PTO (Power Take-Off)
| PTO Type | Independent |
| PTO Power | 19.5 hp (14.5 kw) |
| Rear PTO Speed | 540 rpm |

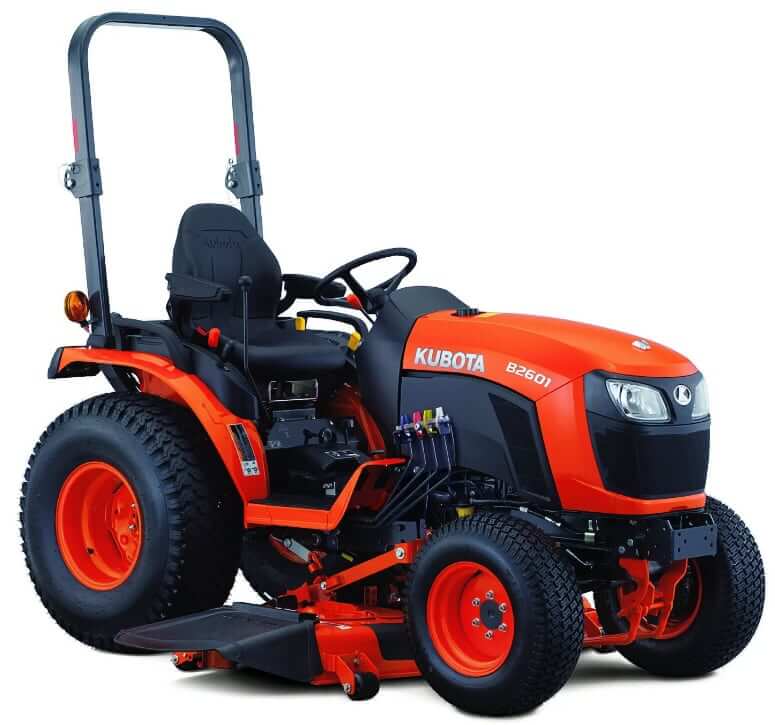

| Mid-PTO Speed | 2500 rpm |
3-Point Hitch
| 3-Point Hitch Type | Category I |
| 3 Point Hitch Lift Capacity @ Ends | 1808 lb (820 kg) |
| 3 Point Hitch Lift Capacity @ 24″ | 1411 lb (640 kg) |
| Hydraulic Control System | Position control |
Hydraulic System
| Type | Open center hydraulic system |
| Pump Type | Dual pump |
| Pump Flow Capacity | 8.3 gal/min (31.4 L/min) |
| Max Flow at a Single SCV | 4.7 gal/min (17.9 L/min) |
| Max Pressure | 1891 – 2005 psi (13000 – 13800 kPa) |
| Number of Remote Control Valves | 2 |

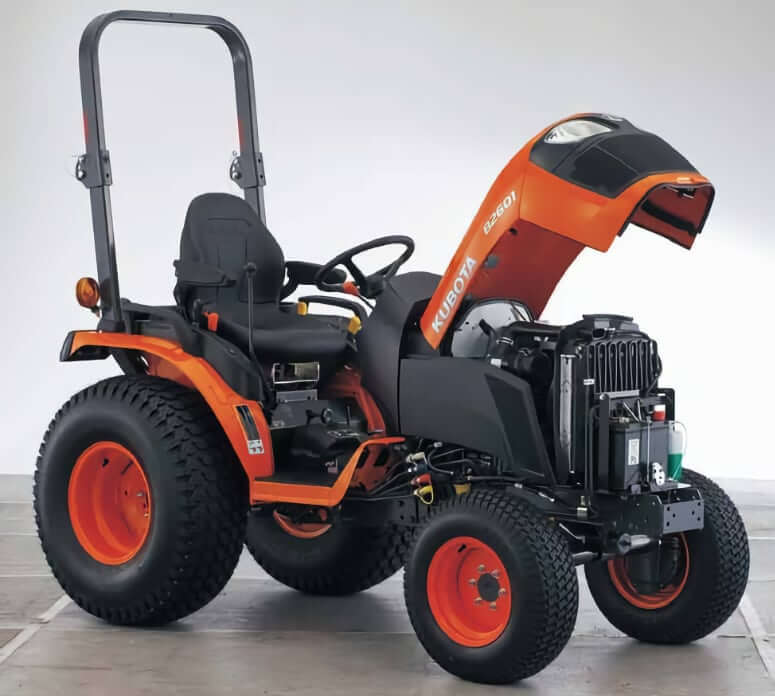

Service Refill Capacities
| Fuel Tank Capacity | 6.1 gal (23 L) |
| Engine Oil Capacity | 0.9 gal (3.1 L) |
| Cooling System Capacity | 1.1 gal (3.8 L) |
| Transmission Oil Capacity | 4 gal (15 L) |
