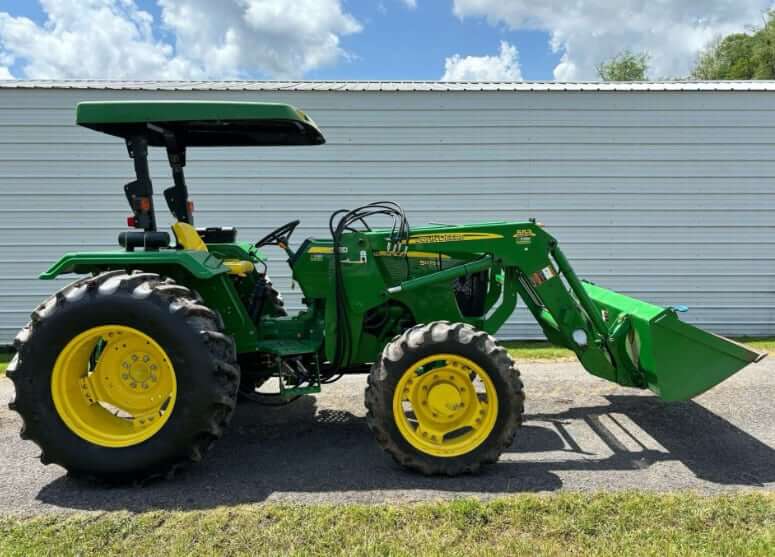

Dimensions
| Length | 137.8 in (3500 mm) |
| Width (axle flange) | 57.3 in (1450 mm) |
| Height (Hood) | 53.8 in (1360 mm) |
| Height to ROPS | 96.8 in (2450 mm) |
| Height to ROPS (folded) | 78.5 in (1990 mm) |
| Wheelbase | 80.7 in (2050 mm) |
| Ground Clearance (2WD, front axle) | 18.8 in (470 mm) |
| Ground Clearance (4WD, front axle) | 13.4 in (340 mm) |
| Turning Radius | 125.2 in (3180 mm) |
Tires
| John Deere 5075E | 2WD | 4WD |
|---|---|---|
| Front Tire Size (Standard) | 7.5-16 | 9.5-24 |
| Front Tire Size (Lawn/Turf) | 27/12LL-15 | 9.5-16 |
| Front Tire Size (Industrial) | 11L-15 | 12.5/80-18 |
| Rear Tire Size (Standard) | 16.9-28 | 16.9-28 |
| Rear Tire Size (Lawn/Turf) | 21.5L-16.1 | 21.5L-16.1 |
| Rear Tire Size (Industrial) | 16.9-24 | 16.9-24 |
Operational Specs
| Operating Weight (4WD) | 5475 lb (2483 kg) |
| Shipping Weight (4WD) | 5070 lb (2299 kg) |
| Shipping Weight (2WD) | 4634 lb (2101 kg) |
| Operating Voltage | 12 V |
| Alternator | 40 amps |
| Battery | 12 V, CCA 623 |
| Service Brakes | Single wet disc hydraulically actuated by two foot pedals which can be locked together |
Engine Details
| Number Of Cylinders | 3 |
| Engine Make | John Deere |
| Engine Model | John Deere 3029H |
| Displacement | 179 cu in (2.9 L) |
| Bore | 4.19 in (106 mm) |
| Stroke | 4.33 in (110 mm) |
| Gross Power | 75 hp (56 kw) |
| PTO Power | 61 hp (45.5 kw) |
| Power Measured @ | 2400 rpm |
| Peak Torque | 195.5 lb ft (265.1 Nm) |
| Torque Measured @ | 1700 rpm |
| Lubrication | Pressure |
| Oil Filter | One full flow cartridge |
| Oil Cooler | Engine coolant heat exchanger for crankcase oil |
| Air Cleaner | Two paper elements |
| Compression | 17.8:1 |
| Aspiration | Turbocharged |
| Fuel Consumption | 4.1 gal/hr (15.5 L/hr) |

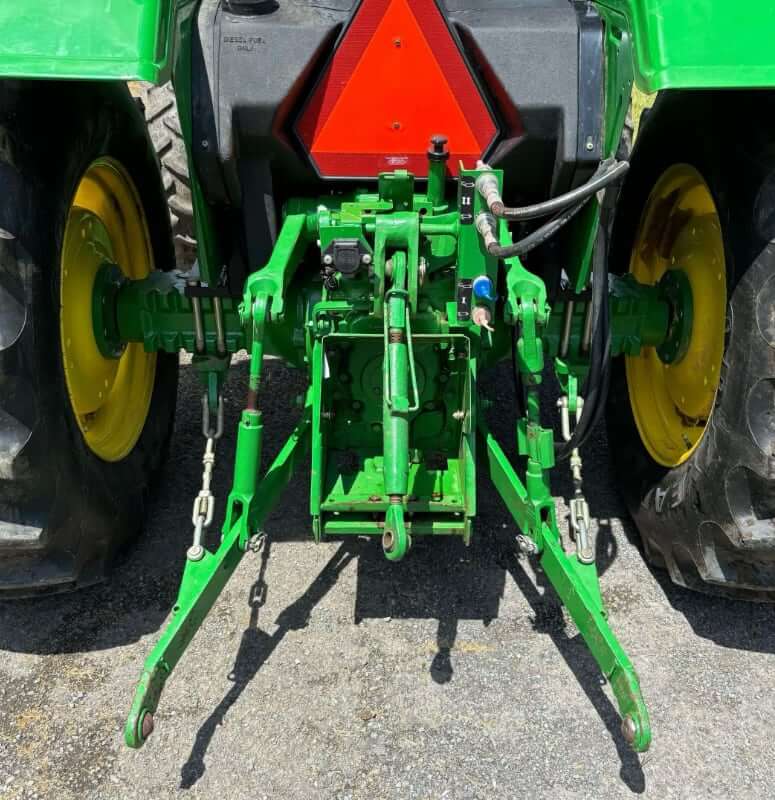

PTO (Power Take-Off)
| PTO Type | Independent |
| PTO Clutch | Mechanical |
| Rear PTO Speed | 540 rpm |
| PTO / Engine RPM | 540@2400 |
Transmission
| Type | 9F/3R SyncReverser / 9F/3R SyncShuttle Transmission |
| Clutch | Single dry disc operated by foot pedal |
| Number Of Forward Gears | 9 |
| Number Of Reverse Gears | 3 |
| Max Travel Speed, Forward | 17.4 mph (28 km/h) |
| Max Travel Speed, Reverse | 13.5 mph (21.7 km/h) |
Hydraulic System
| Type | Open center |
| Working Pressure | 2828 psi (19500 kPa) |
| Pump Flow Capacity | 11.4 gal/min (43.1 L/min) |
| Steering Flow Capacity | 6.8 gal/min (25.7 L/min) |
| Total Flow Capacity | 18.2 gal/min (68.9 L/min) |
| Rear Remote Control Valves | 1 or 2 |
| Mid Remote Control Valves | 2 (Optional) |
| 3 Point Hitch Type | Category II |
| 3 Point Hitch Lift Capacity @ 24 Inches | 3192 lb (1447 kg) |
Service Refill Capacities
| Fuel Tank Capacity | 18 gal (68 L) |
| Engine Oil Capacity | 2.2 gal (8.5 L) |
| Cooling System Capacity | 2.5 gal (9.5 L) |
| Hydraulic / Transmission Oil Capacity (SyncReverser) | 10 gal (38 L) |
| Hydraulic / Transmission Oil Capacity (SyncShuttle) | 10.3 gal (39 L) |
| Front Axle Capacity (4WD) | 1.2 gal (4.5 L) |
| Front Hubs Capacity (4WD) | 0.2 gal (0.8 L) |

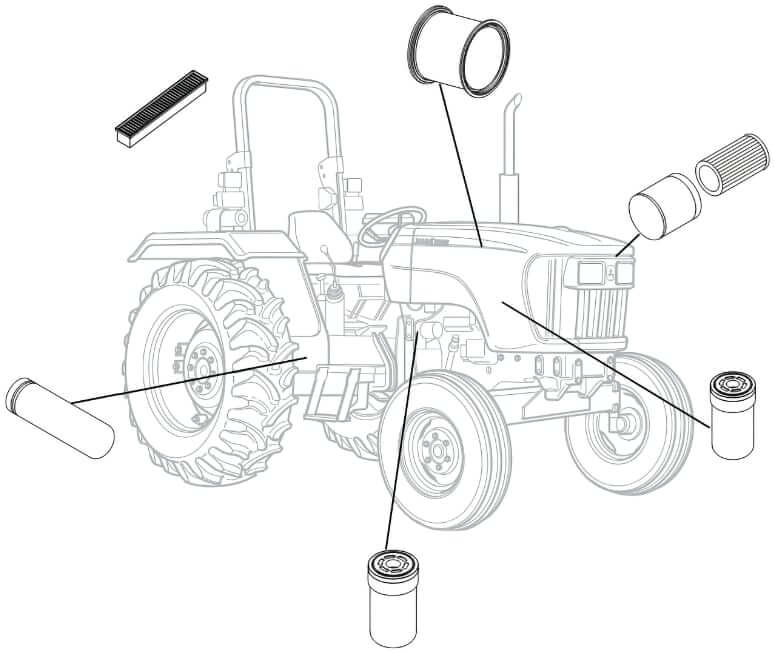

JD 5075E Filters (2008 – 2012)
| Primary Air Filter (Pre-Emission Tractors) | SU29300 |
| Primary Air Filter (Tractors w/ T2, IT4, FT4 Engines) | RE282286 |
| Secondary Air Filter (Pre-Emission Tractors) | SU29301 |
| Secondary Air Filter (Tractors w/ T2, IT4, FT4 Engines) | RE282287 |
| Fuel Filter (Tier 2, iT4 Engines) | RE60021 |
| Fuel Filter (FT4 Engines) | R536698 |
| Engine Diesel Particulate Filter (If Equipped) | RE567056 |
| Engine Oil Filter | RE519626 |
| Hydraulic Oil Filter | RE45864 |
