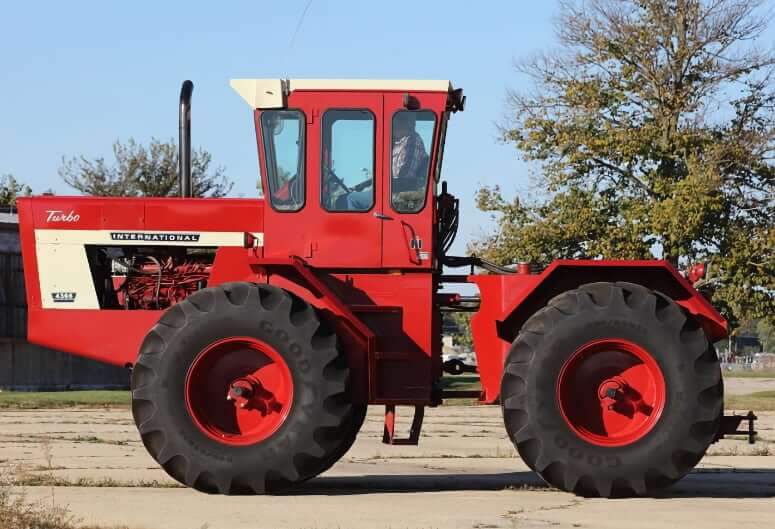

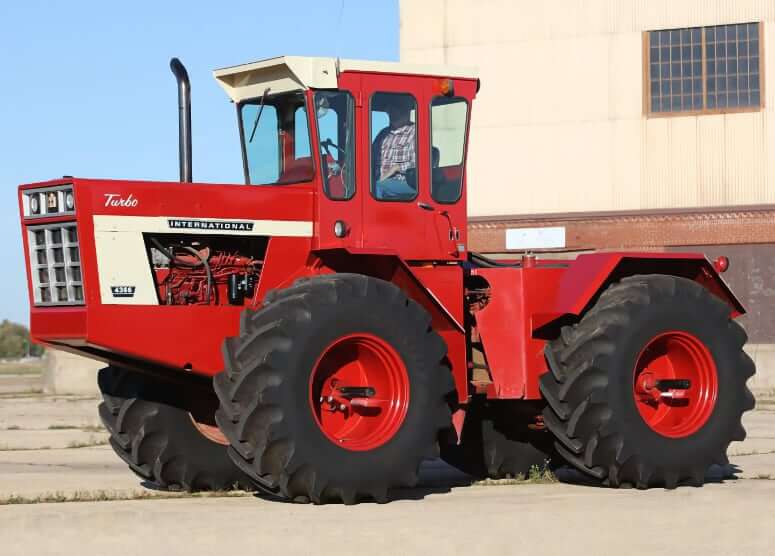

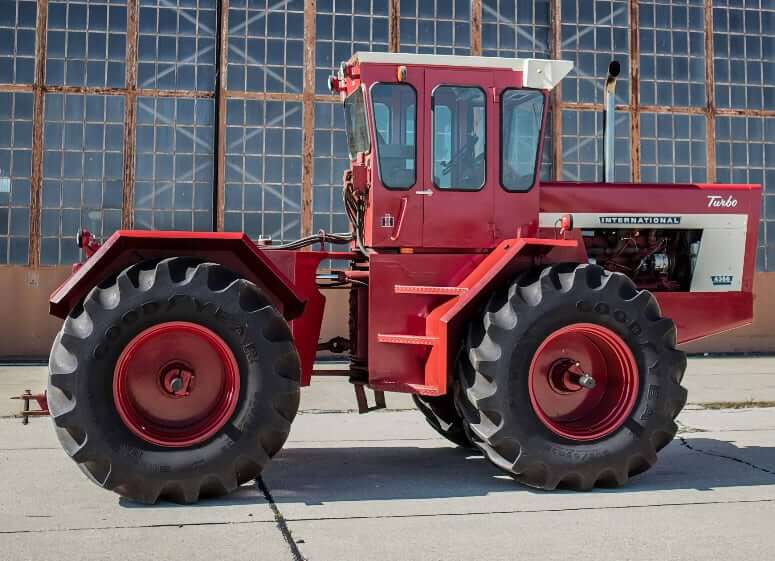

International Harvester 4366 4WD Tractor

Contents

Dimensions
Engine Details
Operational Specs
Transmission
Hydraulic System
Service Refill Capacities

Dimensions

Length	241 in (6120 mm)
Width	116 in (2940 mm)
Height To Top of Cab	128 in (3250 mm)
Wheelbase	118 in (2990 mm)
Ground Clearance (drawbar)	16.5 in (410 mm)
Front Tire Size	28.1-26 / 18.4-38
Rear Tire Size	28.1-26 / 18.4-38

Engine Details

Number Of Cylinders	6
Engine Make	Internatioanl Harvester
Engine Model	Internatioanl Harvester DT-466
Gross Power	225 hp (167.8 kw)
Power Measured @	2600 rpm
Displacement	463.8 cu in (7.6 L)
Bore	4.3 in (109 mm)
Stroke	5.4 in (136 mm)
Aspiration	Turbocharged

Operational Specs

Operating Weight	21690 lb (9838 kg)
Max Operating Weight	23000 lb (10432 kg)
Operating Voltage	12 V
Drive	4WD (Four-wheel Drive Tractor)

Transmission

Transmission Type	Fuller synchromesh
Number Of Forward Gears	10
Number Of Reverse Gears	2
Max Speed – Forward	20.6 mph (33 km/h)
Max Speed – Reverse	7.6 mph (12.1 km/h)

Hydraulic System

Type	Open center
Pump Flow	22 gpm (83.3 L/min)
Steering Flow	17 gpm (64.3 L/min)
Rear Valves	2

Service Refill Capacities

Fuel Tank Capacity	141 gal (533.7 L)
Engine Oil Capacity	4.5 gal (17 L)
Coolant Capacity	9 gal (34.1 L)
Hydraulic System Capacity	31 gal (117.3 L)
