Dimensions
| Ford 6610 | 2WD | 4WD |
|---|---|---|
| Wheelbase | 87.5 in (2220 mm) | 88.8 in (2250 mm) |
| Overall Length | 145.2 in (3680 mm) | 153.1 in (3880 mm) |
| Tractor Width | 68.6 in (1740 mm) | 68.6 in (1740 mm) |
| Front Tread | 52 – 80.5 in (1320 – 2040 mm) | 60 – 80 in (1520 – 2030 mm) |
| Rear Tread | 60 – 80 in (1520 – 2030 mm) | 56 – 90 in (1420 – 2280 mm) |
| Height (ROPS) | 95.7 in (2430 mm) | 95.7 in (2430 mm) |
| Height (Cab) | 106.3 in (2700 mm) | 106.3 in (2700 mm) |
| Height of Steering Wheel | 68.1 in (1730 mm) | 68.1 in (1730 mm) |
| Ground Clearance (Front Axle) | 18.4 in (460 mm) | 17.8 in (450 mm) |
| Ground Clearance (Rear Axle) | 24.2 in (610 mm) | 24.2 in (610 mm) |
| Front Tire Size | 7.50-16; 7.50-18; 10.00-16; | 11.2-24; 12.4-24; 13.6-24; 14.9-24 |
| Rear Tire Size | 16.9-30; 18.4-30; 16.9-34; 18.4-34; 15.5-38; 16.9-38 | 16.9-30; 18.4-30; 16.9-34; 18.4-34; 15.5-38; 16.9-38 |

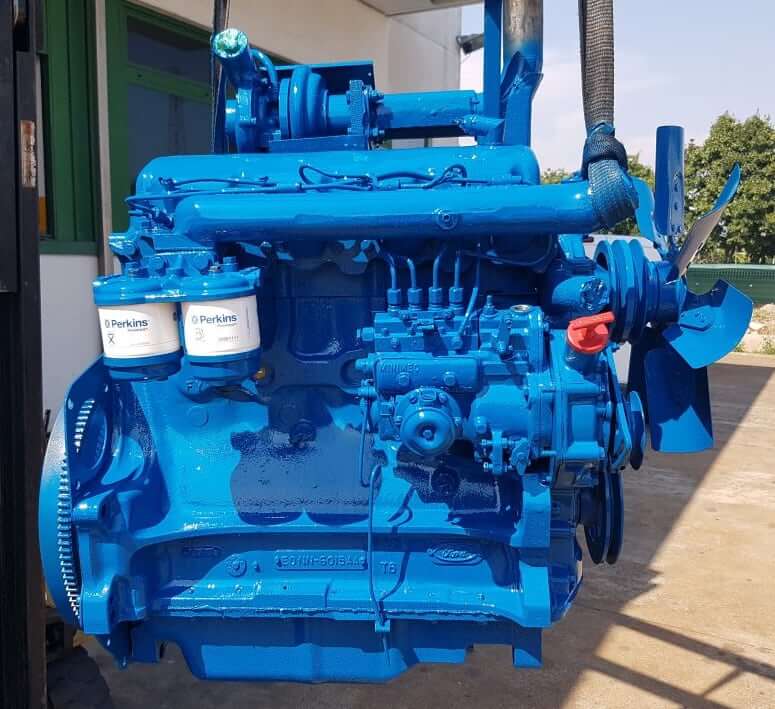

Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Ford |
| Engine Model | Ford 6610 Diesel |
| Gross Power | 82 hp (61.2 kw) |
| Net Power | 78.5 hp (58.5 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 210 lb ft (284 Nm) |
| Torque Measured @ | 1560 rpm |
| Displacement | 268.6 cu in (4.4 L) |
| Bore | 4.5 in (112 mm) |
| Stroke | 4.5 in (112 mm) |
| Aspiration | Naturally aspirated |
Transmission
| Type | 8R x 4R Ford dual-range synchromesh transmission |
| Number Of Forward Gears | 8 |
| Number Of Reverse Gears | 4 |
| Max Forward Speed | 19 mph (30.6 km/h) |
| Max Reverse Speed | 7 mph (11.2 km/h) |
Hydraulic System
| Hydraulic System Type | Open center |
| Maximum System Pressure | 2500 psi (17200 kPa) |
| Pump Flow Capacity | 9.7 gal/min (36.7 L/min) |
| Pump Pump Flow | 3.6 gal/min (13.6 L/min) |
| Number Of Remote Control Valves | 1 |
Operational Specs
| Operating Weight (2WD ROPS) | 6800 lb (3084 kg) |
| Operating Weight (4WD ROPS) | 7300 lb (3311 kg) |
| Shipping Weight | 5695 lb (2583 kg) |
| Ballasted Weight | 9700 lb (4399 kg) |
| PTO Power | 72 hp (53.7 kw) |
| 3 Point Hitch Lift Capacity @ 24 Inches | 4136 lb (1876 kg) |
| Operating Voltage | 12 V |
| Alternator | 32 amps 51 amps Ford 6610 Series II ROPS 75 amps Ford 6610 Series II Cab |
| Battery | 12 V, 128 Ah |
Service Refill Capacities
| Fuel Tank Capacity | 21 gal (80 L) |
| Engine Oil Capacity | 2.2 gal (8.5 L) |
| Cooling System Capacity | 3.4 gal (12.8 L) |
| Hydraulic System Capacity | 15 gal (56.8 L) |
