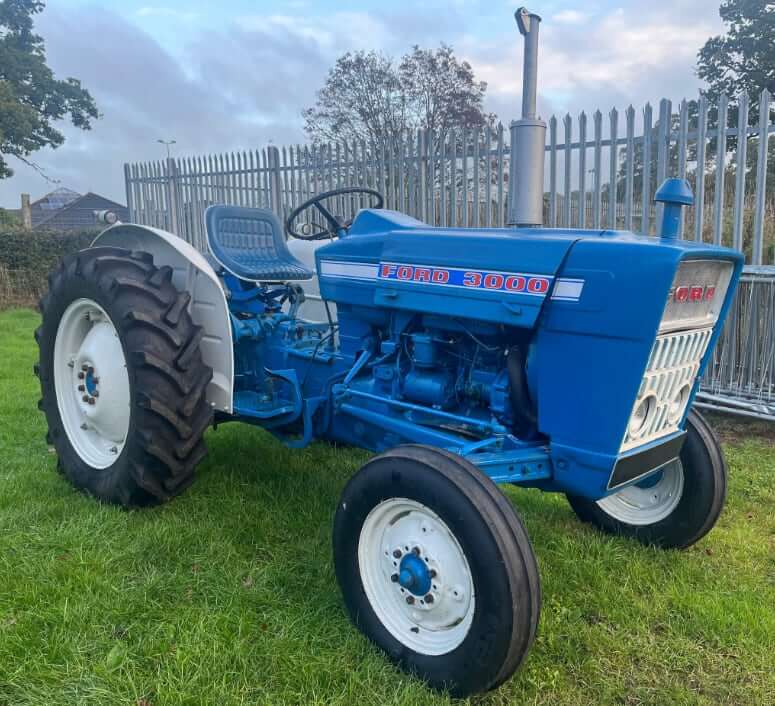

The Ford 3000 Utility Tractor (1965-1975) is a versatile and robust machine designed to handle a wide range of agricultural and utility tasks. Powered by either a 2.6L 3-cylinder gasoline engine or a 2.9L 3-cylinder diesel engine, the Ford 3000 delivers reliable performance and fuel efficiency, making it a trusted choice for farmers and operators.
This model offered a variety of transmission options to meet diverse operational needs. These included the advanced 10F x 2R Select-O-Speed full power shift, the 12F x 3R Gear with Over-Under, the 8F x 2R Gear transmission, and, starting in 1970, the 6F x 2R Gear transmission. These options provided excellent adaptability for fieldwork, transport, and heavy-duty tasks.

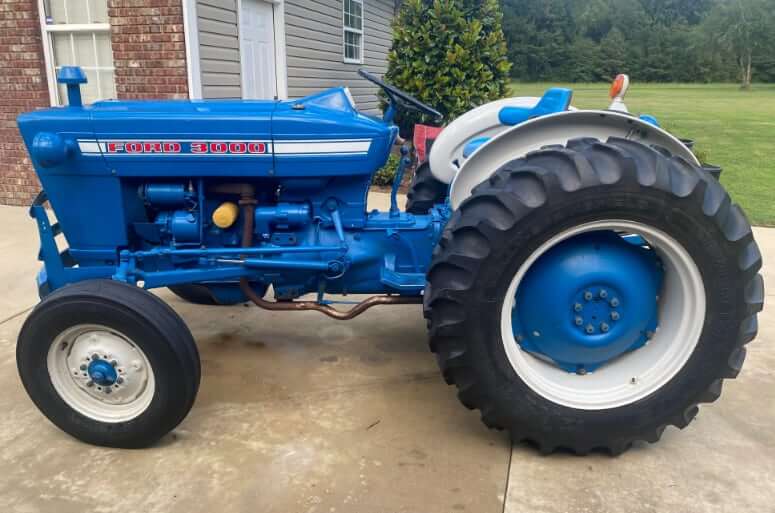

Dimensions
| Length | 127 in (3220 mm) |
| Wheelbase | 75.8 in (1920 mm) |
| Width | 64 in (1620 mm) |
| Height (exhaust) | 83 in (2100 mm) |
| Height (steering wheel) | 58 in (1470 mm) |
| Height (hood) | 54 in (1370 mm) |
| Ground Clearance | 13.4 in (340 mm) |
| Ground Clearance (front axle) | 21.5 in (540 mm) |
| Front Tread | 52 – 80 in (1320 – 2030 mm) |
| Front Tread | 52 – 76 in (1320 – 1930 mm) |
| Front Tire Size | 5.50-16; 6.00-16 |
| Rear Tire Size | 12.4-28; 14.9-24; 16.9-24; 13.6-28 |
Weight
| Shipping Weight | 3700 lb (1678 kg) |
| Operating Weight | 4185 lb (1898 kg) |
| Ballasted Weight | 6940 lb (3147 kg) |

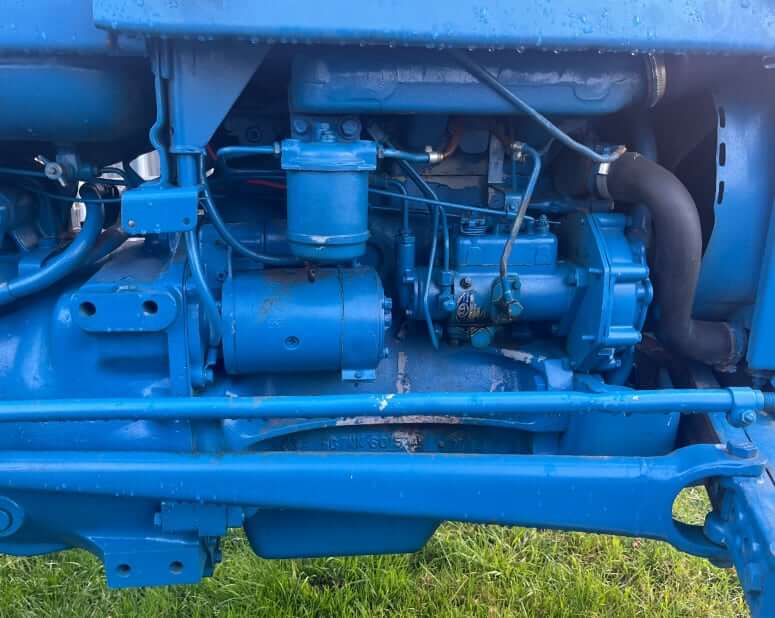

Engine Details
| Engine Model | Ford 2.6L Gasoline | Ford 2.9L Diesel |
|---|---|---|
| Number Of Cylinders | 3 | 3 |
| Displacement | 158 cu in (2.6 L) | 175 cu in (2.9 L) |
| Bore | 4.2 in (107 mm) | 4.2 in (107 mm) |
| Stroke | 3.8 in (97 mm) | 4.2 in (107 mm) |
| Power | 46.7 hp (34.8 kw) | 44.1 hp (32.9 kw) |
| Power Measured @ | 2100 rpm | 2000 rpm |
| Peak Torque | 115 lb ft (156 Nm) | 118 lb ft (160 Nm) |
| Torque Measured @ | 1350 rpm | 1150 rpm |
| Firing Order | 1-2-3 | 1-2-3 |
| Compression | 7.75:1 | 16.5:1 |
| Air Cleaner | Dry | Oil bath |
Transmission
| Transmission | Max Forward Speed | Max Reverse Speed |
|---|---|---|
| 10F x 2R Select-O-Speed full power shift | 16.4 mph (26.4 km/h) | 4.6 mph (7.4 km/h) |
| 12F x 3R Gear with Over-Under | 22.2 mph (35.7 km/h) | 6.3 mph (10.1 km/h) |
| 8F x 2R Gear transmission | 17.4 mph (28.0 km/h) | 8.0 mph (12.9 km/h) |
| 6F x 2R Gear (1970 onwards) | 18.2 mph (29.3 km/h) | 7.4 mph (11.9 km/h) |
Mechanical
| Drive Type | 2WD |
| Steering Type | Manual / Power (optional) |
| Service Brakes | Mechanical expanding shoe brakes |
| Differential Lock | Mechanical rear (optional) |
| Operator Station | Open Operator Station / Canvas cab (optional) |
Power Take-off (PTO)
| PTO Type, A | Tranmission (continuous-running PTO on the 4- and 8-speed) |
| PTO Type, B | Live (standard on the 12-speed over/under, optional on 8-speed) |
| PTO Type, C | Independent (available with the Select-O-Speed tranmission) |
| Rear PTO Speed | 540 (540/1000 – only available with Select-O-Speed transmission) |
| PTO Power (tested) | 40.63 hp (30.3 kw) |
Hydraulic System
| Hydraulic Type | Open center “Live” hydraulics with position and draft control |
| Pump Type | Engine-driven piston-type pump |
| Pump Flow | 4.8 gpm (18.2 L/min) |
| System Pressure | 2500 psi (17236 kPa) |
| Steering Flow | 4.3 gpm (16.3 L/min) |
| Steering Pressure | 600 psi (4137 kPa) |
| Rear Remote Valves | 1 or 2 |
| Rear Hitch Lift Capacity | 1700 lb (771 kg) |

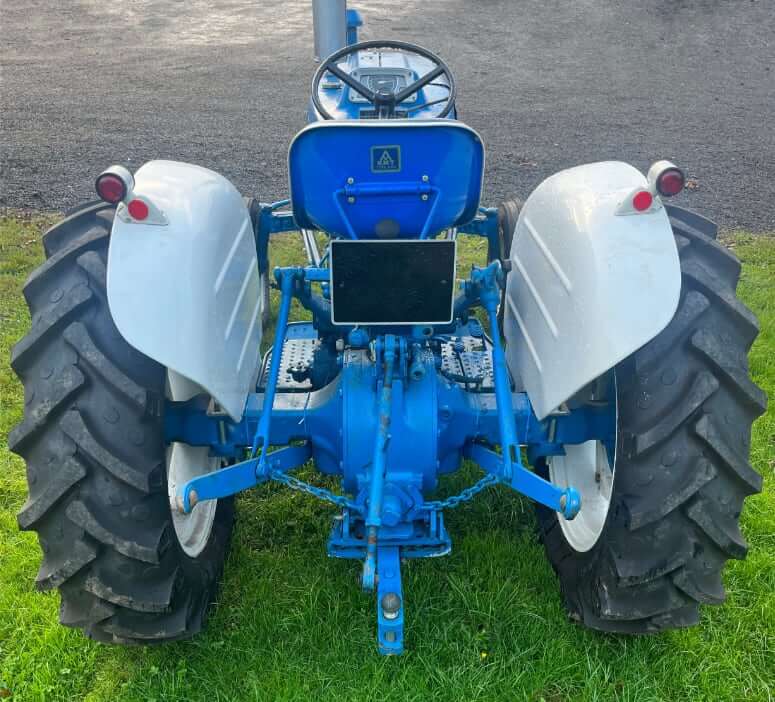

| 3-Point Hitch | Cat I / optional: conversion kit – category I to II 3-point hitch |
Electrical
| Operating Voltage | 12 V (Ground – negative) |
| Alternator | 22 amps |
| Battery | 12 V, 80 Ah (gasoline) / 12 V, 128 Ah (diesel) |
| Starter | 12 V |
Ford 3000 Attachments
Known for its durability, ease of use, and practicality, the Ford 3000 remains a classic choice for agricultural operations, blending efficient power delivery with dependable engineering.
- Mowers – Options for rotary, flail, or sickle-bar mowers. Used for pasture maintenance and landscaping.
- Plows – Single or multiple-bottom plows for soil preparation. Compatible with 3-point hitch for secure mounting.
- Disc Harrows – For breaking up soil and preparing seedbeds. Works effectively in conjunction with the tractor’s power take-off (PTO).
- Cultivators – Designed for weeding and soil aeration between crop rows. Adjustable tines for different row widths.
- Post Hole Diggers – Powered by the tractor’s PTO. Used for digging holes for fencing or planting.
- Seeders and Spreaders – Attachments for planting and spreading fertilizer or lime. Precision operation aided by hydraulic control.
- Bale Spears – For handling hay bales during baling season. Easily mounted on the rear or front.
- Rear Blade – Ideal for grading, leveling, and snow removal. Adjustable angles for customized applications.
- Backhoe Attachments – For digging trenches, ditches, or small ponds. Hydraulic control for digging precision.
- Front-End Loader – Used for material handling, such as moving soil, hay, or other farm materials. Hydraulic control ensured smooth operation for lifting and dumping.
| Front Loader | Ford 771 Loader | Ford 772 Loader |
|---|---|---|
| Bucket Width | 60 in (1520 mm) | 60 in (1520 mm) |
| Breakout | 2700 lbf (12.0 kN) | 4000 lbf (17.8 kN) |
| Lift (Full at Pin) | 1800 lb (816 kg) | 2500 lb (1134 kg) |
| A. Reach @ Maximum Height | 30 in (762 mm) | 32 in (813 mm) |
| B. Clearance, Bucket Dumped | 74.5 in (1892 mm) | 91 in (2311 mm) |
| C. Maximum Dumping Angle | 52° | 38° |
| D. Maximum Digging Depth | 14 in (336 mm) | 22 in (559 mm) |
| E. Height to Bucket Hinge Pin | 97 in (2464 mm) | 118.2 in (3002 mm) |
| F. Reach, Bucket on Ground | 71.5 in (1816 mm) | 79.5 in (2019 mm) |
| G. Rollback | 7° | 8° |
| H. Height in Carry Position | 61.5 in (1562 mm) | 60 in (1524 mm) |
| Front Loader Weight | 815 lb (369 kg) | 1054 lb (478 kg) |
Service Refill Capacities
| Fuel Tank Capacity | 13 gal (49.2 L) |
| Cooling System Fluid Capacity | 3.25 gal (12.3 L) |
| Engine Oil Capacity | 2 gal (7.6 L) |
| Hydraulic System Fluid Capacity | 6.3 gal (23.8 L) |
| Transmission Oil (10-speed Select-O-Speed) | 2.75 gal (10.4 L) |
| Transmission Oil (8-speed Gear) | 3.3 gal (12.5 L) |
| Transmission Oil (4-speed Gear with over/under) | 1.75 gal (6.6 L) |
| Transmission Oil (4-speed Gear) | 1.65 gal (6.2 L) |
Ford 3000 Serial Numbers
| Year | SN | Year | SN |
|---|---|---|---|
| 1965 | C100000 | 1971 | C292100 |
| 1966 | C124200 | 1972 | C327200 |
| 1967 | C161300 | 1973 | C367300 |
| 1968 | C190200 | 1974 | C405200 |
| 1969 | C226000 | 1975 | C450700 |
| 1970 | C257600 |
