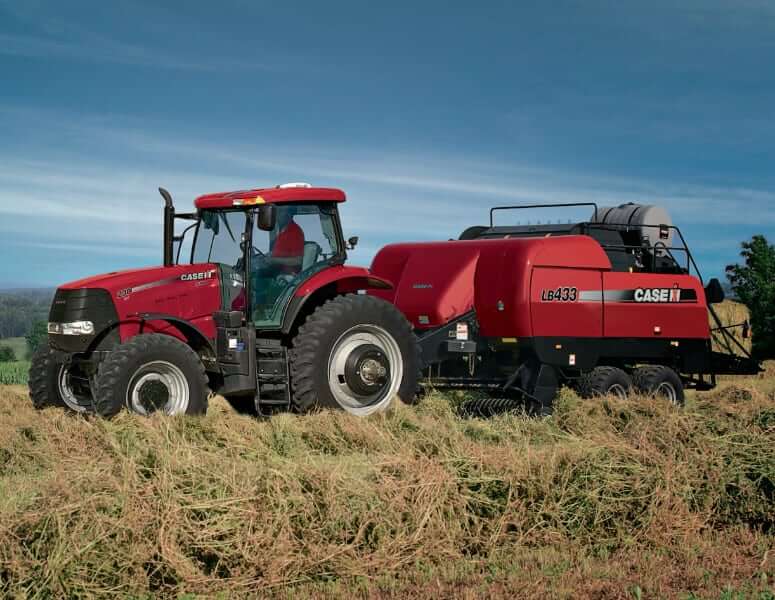

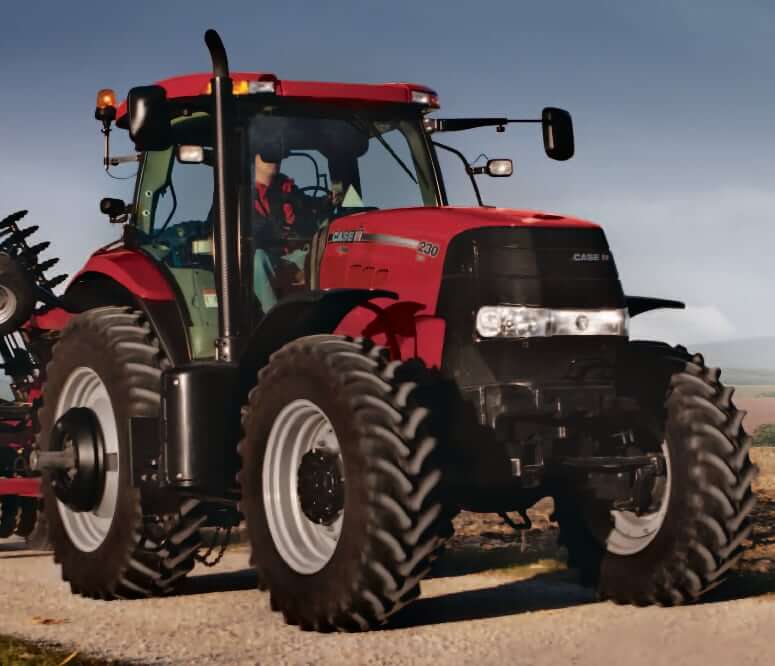

Dimensions
| Overall Length | 197.5 in (5017 mm) |
| Overall Width | 105.6 in (2682 mm) |
| Overall Height | 121.7 in (3090 mm) |
| Height at Centre of Rear Axle | 88.1 in (2239 mm) |
| Wheelbase | 113.6 in (2884 mm) |
| Front Track Setting | 60.6-89 in (1538-2260 mm) |
| Rear Track Setting | 60.2-87.8 in (1530-2230 mm) |
| Turning Radius | 240.2 in (6100 mm) |
| Steering Angle | 55° |
Weights
| Operating Weight (w/o ballast) | 16094 lb (7300 kg) |
| Max Operating Weight (w/ ballast) | 28660 lb (13000 kg) |
| Max Front Axle Load | 13228 lb (6000 kg) |
| Max Rear Axle Load | 20944 lb (9500 kg) |
Tires
| Front Tire Size | 600/65 R28 or 16.9 R30 (Dual) |
| Rear Tire Size | 650/65 R42 or 20.8 R42 (Dual) |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | Case IH / FPT |
| Engine Model | FPT 6.7L Tier 4 |
| Displacement | 408.9 cu in (6.7 L) |
| Bore | 4.1 in (104 mm) |
| Stroke | 5.2 in (132 mm) |
| Gross Power | 269 hp (198 kw) |
| Net Power | 228 hp (167 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 803 lb ft (1089 Nm) |
| Torque Measured @ | 1500 rpm |
| Torque Rise | 35% |
| Fuel System | High Pressure Common Rail. Direct Injection |
| Fan Drive Method | BorgWarner Visctronic |
| Aspiration | Turbocharged, air-to-air aftercooled |
| Emission Standards | US EPA Tier 4 Interim |
Operational Specs
| Operating Weight | 16094 lb (7300 kg) |
| Operating Voltage | 12 V |
| Alternator | 150 amps (200 amps) |
| Battery | 12 V, CCA 1300 |
| Steering | Electro-hydraulic with management system |

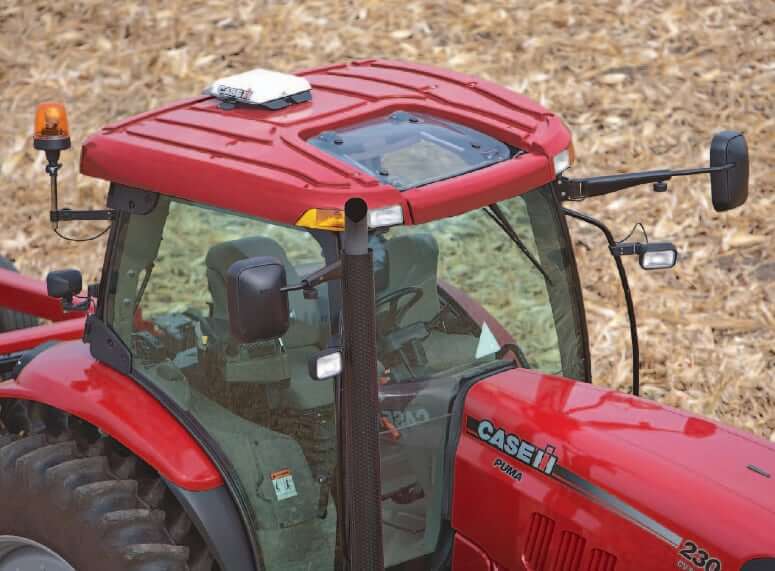

| Glass Area (Including Optional Hi-Vis Roof) | 63.2 ft2 (5.9 m2) |
| Cab Suspension | Optional |
| Noise Level (in cab) | 70 dB(A) |
Transmission
| Type | Continuously Variable Transmission (CVT) |
| Max Travel Speed | 25 mph (40 km/h) |
| Max Travel Speed (Optional) | 30 mph (50 km/h) |
| Rear Axle Differential Lock | Multi disc wet plate with management system |
| Service Brakes | Hydraulically operated multiple wet disc brake, self adjusting |
Axles
| Front Axle Suspension | Active |
| Axle Output End | Bar |
| Axle Diameter | 4.2 in (105 mm) |
| Final Drive | Inboard Planetary |

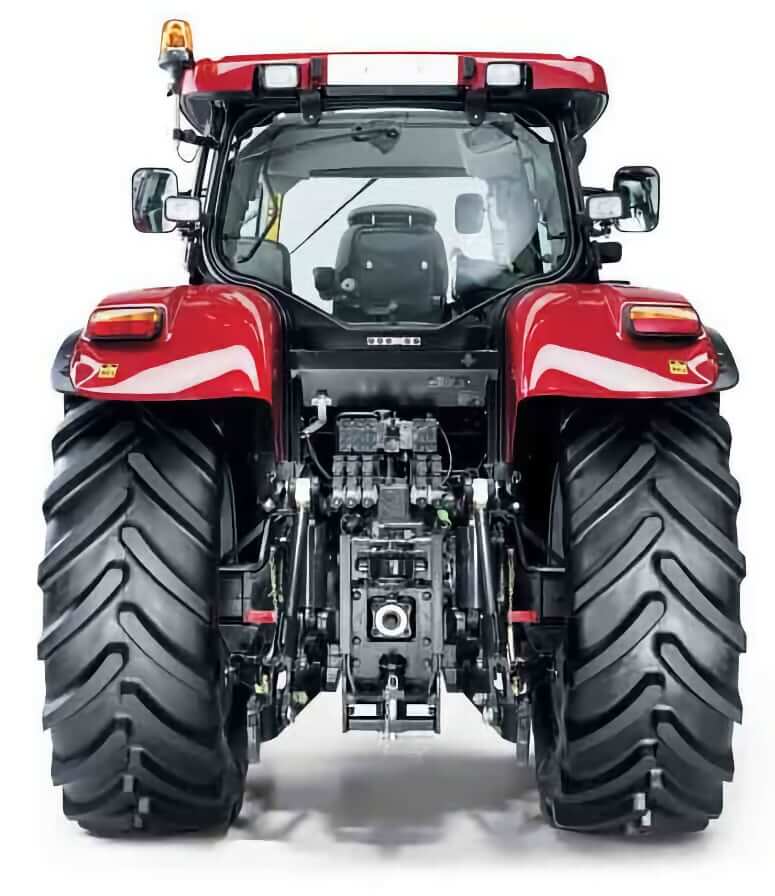

PTO (Power Take-Off)
| PTO Type | Independent |
| PTO Speed | 540E/1000 or 1000/1000E or 540/540E/1000/1000E |
| Engine / PTO RPM | 1569/1893 or 1893/1700 or 1931/1598/1912/1583 |
| Front PTO Speed (Optional) | 1000 |
| Engine / Front PTO RPM (Optional) | 1000 @ 1895 |
Hydraulic System
| Type | Closed Center, Pressure Flow Compensating (PFC) |
| Pump Type | Variable Displacement |
| Implement Pump Flow | 39.6 gal/min (150 L/min) |
| Optional Pump Flow | 44.9 gal/min (170 L/min) |
| System Pressure | 3118 psi (21500 kPa) |
| Number of Remote Control Valves, Rear | 5 Electro-Hydraulic |
| Number of Remote Control Valves, Mid-mount | 4 Electro-Hydraulic (with electronic joystick) |

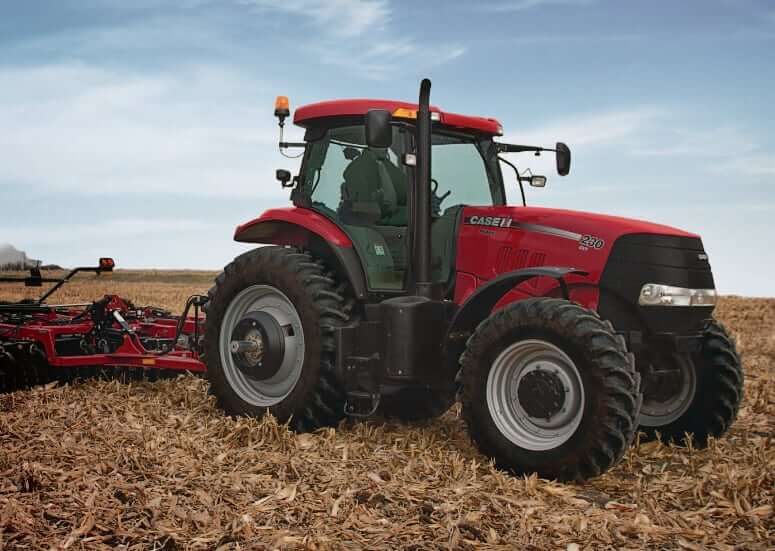

3-Point Hitch
| 3-Point Hitch Category | Category III |
| 3-Point Hitch Lift Capacity @ 24″ | 10200 lb (4660 kg) / Optional 15200 lb (6 894 kg) |
| 3-Point Hitch Lift Capacity @ ends | 23060 lb (10460 kg) |
| Front Hitch Lift Capacity | 8344 lb (3785 kg) |
| Draft Sensing | EHC with ride control |
Service Refill Capacities
| Fuel Tank Capacity | 104.3 gal (395 L) |
| DEF Tank Capacity | 12.7 gal (48 L) |
| Engine Oil Capacity (w/ filter) | 4.0 gal (15 L) |
| Cooling System Capacity | 5.9 gal (22.5 L) |
| Hydraulic / Transmission Oil Capacity | 22 gal (83.3 L) |
