Dimensions
| Length | 121 in (3074 mm) |
| Overall Width | 66.5 in (1689 mm) |
| Wheelbase | 67.5 in (1715 mm) |
| Height to Top of ROPS | 87.7 in (2227 mm) |
| Overall Length (w/ 3-point hitch) | 145 in (3688 mm) |
Tires
| Front Tire Size (Industrial) | 25×8.50-14, 6PR R4 |
| Rear Tire Size (Industrial) | 43×16.00-20, 4PR R4 TL |
| Front Tire Size (Ag) | 7×14 6PR R1 |
| Rear Tire Size (Ag) | 11.2×24 4PR R1 |
| Front Tire Size (Turf) | 25×8.50-14 4PR TL |
| Rear Tire Size (Turf) | 41×14.00×20 4PR |
Engine Details
| Number of Cylinders | 3 |
| Engine Make | IHI Shibaura |
| Engine Model | Shibaura N843T-F |
| Displacement | 91.3 cu in (1.5 L) |
| Bore | 3.4 in (84 mm) |
| Stroke | 3.6 in (90 mm) |
| Gross Power | 36.2 hp (27 kw) |
| PTO Horsepower (Gear) | 30.7 hp (22.9 kw) |
| PTO Horsepower (HST) | 29 hp (21.6 kw) |
| Power Measured @ | 2600 rpm |
| Block Design | Wet liners |
| Fuel System | Injection Indirect, Electronic |
| Exhaust Pipe | Horizontal |
| Fan Drive Type | Belt |
| Aspiration | Turbocharged |
| Aftertreatment | Internal exhaust gas recirculation (EGR) with diesel oxidation catalyst (DOC) and Diesel Particulate Filter (DPF) |
| Emission Standards | US EPA Tier 4 Final |
Operational Specs
| Operating Weight (w/ ROPS) | 3067 lb (1391 kg) |
| Max Operating Weight (w/ ballast) | 3867 lb (1754 kg) |
| Operating Voltage | 12 V |
| Alternator | 85 amps |
| Steering Configuration | Front Steer |
| Drive | 4WD |
| Axle Output End | Flange |
| Final Drive | Inboard Planetary |
Transmission
| Case IH Farmall 35A | Gear Shuttle with Synchro Shift | Hydrostatic (Optional) |
|---|---|---|
| Number of Gears | 12F / 12F | 3-range hydrostatic |
| Max Forward Speed | 14.2 mph (22.9 kph) | 14.8 mph (23.8 kph) |
| Rear Diff. Lock Engagement | Mechanical | Mechanical |
| Service Brake | Wet multi disc | Wet multi disc |
PTO (Power Take-Off)
| Rear PTO Type | Independent with electro-hydraulic engagement |
| Rear PTO Speed | 540 rpm |
| Mid PTO Type | Independent |
| Mid PTO Speed | 2000 rpm |
3-Point Hitch
| 3 Point Hitch Type | Category 1 |
| 3 Point Hitch Lift Capacity at Ball End | 1808 lb (820 kg) |
| 3 Point Hitch Lift Capacity @ 24″ | 1433 lb (650 kg) |
| 3 Point Hitch Description | Fixed link ends, turnbuckle lift link, and telescopic stabilizers |
| Drawbar Description | Category 4, Swinging |
| Control | Position Control |
Hydraulic System
| Type | Open center |
| Main Pump Type | Gear pump |
| Implement Pump Flow | 8.2 gal/min (31 L/min) |
| Steering Pump Flow (Gear) | 4.2 gal/min (16 L/min) |
| Steering Pump Flow (HST) | 5.3 gal/min (20 L/min) |
| Number of Remote Control Valves | 1 or 2 optional |

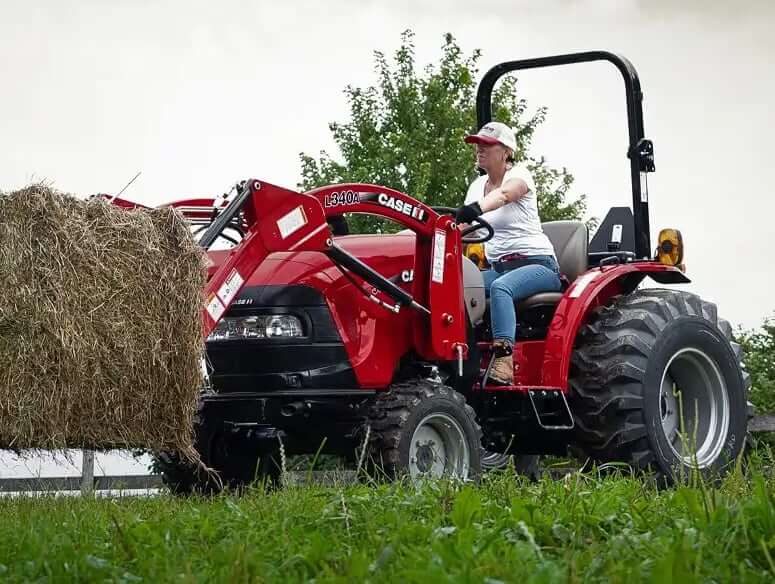

Case IH L340A Loader
| Front Loader | Case IH L340A |
|---|---|
| Lift Capacity at Bucket Pivot Pin | 1250 lb (567 kg) |
| Lift Capacity at 19.7 in (500 mm) from Bucket | 890 lb (404 kg) |
| Max Lift Height | 98.4 in (2500 mm) |
| Dump Angle at Full Height | 39° |
| Rollback Angle at Ground | 32° |
| Bucket Width (HD material) | 68 in (1727 mm) |
Service Refill Capacities
| Fuel Tank Capacity | 7.4 gal (28 L) |
| Engine Oil Capacity (w/ filter) | 1.6 gal (6 L) |
| Cooling System Capacity (approx.) | 2.5 gal (9.3 L) |
