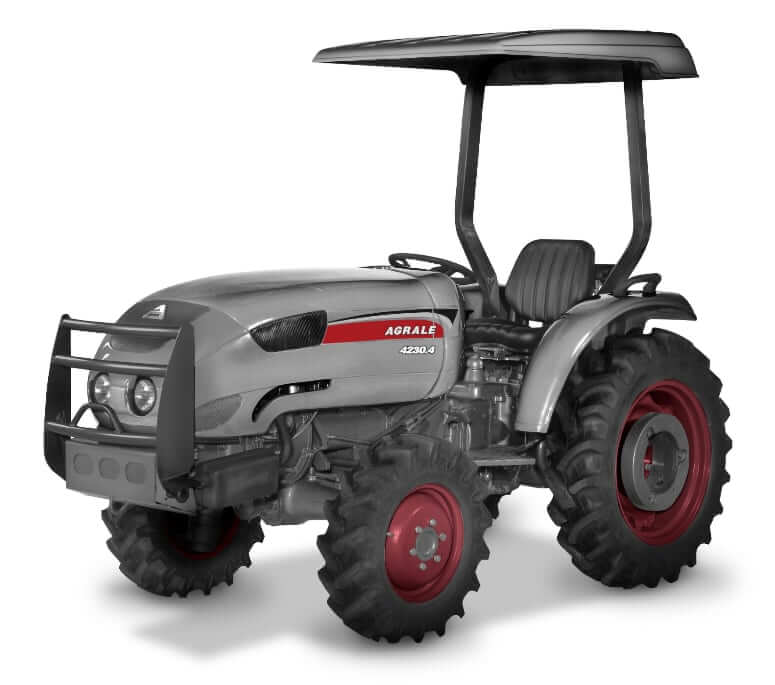

Contents

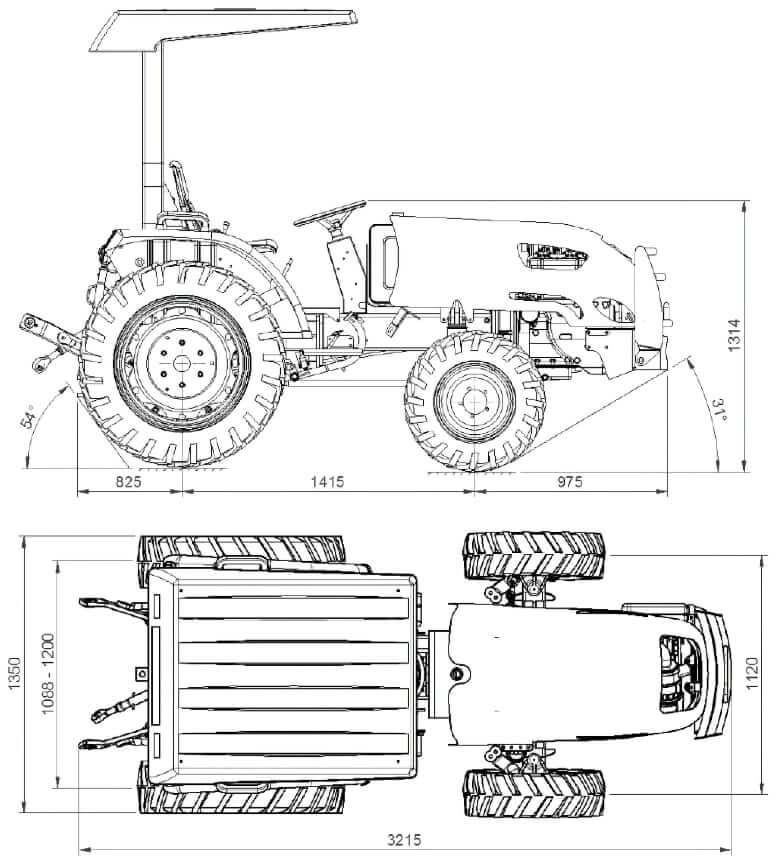

Dimensions
| Agrale 4230.4 | 4×2 | 4×4 |
|---|---|---|
| Overall Length | 126.6 in (3215 mm) | 126.6 in (3215 mm) |
| Overall Width | 55.7 in (1415 mm) | 553.1 in (1350 mm) |
| Wheelbase | 58.1 in (1475 mm) | 55.7 in (1415 mm) |
| Clearance | 15.9 in (405 mm) | 12.6 in (320 mm) |
| Height to Top of ROPS / Canopy | 87.6 in (2226 mm) | 87.6 in (2226 mm) |
| Height to Steering Wheel | 52.0 in (1320 mm) | 51.7 in (1314 mm) |
| Front Tread (min / max) | 39.4 in (1000 mm) / 44.1 in (1120 mm) | 39.4 in (1000 mm) / 44.1 in (1120 mm) |
| Rear Tread (min / max) | 42.8 in (1088 mm) / 47.2 in (1200 mm) | 42.8 in (1088 mm) / 47.2 in (1200 mm) |
| Turning Radius w/ Brakes | 98 in (2500 mm) | 116 in (2950 mm) |
| Turning Radius w/o Brakes | 124 in (3150 mm) | 132 in (3350 mm) |
| Front Overhang | 38.4 in (975 mm) | 38.4 in (975 mm) |
| Rear Overhang | 32.5 in (825 mm) | 32.5 in (825 mm) |
| Departure Angle | 54° | 54° |
| Approach Angle | 31° | 31° |

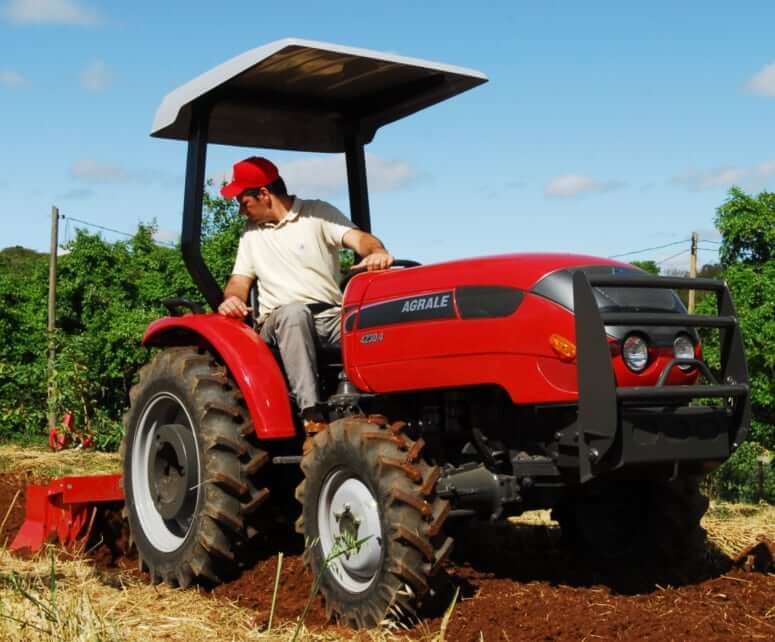

Operational Specs
| Agrale 4230.4 | 4×2 | 4×4 |
|---|---|---|
| Operarting Weight | 4023 lb (1825 kg) | 4200 lb (1905 kg) |
| Shipping Weight | 3307 lb (1500 kg) | 3594 lb (1630 kg) |
| Front Tire Size | 6.00 – 16″ | 7.50 – 15″ |
| Rear Tire Size | 12.4 – 24″ | 9.5 – 24″ |
| Operating Voltage | 12 V | 12 V |
| Alternator | 55 amps, 14 V | 55 amps, 14 V |
| Battery | 12 V, 55 Ah | 12 V, 55 Ah |
Engine Details
| Number Of Cylinders | 2 |
| Engine Make | Agrale |
| Engine Model | Agrale M 790 |
| Displacement | 77.5 cu in (1.27 L) |
| Gross Power | 30.0 hp (22.4 kw) |
| Power Measured @ | 3000 rpm |
| Max Torque | 51.7 lb ft (70 Nm) |
| Torque Measured @ | 2550 rpm |
| Cooling System | Forced air by flywheel turbine |
| Aspiration | Naturally aspirated |
| Injection System | Direct (Bosch) |
Transmission
| Type | Mechanical transmission |
| Drive | 2WD / 4WD |
| Clutch Type | Simple dry disc, 9.1 in (232 mm) |
| Number Of Gears | 6 Forward / 2 Reverse |
| Max Travel Speed, Forward | 14.0 mph (22.6 km/h) |
| Max Travel Speed, Reverse | 6.3 mph (10.1 km/h) |
| Differential Lock | Mechanical foot pedal and automatic disengaging |
| Front Axle | Adjustable oscillating / Central differential |
| Service Brake | 8 Wet discs oil bath. Mechanical actuation |
| Parking Brake | Manual Lever |

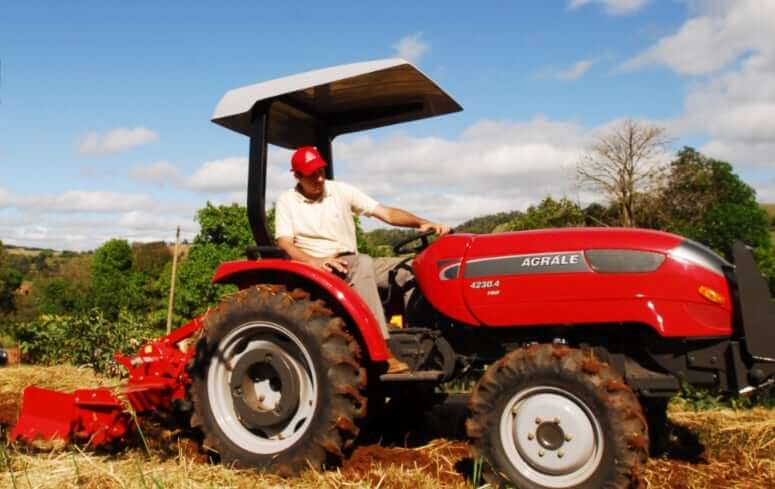

PTO (Power Take-Off)
| Type | Independent |
| PTO Power | 26.6 hp (19.8 kw) |
| Nominal Speed | 540 @ 2480 engine rpm |
| PTO Drive | Mechanical |
| Number of Splines | 6 |
| Diameter | 1.38 in (35 mm) |
Hydraulic System
| Relief Valve Setting | 1706 psi (11800 kPa) |
| Pump Flow Capacity | 8.7 gal/min (33 L/min) |
| Remote Controls | (Optional) 2 way single command |
| Controls | Position |
| 3 Point Hitch Lift Capacity @ 24 Inches | 1433 lb (650 kg) |
| Three-point Hitch | Category I |
Service Refill Capacities
| Fuel Tank Capacity | 10.4 gal (39 L) |
| Engine Oil Capacity | 1.6 gal (6 L) |
| Transmission / Hydraulic Capacity | 7.9 gal (30 L) |
