Loader Performance
| Tipping Load | 4400 lb (1996 kg) |
| Rated Operating Capacity (50% Tipping) | 2200 lb (998 kg) |
| Rated Operating Capacity (35% Tipping) | 1400 lb (699 kg) |
| Bucket Breakout Force | 6034 lbf (28.8 kN) |
| Boom Breakout Force | 4194 lbf (18.7 kN) |
| Standard Bucket Width | 72 in (1829 mm) |
| Standard Bucket Capacity | 17.1 ft3 (0.48 m3) |
| Standard Bucket Type | Low profile |
| Lift Arm Path | Vertical |

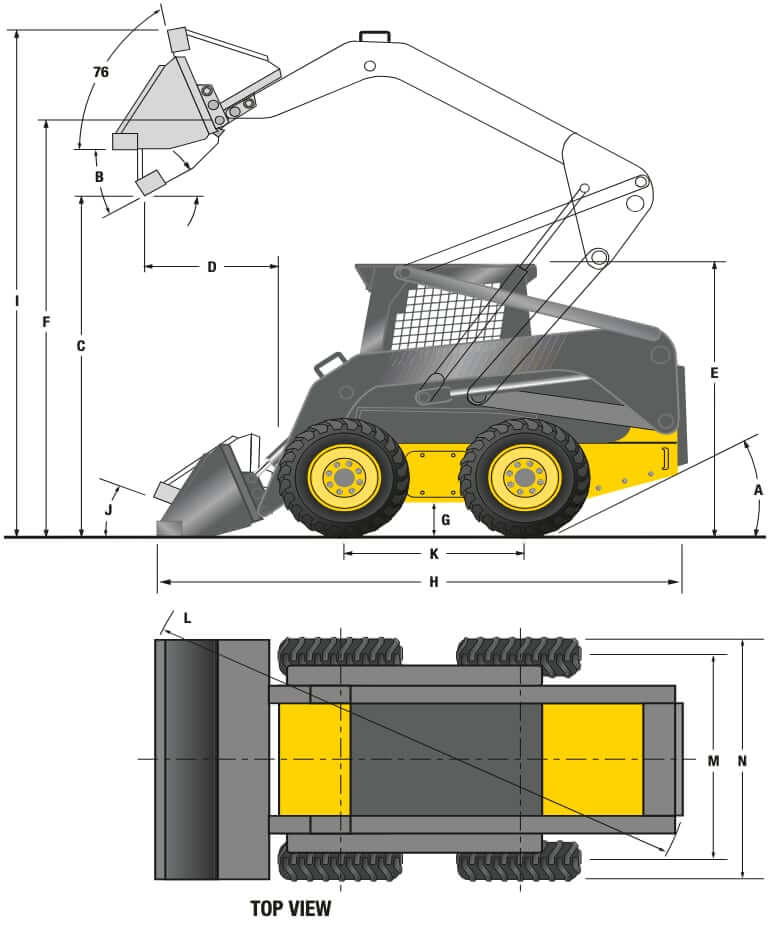

Dimensions
| A. Angle of Departure | 26° |
| B. Dump Angle (Maximum) | 45° |
| C. Dump Height (SAE) | 94.7 in (2406 mm) |
| D. Dump Reach @ Maximum Height (SAE) | 39.5 in (1003 mm) |
| E. Height to Top of Cab / ROPS | 78.7 in (1999 mm) |
| F. Height to Hinge Pin | 126.8 in (3219 mm) |
| G. Ground Clearance | 8.9 in (226 mm) |
| H. Length with Bucket | 150.3 in (3818 mm) |
| I. Operating Height (Maximum) | 143.7 in (3651 mm) |
| J. Rollback Angle (at Carry Position) | 37° |
| K. Wheelbase | 48 in (1219 mm) |
| L. Circle Clearance | 156 in (3963 mm) |
| M. Wheel Tread (w/ 12×16.5 tires) | 58.5 in (1486 mm) |
| N. Width over Tires | 71.25 in (1810 mm) |
Buckets for New Holland L180
| New Holland L180 | Bucket Width | Heaped Capacity |
|---|---|---|
| Dirt / Foundry Bucket (Standard) | 72 in (1829 mm) | 16.7 ft3 (0.45 m3) |
| Dirt / Foundry Bucket | 78 in (1981 mm) | 18.4 ft3 (0.52 m3) |
| Low Profile (extended) Bucket | 72 in (1829 mm) | 17.1 ft3 (0.48 m3) |
| Low Profile (extended) Bucket | 78 in (1981 mm) | 18.6 ft3 (0.52 m3) |
| Low Profile (extended) Bucket | 84 in (2134 mm) | 20.1 ft3 (0.57 m3) |
| Utility / Light Material Bucket | 72 in (1829 mm) | 23.7 ft3 (0.65 m3) |
| Utility / Light Material Bucket | 84 in (2134 mm) | 27.9 ft3 (0.79 m3) |
| Manure / Fertilizer Bucket | 72 in (1829 mm) | 19.1 ft3 (0.54 m3) |
| Manure / Fertilizer Bucket | 84 in (2134 mm) | 22.5 ft3 (0.64 m3) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | FPT Industrial |
| Engine Model | FPT F5C E9454 |
| Displacement | 195 cu in (3.2 L) |
| Bore | 4.9 in (99 mm) |
| Stroke | 4.1 in (104 mm) |
| Gross Power | 74 hp (55 kw) |
| Net Power | 69 hp (51 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 203 lb ft (275 Nm) |
| Torque Measured @ | 1400 rpm |
| Torque Rise | 28% |
| Low Idle | 1075 rpm |
| High Idle | 2675 rpm |
| Fuel System | Direct Injection |
| Fuel Consumption | 4.4 gal/h (16.7 L/h) |
| Compression Ratio | 17.5:1 |
| Air Cleaner | Dual stage, dry element filter |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Tier 3 + Stage IIIA CE 97/68 |
Operational Specs
| Operating Weight | 7130 lbs (3234 kg) |
| Operating Weight (w/ 2-speed) | 7158 lb (3247 kg) |
| SAE Load Capacity | 2200 lb (998 kg) |
| Operating Voltage | 12 V |
| Alternator | 95 amps |
| Battery | 12 V, CCA 1125 |
| Starter | 12 V, 4.2 hp (3.1 kw), four-pole series wound |
| Tire Size (Standard) | 12.00 x 16.5 |
| Tire Size (Optional) | 8.25 x 15 |
| Optional Attachments | 4×1 Bucket; Concrete Chuter; Post Driver; Snow Bucket; Auto Rake; Concrete Claw; Rock Bucket; Snow Push; Backhoe; Dozer Blade; Rock Saw; Soil Preparator; Bale Handler; Earth Auger; Root Rake; Stump Grinder; Bale Spear; Grader Rake; Rotary Mower; Tiller; Box Rake; Grapples; Silage Defacer; Tree Spade; Broom; Hydraulic Hammer; Silt Fence Installer; Trencher; Chipper; Lift Boom; Snow Blade; Vibratory Roller; Cold Planer; Pallet Forks; Snow Blower |
Transmission
| Type | Hydrostatic transmission |
| Max Travel Speed, Low | 7.0 mph (11.2 km/h) |
| Max Travel Speed, High (2-speed) | 11.3 mph (18.2 km/h) |
| Parking Brake | SAHR park brake |
| Chain Size | 100 HD |
| Drive Pump Type | Variable displacement piston type |
| Drive Motor | Radial piston motor |
Hydraulic System
| Main Pump Type | Gear Pump |
| Pump Flow Capacity | 21 gal/min (79.5 L/min) |
| Pump Flow Capacity (High Flow) | 35.8 gal/min (135.5 gal/min) |
| Relief Pressure Setting | 3050 psi (21000 kPa) |
| Loader Control Valve Type | 3 Spool Open Center |
| Hydraulic Fluid | API Service SH/CG4 10W-30 |
| Boom Cylinders (Bore x Stroke x Rod) | 2.5 x 24.06 x 1.5 in (63.5 x 611 x 38.1 mm) New Holland double acting |
| Bucket Cylinders (Bore x Stroke x Rod) | 2.5 x 17.6 x 1.25 in (64 x 447 x 31.8 mm) New Holland double acting |
Hydraulic Circle Time
| Raising Time | 2.8 sec |
| Dumping Time | 1.8 sec |
| Lowering Time | 2.5 sec |
| Roll Back Time | 1.6 sec |
| Total Boom-Cycle Time | 8.7 sec |
Service Refill Capacities
| Fuel Tank Capacity | 22.9 gal (86.7 L) |
| Engine Oil Capacity (w/ filter) | 2.2 gal (8.5 L) |
| Cooling System Capacity | 3 gal (11.4 L) |
| Hydraulic System Capacity (w/ tank) | 15 gal (56.8 L) |
| Transferbox Fluid Capacity | 0.35 gal (1.32 L) |
| Chain Case w/ Gearbox Capacity (each side) | 1.7 gal (6.4 L) |
