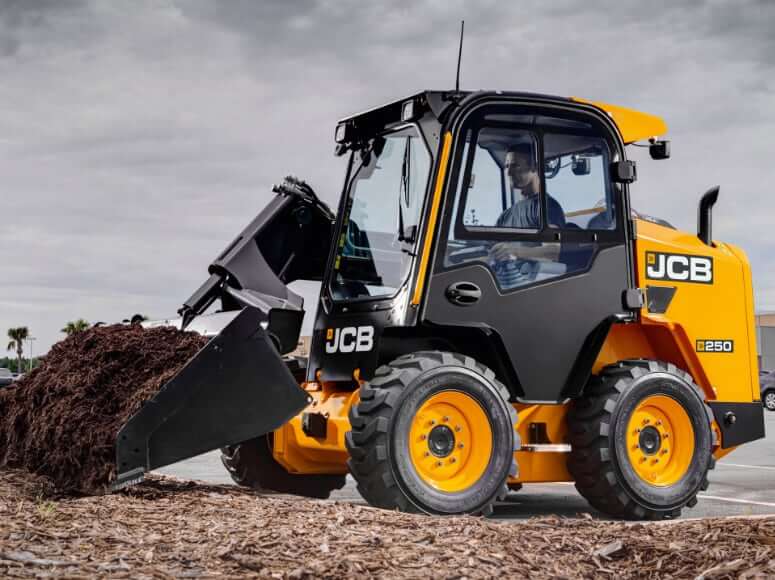

Loader Performance
| Tipping Load | 4907 lb (2226 kg) |
| Rated Operating Capacity (ROC) 50% | 2454 lb (1113 kg) |
| Boom Breakout Force | 5884 lbf (26.2 kN) |
| Bucket Breakout Force | 6543 lbf (29.1 kN) |
| Bucket Capacity | 0.56 yd3 (0.43 m3) |
| Bucket Width | 78.4 in (1990 mm) |
| Lift Path | Radial |

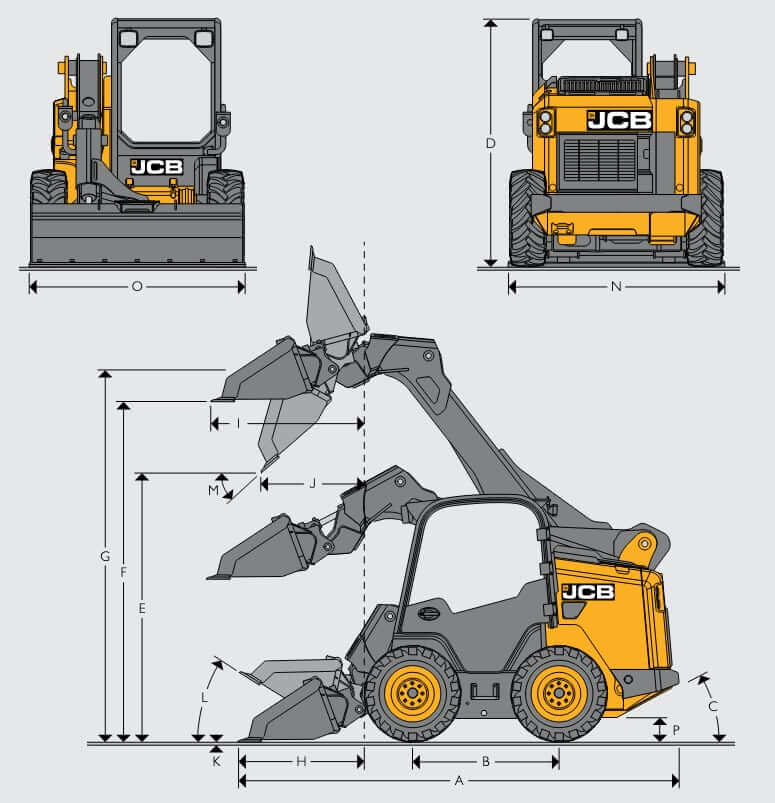

Dimensions
| A. Overall Length | 149.6 in (3800 mm) |
| B. Wheelbase | 49.2 in (1250 mm) |
| C. Angle of Departure | 29° |
| D. Overall Height | 82.7 in (2100 mm) |
| E. Dump Height | 90.6 in (2300 mm) |
| F. Loadover Height | 114.2 in (2900 mm) |
| G. Pin Height | 126.0 in (3200 mm) |
| H. Reach @ Ground Level | 43.3 in (1100 mm) |
| I. Max. Reach @ Full Height | 39.4 in (1000 mm) |
| J. Reach @ Full Height – Fully Dumped | 23.6 in (600 mm) |
| K. Dig Depth Clearance | 0.4 in (10 mm) |
| L. Rollback @ Ground | 30° |
| M. Dump Angle | 42° |
| N. Width over Standard Tyres | 70.9 in (1800 mm) |
| O. Standard Bucket Width | 74.8 in (1900 mm) |
| P. Ground Clearance | 9.8 in (250 mm) |
| Bucket Corner Radius | 90.6 in (2300 mm) |
| Quick Hitch Radius | 59.1 in (1500 mm) |
| Rear Chassis Radius | 69.3 in (1760 mm) |

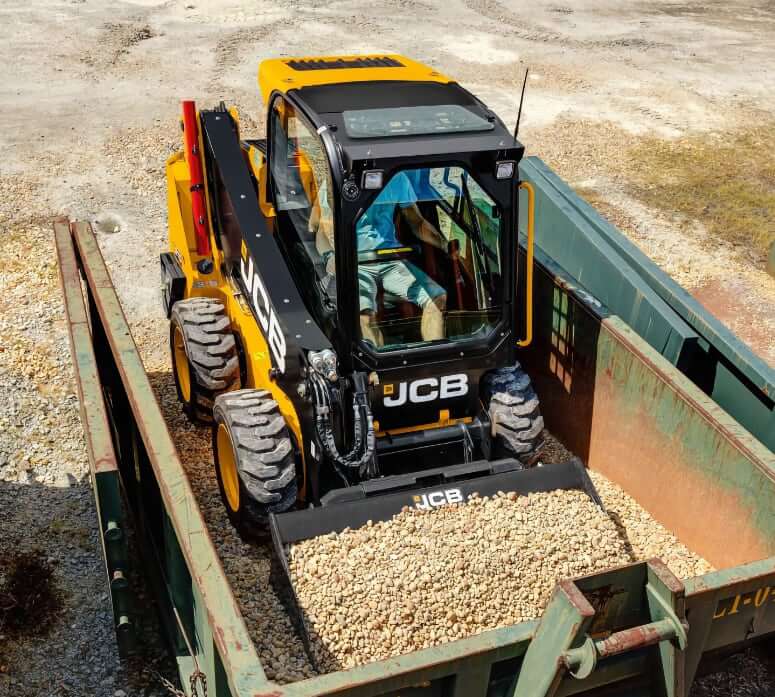

Tires
| Standard Tire Size | 12 x 16.5 – 10 PR (Off Road) |
| Optional Tire Sizes | 7,6 x 15 11 x 16,5 15,5 x 16,5 33 x 11 – 20 36 x 22 – 20 32 x 8,5 – 16 33 x 10 – 20 |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | JCB |
| Engine Model | JCB EcoMAX TCAE-55 |
| Displacement | 268 cu in (4.4 L) |
| Bore | 4.06 in (103 mm) |
| Stroke | 5.20 in (132 mm) |
| Gross Power | 74 hp (55 kw) |
| Power Measured @ | 2800 rpm |
| Peak Torque | 267 lb ft (362 Nm) |
| Torque Measured @ | 1200 rpm |
| Cooling System | Variable speed hydraulically driven fan |
| Fuel System | Common Rail. Pre-filter with primary pump and WIF sensor |
| Aspiration | Turbocharged Aftercooled |
| Emission Standards | US EPA Tier 4 Final + EU Stage IIIB |

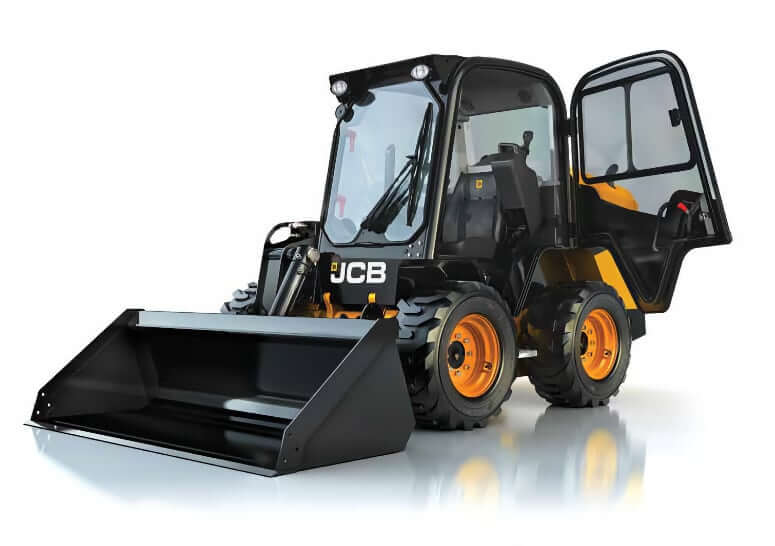

Operational Specs
| Operating Weight | 8139 lb (3692 kg) |
| Operating Voltage | 12 V |
| Alternator | 95 amps |
| Battery | 12 V, 109 Ah, CCA 1000 |
| Starter | 12 V, 2.7 hp (2 kw) |
| Cab | ROPS + FOPS |
| Controls | JCB servo control (ISO) pattern provides all drive functions on left and loader function on right joystick. The left hand control pod pivots rearwards, providing unparalleled machine entry/exit |
Transmission
| Type | Full electro-hydraulic controlled hydrostatic transmission |
| Max Travel Speed | 6.8 mph (10.9 km/h) |
| Max Travel Speed (Two speed) | 12.4 mph (20.0 km/h) |
| Parking Brake | Hydraulic park brake |
Hydraulic System
| Pump Type | Main hydrostatic drive pumps + service pump for the loader and attachments |
| Pump Flow Capacity (Standard) | 23.8 gal/min (90 L/min) |
| Hydraulic Power (Standard) | 46.7 hp (34.3 kw) |
| Pump Flow Capacity (High Flow) | 31.7 gal/min (120 L/min) |
| Hydraulic Power (High Flow) | 61.7 hp (45.4 kw) |
| Relief Valve Pressure | 3336 psi (23000 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 27.3 gal (103.3 L) |
| Engine Oil Capacity (w/ filter) | 4.0 gal (15 L) |
| Cooling System Capacity | 5.9 gal (22 L) |
| Hydraulic System Capacity (w/ tank) | 14.6 gal (55 L) |
| Chaincase Fluid Capacity (each) | 6.2 gal (23.3 L) |
