Loader
| Bucket Capacity | 0.497 yd3 (0.38 m3) |
| Operating Load Rating | 2061 lb (935 kg) |
| Breakout Force (Bucket) | 4678 lb (2122 kg) |
| Breakout Force (Boom) | 4656 lb (2112 kg) |
| Tipping Load | 4122 lb (1870 kg) |
| B. Hinge Pin Height | 119.6 in (3039 mm) |
| K. Dump Angle | 35° |
| L. Dumping Height | 95.2 in (2417 mm) |
| M. Maximum Reach | 25.8 in (656 mm) |
| N. Max. Rollback at Ground | 26° |
| O. Max. Rollback- Extended | 98° |

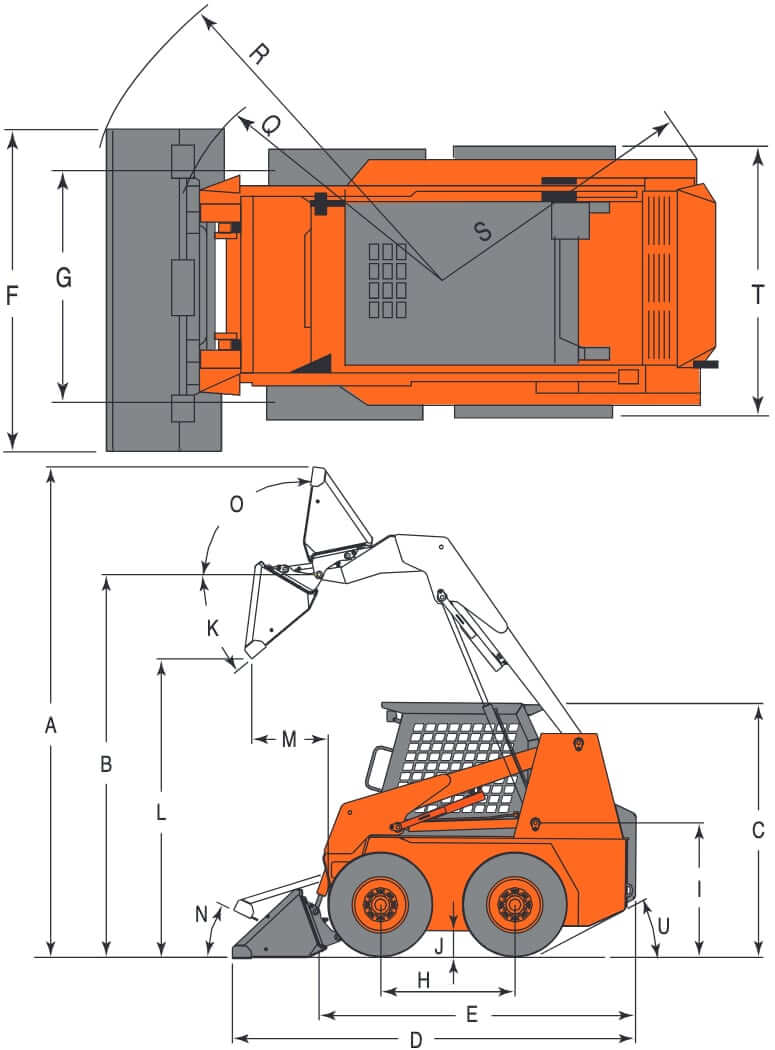

Dimensions
| A. Height at Maximum Extension | 153.1 in (3889 mm) |
| B. Hinge Pin Height | 119.6 in (3039 mm) |
| C. Height To Top Of Cab | 80.1 in (2035 mm) |
| D. Length with Bucket | 126.9 in (3223 mm) |
| E. Length without Bucket | 99.8 in (2536 mm) |
| F. Width with Bucket | 67.5 in (1713 mm) |
| G. Track Width | 65.4 in (1662 mm) |
| H. Wheelbase | 41.8 in (1061 mm) |
| I. Seat Index Point | 40.9 in (1040 mm) |
| J. Ground Clearance | 8.6 in (218 mm) |
| K. Dump Angle | 35° |
| L. Dumping Height | 95.2 in (2417 mm) |
| M. Maximum Reach | 25.8 in (656 mm) |
| N. Max. Rollback at Ground | 26° |
| O. Max. Rollback, Extended | 98° |
| Q. Clearance Circle w/o Bucket | 46.6 in (1185 mm) |
| R. Clearance Circle with Bucket | 75.0 in (1905 mm) |
| S. Clearance Circle, Rear | 61.1 in (1551 mm) |
| T. Width w/o Bucket | 53.1 in (1350 mm) |
| U. Departure Angle | 27° |
Engine Details
| Engine | Yanmar | Cummins |
|---|---|---|
| Number of Cylinders | 4 | 4 |
| Engine Model | Yanmar 4TNV98-ZNDS | Cummins B3.3NA |
| Displacement | 202.5 cu in (3.31 L) | 198.9 cu in (3.26 L) |
| Net Power | 69.9 hp (52.2 kw) | 65 hp (47.8 kw) |
| Power Measured @ | 2600 rpm | 2600 rpm |
| Peak Torque | 165 lb ft (223.7 Nm) | 157.7 lb ft (213.8 Nm) |
| Torque Measured @ | 1600 rpm | 1600 rpm |
Operational Specs
| Engine | Yanmar | Cummins |
|---|---|---|
| Operational Weight | 6791 lb (3080 kg) | 6911 lb (3135 kg) |
| Operating Voltage | 12 V | 12 V |
| Max Speed | 7.8 mph (12.6 km/h) | 7.64 mph (12.3 km/h) |
| Tire Size | 12-16.5-8PR | 12-16.5-8PR |
Hydraulic
| Pump Type | Gear type |
| Pump Flow Capacity | 21.7 gal/min (82.2 L/min) |
| Pump Flow Capacity (High Flow) | 32.3 gal/min (122.3 L/min) |
| Relief Valve Pressure | 3001.5 psi (20700 kPa) |
Service Refill Capacities
| Engine | Cummins B3.3 NA | Yanmar 4TNV98-ZNDS |
|---|---|---|
| Fuel Tank Capacity | 18.5 gal (70 L) | 18.5 gal (70 L) |
| Engine Oil Capacity | 2.11 gal (8 L) | 2.13 gal (8.1 L) |
| Cooling System Capacity | 1.2 gal (4.5 L) | 1.1 gal (4.2 L) |
| Hydraulic Tank Capacity | 13.2 gal (50 L) | 13.2 gal (50 L) |
| Chain Box Capacity (each side) | 1.85 gal (7 L) | 1.85 gal (7 L) |
